SFERA LUNA+ EKEY S-LINE 01 Fingerprint Reader Video entry panel High-End Bticino

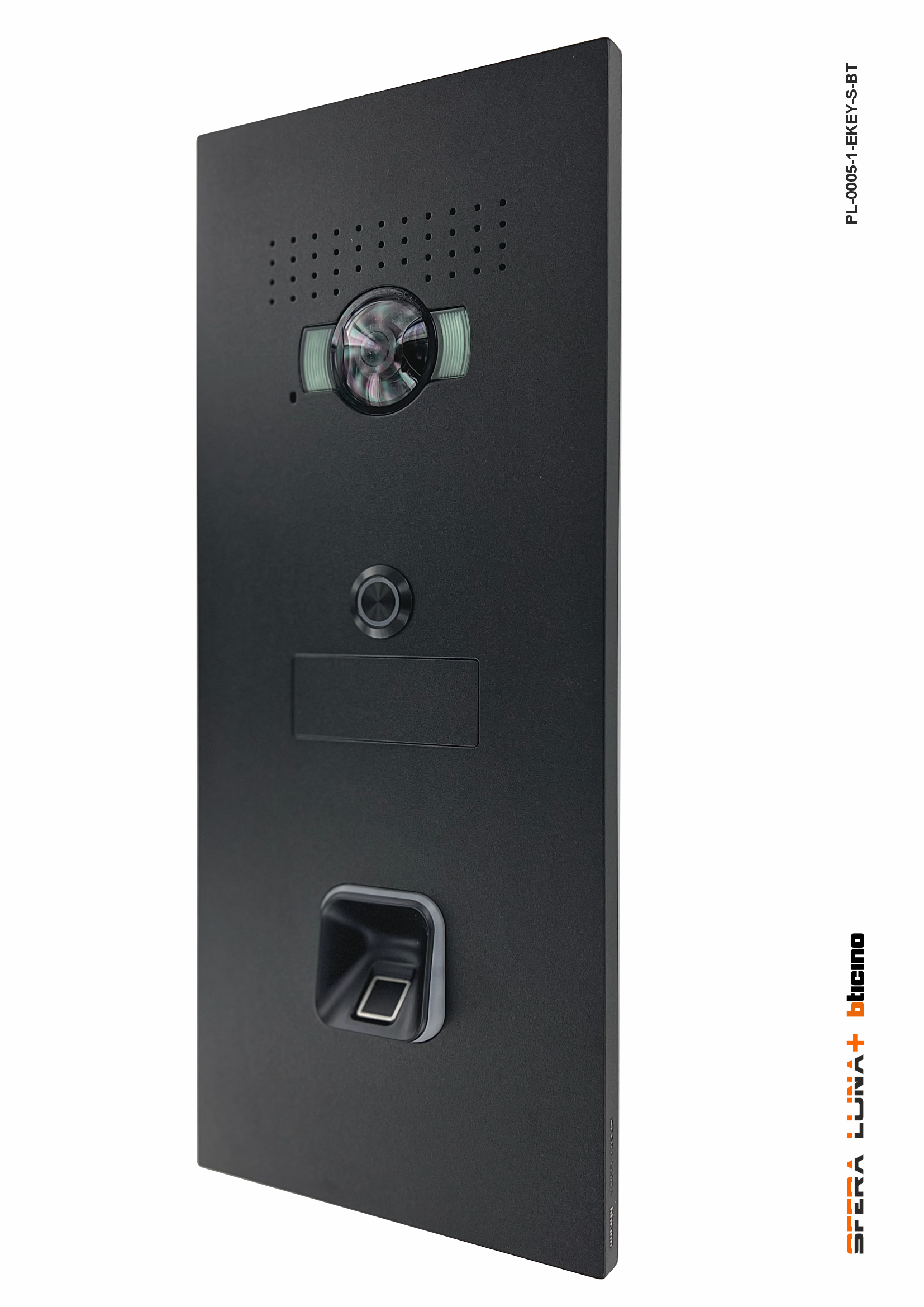

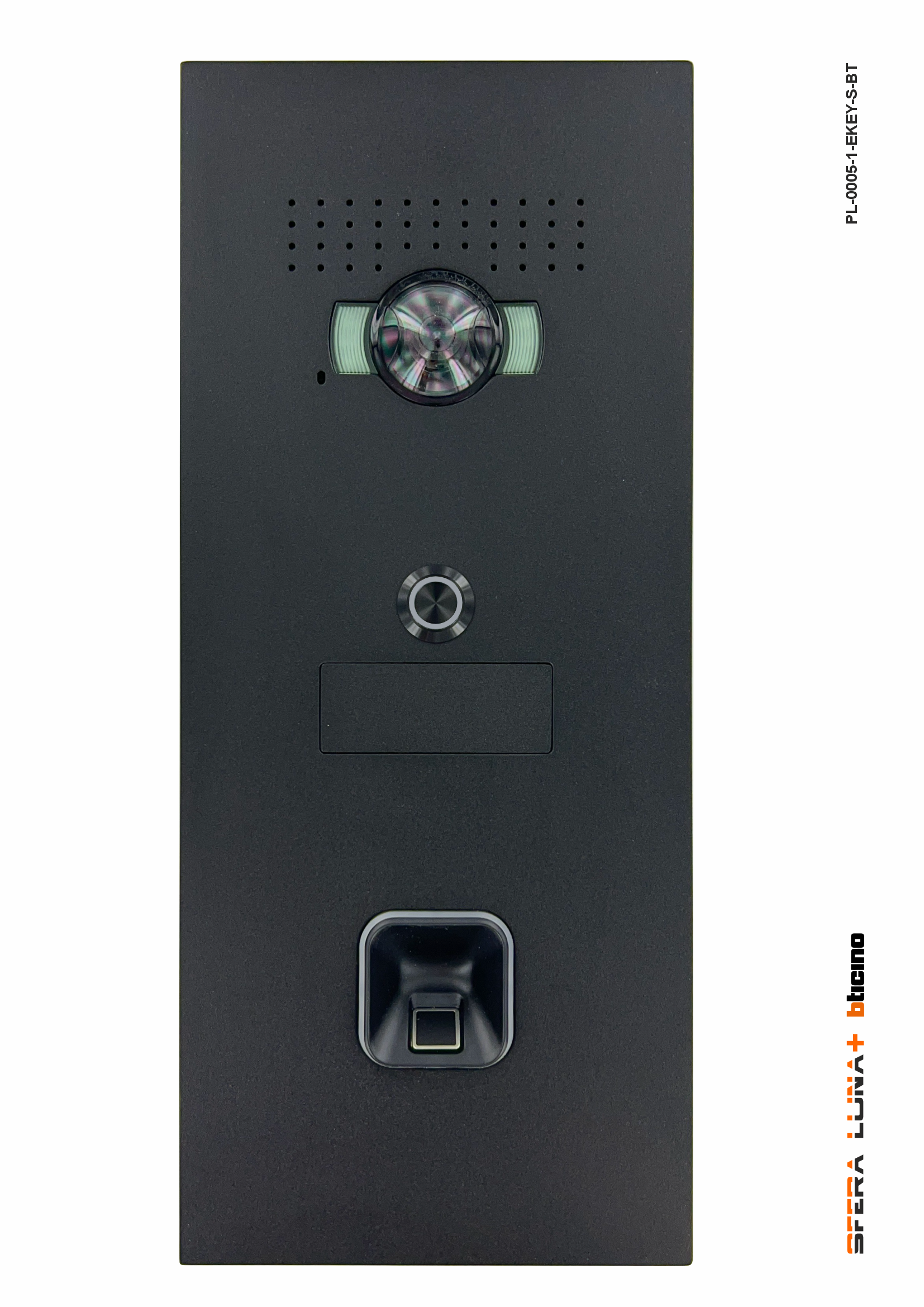

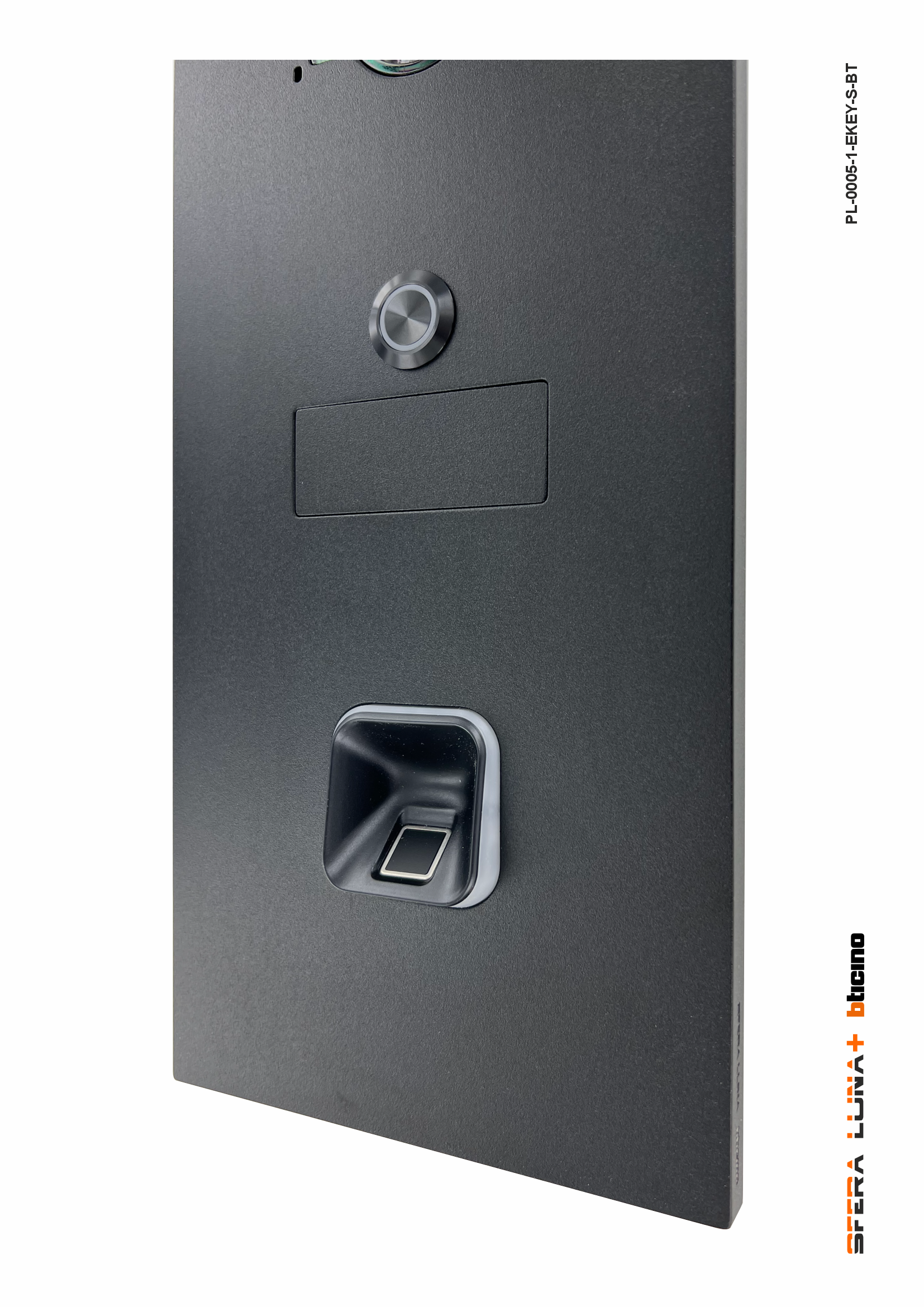

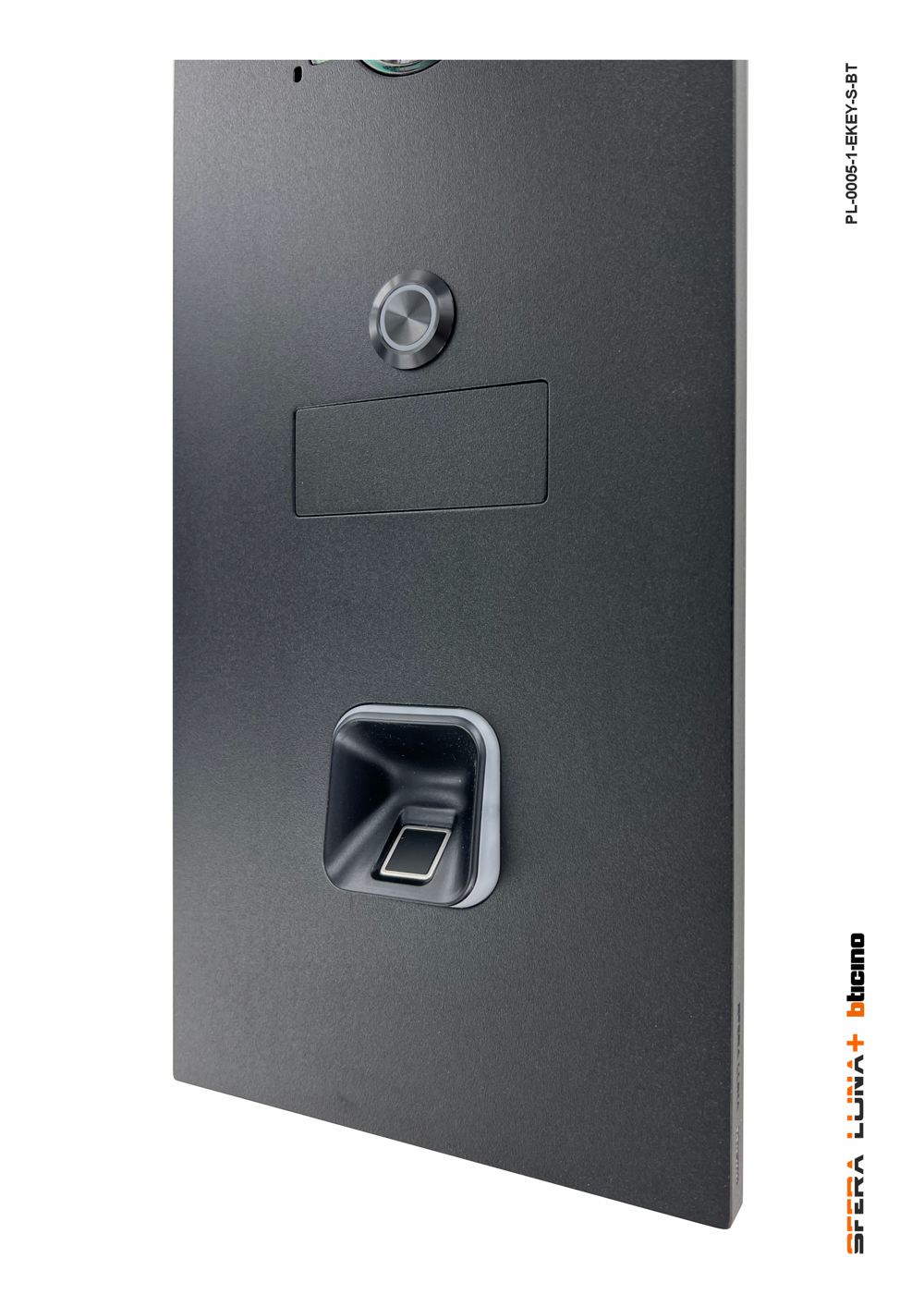

Video entry panel  SFERA LUNA with integrated fingerprint reader Ekey sLine for Bticino outdoor unit 351500

Standard installation on Bticino 350030 flush-mounted box.

These front panels are available in all ral colours to match with the ral colour of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Model flush mounting on standard box Bticino 350030
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

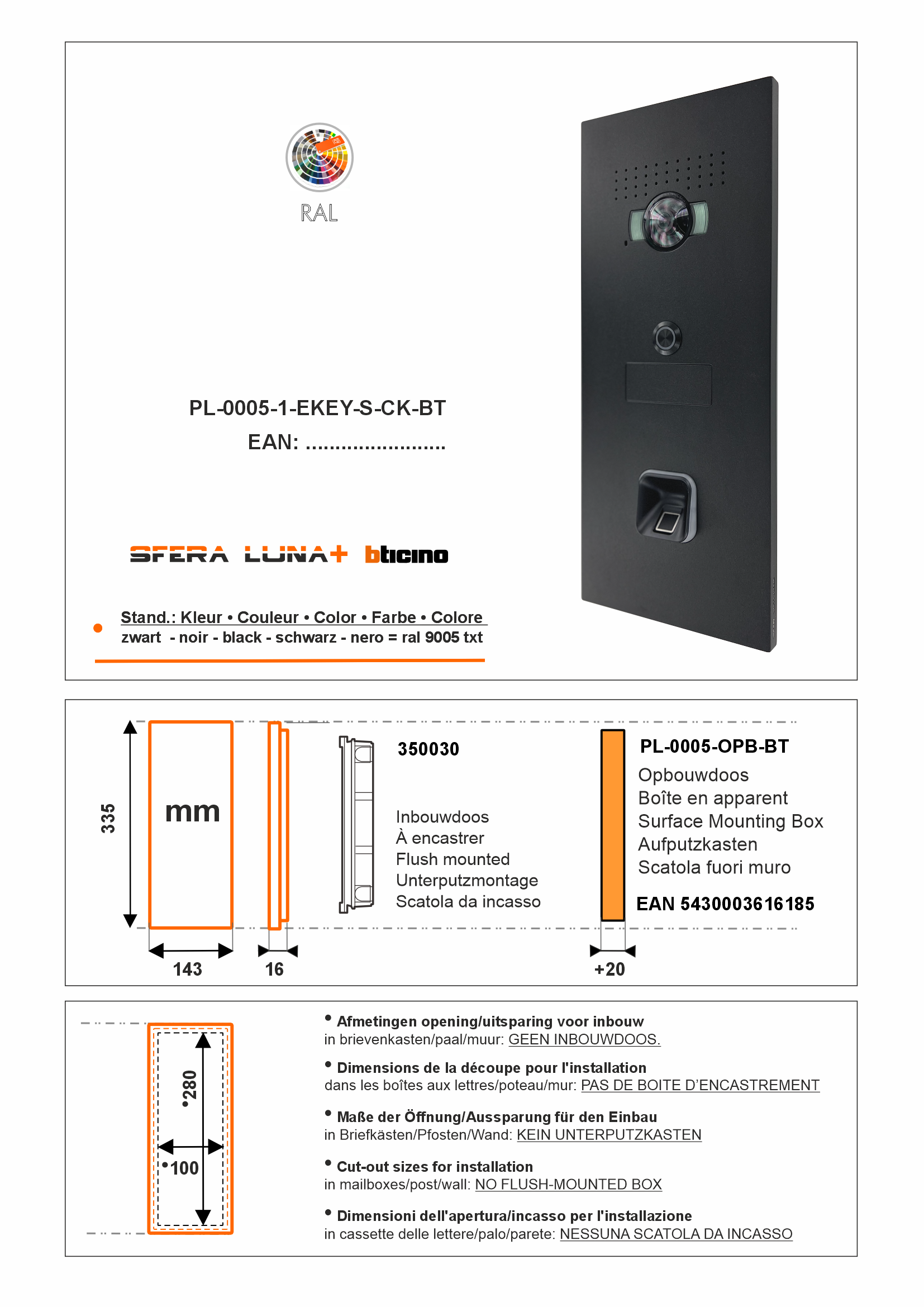

 Dimensions: width 143mm x height 335mm

We supply:

1. Front panel entrance in ral colour (IK08 - IP54)
2. Modular panel frame + screws for installation on mounting box 350030 Bticino
3. 351305pkm - plexiglas for module audio/video module
4. 1 pushbutton black stainless steel, stainless steel or led (IK08 - IP67)
5. 1 Interchangeable name tag (IP68)
6. Mounting prepared for installation module Sfera fingerprint reader Ekey sLine (EK 714701 or 714702)

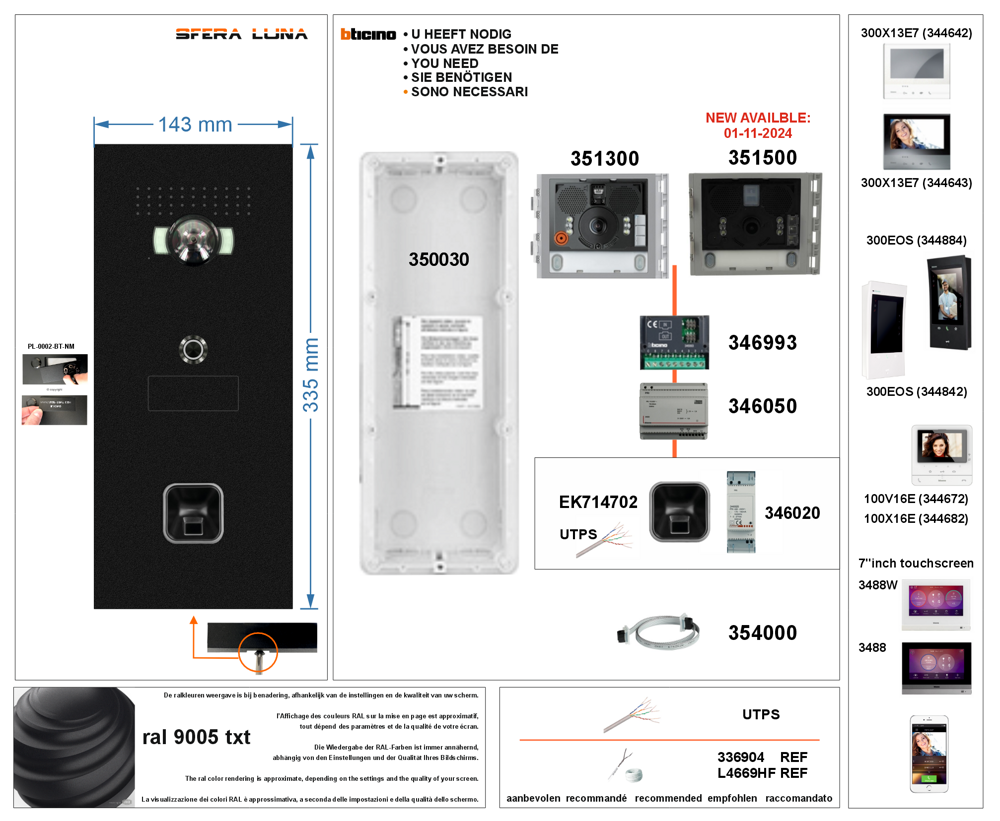

You need:

1. 350030 - flush-mounting box 3 modules
2. 351500 - Audio/video module with wide-angle lens
3. 346993 - interface sfera
4. EK 714702  (black) or EK714701 (white) Sfera fingerprint reader sLine Ekey  + Power supply 346020
5. 346050 - Power supply
6. Compatible with all Bticino indoor units; examples: 100X16E or 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch (3488)
7. Preferably use REF 336904 twisted cable OR UTPS for the connection

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
