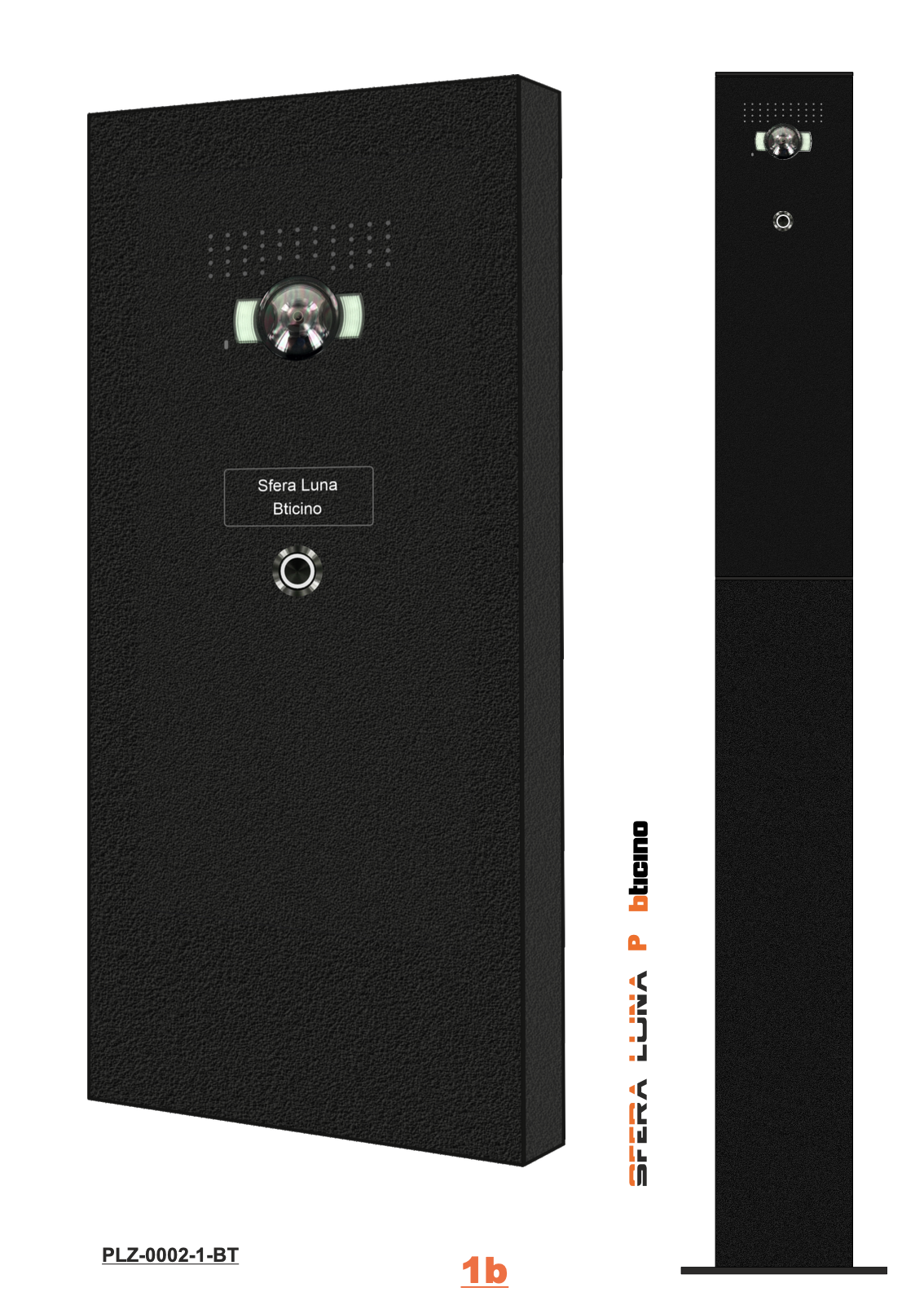

The column is compatible with all Bticino modules, e.g.: Bticino camera 351500 with wide-angle lens, viewing angle horizontal 152° - vertical 96°.
Communication column/pole available in all RAL colors of your choice, standard black RAL 9005 txt.
The modules are completely flush-mounted without protruding edges for a streamlined design.
Anti-vandal IK08.

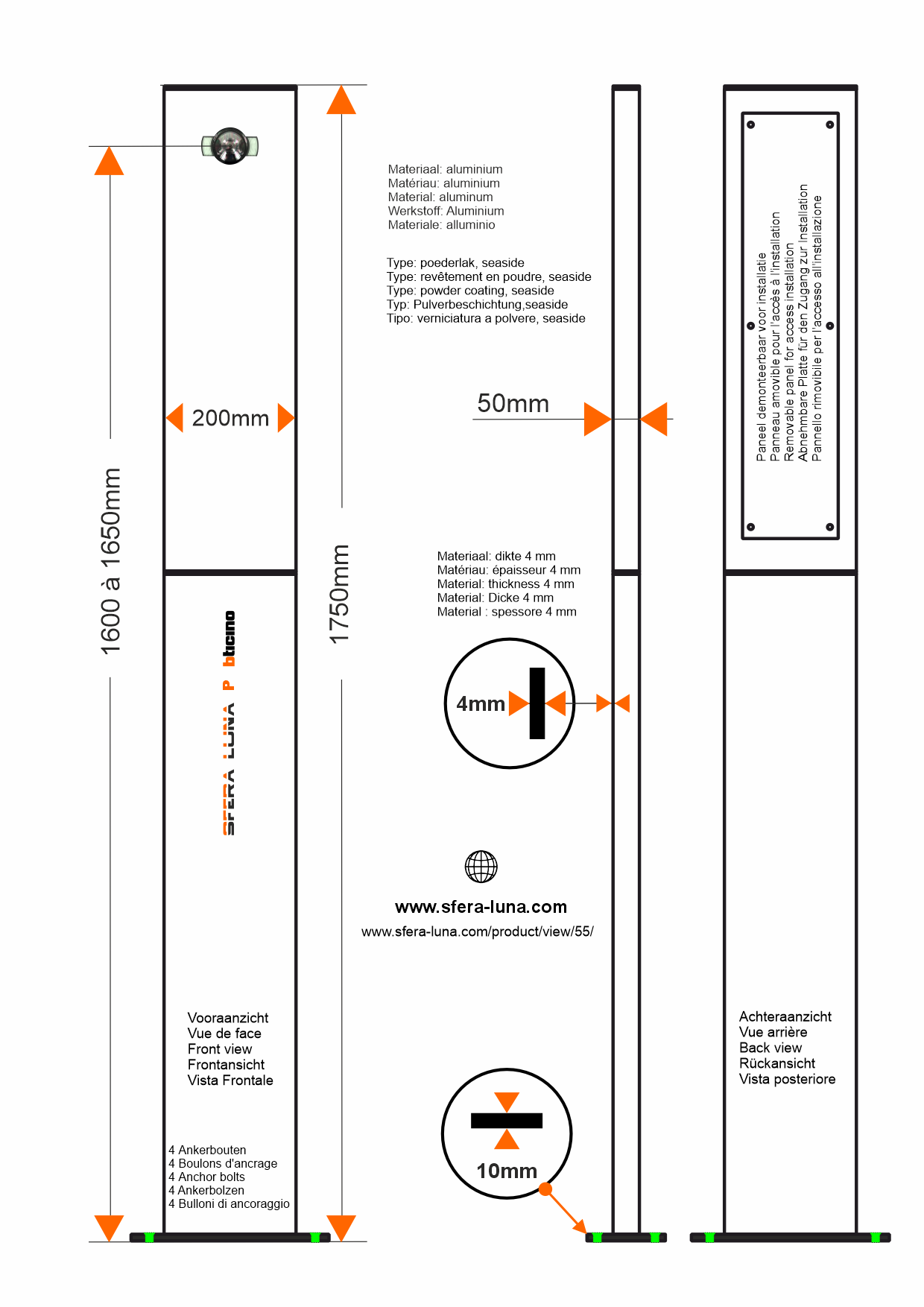

Dimensions:
Height: 1750 mm
Width: 200 mm
Column depth: 50 mm
Thickness of mounting base plate: 10 mm
Width of mounting base plate: 300 mm
Depth of mounting base plate: 150 mm
All RAL colours available
Sfera Luna (partner of the Legrand Group & Bticino) (copyrighted model)
We supply:
Post/column + fully recessed front panel in RAL colour
Fully flush-mounted installation for the Bticino components
351105pkm – Plexiglas for mounting in a plate
1 doorbell button
1 interchangeable nameplate
4 fixing bolts
Cover plate to hide the fixing bolts at the bottom

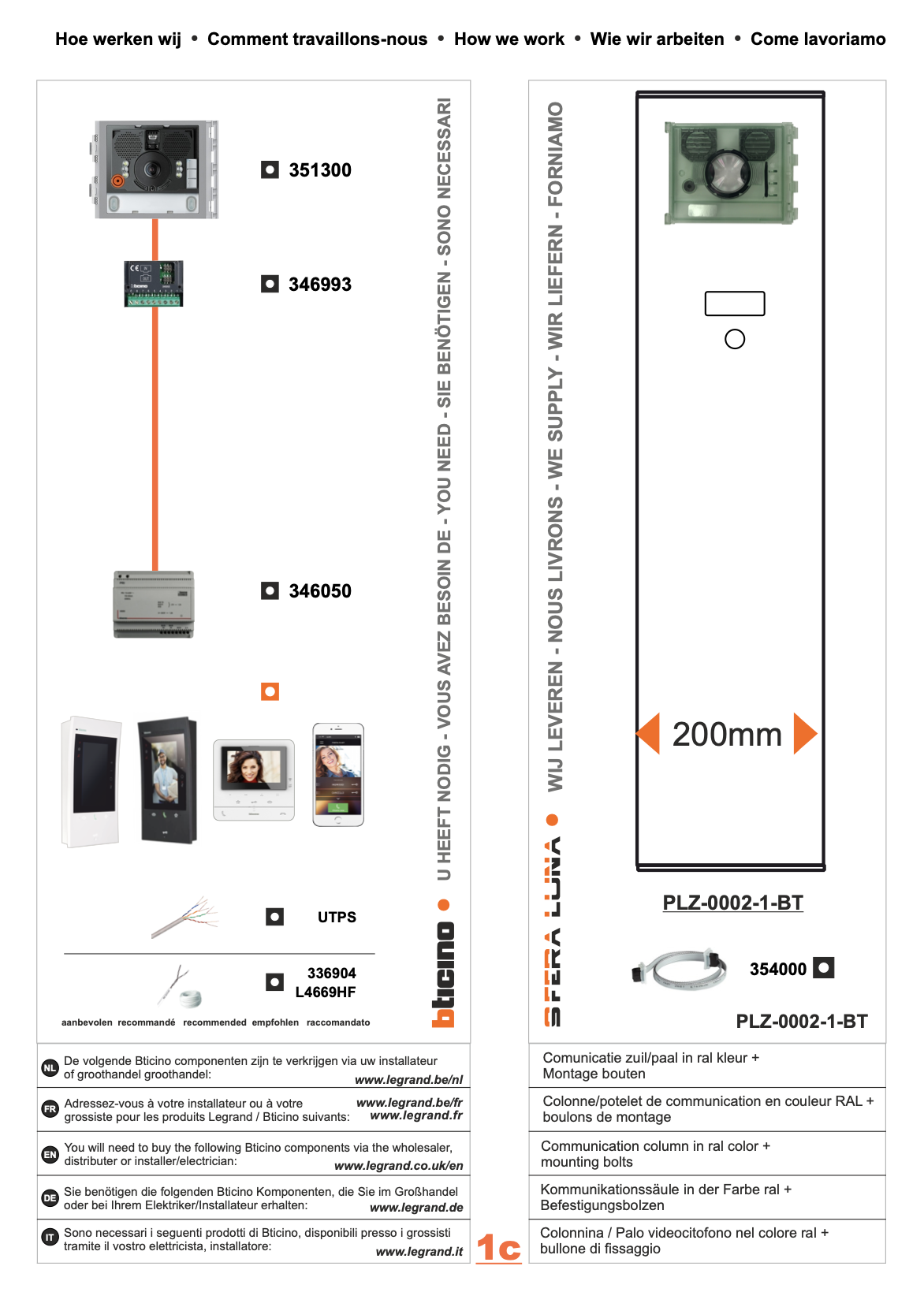

You need the following Bticino components, available:
through wholesalers
through your electrician/installer (BT Certified Expert)
via stores
Component codes:
351300 – Audio/video module with wide-angle lens
354000 – Connection cable for functional modules
346993 – Sfera Interface
346050 – Power supply(s)
Indoor station(s) of your choice, compatible with BTICINO
