SFERA LUNA+10 PUSH BUTTONS Video Parlofonie High-End BTICINO

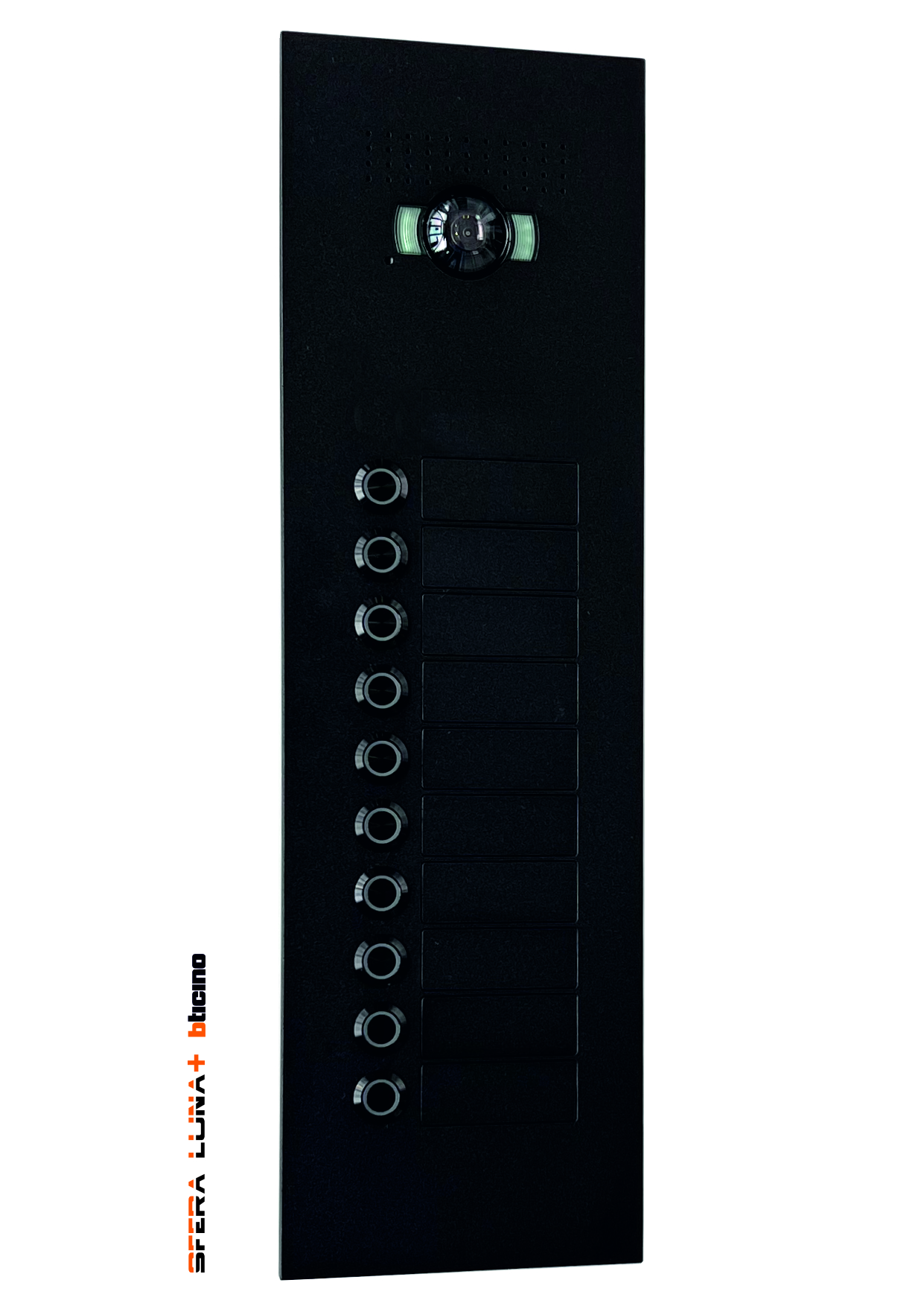

Videophone front entry panel SFERA LUNA+10 for Biticino wide angle audio/video 351500

Sleek high-end design at the entrance of youre residence / apartment ...

A eight way call button system, vandal resistant.

The front panels are available in all ral colors, matching the color of your residence or project.

• 10 doorbell buttons
• 10 interchangeable nameplates, easy mounting with unique invisible mounting system
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .

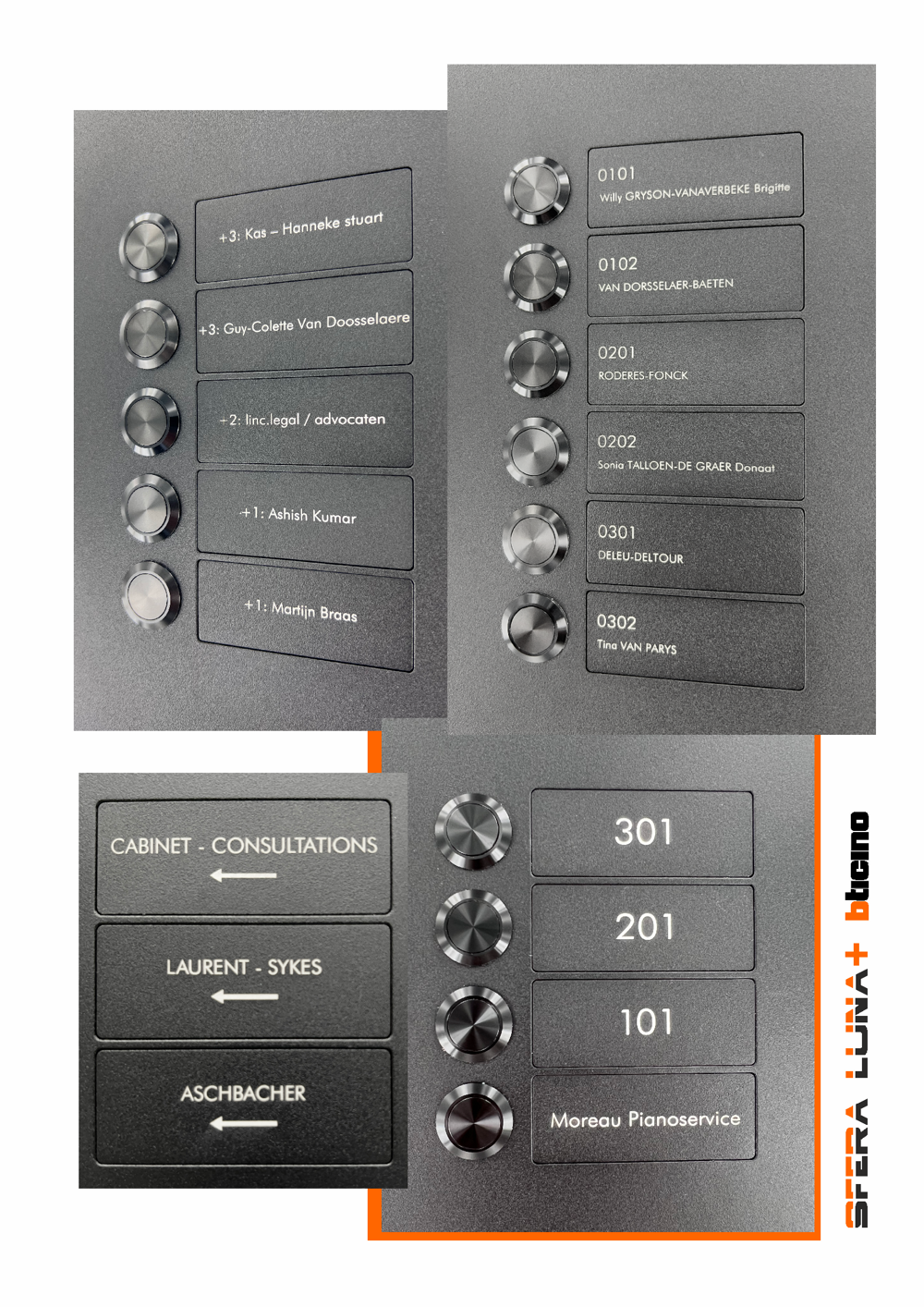

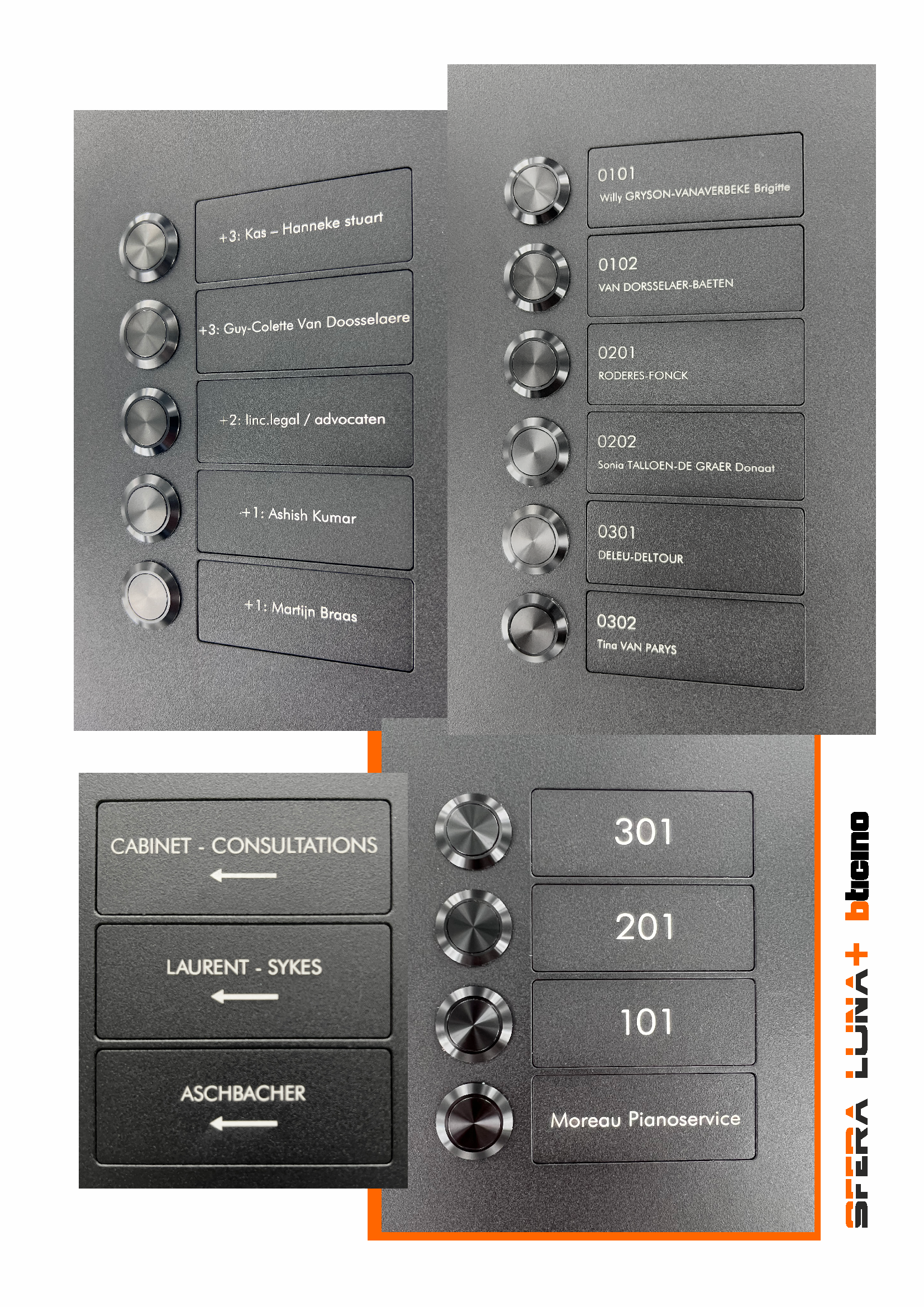

• Removable nameplate can be personalized or not.
• Easy installation in narrow environments

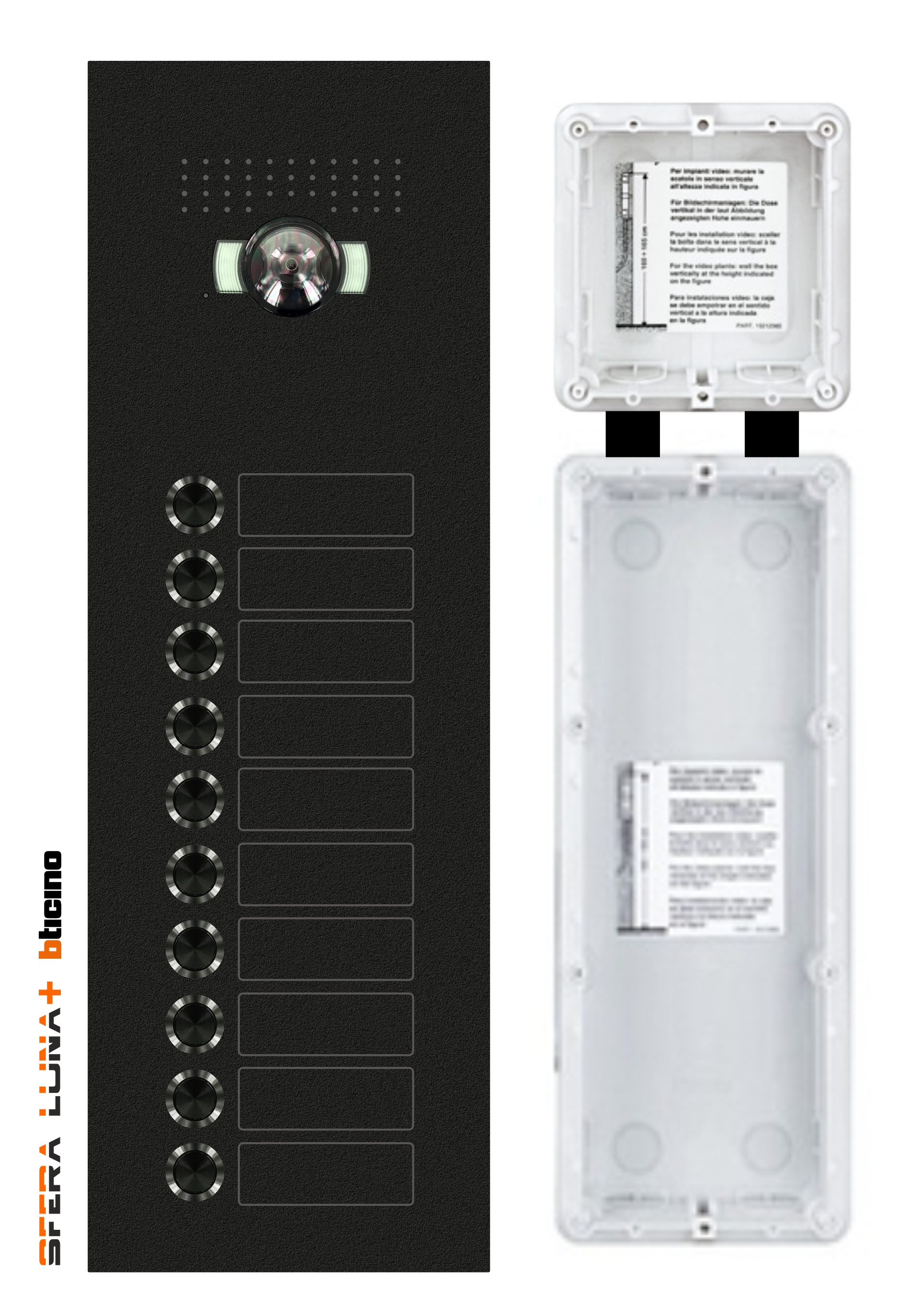

• Model flush mounted on standard box Bticino 350030 + 350010
• Positionable with oblong holes.
• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group), copyright model.

 SFERA LUNA DOCUMENTS

 All Ral colours available

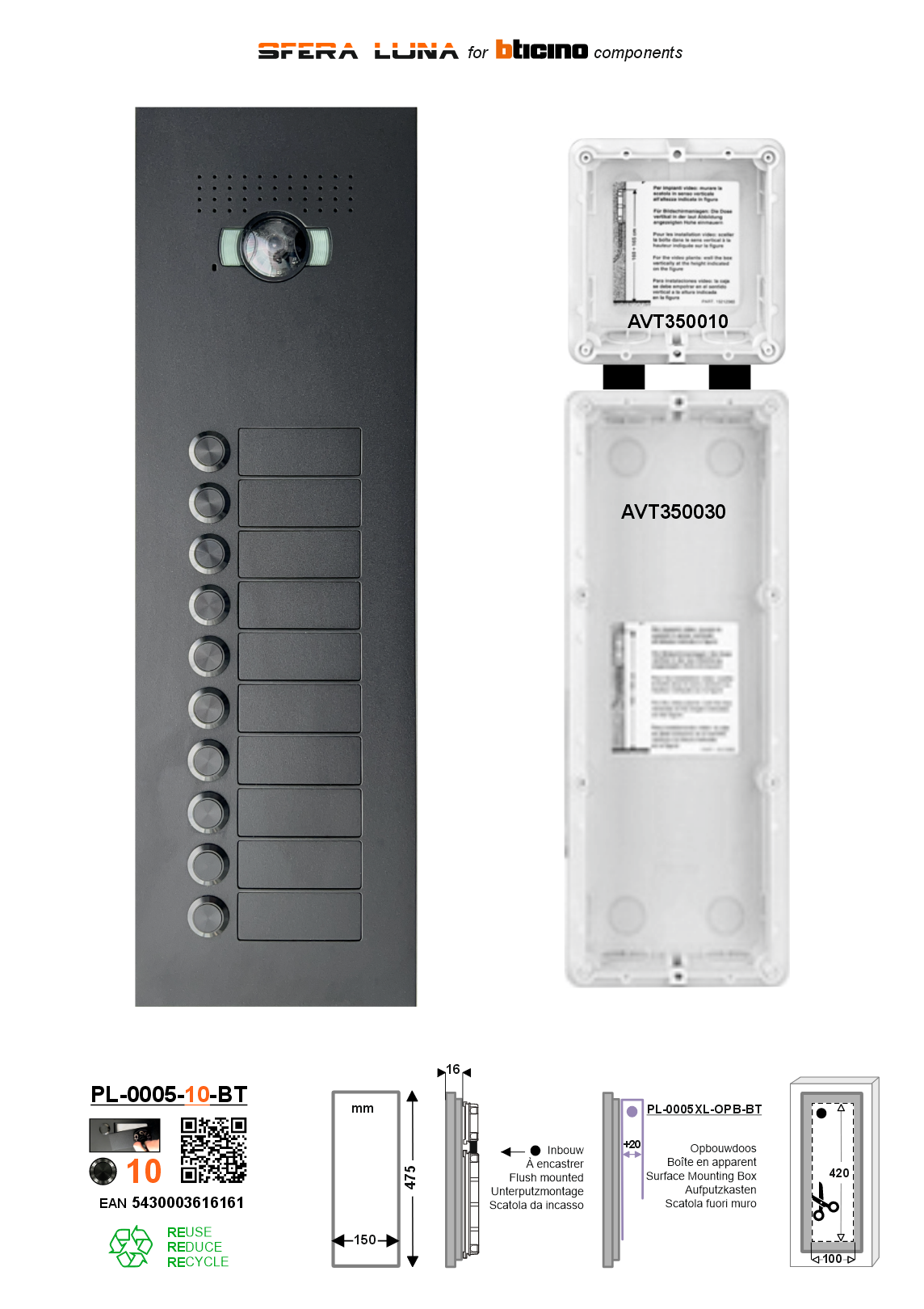

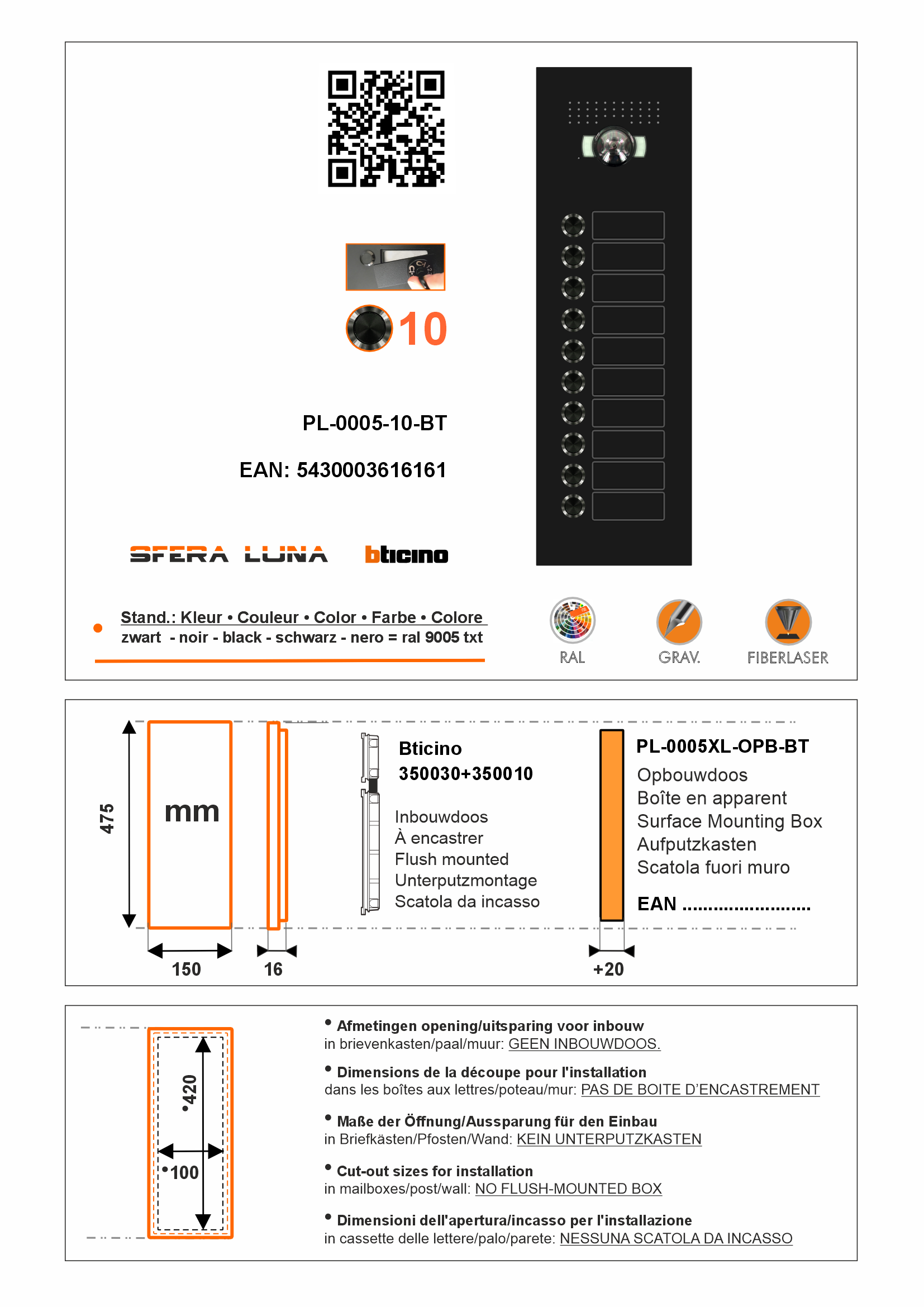

 Dimensions: width 150mm x height 480mm

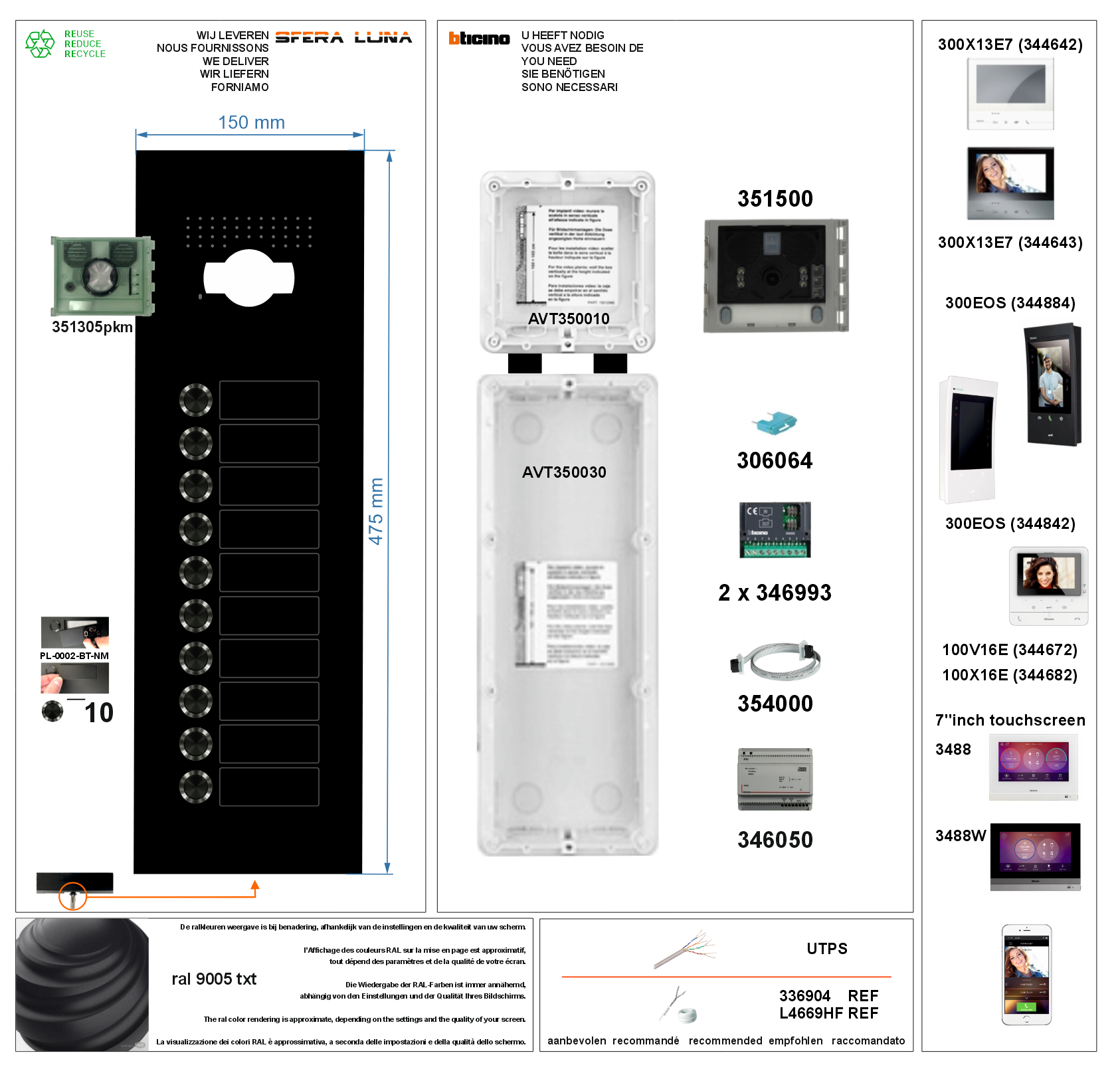

We supply :

1. Front panel entrance in ral color.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting boxes 350030 + 350010
3. 351305pkm - plexiglas for module Audio/Video
4. 10 pushbuttons (integrated) black stainless steel, stainless steel or led  (IP67 - IK08)
5. 10 interchangeable name tags  (IP68)
6. Tool for mounting changeable name tags

You need Bticino components :

1. 350030 + 350010 - flush-mounting boxes
2. 354000 - Videoparlofonie connection cable for functional modules, 620mm
3. 351500 - Audio/video module with wide-angle lens
4. 346993 - Interface Sfera (up to 8 call buttons possible) x2
5. 346050 - Power supply
6. 306064 - Conf. set
7. Preferably use REF 336904 twisted cable or UTPS for the connection
8. Compatible with all Bticino indoor units: Class 100X16E (344682) or Class 300 X13E7 wifi-3/4G (344642)

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
