Video Parlofonie High-End Bticino Sfera Luna+7

Product Code : PL-0005-7-BT

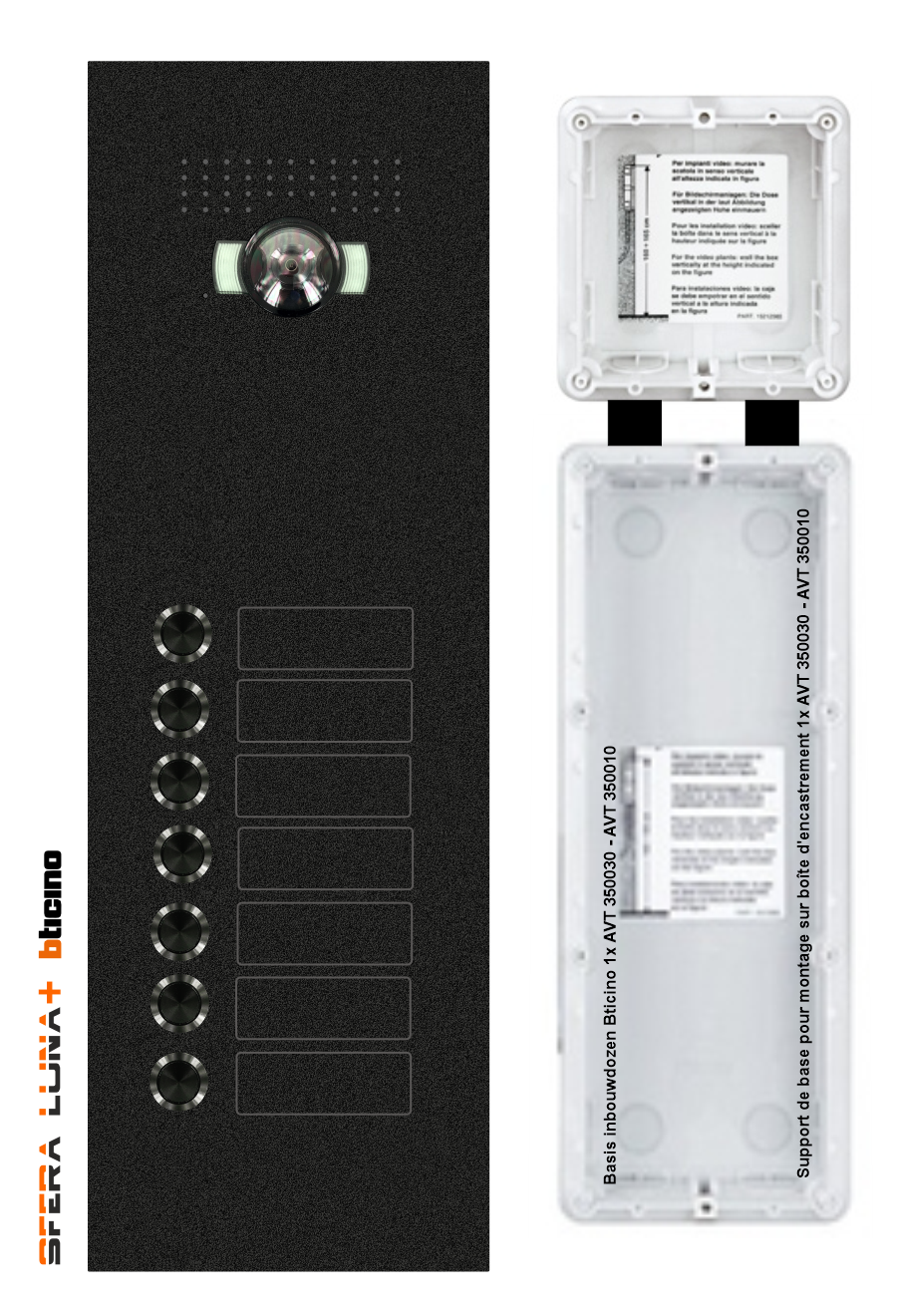

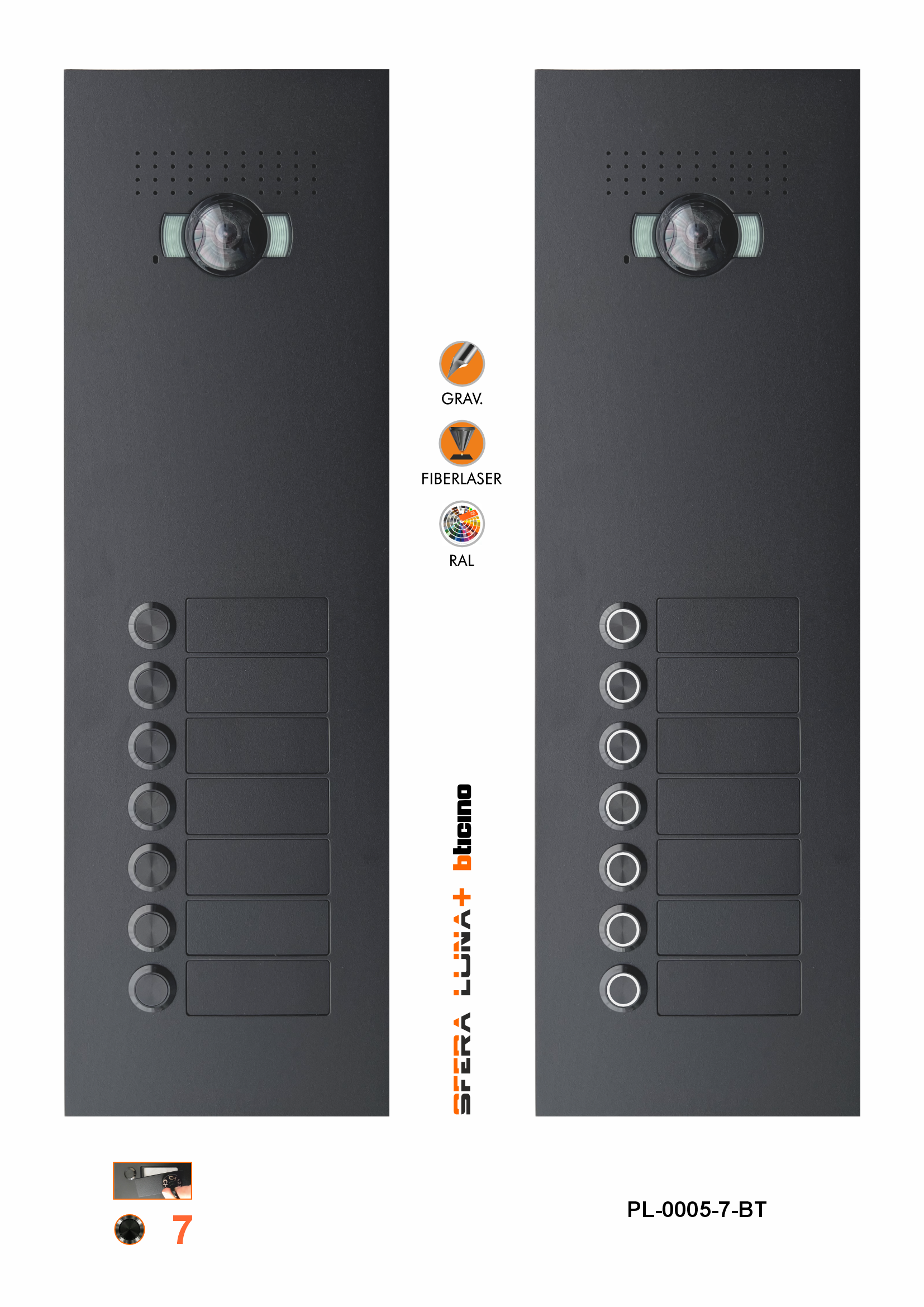

Videophone front entry panel SFERA LUNA+7 with 7 interchangeable name tags

For Biticino wide angle audio/video AVT 351300 viewing angle: horizontal 135°- vertical 96°

Sleek high-end design at the entrace of youre residence / apartment ...

A 7-way call button system, vandal resistant.

Design front panel as standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.


  • 7 doorbell buttons for duo house or flat or practice/private application.
  • 7 interchangeable nameplates, easy mounting with unique invisible mounting system
  • Produced in 10mm aluminium, High End, Solid finishing.
  • Central mounting system front panel. (Simple blind mounting)
  • Vandalism resistant.
  • Installation possibilities: on walls, gates, poles, mailboxes, etc ...
  • Installation possibilities in mailboxes ... .

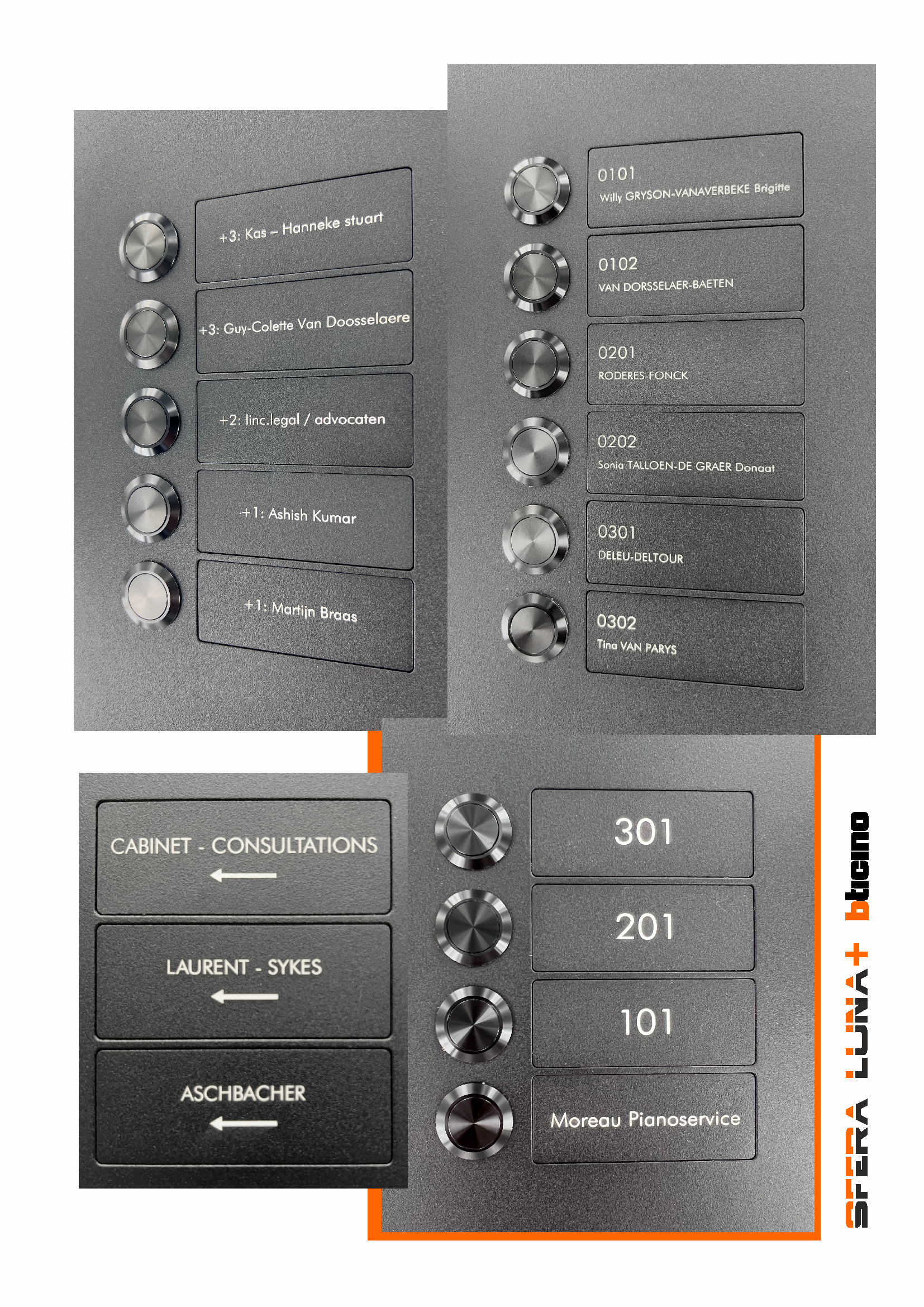

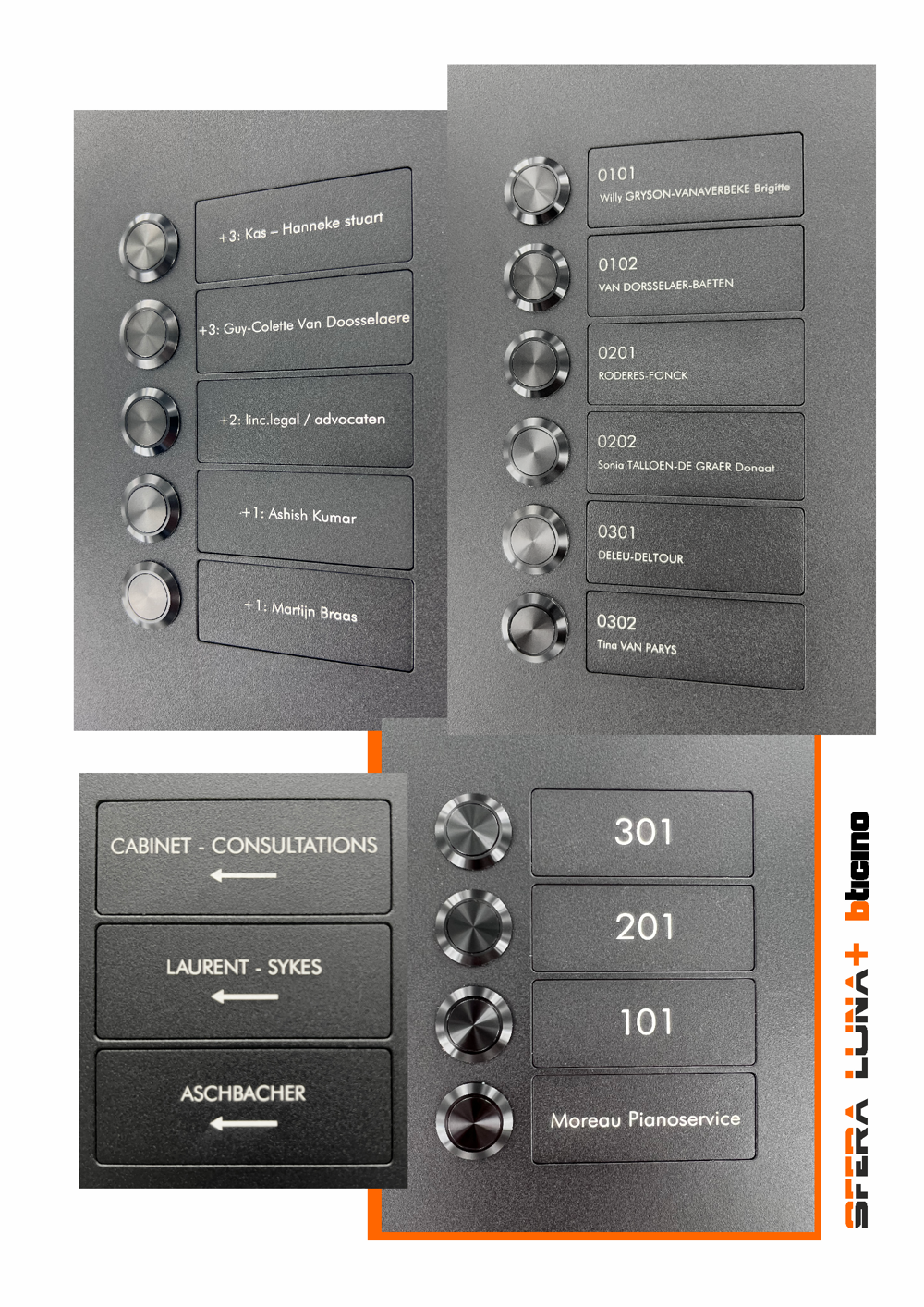

  • Removable nameplate can be personalized or not.
  • Easy installation in narrow environments
  • Model flush mounted on standard box Bticino 350030 + 350010
  • Positionable with oblong holes.
  • Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)




ralkleuren plexi-view All Ral colours available

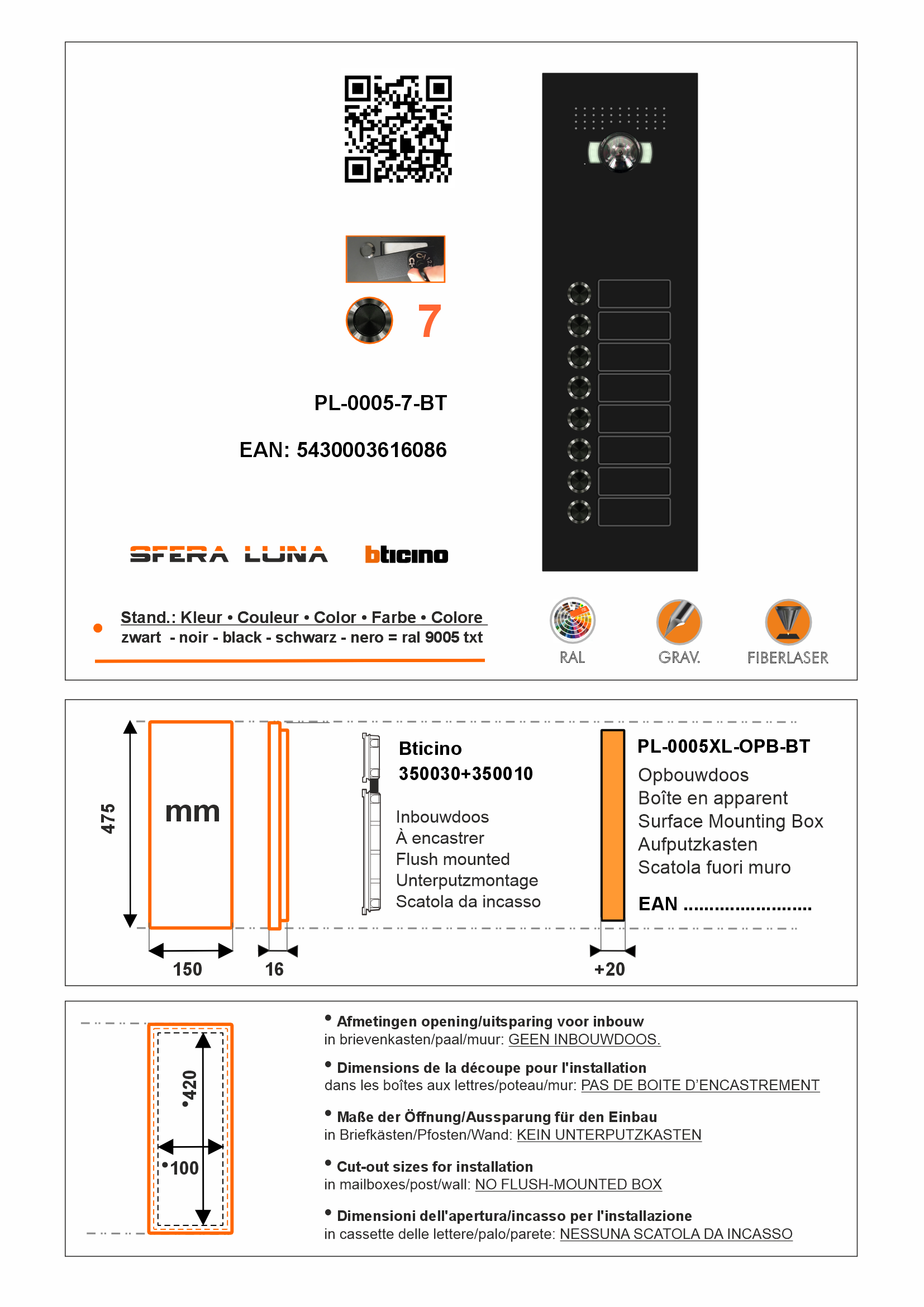

afmetingen plexi-view Dimensions: width 150mm x height 480mm

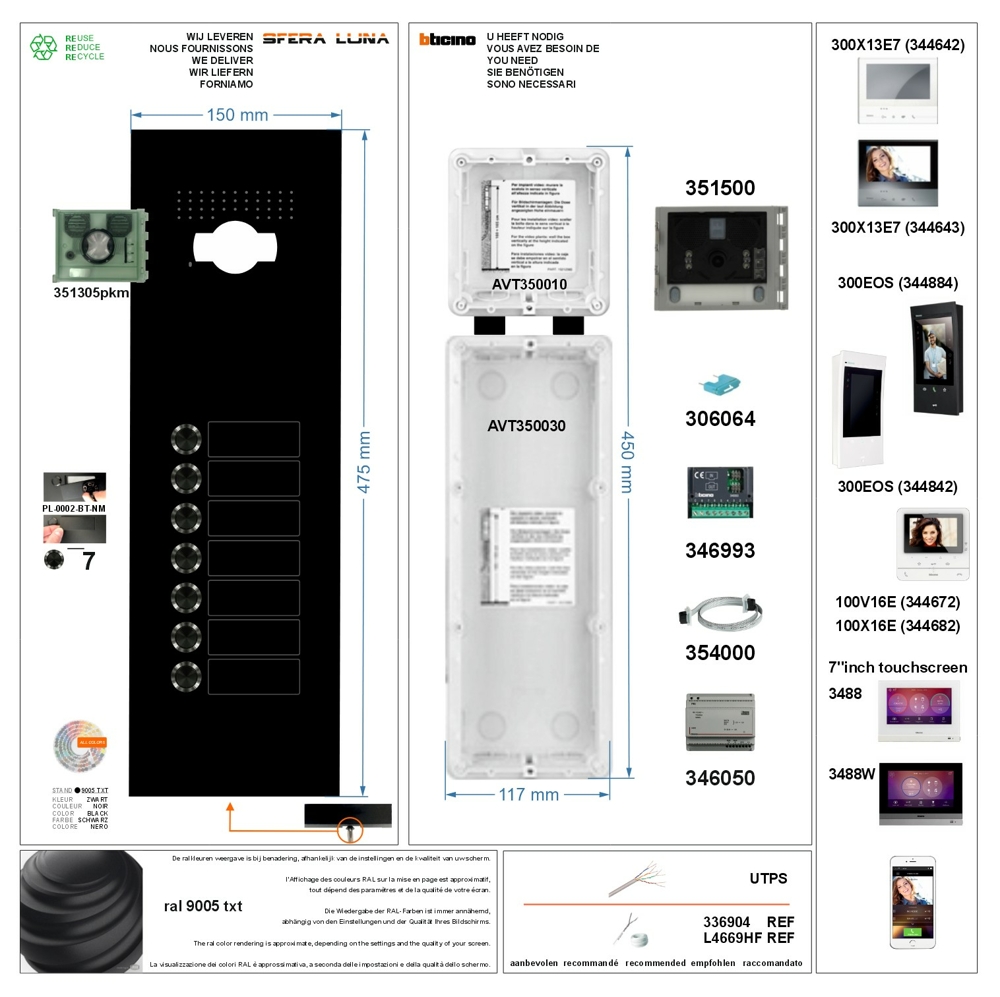

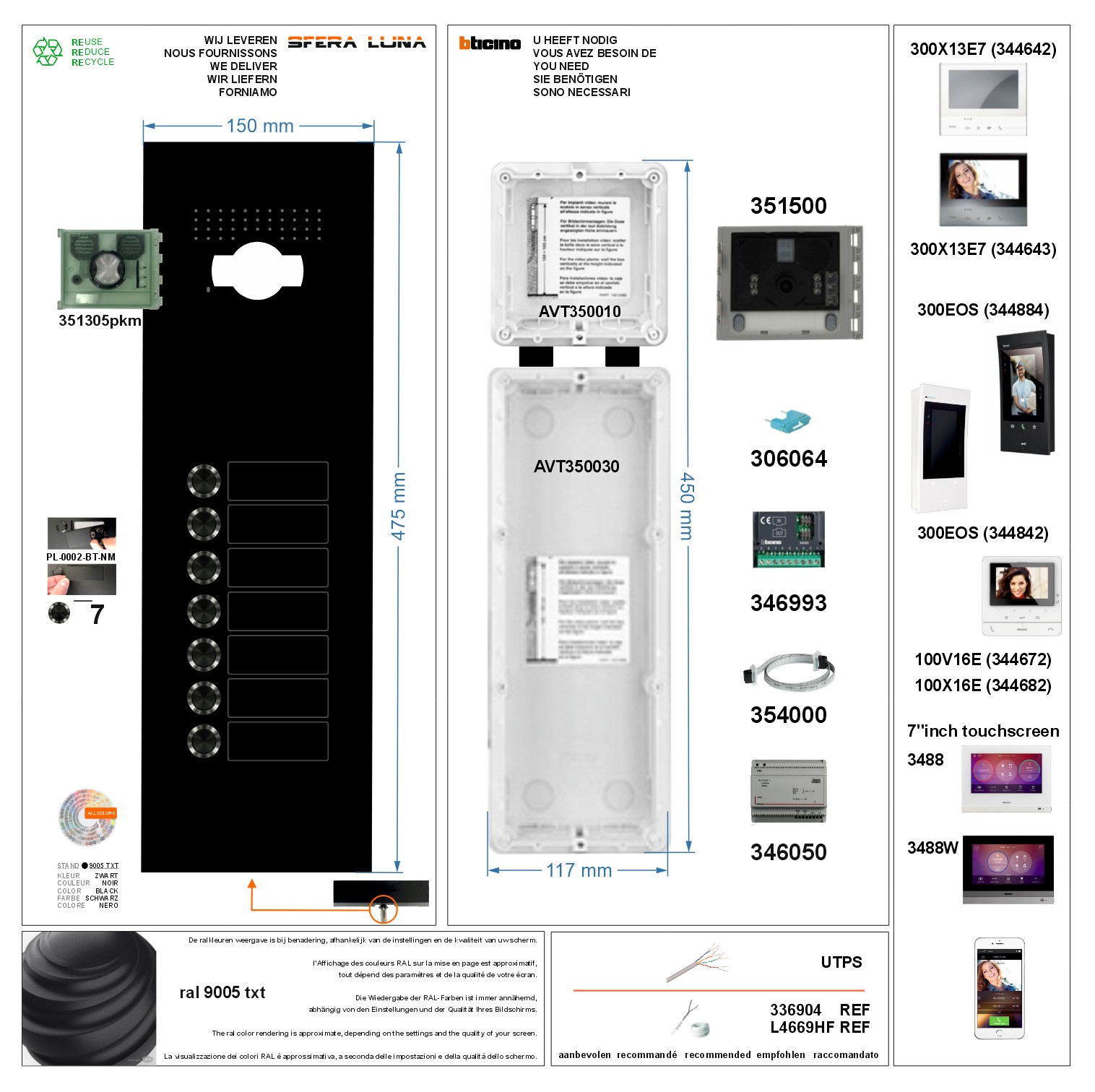

We supply :

  1. Front panel in ral color with mounting key.
  2. Basic bracket for mounting on AVT flush-mounting boxes 350030 + 350010
  3. Screws for mounting on flush-mounting boxes
  4. 351305pkm - plexi for module 351300 AVT
  5. 354000 Videoparlofonie connection cable for functional modules
  6. 7 call pushbuttons integrated
  7. 7 name tags, Interchangeable.

You need :

  • 350030 + 350010 AVT - flush-mounted boxes
  • 351300 AVT - Audio/video module with wide-angle lens
  • 346993 Interface Sfera (up to 8 call buttons possible)
  • 346050 AVT - Power supply
  • Ref 306064 conf. set
  • Compatible with all Bticino indoor units: AVT-Class 100X16E (344682) or AVT-Class 300 X13E7 wifi-3/4G (344642)


    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores





  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.



Sfera Luna (partner of the Legrand Group), copyright model.
