SFERA LUNA+7 Push-button Video Intercom System – High-End Bticino

• Standard finish in RAL 9005 black (fine texture)
• Available in all RAL colours
• Perfectly matched to your architecture
• Professional powder-coated finish "Seaside"
• Ideal for coastal areas and maritime environments

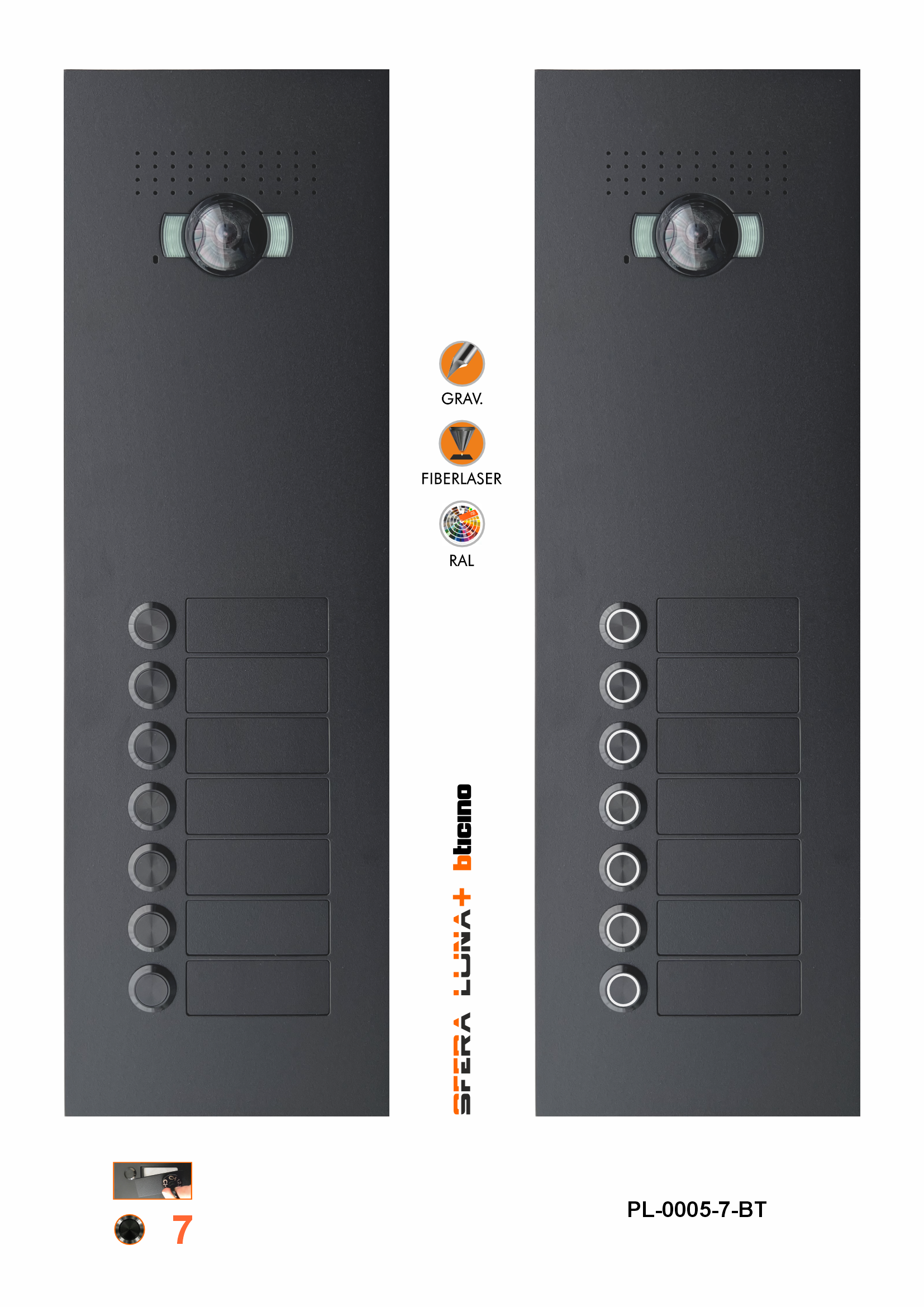

The SFERA LUNA front panel is fitted with interchangeable nameplates and high-quality call buttons, designed for a sleek appearance and easy personalisation. This solution is ideal for homes, residential buildings and professional applications where flexibility and durability are key.

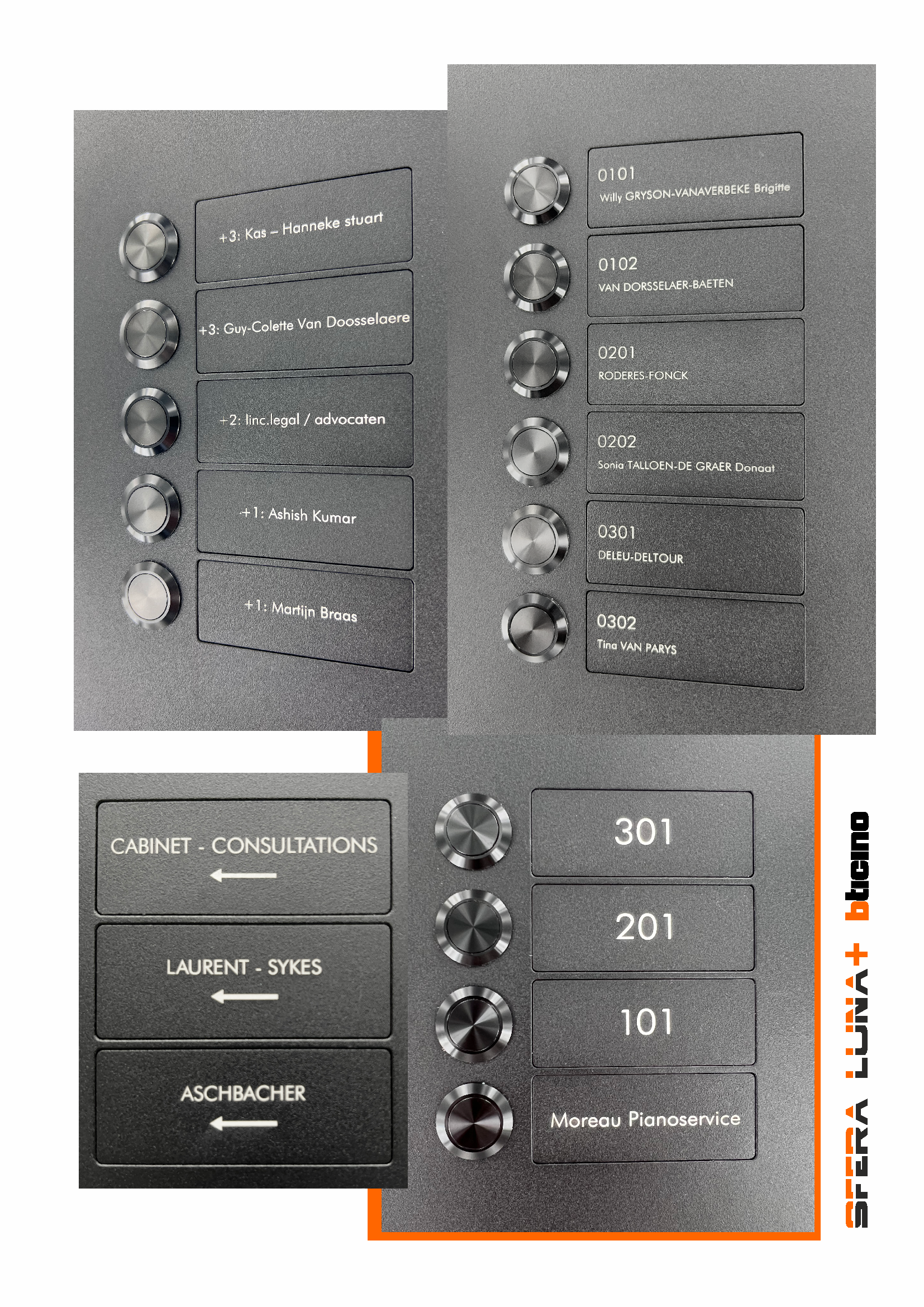

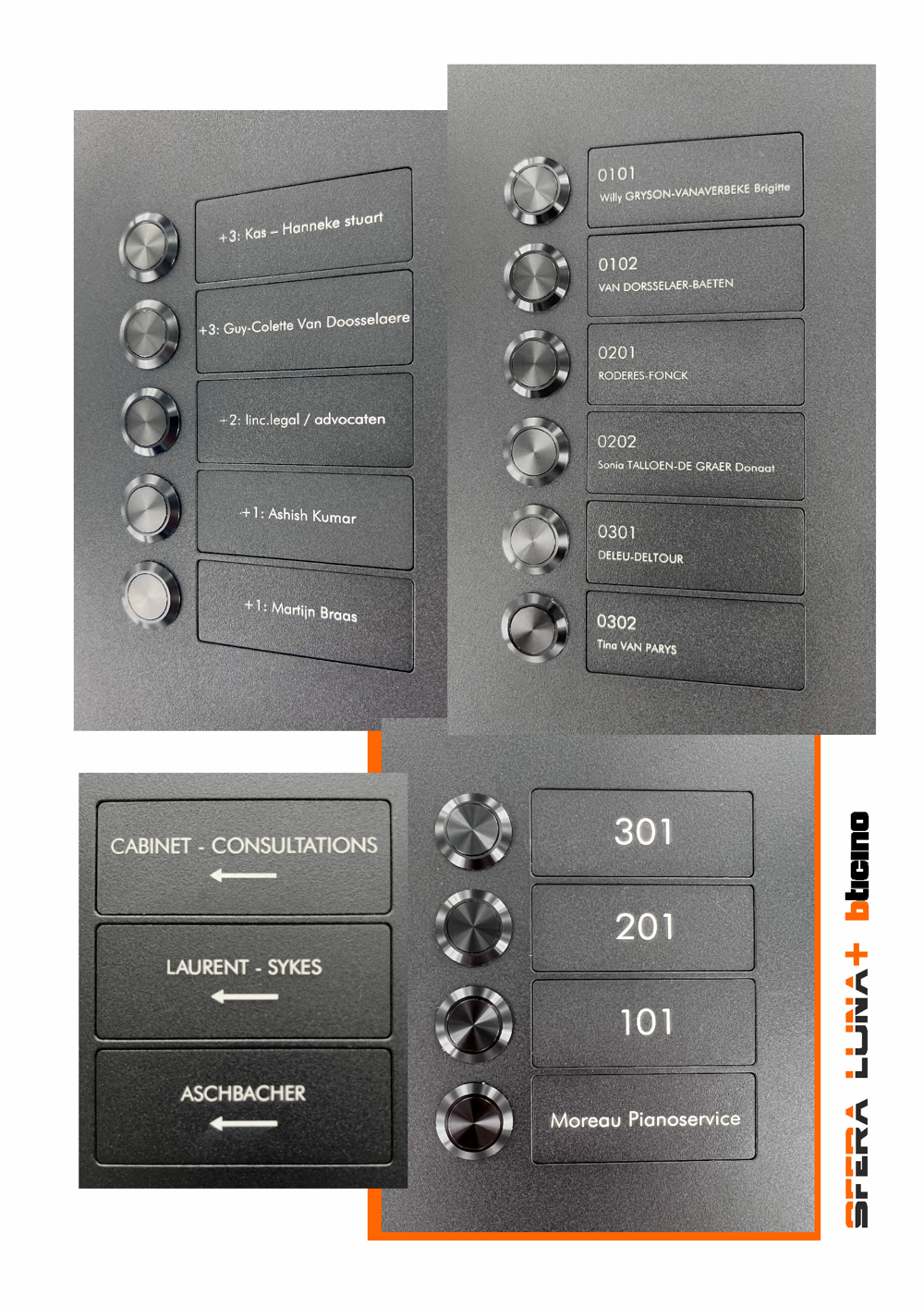

• 7 interchangeable nameplates / name badges
• Unique invisible mounting system for a sleek appearance
• Nameplates are easy to swap and personalise
• Doorbell buttons available in black or stainless steel
• Optional with discreet LED lighting, connection via the bus
• Weather- and vandal-resistant – IP65 / IK08

• Central mounting system with concealed fixing
• Sleek integration into walls, gates, posts or letterboxes
• Ideal for installations in confined or narrow spaces

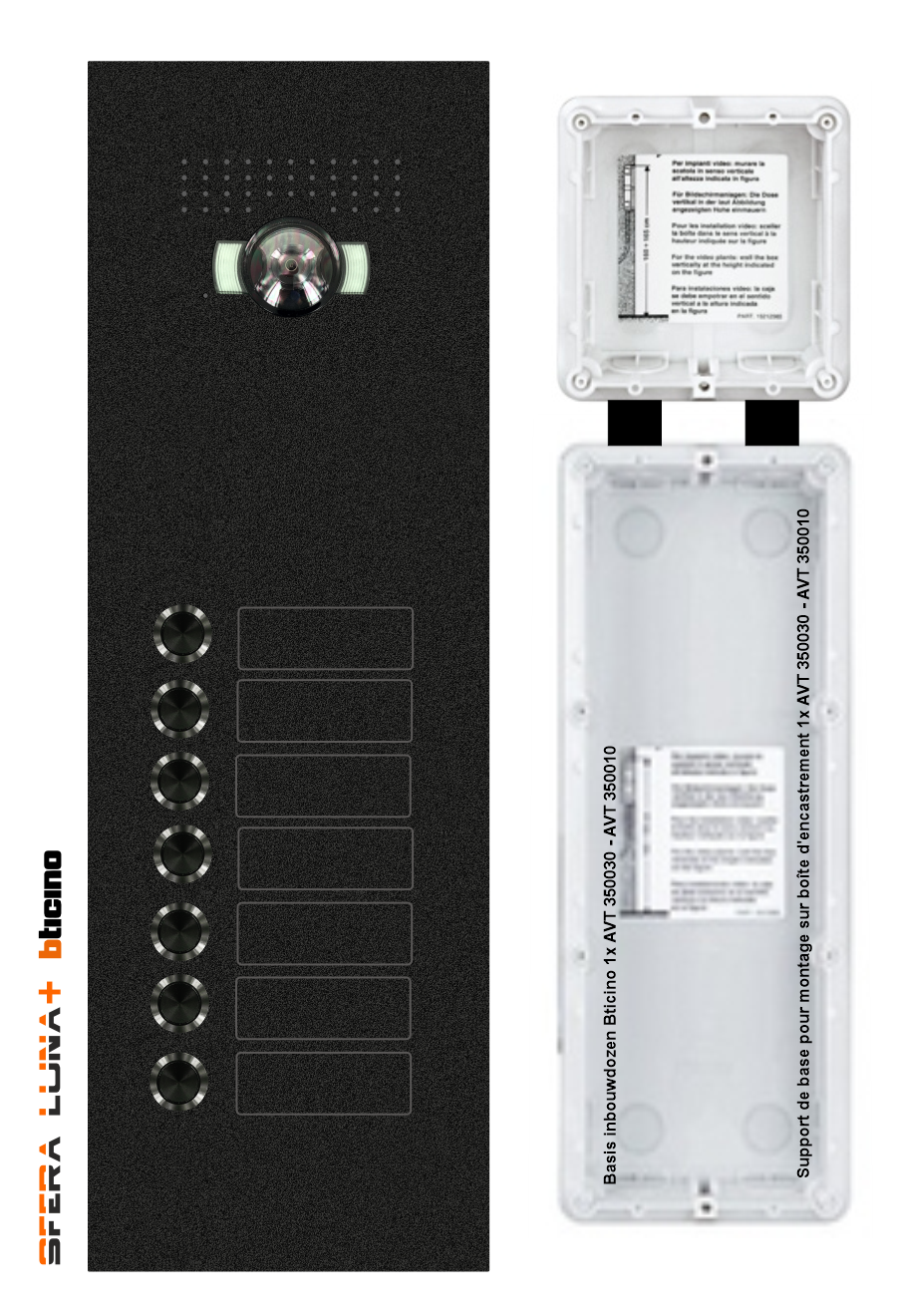

• Flush-mounted on BTicino flush-mounting boxes 350030+350010
• Also available with surface-mounted solution
• Vandal-resistant IP54 – IK08

The SFERA LUNA front panel has been developed for durable installation in outdoor environments. Thanks to its solid aluminium construction and high-quality finish, the system offers excellent resistance to weathering and vandalism.

• Front panel: IK08 – IP54
• Call buttons: IK08 – IP65

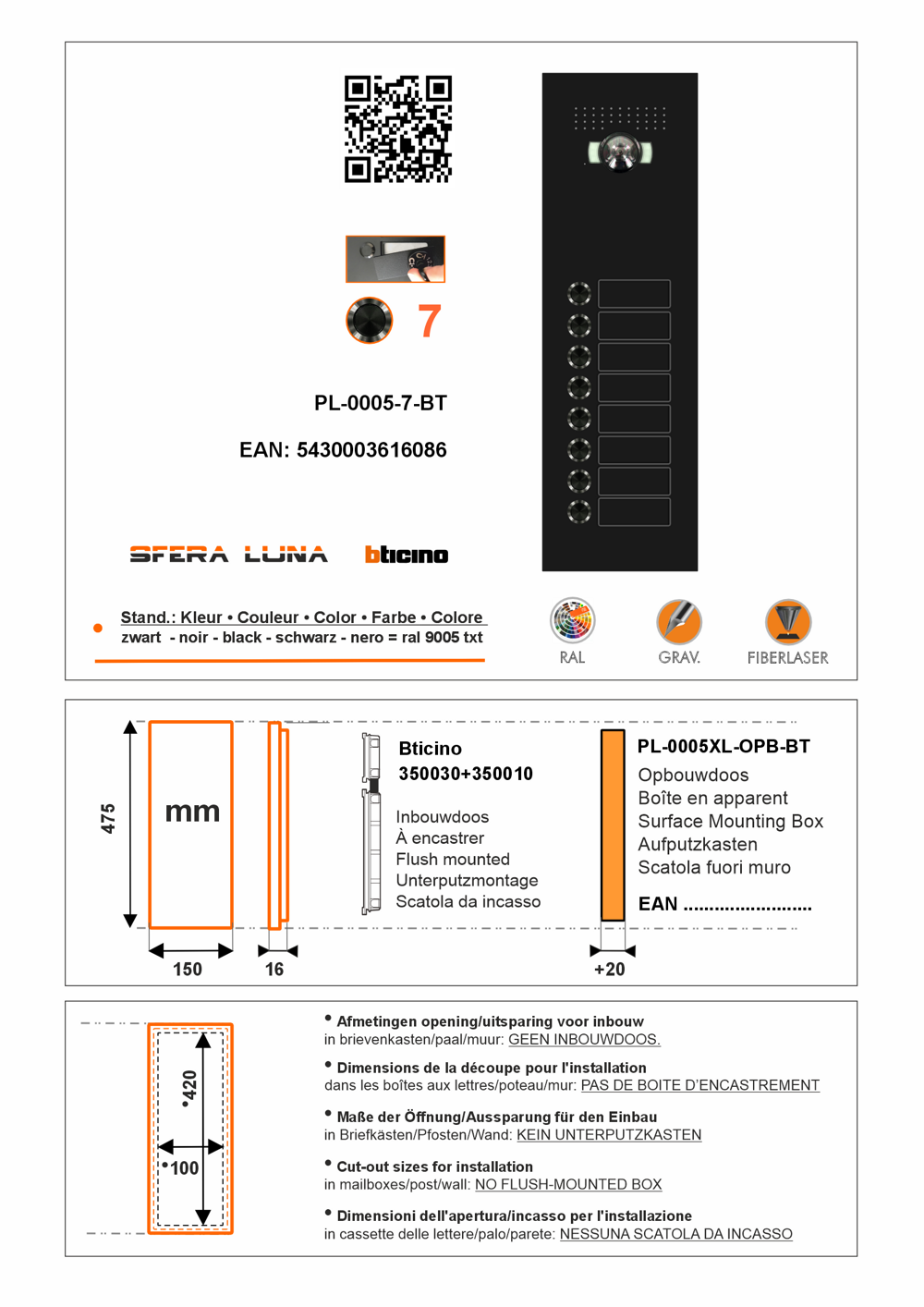

• External dimensions of front panel: 145 × 475 × 16 mm (W × H × D)
• Suitable for long-term outdoor use

This construction guarantees a long service life and reliable operation in residential and professional applications.

The SFERA LUNA front panel is supplied as a complete, high-quality solution for professional installation. All components are designed for easy installation and long-lasting performance in outdoor environments.

• Front panel in selected RAL colour (IP54 – IK08)
• Mounting bracket with fixing screws for BTicino flush-mounted box 350030+350010
• 351305PKM – protective plexiglass for BTicino module 351500
• 7 call buttons (black, stainless steel or LED – IP65 – IK08)
• 7 interchangeable nameplates (IP65)
• Installation tools for concealed fixing

All components are designed for quick installation and a sleek architectural finish.

Optional extras: Surface-mounted box, Rain and sun cover, Surface-mounted box 45%

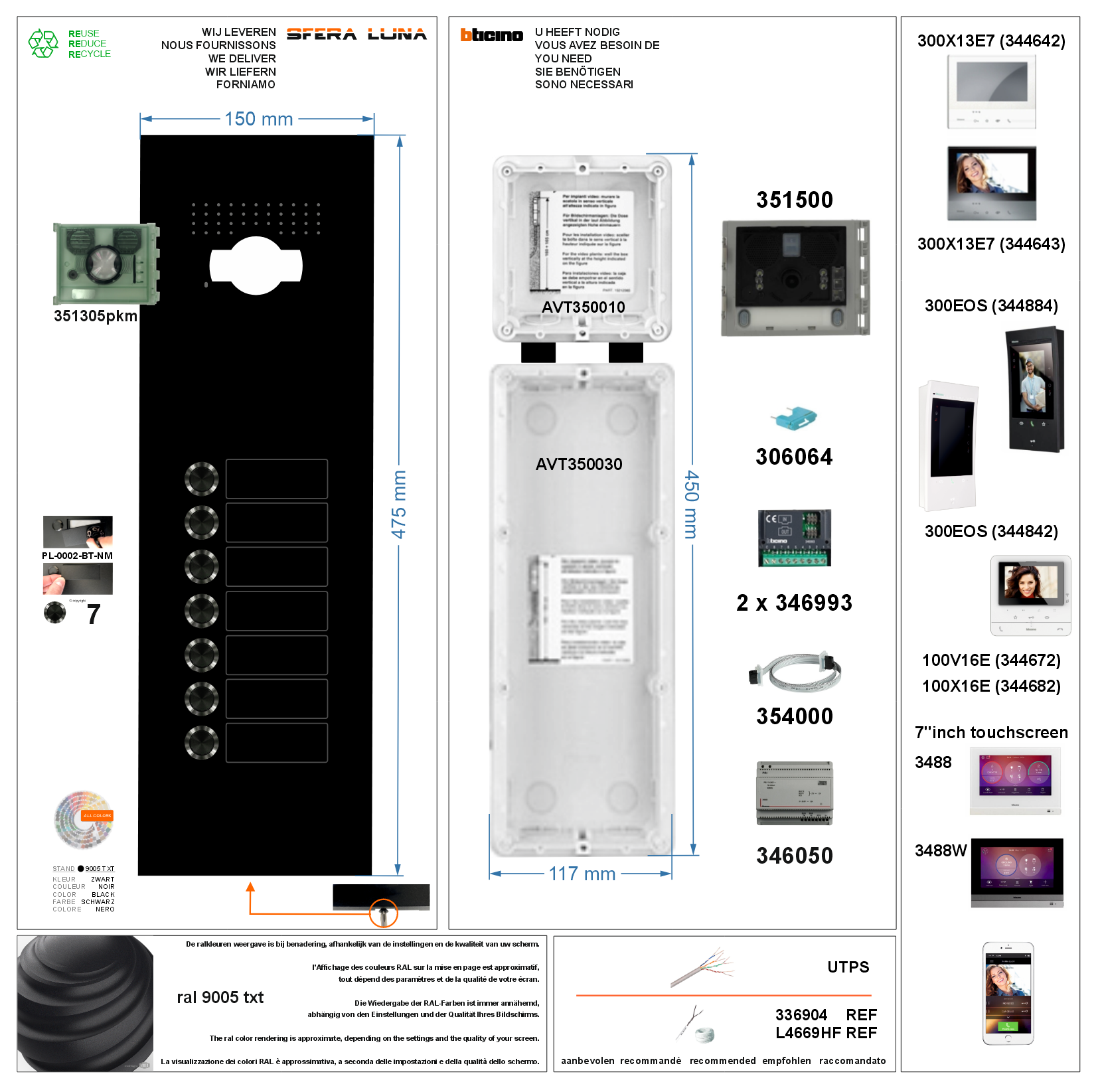

The following minimum BTicino components are required for correct installation:

• 350030+350010 – flush-mounted boxes (3+1 modules combined) (surface-mounted box optional)
• 354000 – connection cable 620 mm
• 351500 – audio/video module with wide-angle camera
• 346993 – Sfera interface (up to 8 call buttons)
• 346050 – power supply
• 306064 – configuration kit
• Compatible with all BTicino indoor units

346250  – Potential-free door lock relay (for opening door/hatch)

BTicino REF 336904 or UTP-S = Recommended cabling:

For optimal warranty and support, we recommend purchasing BTicino components via the official distribution network in the country of installation.

The SFERA LUNA front panel is manufactured from solid aluminium, a material often described as the green metal. Aluminium is fully recyclable without any loss of quality and therefore plays an important role in sustainable and circular construction projects.

In addition to its environmentally friendly nature, aluminium also offers excellent technical properties. The material is light, strong, corrosion-resistant and low-maintenance, making it particularly suitable for high-quality outdoor applications and architectural installations.

SFERA LUNA is a partner of the Legrand Group and BTicino and develops solutions that are fully compatible with the original BTicino Sfera system.

The SFERA LUNA front panel is 100% compatible with BTicino components and can be seamlessly integrated into existing installations.

For optimal warranty and support, we recommend purchasing BTicino components through the official distribution network in the country of installation.

If certain BTicino components or modules are not available in the country where the project is based, we can arrange for these parts to be supplied via our network. This service does not apply to the Benelux countries and Switzerland.
