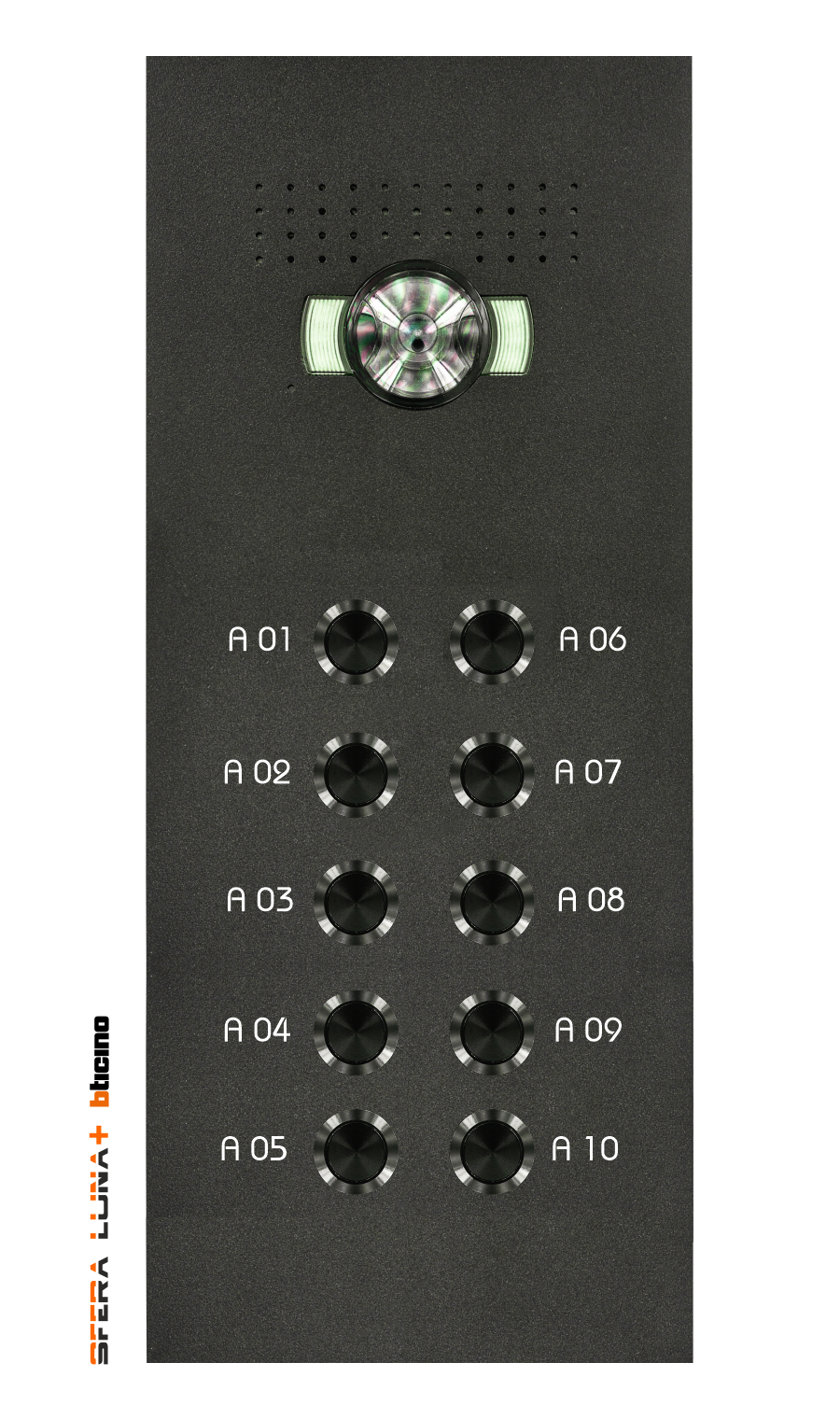

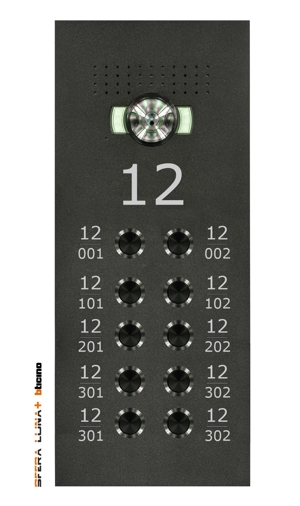

Video Parlofonie High-End Bticino Sfera Luna+10 engraved

• This Sfera Luna+10 video entry panel features engraved numbering/naming at choice ...

• ---

  Entry front panel for Bticino 2-wired audio/video module 351300  ^{wide-angle lens viewing angle : horizontal 135° - vertical 96°}


• ---

  Plus: permanent neat appearance to the residence/apartments no more hassle afterwards when changing tenants or owners.

• ---

  Standard installation flush mounting on the Bticino box 350030.

• ---

  Available in all ral colors, or in the color(s) of the apartment or project

• 10 doorbell buttons
• 10 engraved numbering / descriptions & colered signs
• Equipped with fixed numbering / descriptions, as desired ...
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Easy installation in narrow environments
• Model flush mounted on standard box Bticino 350030
• Also available with surface-mounted module.
• Positionable with oblong holes.

Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

Dimensions: width 145mm x height 335mm

We supply :

1. Front panel entrance in ral color with mounting key.
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module 351300
4. 354000 Videoparlofonie connection cable for functional modules
5. 10 pushbuttons (integrated) black stainless steel, stainless steel or led
6. 10 engraved numbering / descriptions & colered signs

You need :

1. 350030 - flush-mounting box 3 modules
2. 351300 - Audio/video module with wide-angle lens
3. 2x 346993 - Interface Sfera (up to 8 call buttons possible)
4. 346050 - Power supply(s)
5. 306064 - conf. set
6. Preferably use REF 336904 twisted cable for the connection
7. Compatible with all Bticino indoor units: Class 100X16E (344682) or Class 300 X13E7 wifi-3/4G (344642)

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
