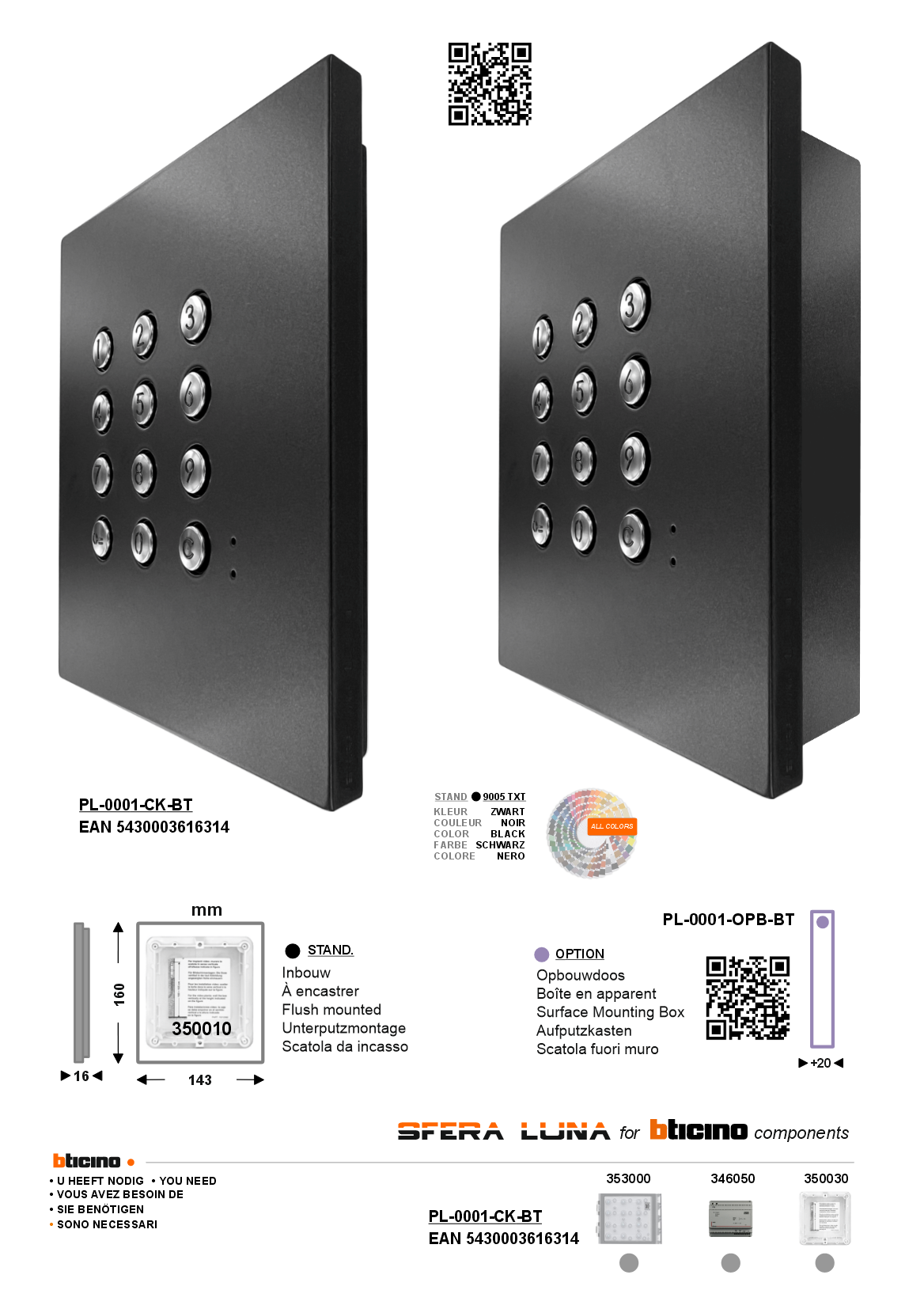

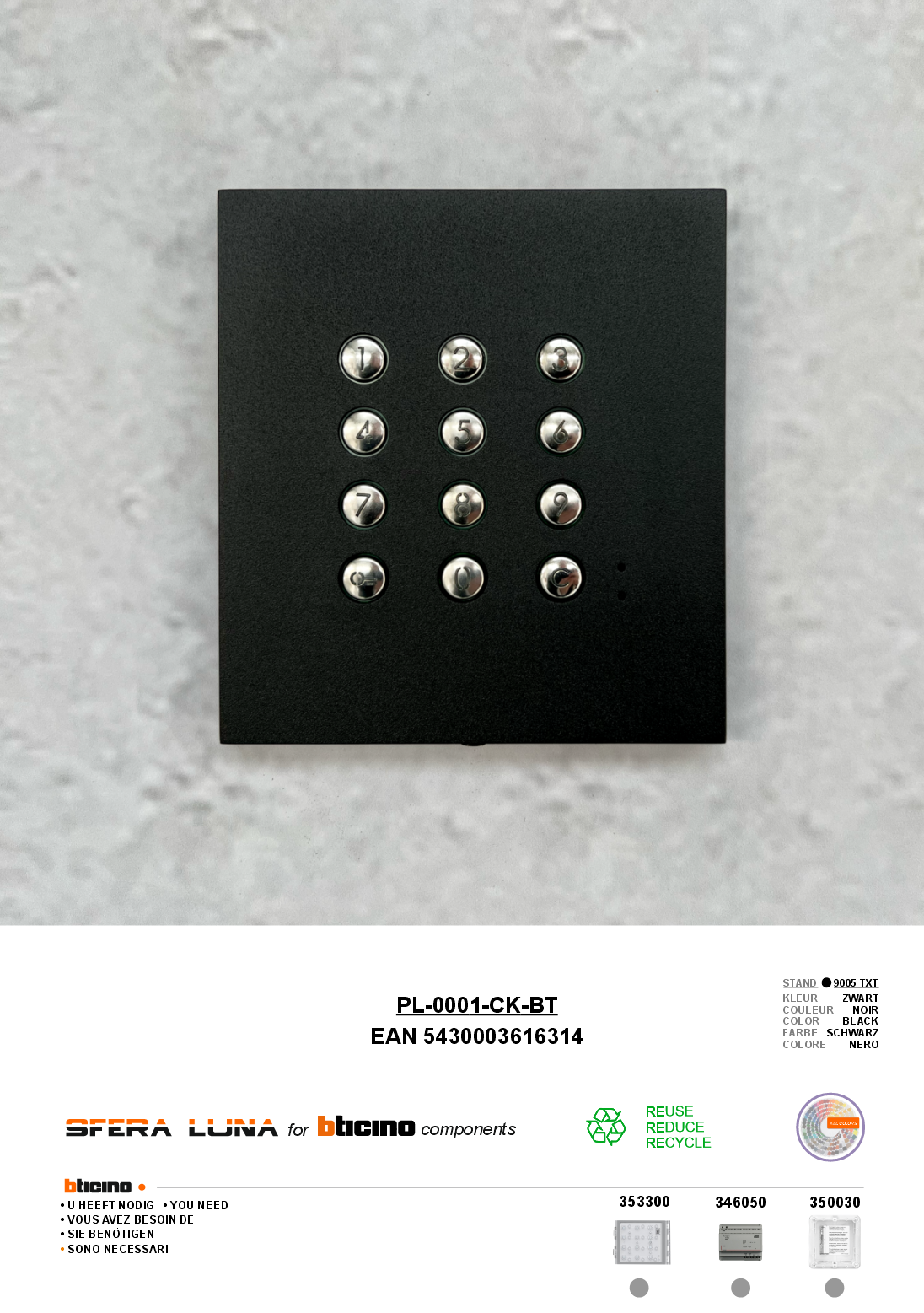

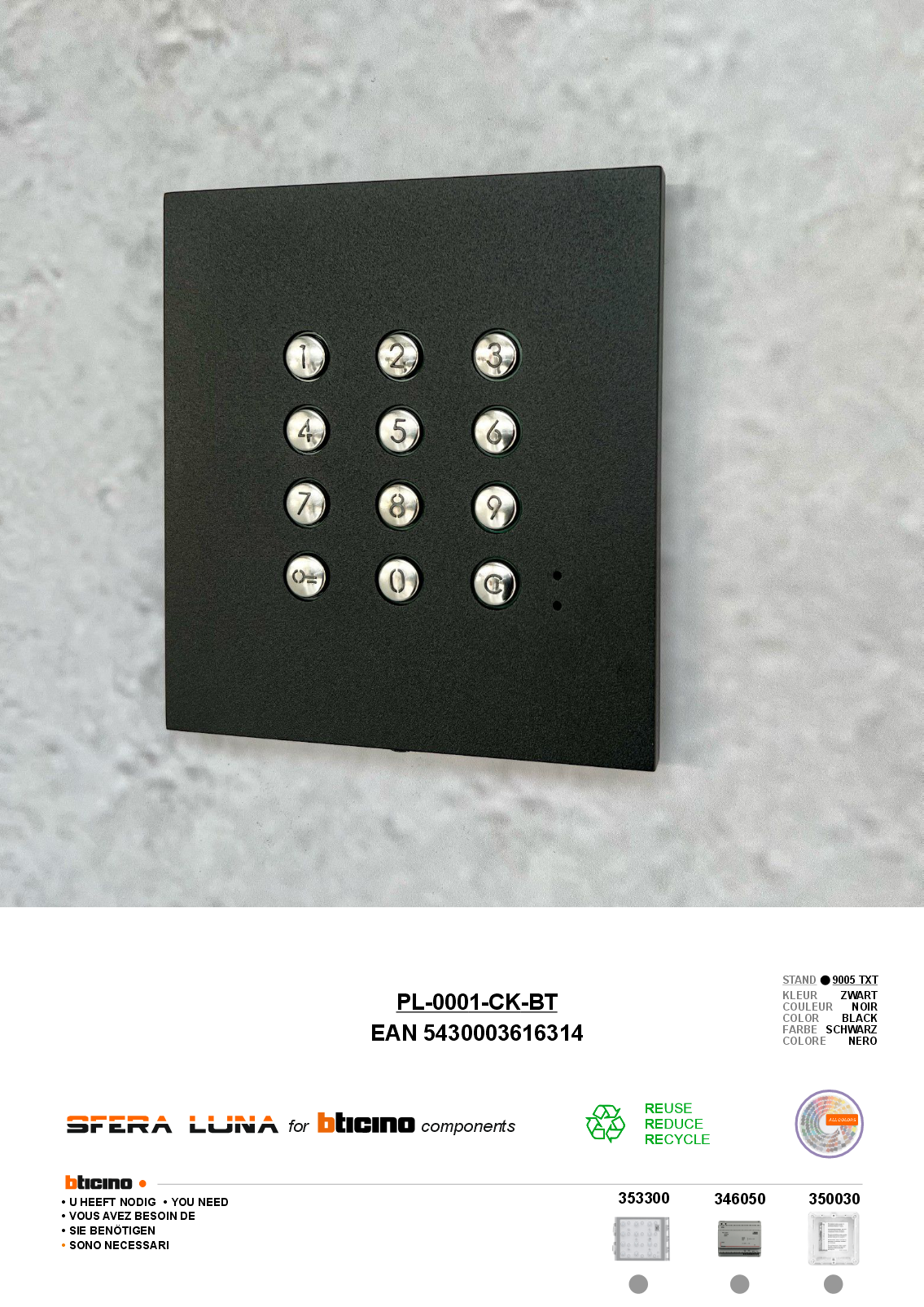

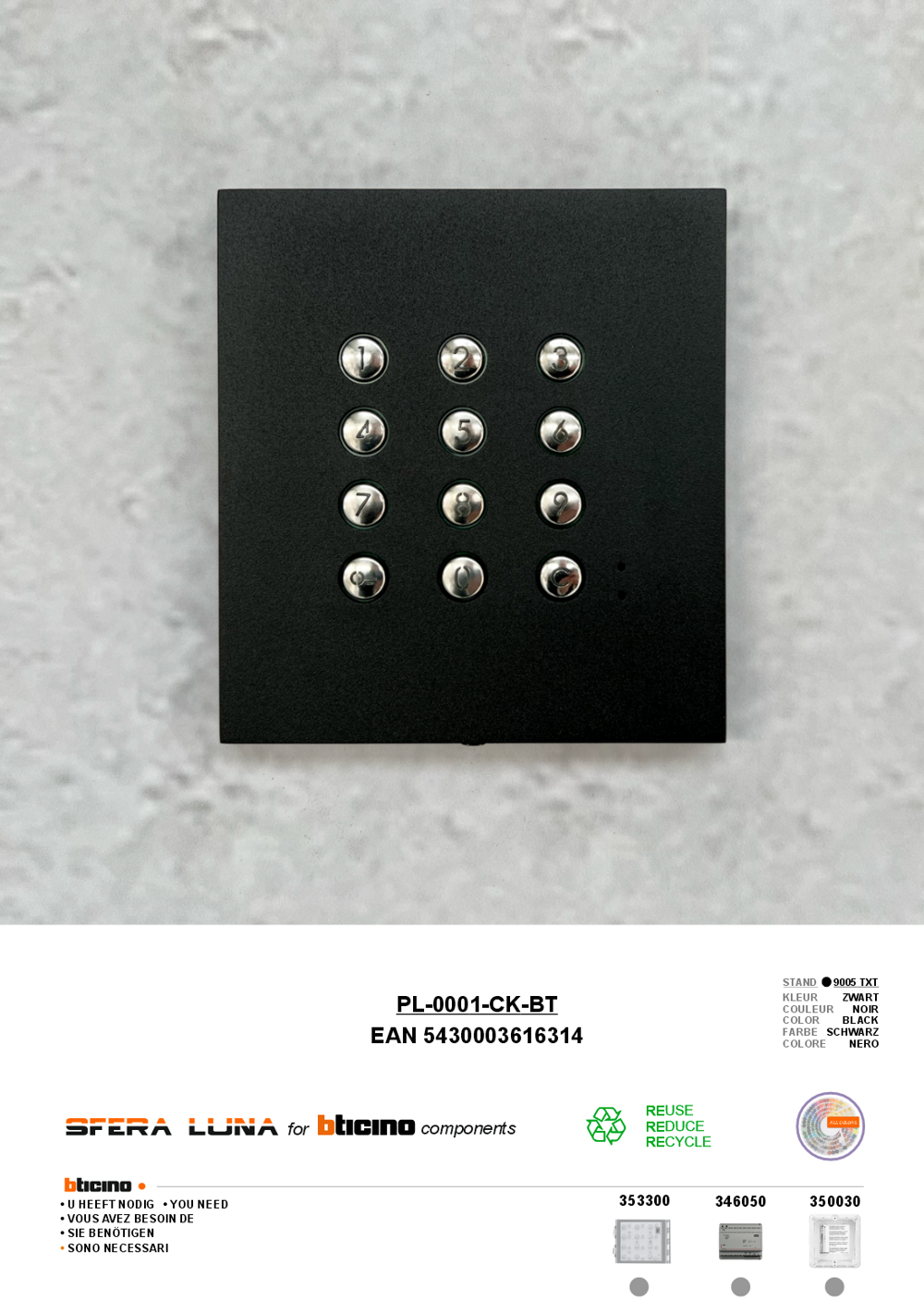

SFERA LUNA Code Keypad High-End Module Bticino(stand alone)

LUNA door entry front panel with keypad ^{LED illuminated}  for Bticino outdoor unit

The LUNA front panels are available in all ral colours to match with the ral colour of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with removable nameplate(s), personalised or not.
• Model flush mounting on standard box Bticino 350010

• Also available with surface-mounted module.

Sfera Luna (partner of the Legrand Group), copyright model.

All Ral colours available

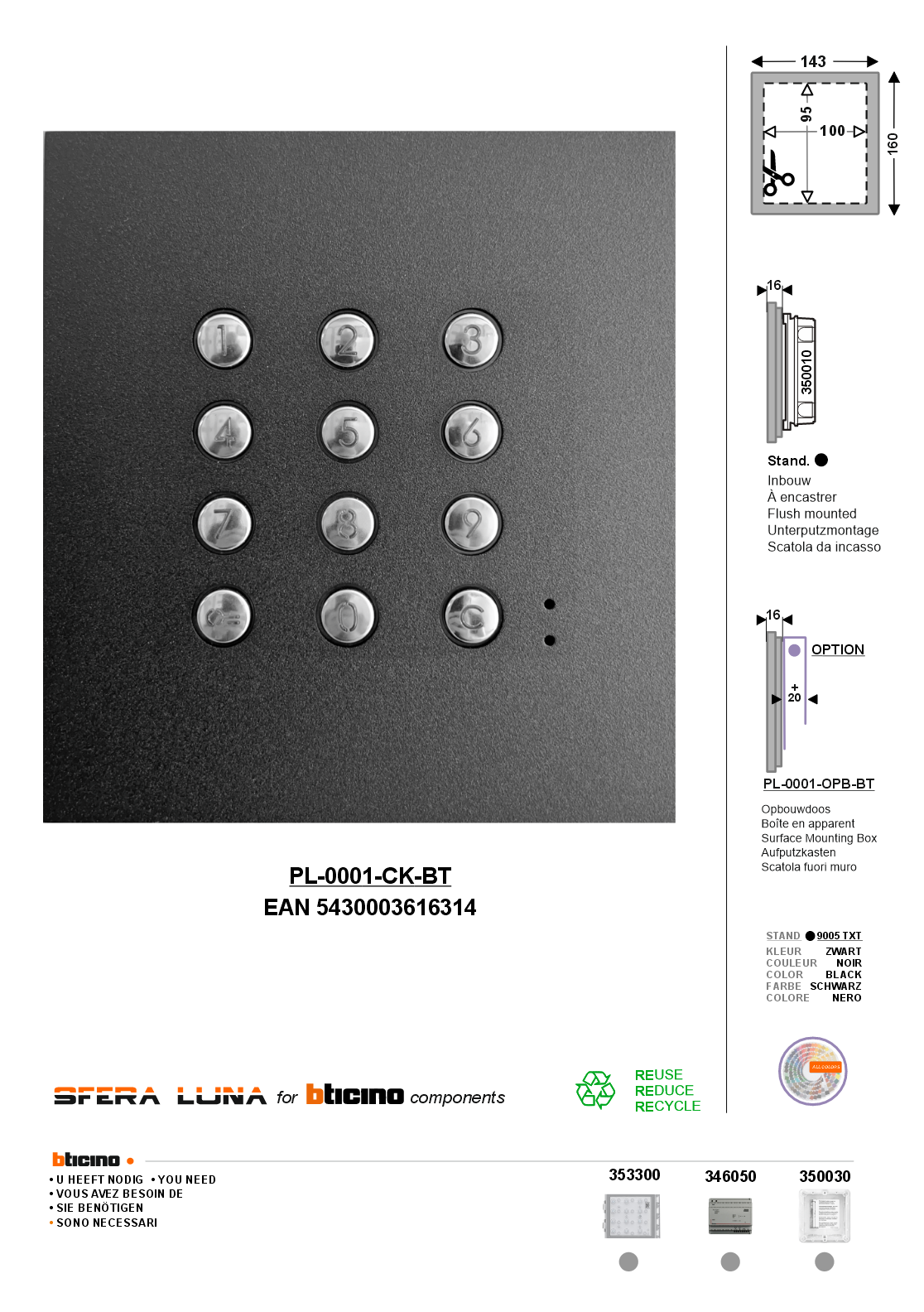

Dimensions: width 145mm x height 160mm

We supply :

1. Front panel entrance in ral colour.
2. Modular panel frame + screws for installation on flush-mounting box 350010
3. 353005pkm - plexi front panel code keyboard


You need :

1. 350010 - flush-mounting box 1 module
2. 353000 - keypad LED illuminated
3. 346050 - Power supply
4. Compatible with all Bticino Indoor units

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
