SFERA LUNA+ Bathroom Reader/RFID Video Intercom High-End Bticino

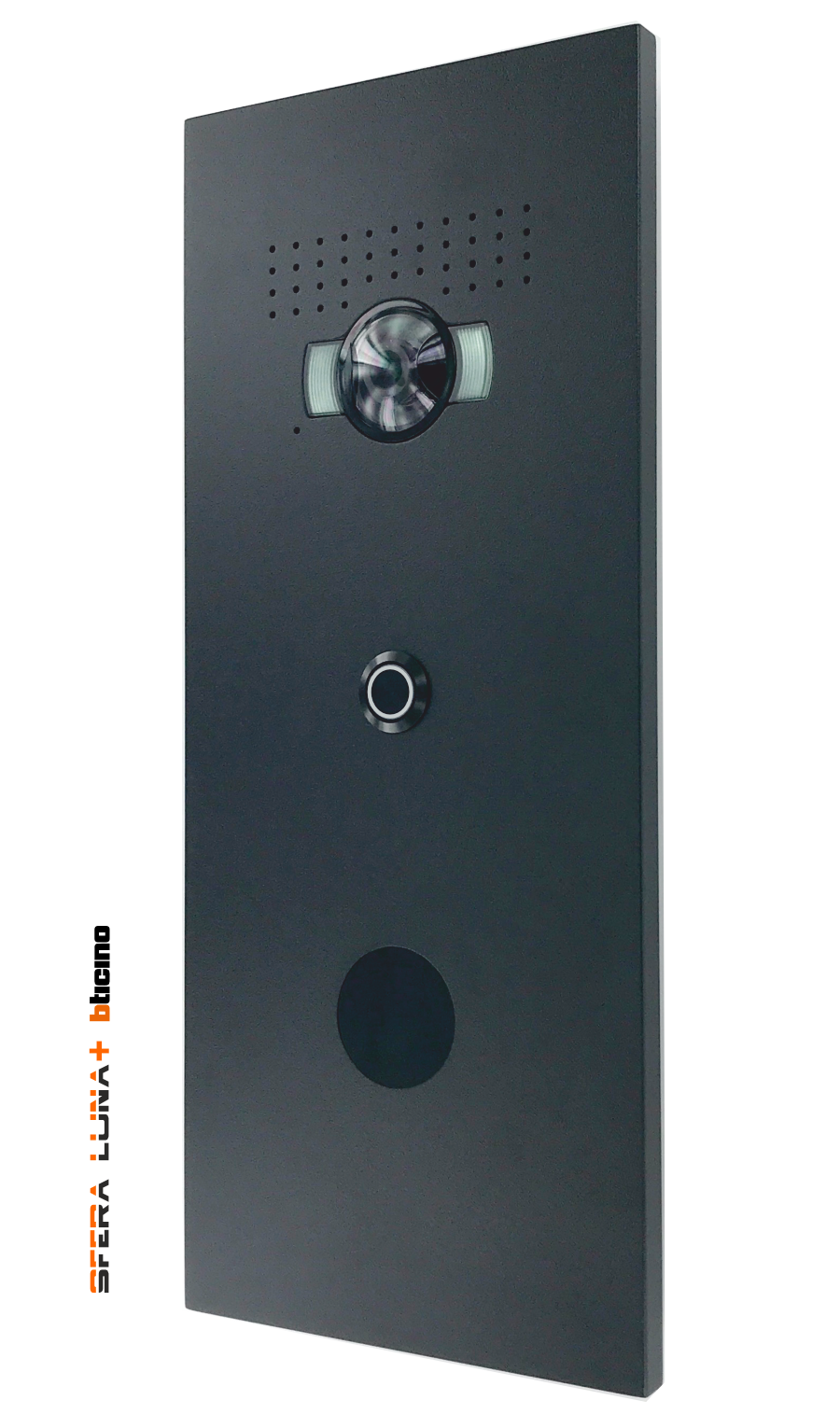

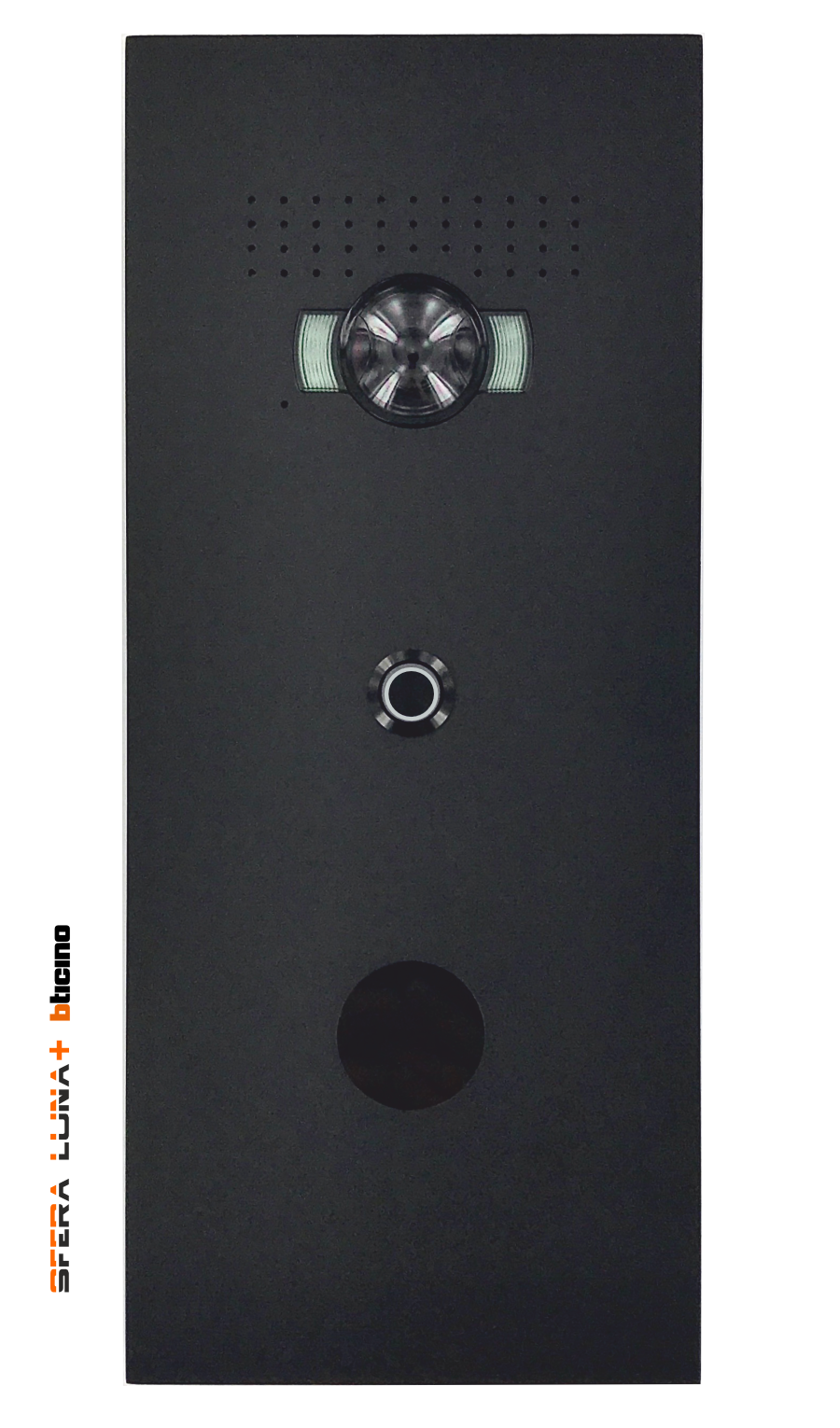

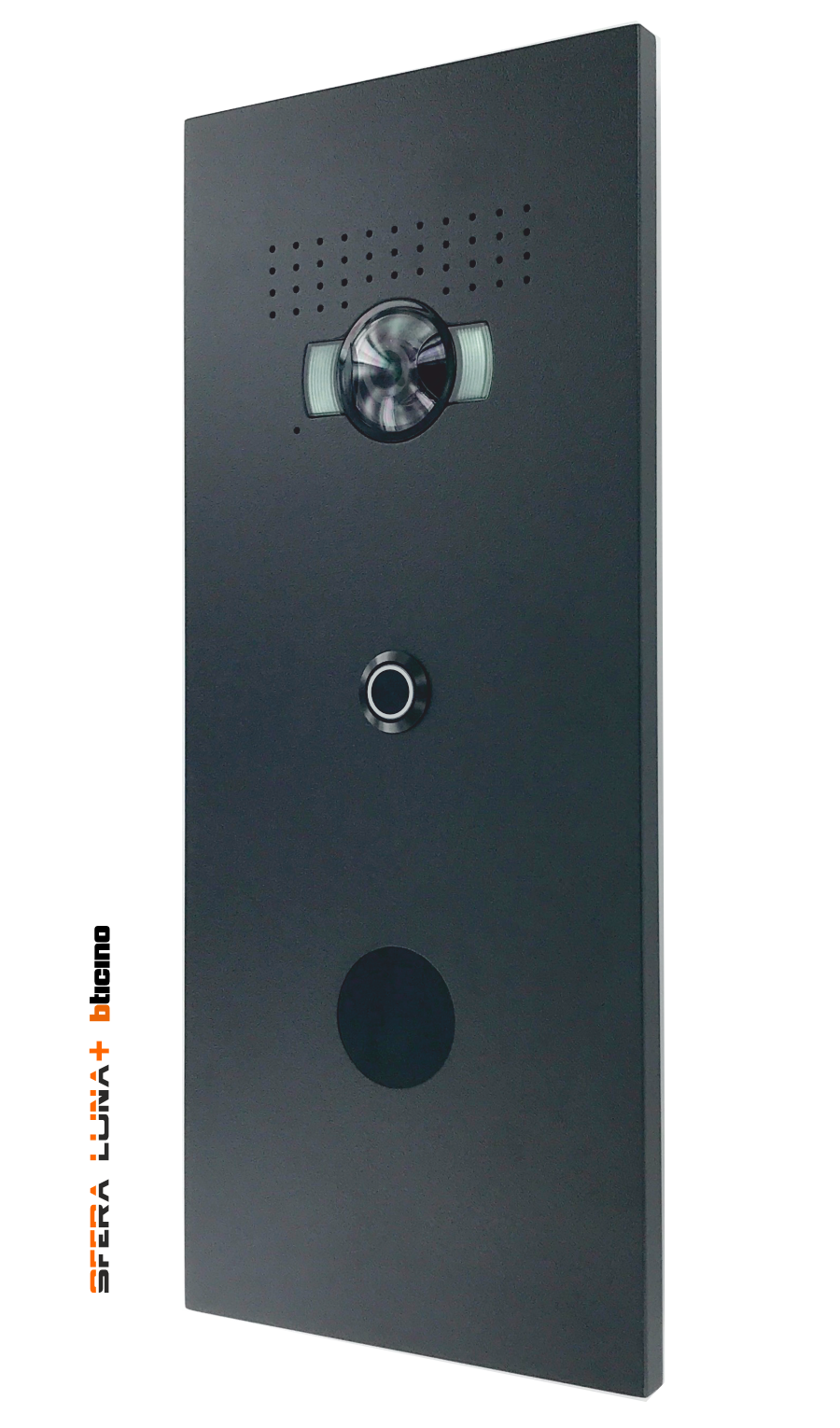

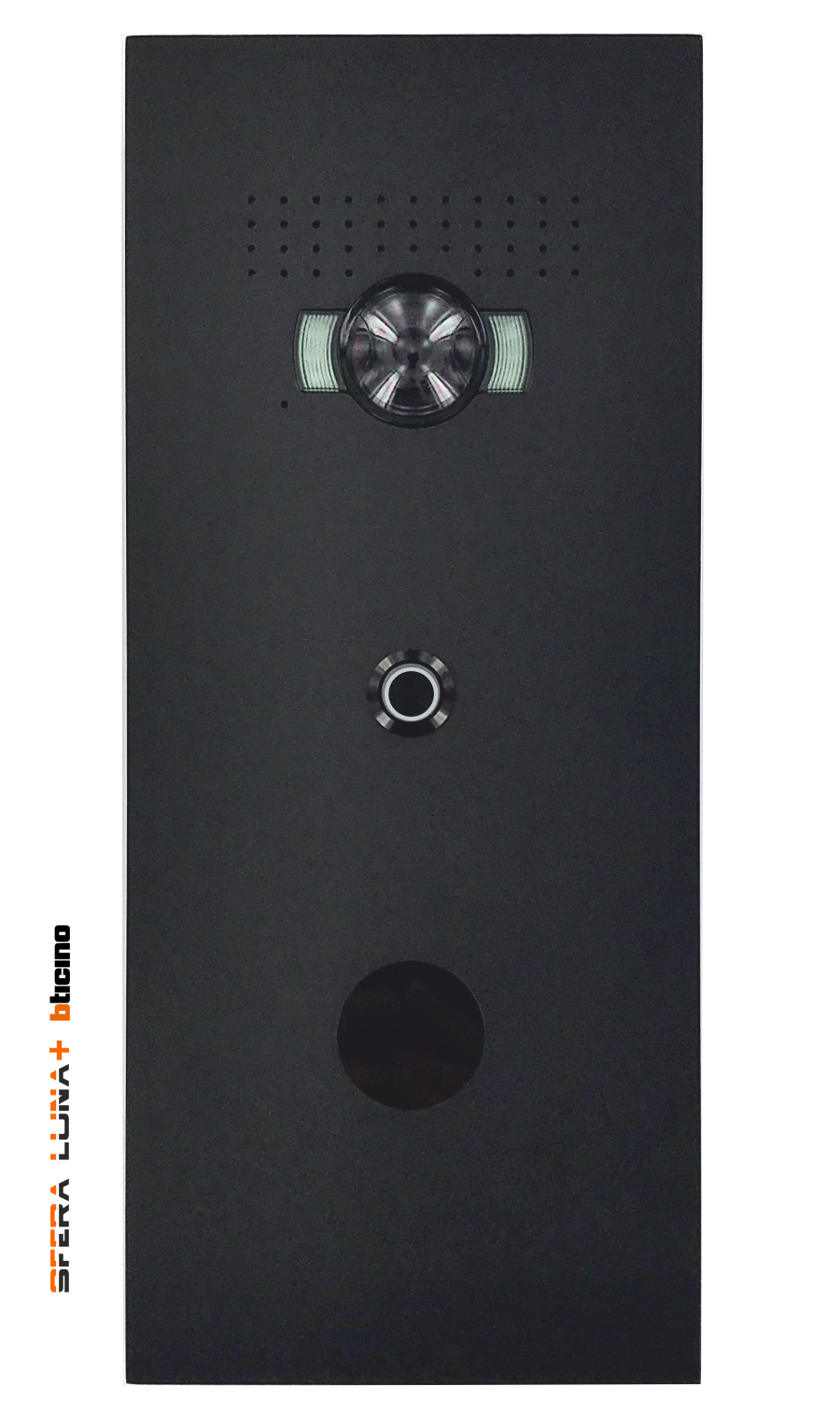

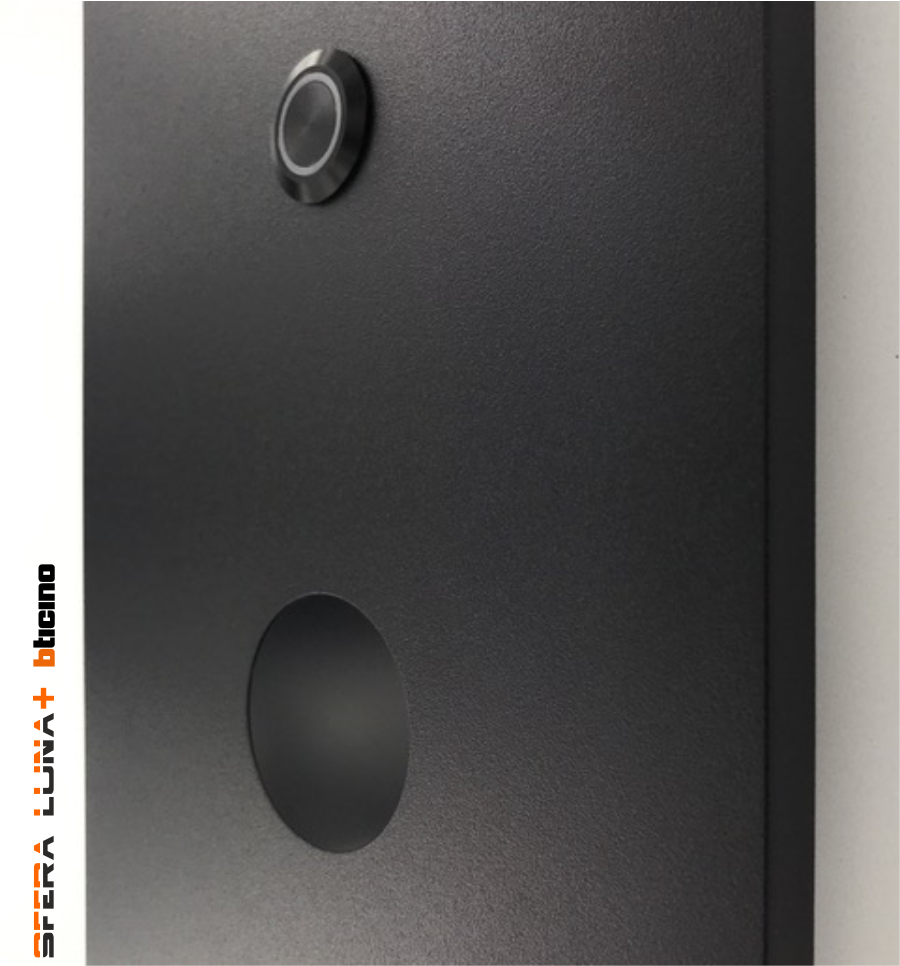

1. SFERA LUNA video intercom front panel with badge reader and doorbell/push-button

2. ---

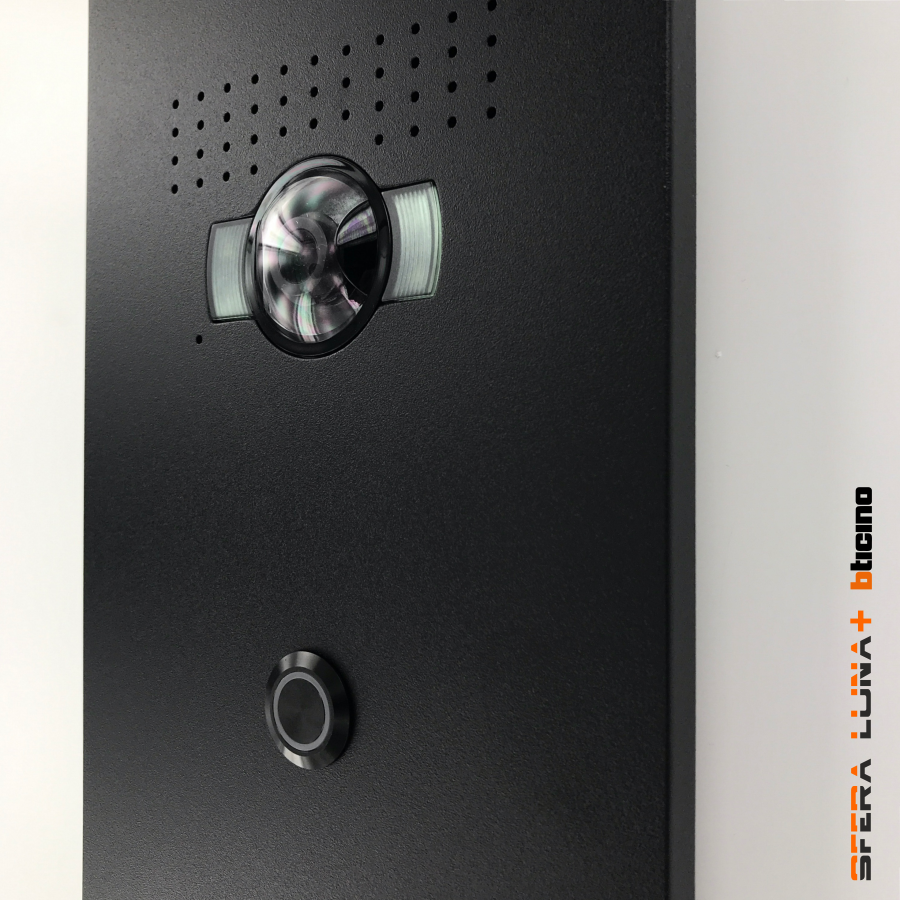

   For Bticino 2-wire system audio/video module 351500 with wide-angle lens ^{viewing angle: horizontal 152° – vertical 96°} and badge reader 353200 for use with badge keys 1/2/3/4/5/6

3. ---

   A sleek and stylish design at the entrance to your home, practice, flat, gate, etc.

4. ---

   Standard front panel available in all RAL colours.

5. ---

   Available in all RAL colours to match the colour of your home/project.

6. ---

   Option for a nameplate with a unique and invisible mounting system = always a neat and uniform appearance.


• Made from 10mm aluminium, high-end, solid finish.

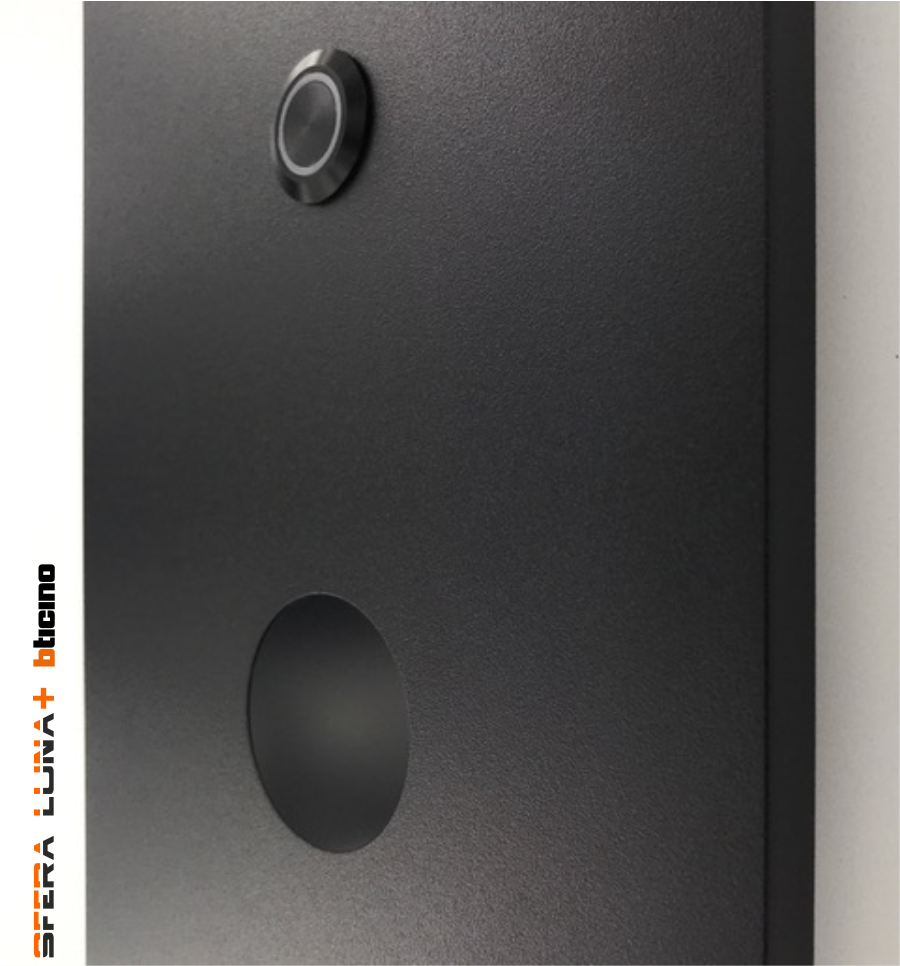

• Call button available as standard in black or stainless steel (also available with LED lighting)
• Central mounting system for front panel. (simple flush mounting)
• Vandal-proof.
• Installation options: on walls, gates, posts, in letterboxes, etc.
• Easy installation in confined spaces.
• Model for flush-mounting on standard Bticino 350030 box, also available with surface-mounting box/surface-mounting tray
• Unique flush-mounting system for gates, posts, etc.

Made in Italy, Sfera Luna partner of the Legrand Group (copyright model)

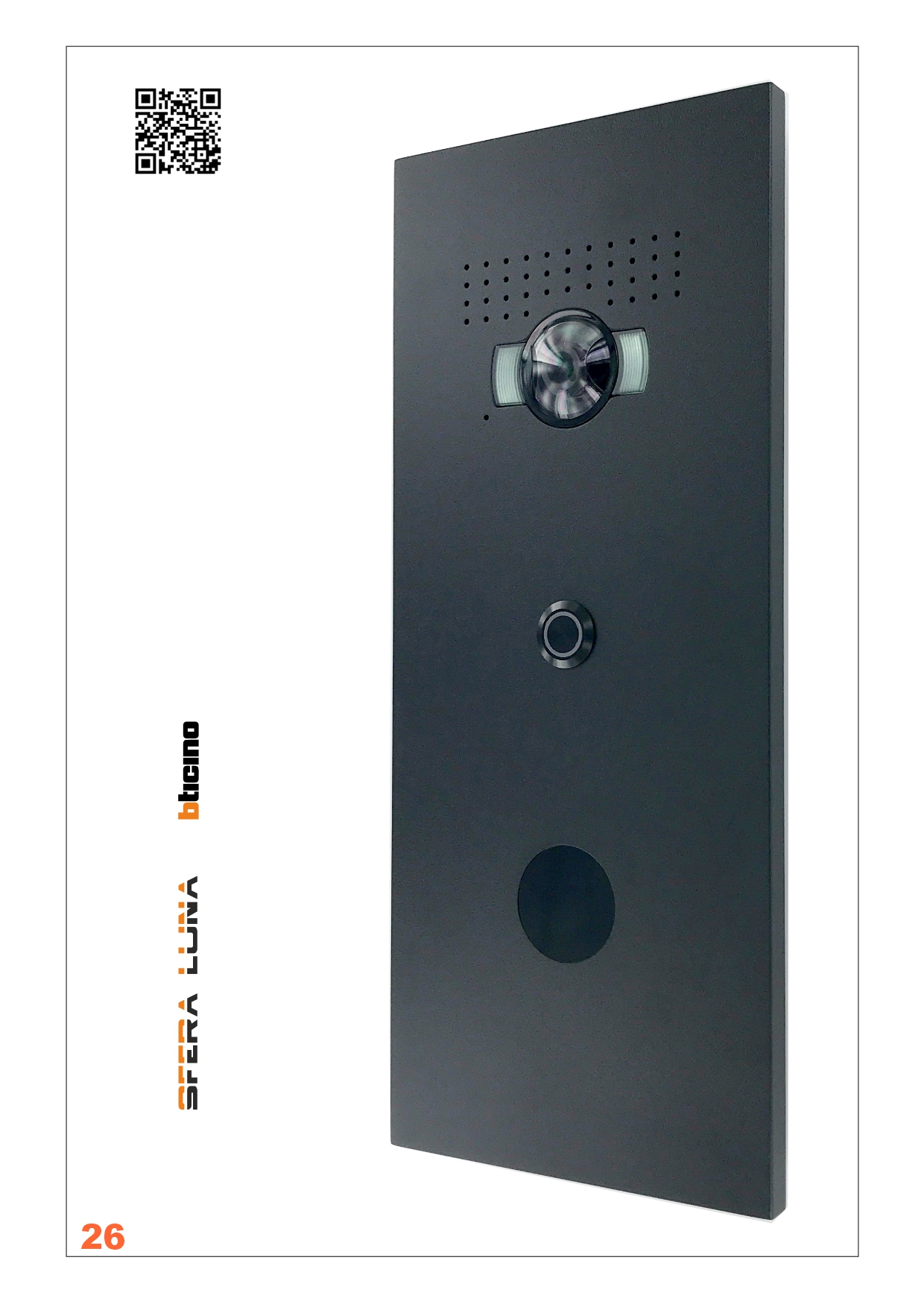

 SFERA LUNA BROCHURES

All RAL colours available

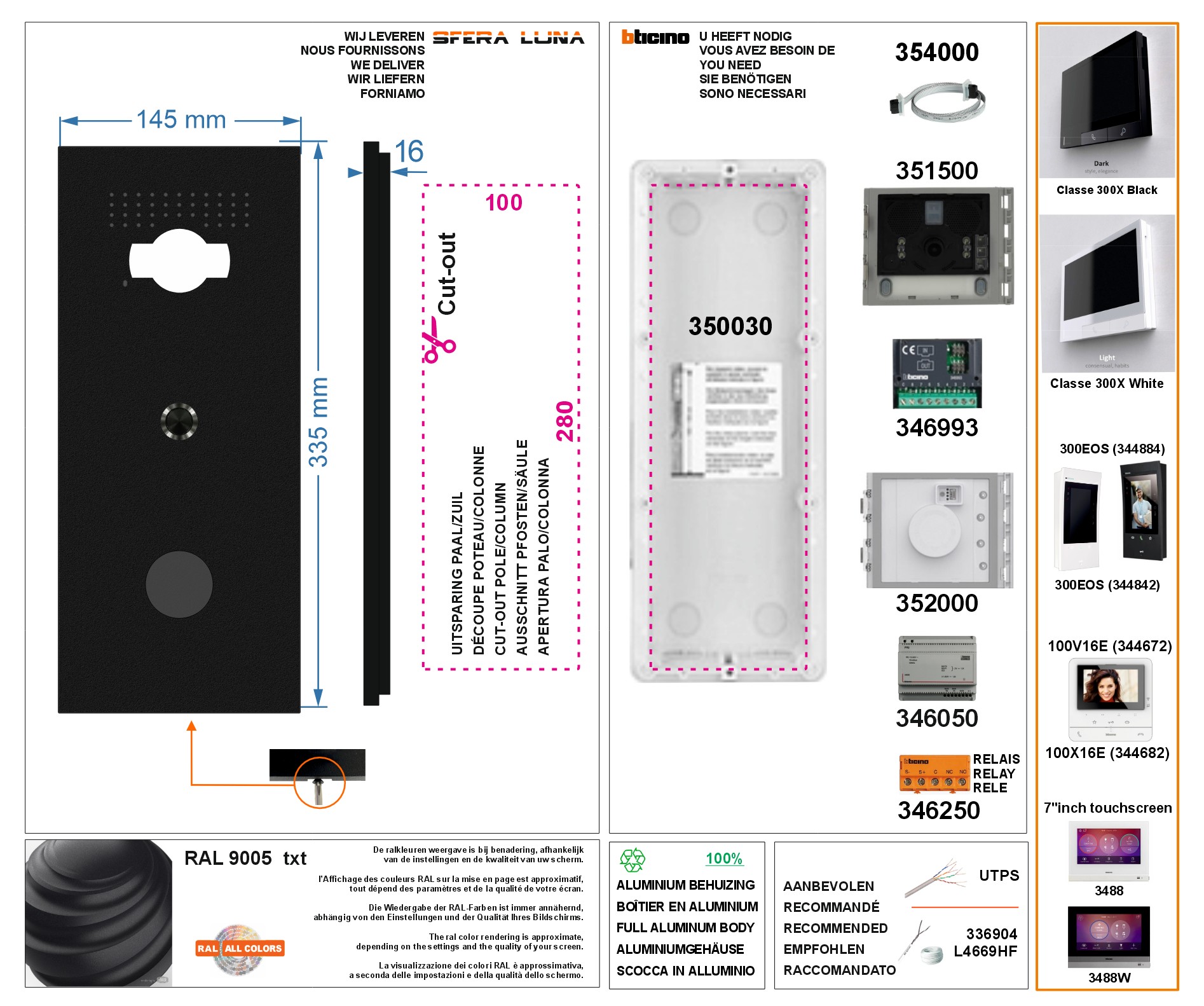

Dimensions: W 143mm x H 335mm

We supply:

1. Front panel in RAL colour.
2. Base bracket + screws for mounting on flush-mounted box 350030
3. 351305pkm - front plate for audio/video module with wide-angle lens
4. Smoked plexiglass front panel with recess for badge reader flush-mounted module 353200
5. 1 call button/push button in stainless steel, black or with LED

 You will need Bticino:

1. 350030 - Flush-mounted box, 3 modules
2. 354000 - 620mm connection cable for functional modules
3. 351500 - Audio/video module with wide-angle lens
4. 353200 - Badge reader/RFID module
5. 348200 - Badge keys 1/2/3/4/5/6 (transponder keys)
6. 346993 - Sfera interface (supports up to 8 call buttons)
7. 346050 - Power supply(ies)
8. Compatible with all Bticino indoor units

• We recommend using Bticino REF 336904 twisted cable or UPTS for the connection!

    These Bticino components are available:

via wholesalers
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 Create your own personal video intercom using our editor order form.

• Combine your colour choices to create an original design!
• Real-time display. The display will be continuously optimised by our

 Aluminium, the Green Metal:

Aluminium can be recycled almost indefinitely without the metal losing its unique properties. When remelted, not only is metal recovered, but by definition 95% of energy is saved. The ore is very easy to extract: it is simply dug up from the surface. After barely fifteen years, nature has recovered.

Made in Italy & Belgium, copyright model.

 All Ral colours available

Dimensions: width 143mm x height 335mm

We supply:

1. Front panel entrance in ral colour
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas Audio/video module with wide-angle lens
4. plexi front for badge reader

You need Bticino:

1. 350030 - flush-mounting box 3 modules
2. 354000 - videoparlofonie connection cable for functional modules
3. 351500 - Audio/video module with wide-angle lens
4. 353200 - Badge reader + badge keys 348200 1/2/3/4/5/6
5. 346993 - Interface Sfera
6. 346050 - Power supply
7. Preferably use REF 336904 twisted cable or UTPS for the connection
8. Compatible with all Bticino Indoor units

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
