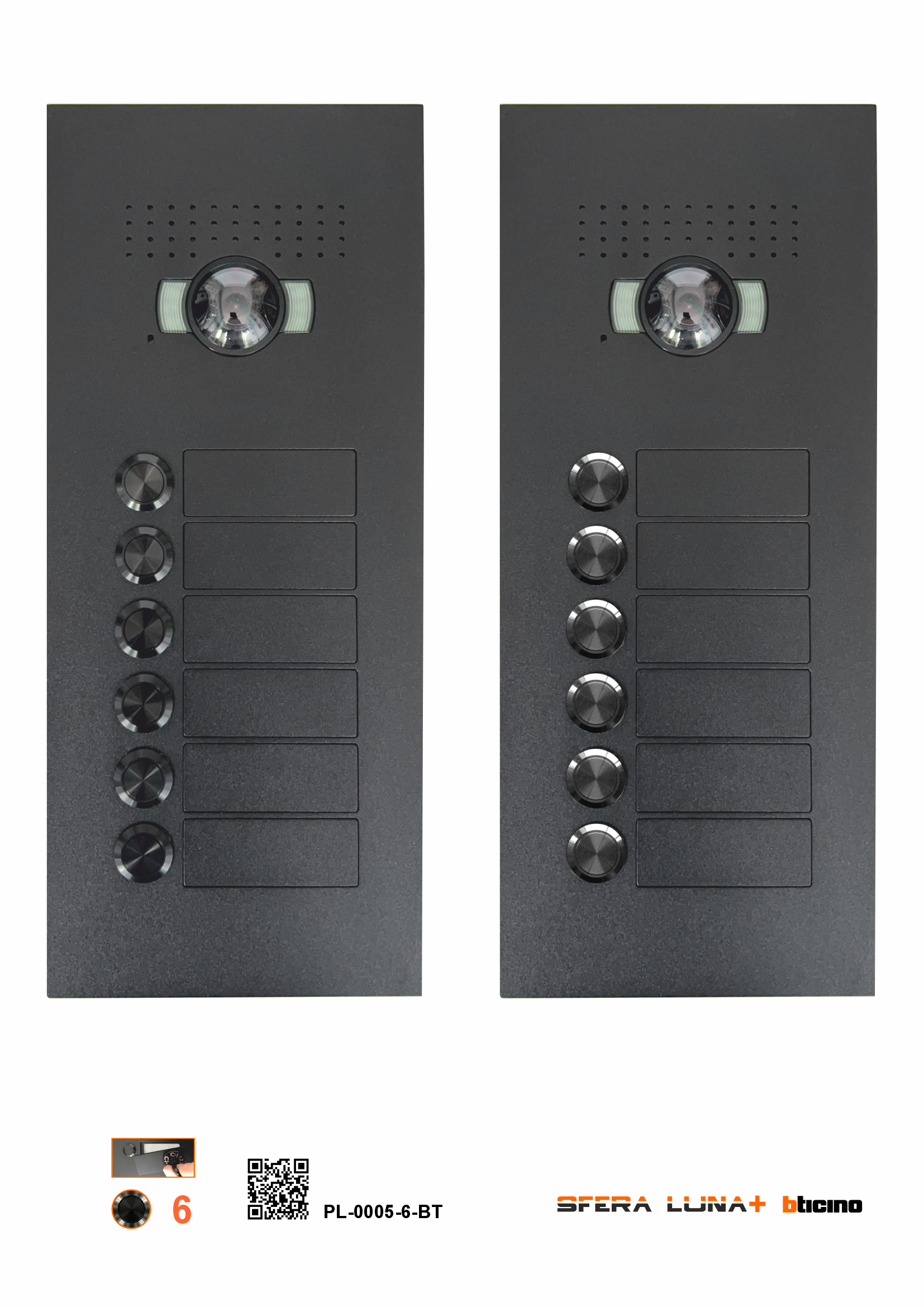

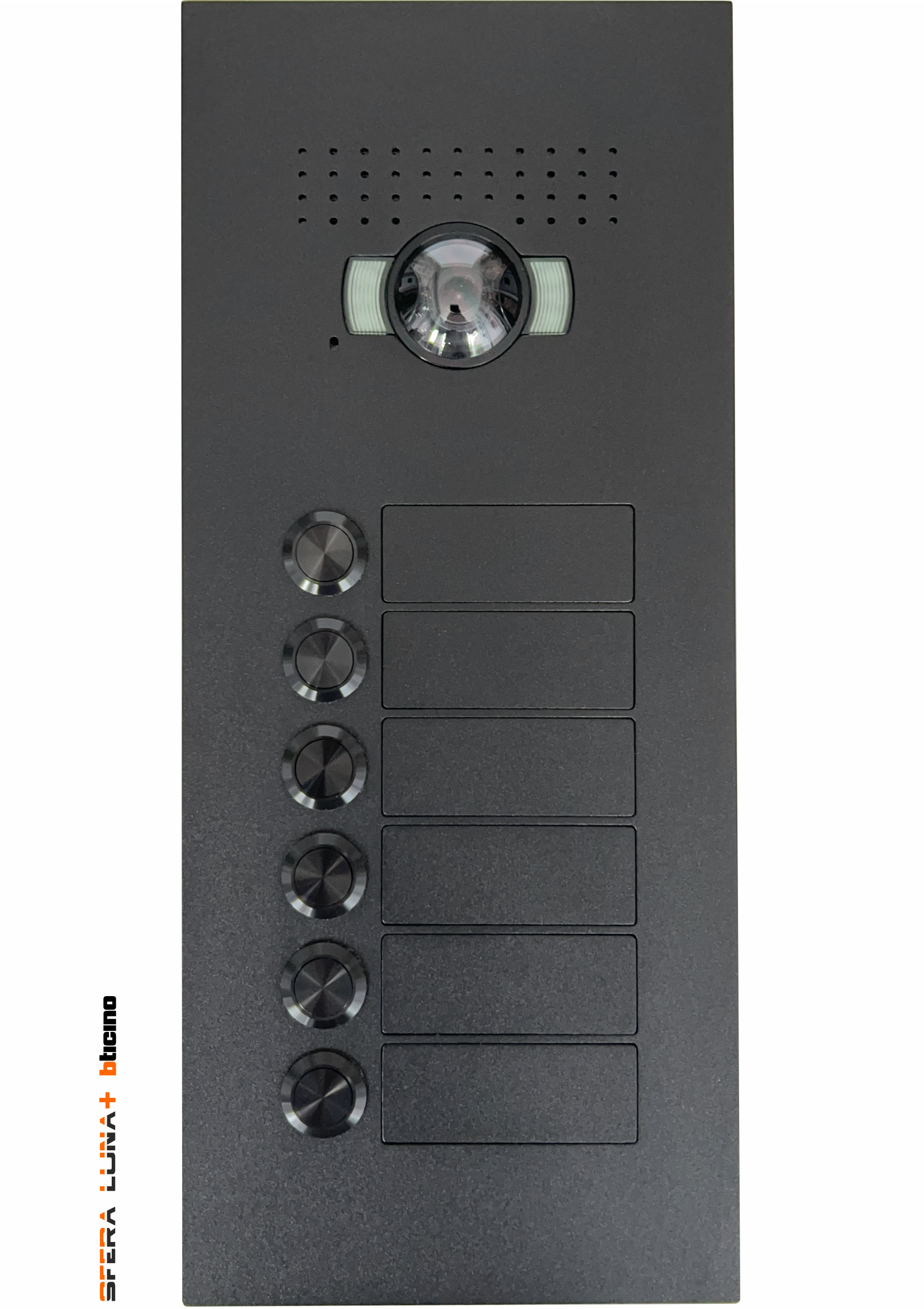

Videophone front entry panel SFERA LUNA+6 for Biticino wide angle audio/video 351500.
Sleek high-end design at the entrance of your residence / apartment ...
A six way call button system, vandal resistant.
Standard installation on Bticino 350030 flush-mounted box.
The front panels are available in all ral colors, matching the color of your residence or project.
- 6 doorbell buttons
- 6 interchangeable nameplates, easy mounting with unique invisible mounting system
- Produced in 10mm aluminium, High End, Solid finishing.
- Central mounting system front panel. (Simple blind mounting)
- Vandalism resistant. (IP54 - IK08)
- Installation possibilities: on walls, gates, poles, mailboxes, etc ...
- Installation possibilities in mailboxes ... .

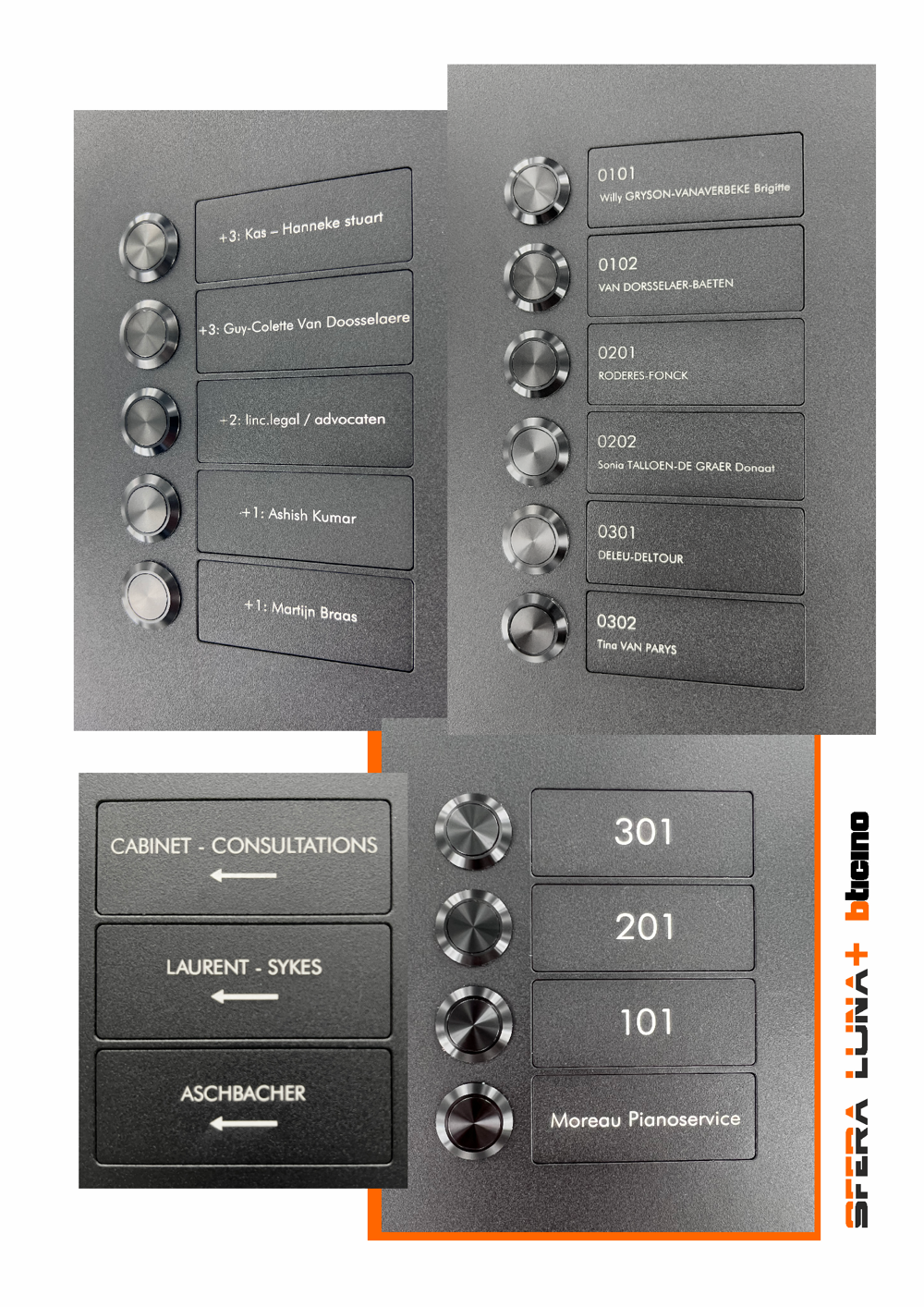

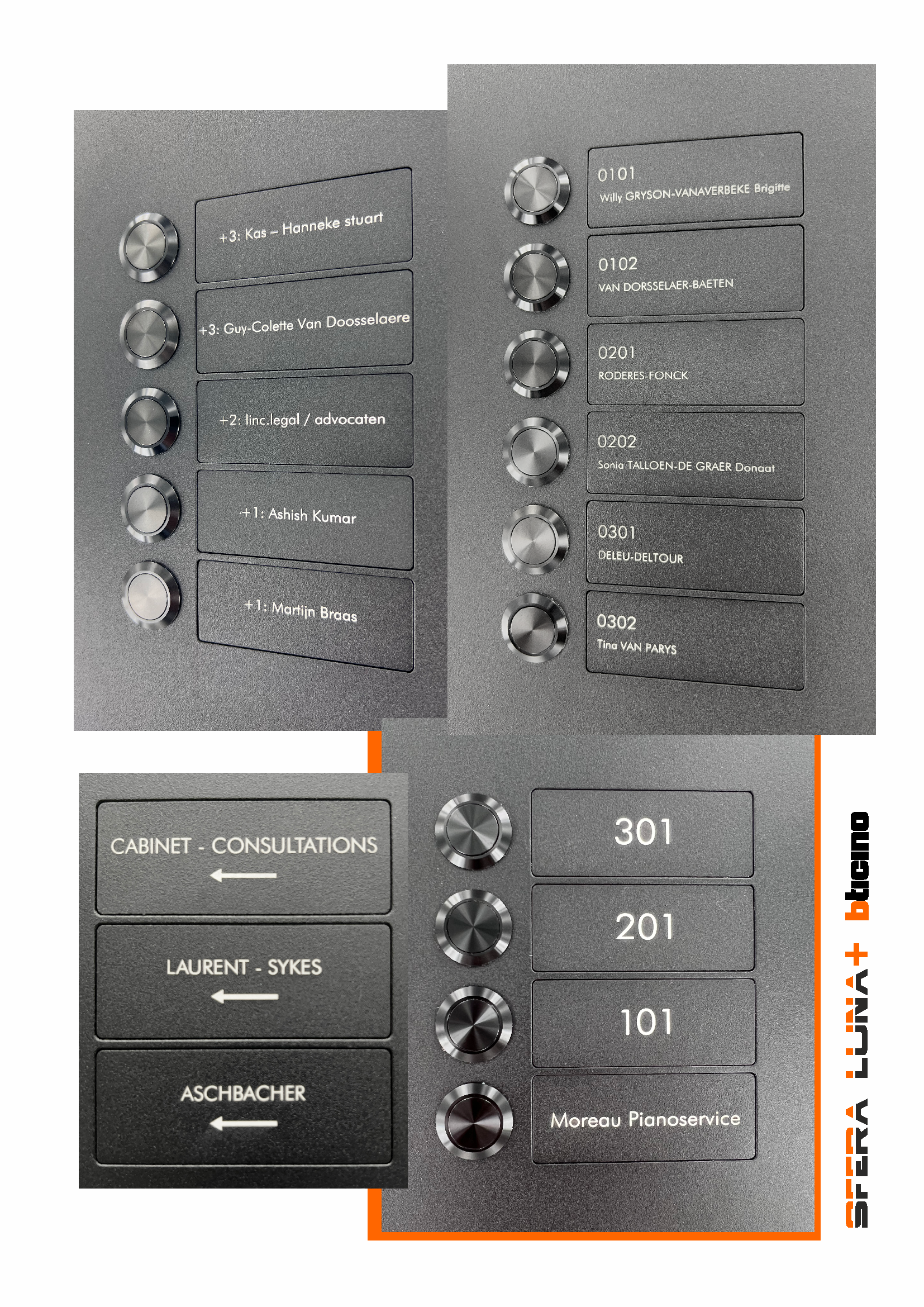

- Removable nameplate can be personalized or not.
- Easy installation in narrow environments
- Model flush mounted on standard box Bticino 350030
- Positionable with oblong holes.
- Also available with surface-mounted module.
Sfera Luna, partner of the Legrand Group (copyright model)
SFERA LUNA DOCUMENTS
All Ral colours available

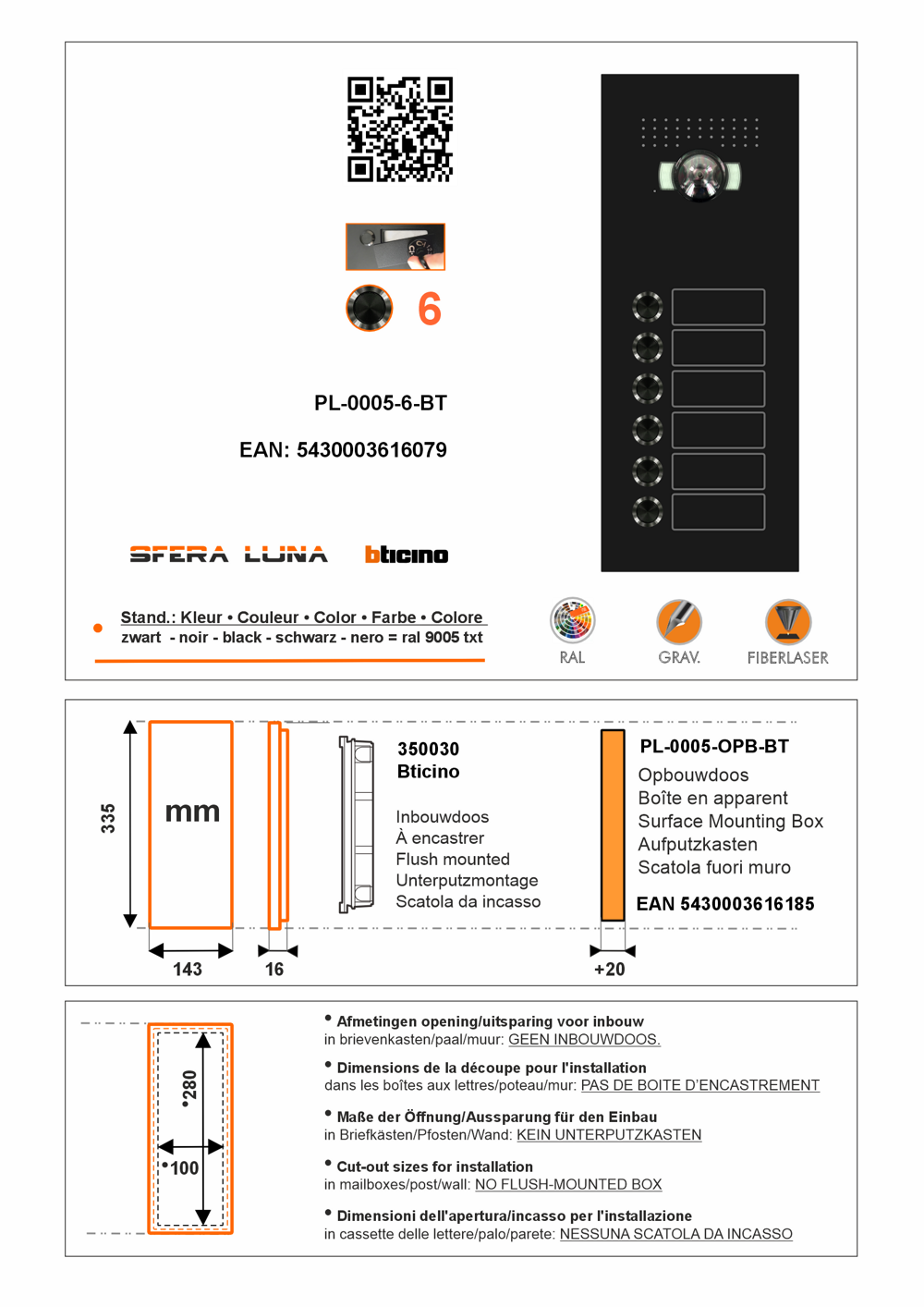

Dimensions : width 143mm x height 335mm

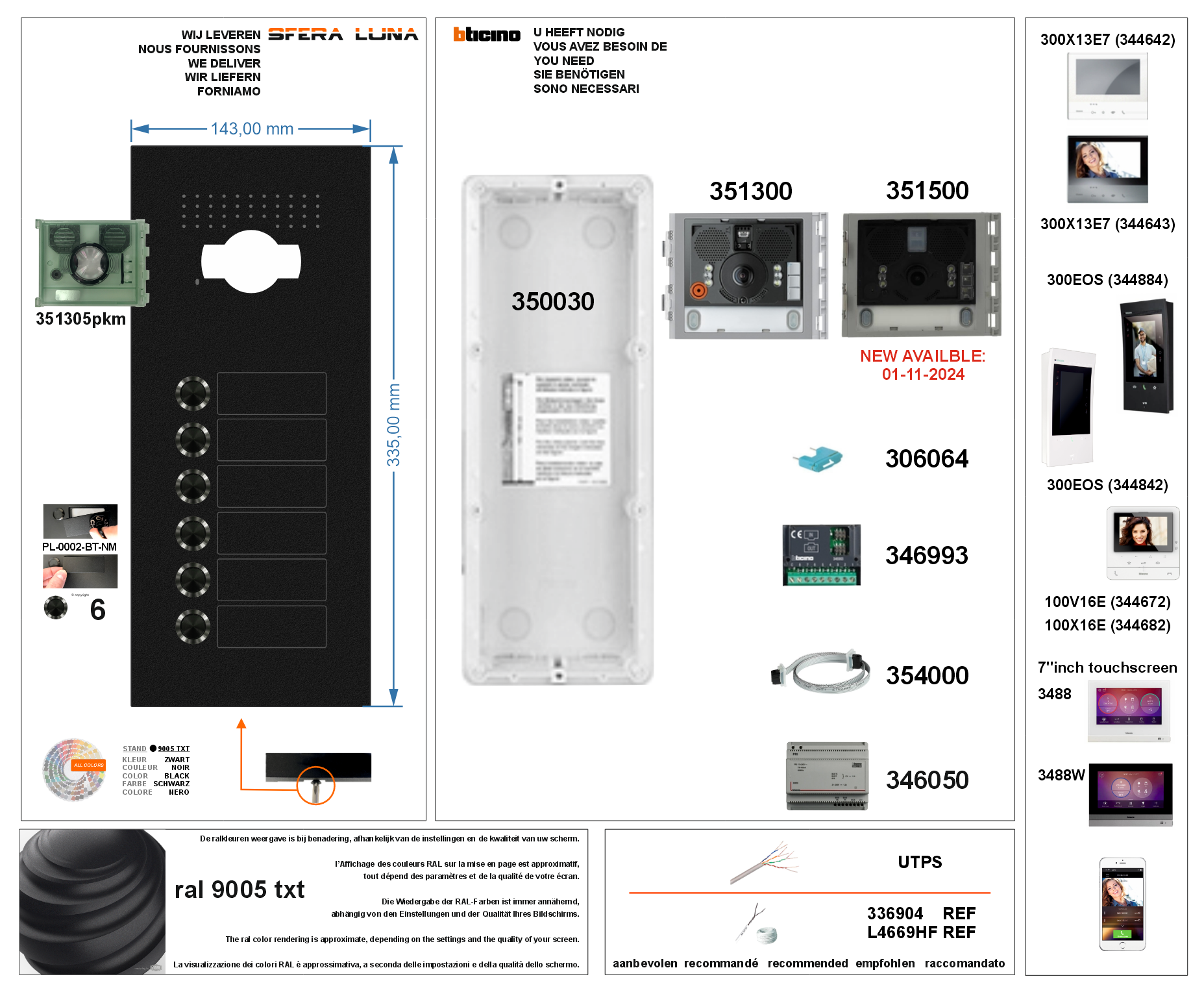

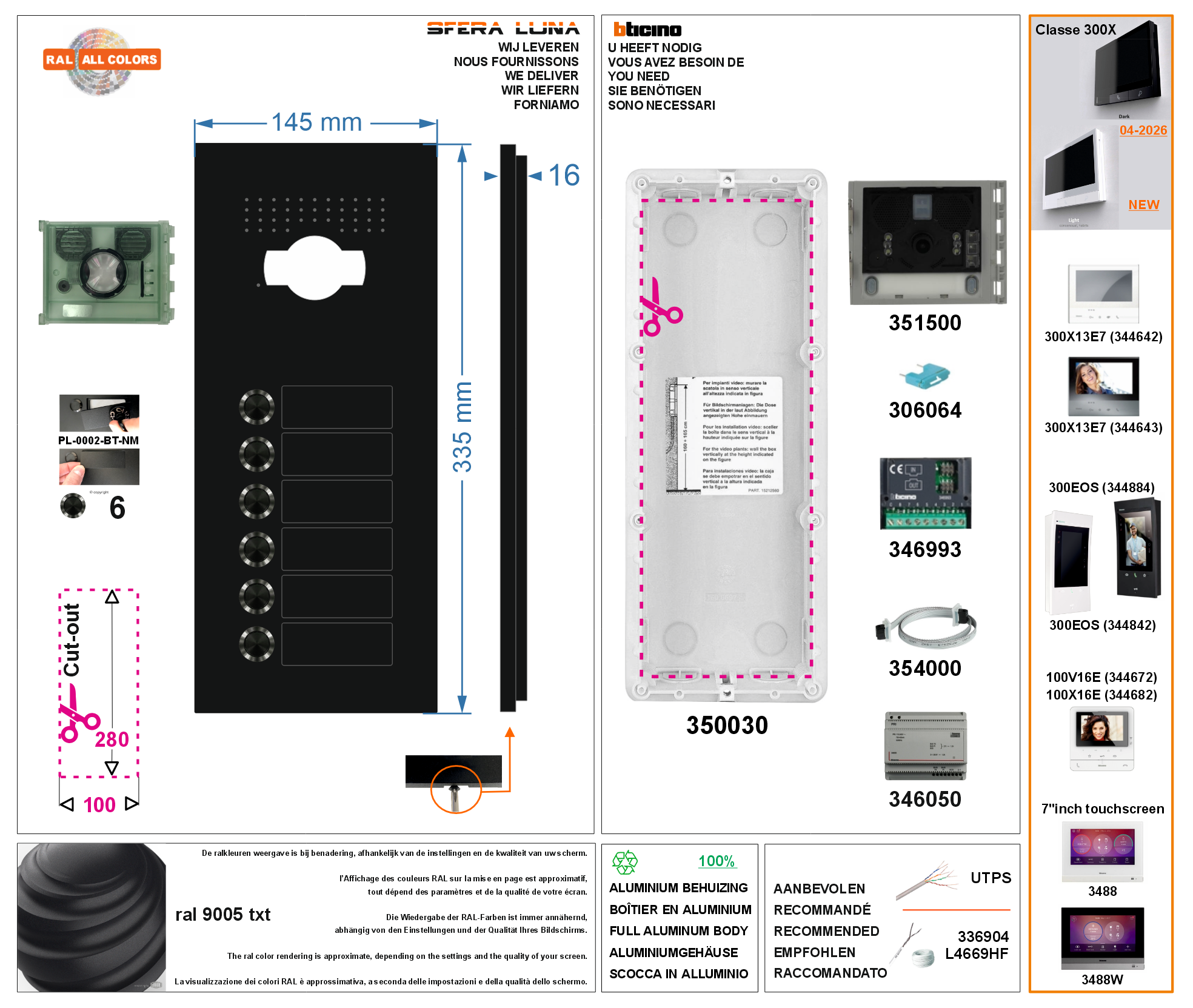

We supply :
- Front panel entrance in ral color. (IP54 - IK08)
- Modular panel frame + screws for installation on flush-mounting box 350030
- 351305pkm - plexiglas for module 351500
- 354000 Videoparlofonie connection cable for functional modules
- 6 pushbuttons (integrated) black stainless steel, stainless steel or led. (IP67 - IK08)
- 6 interchangeable name tags (IP68)
- Tool for mounting interchangeable name tags
You need Bticino :
- 350030 - Flush-mounting box 3 modules
- 354000 - Videoparlofonie connection cable for functional modules
- 351500 - Audio/video module with wide-angle lens
- 346993 - Interface Sfera (up to 8 call buttons possible)
- 346050 - Power supply
- 306064 - Conf. set
- Preferably use REF 336904 twisted cable for the connection
- Compatible with all Bticino indoor units: 100X16E (344682) or 300 X13E7 wifi-3/4G (344642) or MyHOME_UP 7" Hometouch (3488) o 300EOS (344842)
These Bticino components are available :
via the wholesaler
via your installer/electrician https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores
your personal videophone with our editor order form.
- Combine your combination(s) into an original concept!
- Real time display. The rendering will always be optimized by our typographer / graphic artist.
- The order form is already preset and indicated in blue like the photo shown in our webshop.
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Sfera Luna (partner of the Legrand Group), copyright model.
