SFERA LUNA+6 Call Buttons Video Parlofonie High-End Bticino

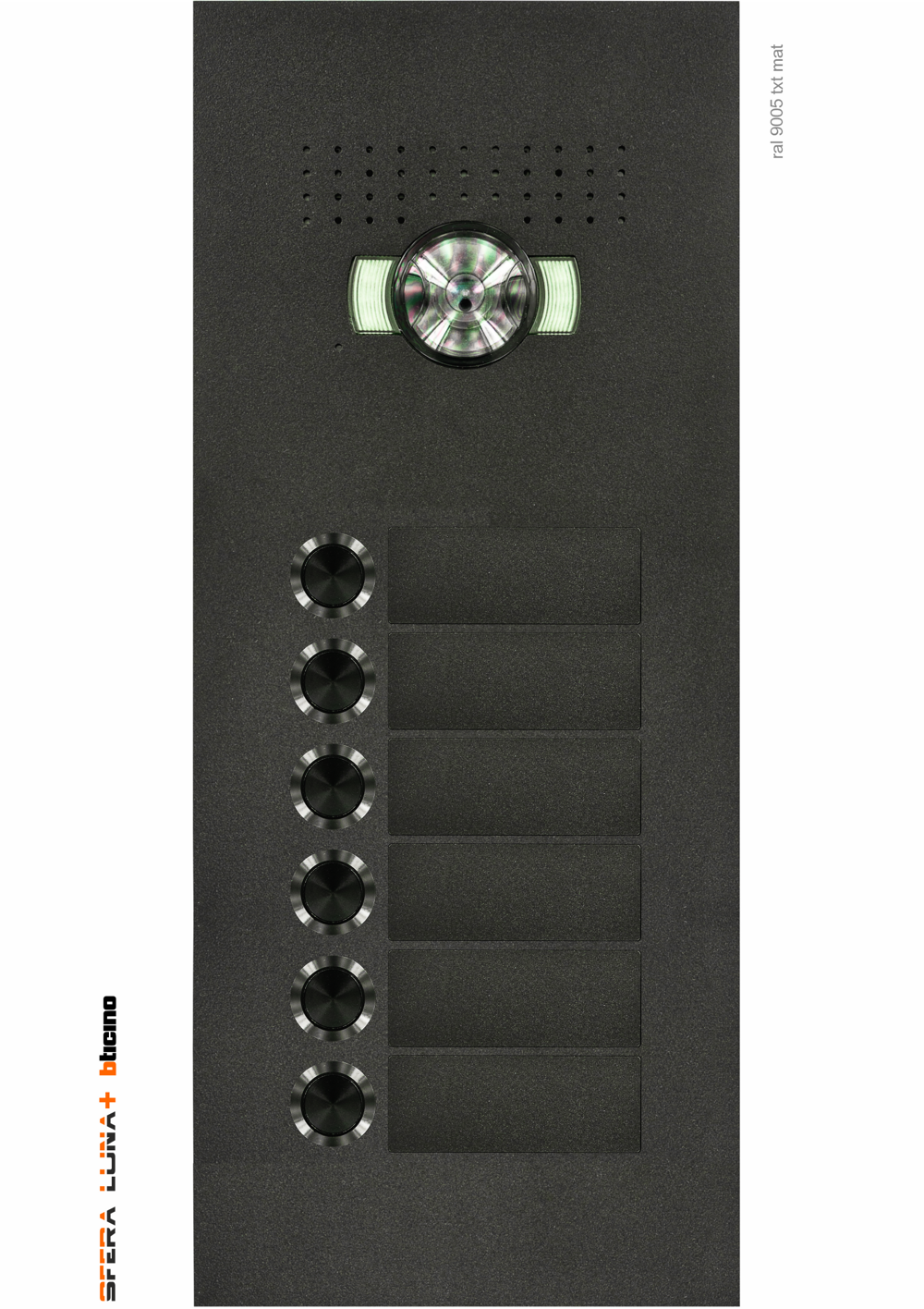

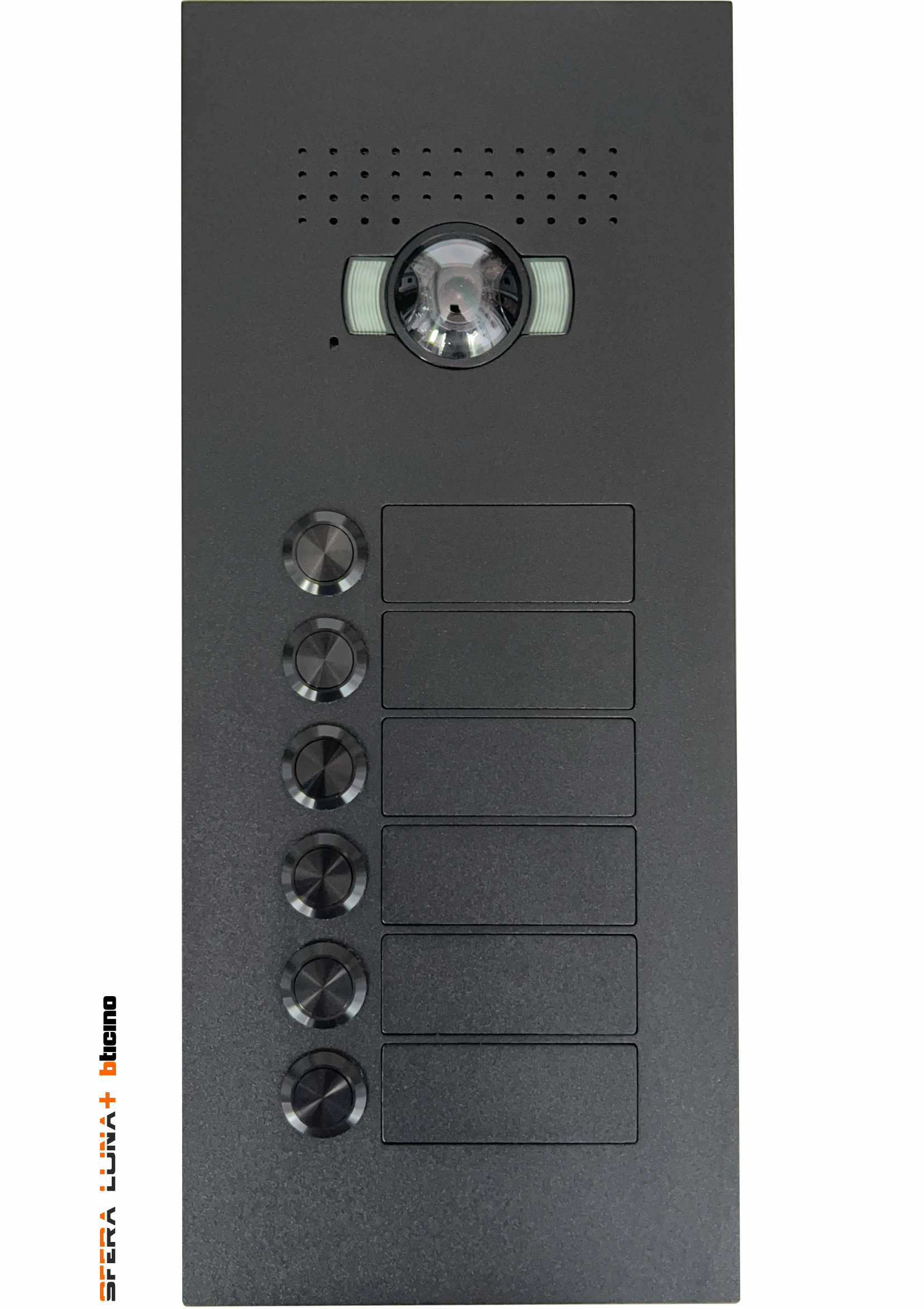

Videophone front entry panel SFERA LUNA+6 for Biticino wide angle audio/video 351300.

Sleek high-end design at the entrance of your residence / apartment ...

A six way call button system, vandal resistant.

Standard installation on Bticino 350030 flush-mounted box.

The front panels are available in all ral colors, matching the color of your residence or project.

• 6 doorbell buttons

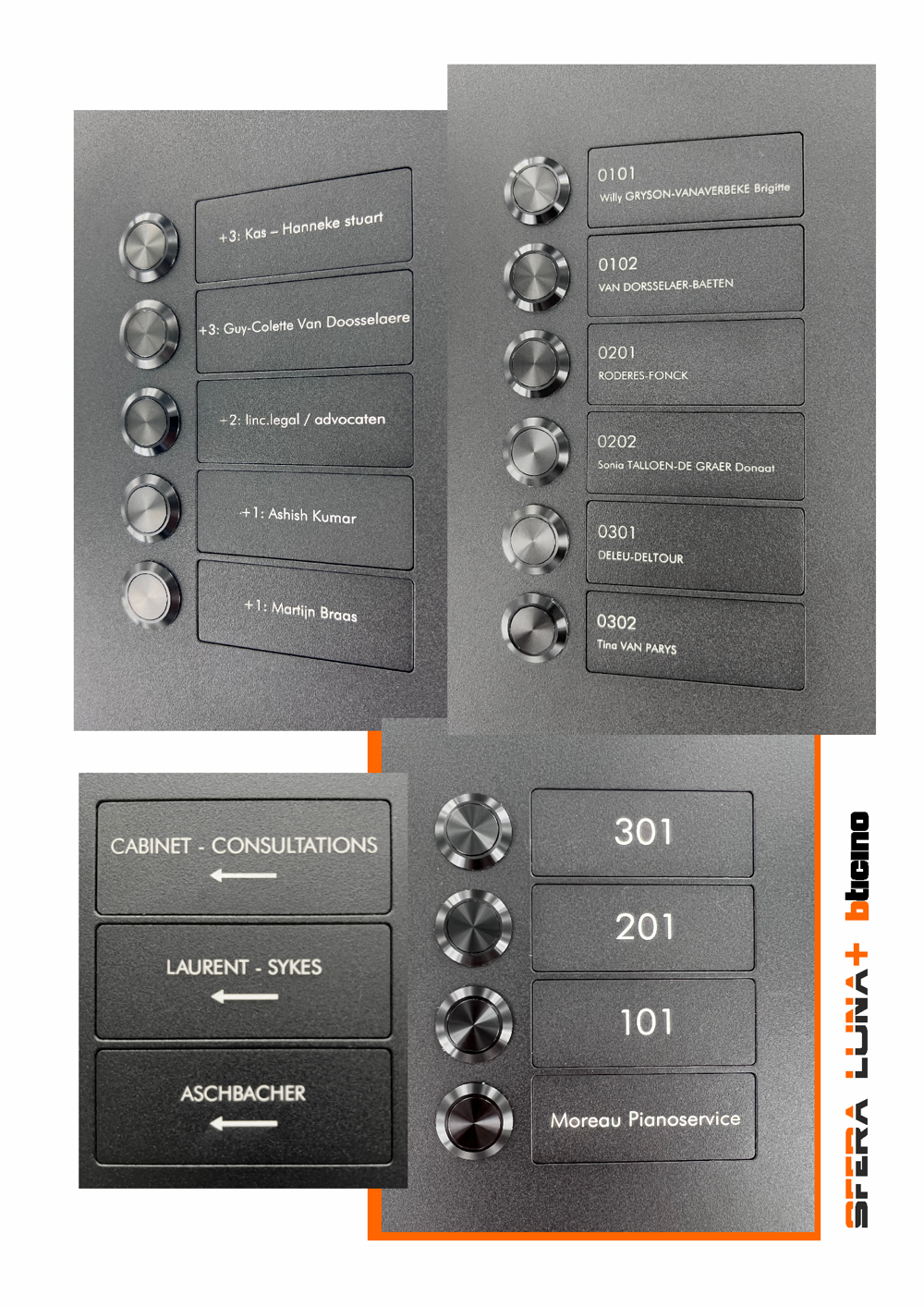

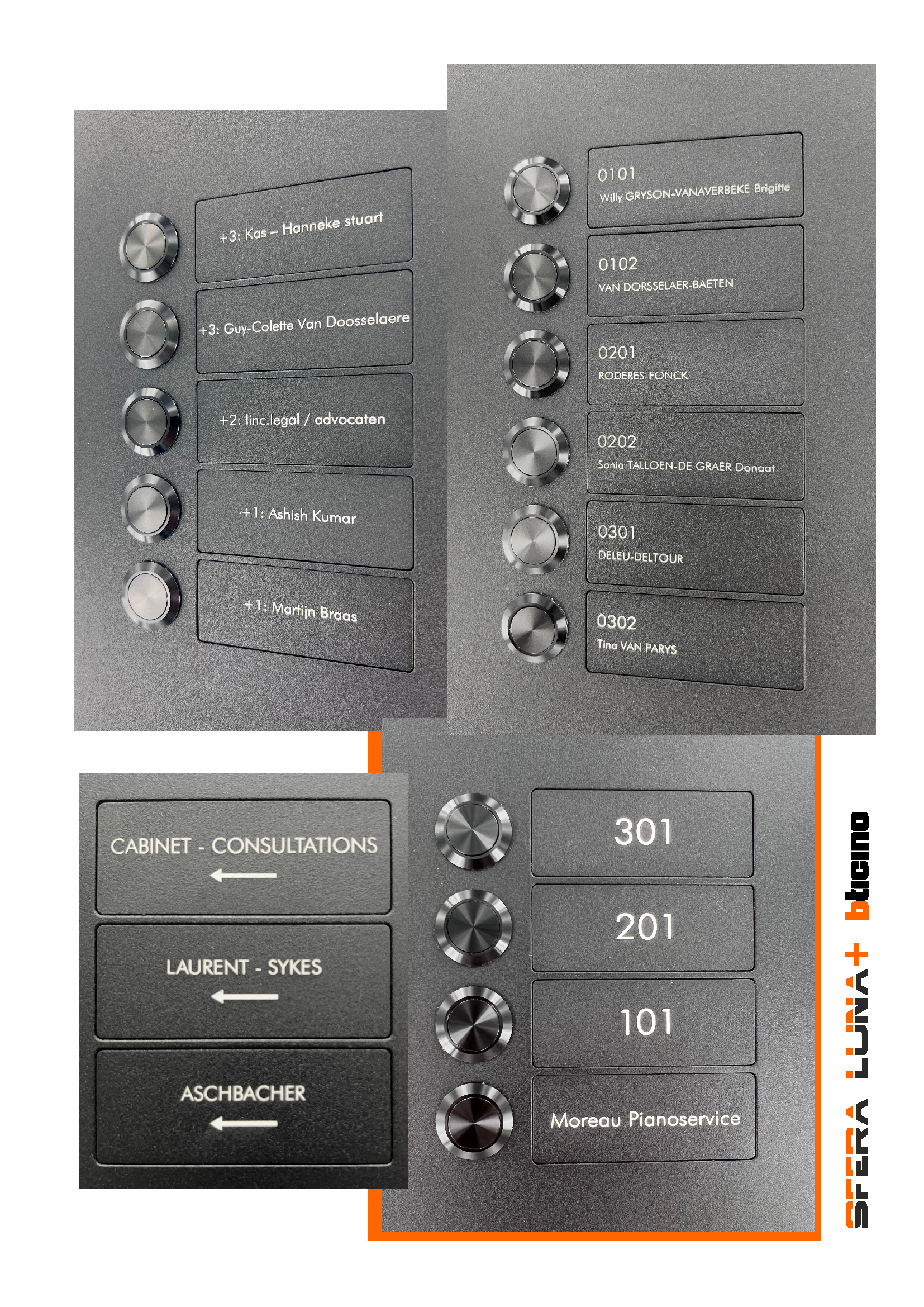

• 6 interchangeable nameplates, easy mounting with unique invisible mounting system
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Removable nameplate can be personalized or not.
• Easy installation in narrow environments
• Model flush mounted on standard box Bticino 350030
• Positionable with oblong holes.

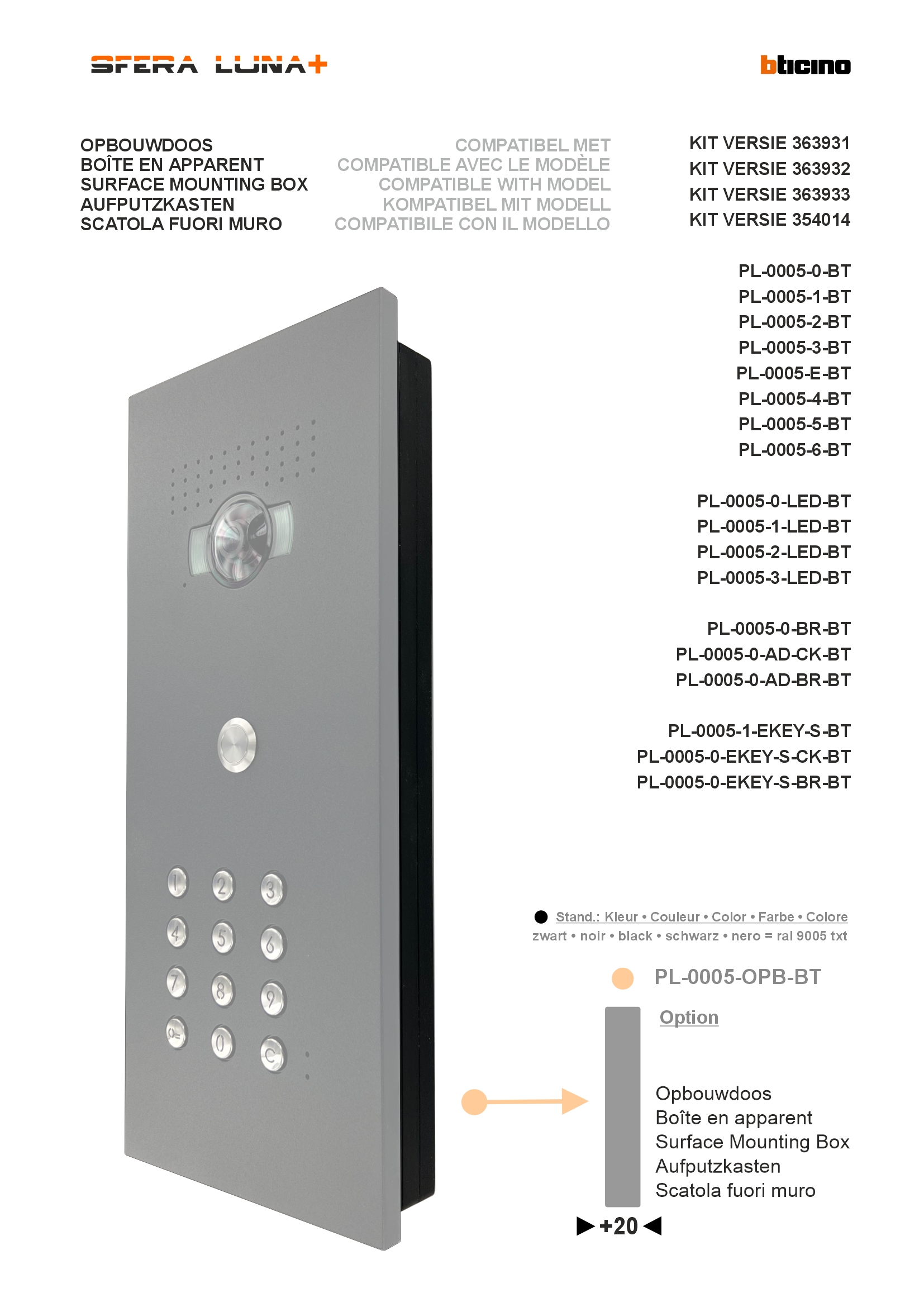

• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

 SFERA LUNA DOCUMENTS

 All Ral colours available

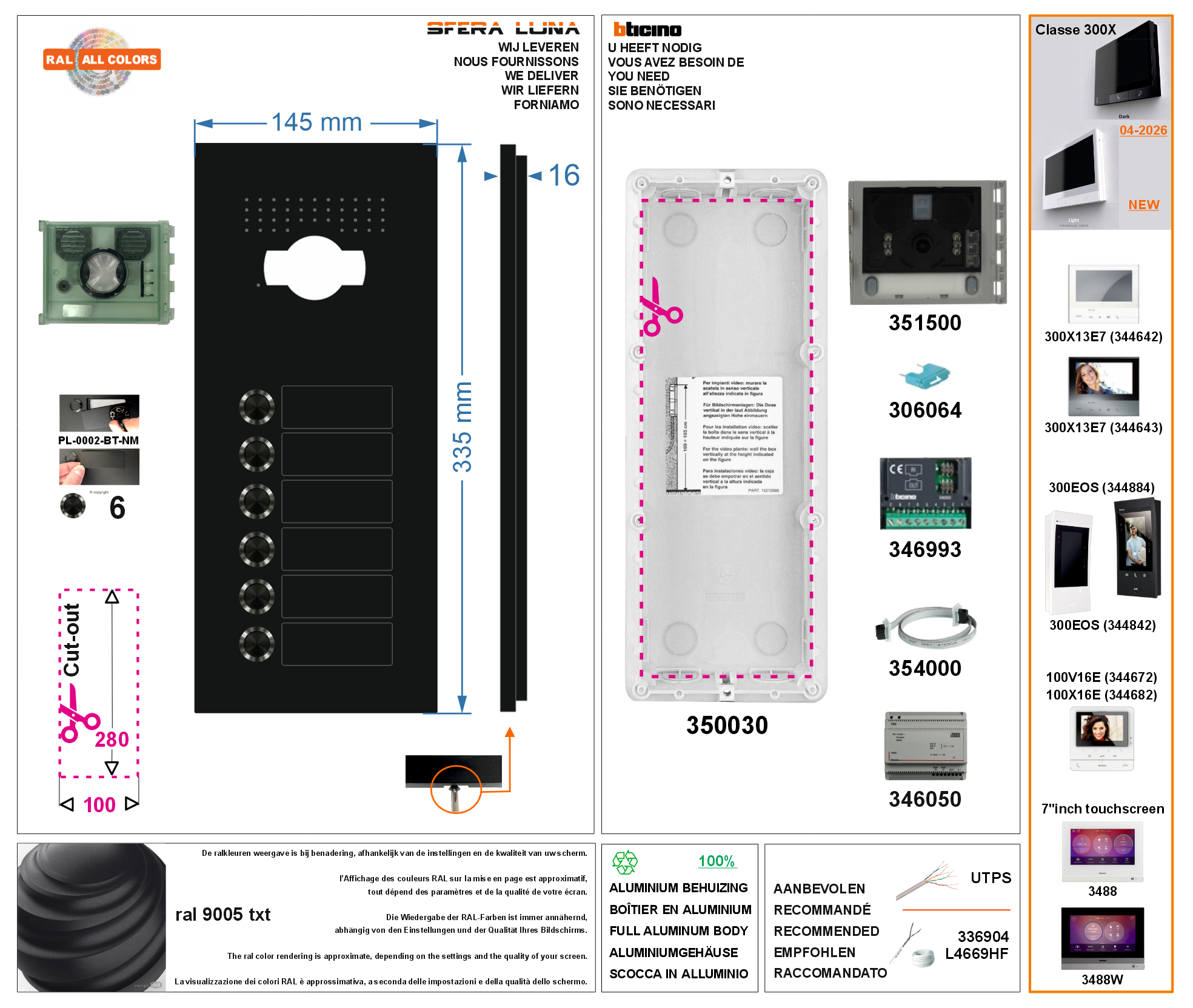

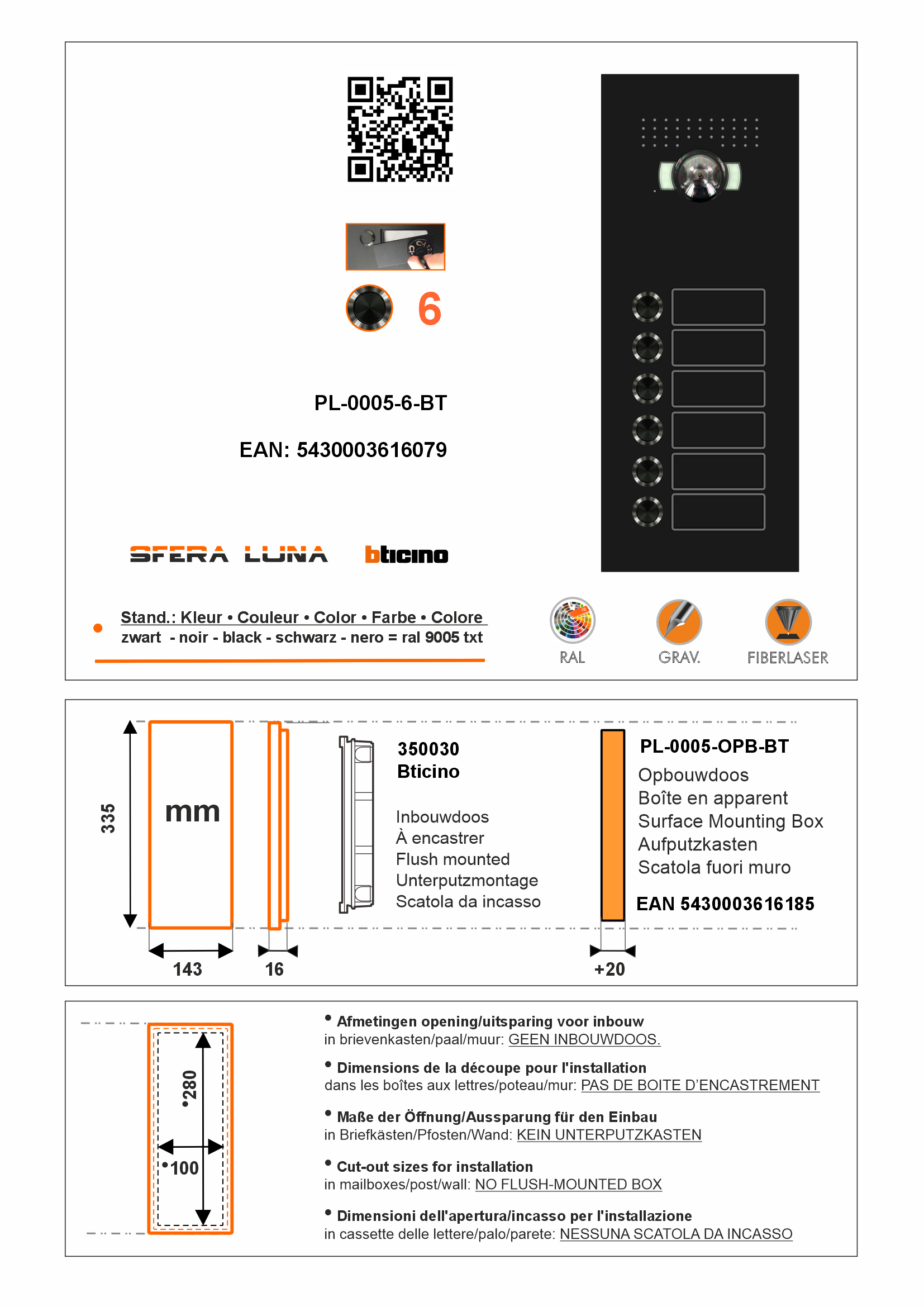

 Dimensions : width 143mm x height 335mm

We supply :

1. Front panel entrance in ral color.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module 351300
4. 354000 Videoparlofonie connection cable for functional modules

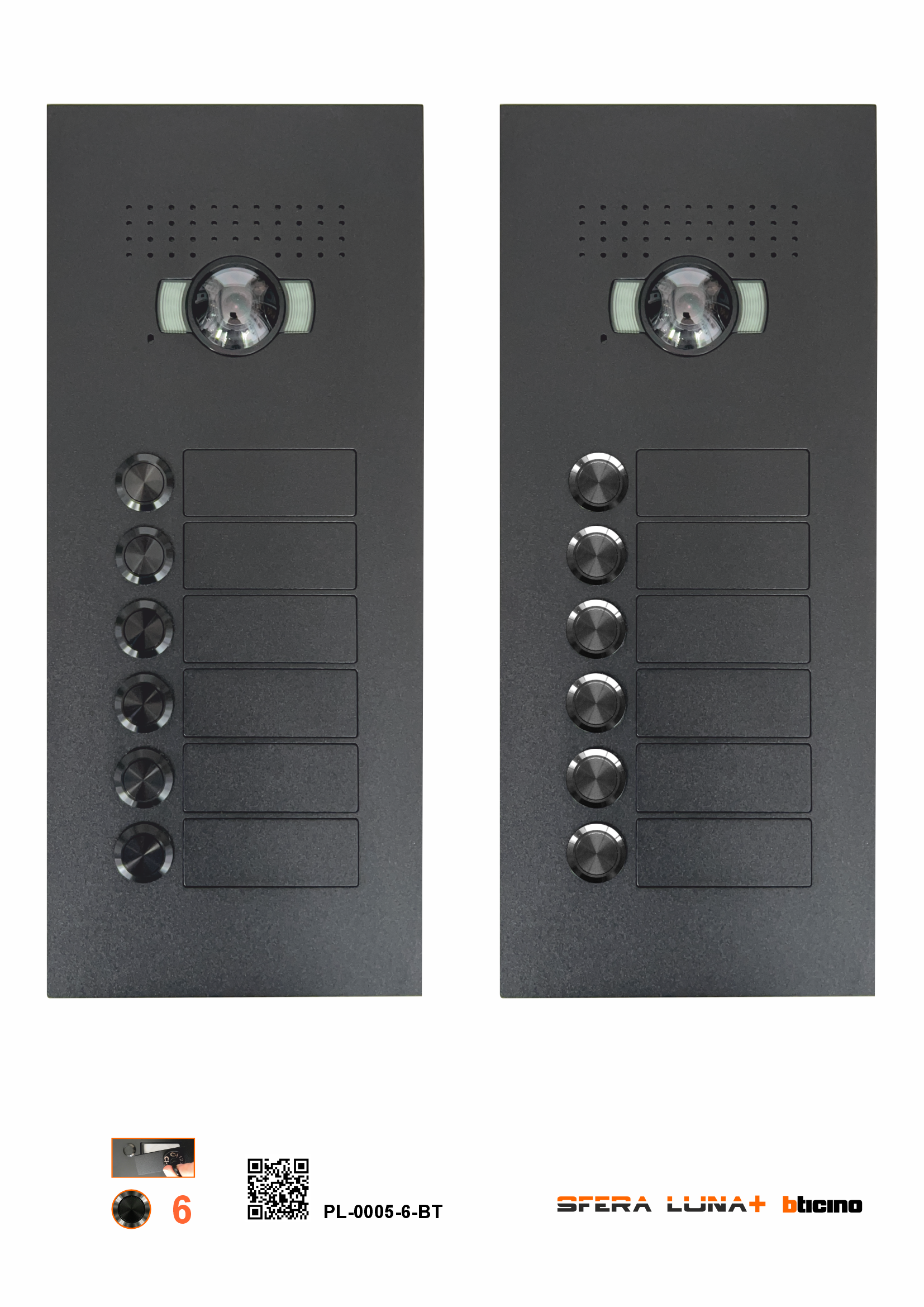

5. 6 pushbuttons (integrated) black stainless steel, stainless steel or led.  (IP67 - IK08)
6. 6 interchangeable name tags  (IP68)
7. Tool for mounting interchangeable name tags

You need Bticino :

1. 350030 - Flush-mounting box 3 modules
2. 354000 Videoparlofonie connection cable for functional modules
3. 351300 - Audio/video module with wide-angle lens
4. 346993 - Interface Sfera (up to 8 call buttons possible)
5. 346050 - Power supply
6. 306064 - Conf. set
7. Preferably use REF 336904 twisted cable for the connection
8. Compatible with all Bticino indoor units: 100X16E (344682) or 300 X13E7 wifi-3/4G (344642) or MyHOME_UP 7" Hometouch (3488) o 300EOS (344842)

  These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
