SFERA LUNA3 Call Buttons Video Parlofonie High-End Bticino

• Standard version in RAL 9005 black (fine texture)
• Available in all RAL colours
• Perfectly matched to your architecture
• Professional powder coating finish  "Seaside"
• Ideal for coastal areas and maritime environments

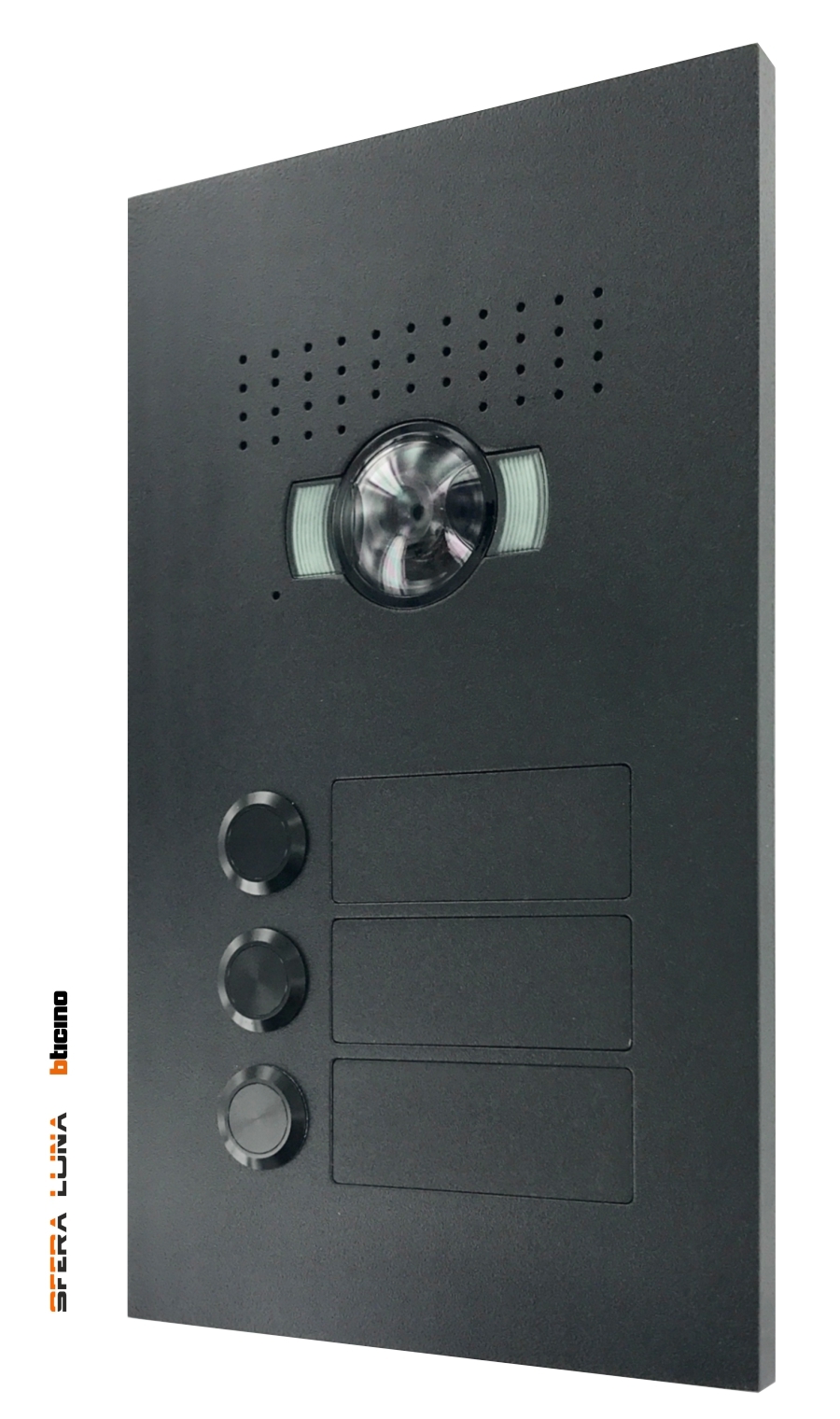

The SFERA LUNA front panel is equipped with interchangeable nameplates and high-quality push buttons, designed for a sleek appearance and easy personalisation. This solution is ideal for homes, residences and professional applications where flexibility and durability are important.

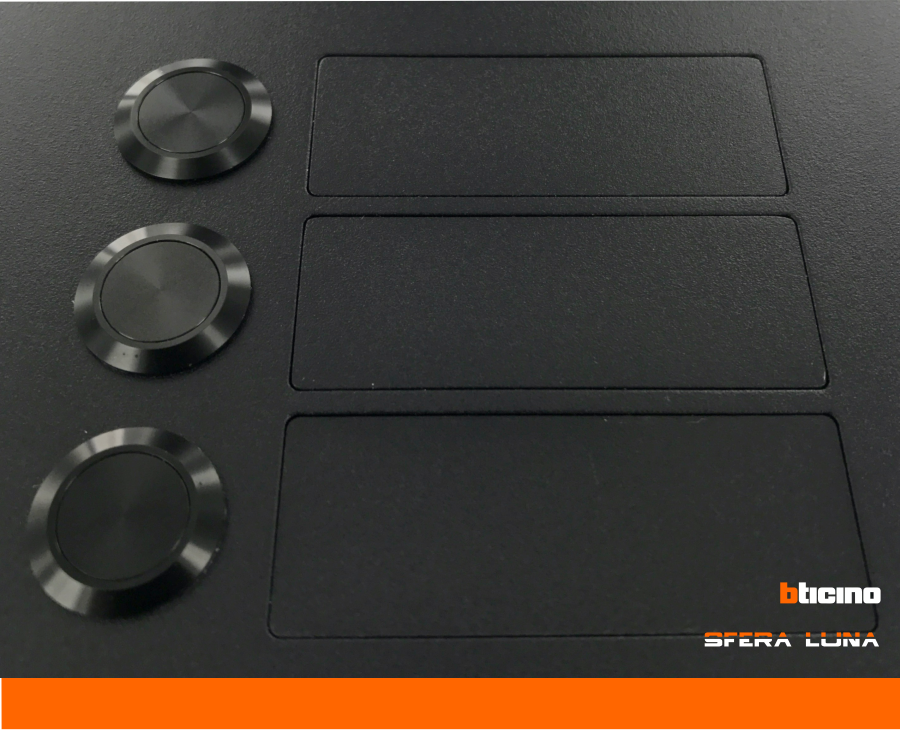

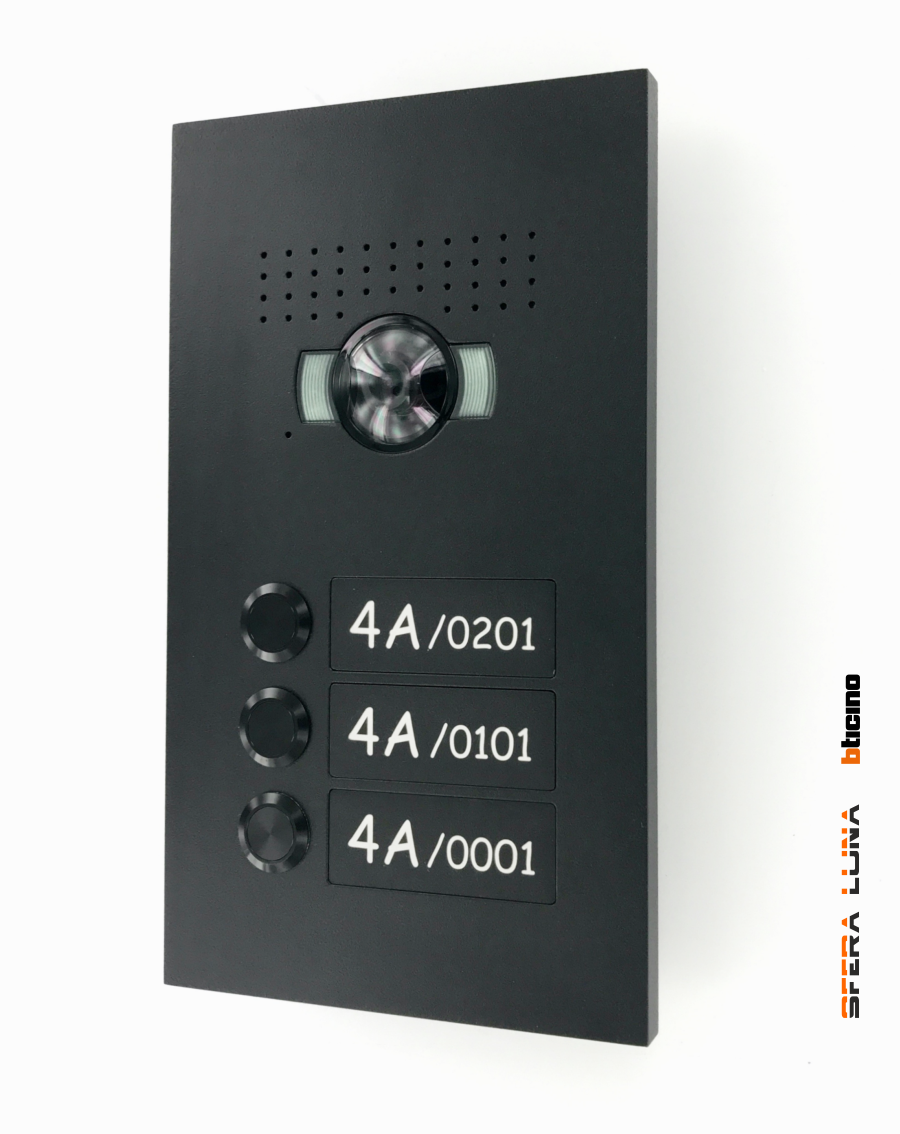

• 3 interchangeable nameplates / name tags
• Unique invisible mounting system for a sleek appearance
• Nameplates easy to replace and personalise
• Push buttons available in black or stainless steel
• Optional with discreet LED lighting, connection via the bus
• Weather- and vandal-resistant – IP65 / IK08

• Central mounting system with concealed fixing
• Clean integration into wall, gate, post or mailbox
• Ideal for installations in limited or narrow spaces
• Flush mounting on BTicino flush box 350020
• Also available with surface-mount solution
• Vandal-resistant IP54 – IK08

The SFERA LUNA front panel was developed for durable installation in outdoor environments. Thanks to its solid aluminium construction and high-quality finish, the system offers excellent resistance to weather influences and vandalism.

• Front panel: IK08 – IP54
• Push buttons: IK08 – IP65

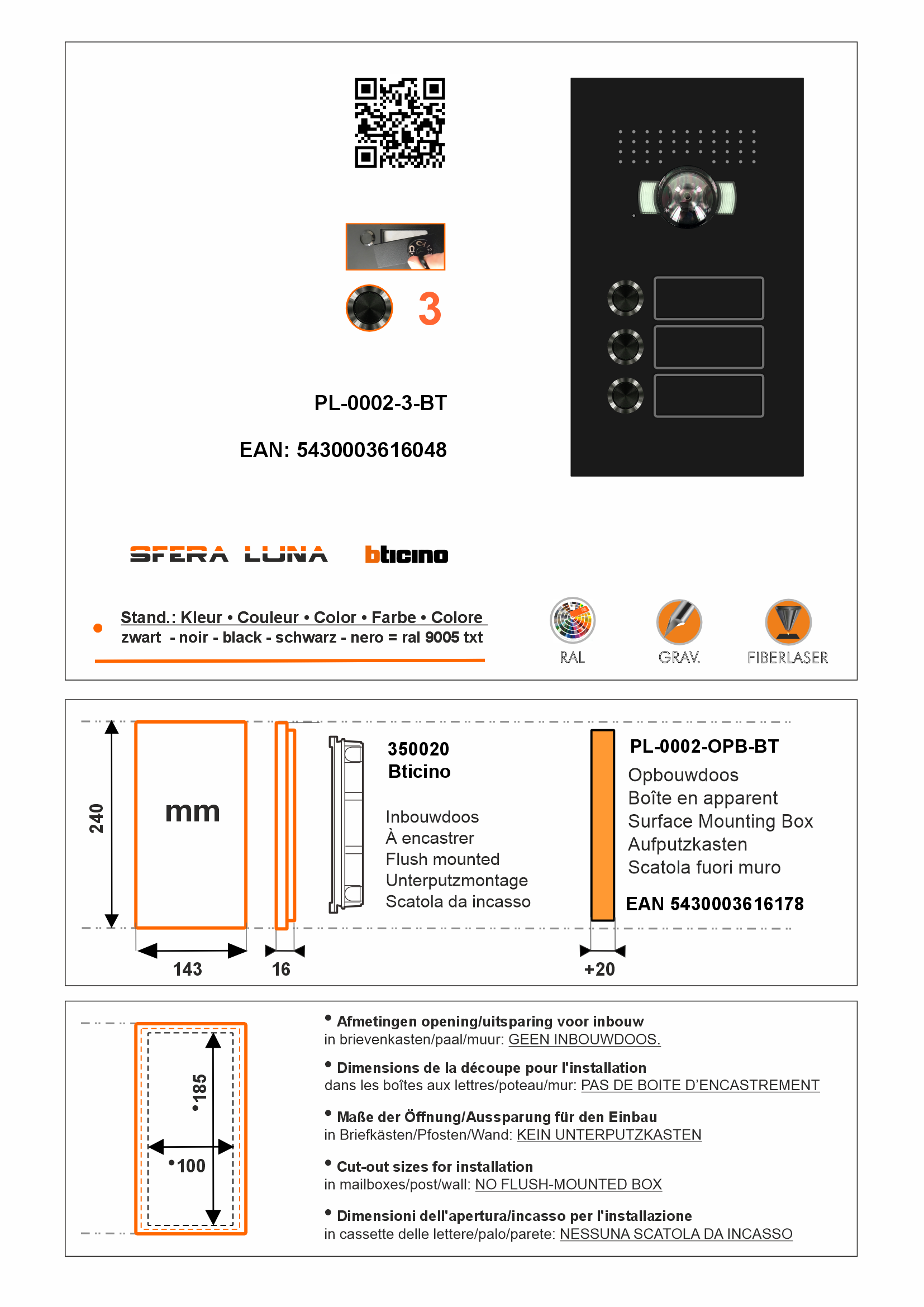

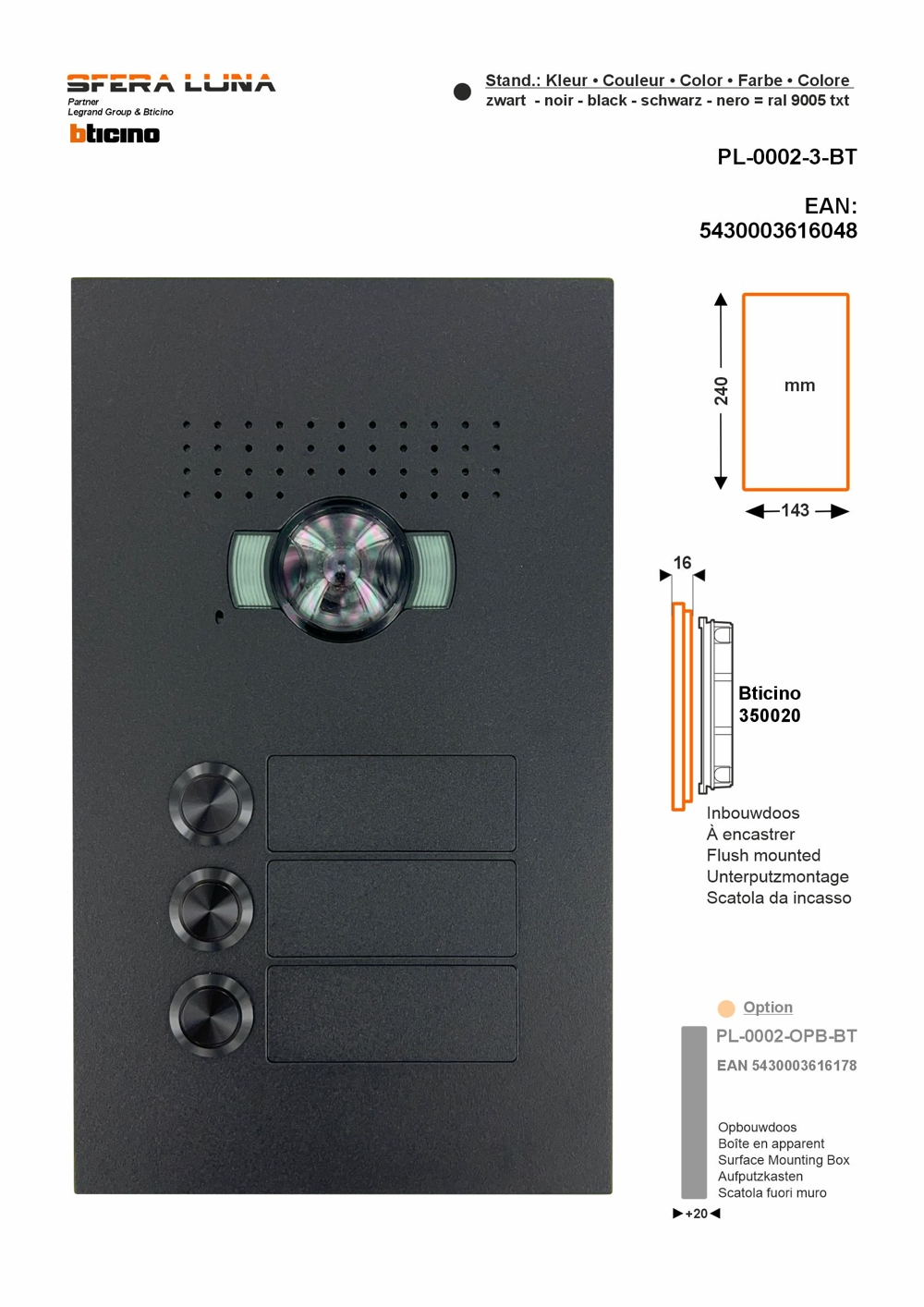

• External dimensions front panel: 142 × 240 x 16mm (W × H x D)
• Suitable for durable outdoor use

This construction guarantees a long service life and reliable operation in residential and professional applications.

The SFERA LUNA front panel is supplied as a complete and high-quality solution for professional installation. All parts are designed for simple installation and durable operation in outdoor environments.

• - Front panel in selected RAL colour (IP54 – IK08)
• - Mounting bracket with fixing screws for BTicino flush box 350020
• - 351305PKM – protective plexi for BTicino module 351500
• - 3 push buttons (black, stainless steel or LED – IP65 – IK08)
• - 3 interchangeable nameplates (IP65)
• - Mounting tool for invisible fixing

All components are designed for fast installation and a clean architectural result.

Optional available Surface box, Rain-Sun cover, Surface box 45%

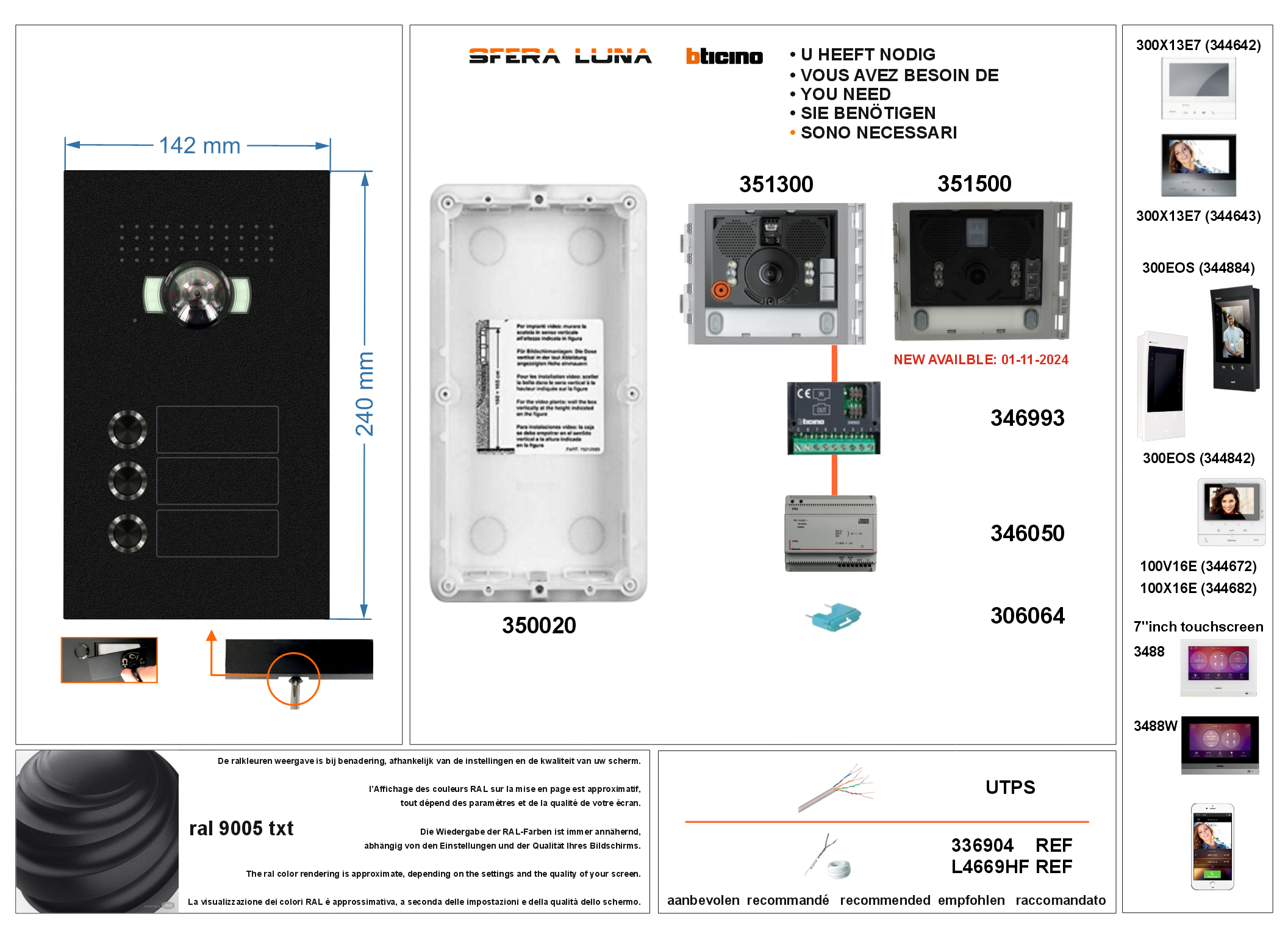

For correct installation, the following minimum BTicino components are required:

• - 350020 – flush box (3 modules) - optional surface box
• - 354000 – connection cable 620 mm
• - 351500 – audio/video module with wide-angle camera
• - 346993 – Sfera interface (up to 8 push buttons)
• - 346050 – power supply
• - 06064 – configuration kit
• - Compatible with all BTicino indoor units

346250  – Potential-free door lock relay (for opening Door/Hatch)

BTicino REF 336904 or UTP-S = Recommended cabling:

For optimum warranty and support, we recommend purchasing BTicino components through the official distribution network in the country of installation.

The SFERA LUNA front panel is manufactured from solid aluminium, a material often described as the green metal. Aluminium is fully recyclable without loss of quality and therefore plays an important role in sustainable and circular construction projects.

In addition to its environmentally friendly character, aluminium also offers excellent technical properties. The material is lightweight, strong, corrosion-resistant and low-maintenance, making it particularly suitable for high-end outdoor applications and architectural installations.

SFERA LUNA is a partner of the Legrand Group and BTicino and develops solutions that are fully compatible with the original BTicino Sfera system.

The SFERA LUNA front panel is 100% compatible with BTicino components and can be integrated seamlessly with existing installations.

For optimum warranty and support, we recommend purchasing BTicino components through the official distribution network in the country of installation.

If certain BTicino components or modules are not available in the country of origin of the project, we can arrange the supply of these parts through our network. This service does not apply to the Benelux countries and Switzerland.
