Audio-Parlofonie Sfera Luna Bticino High-End Module

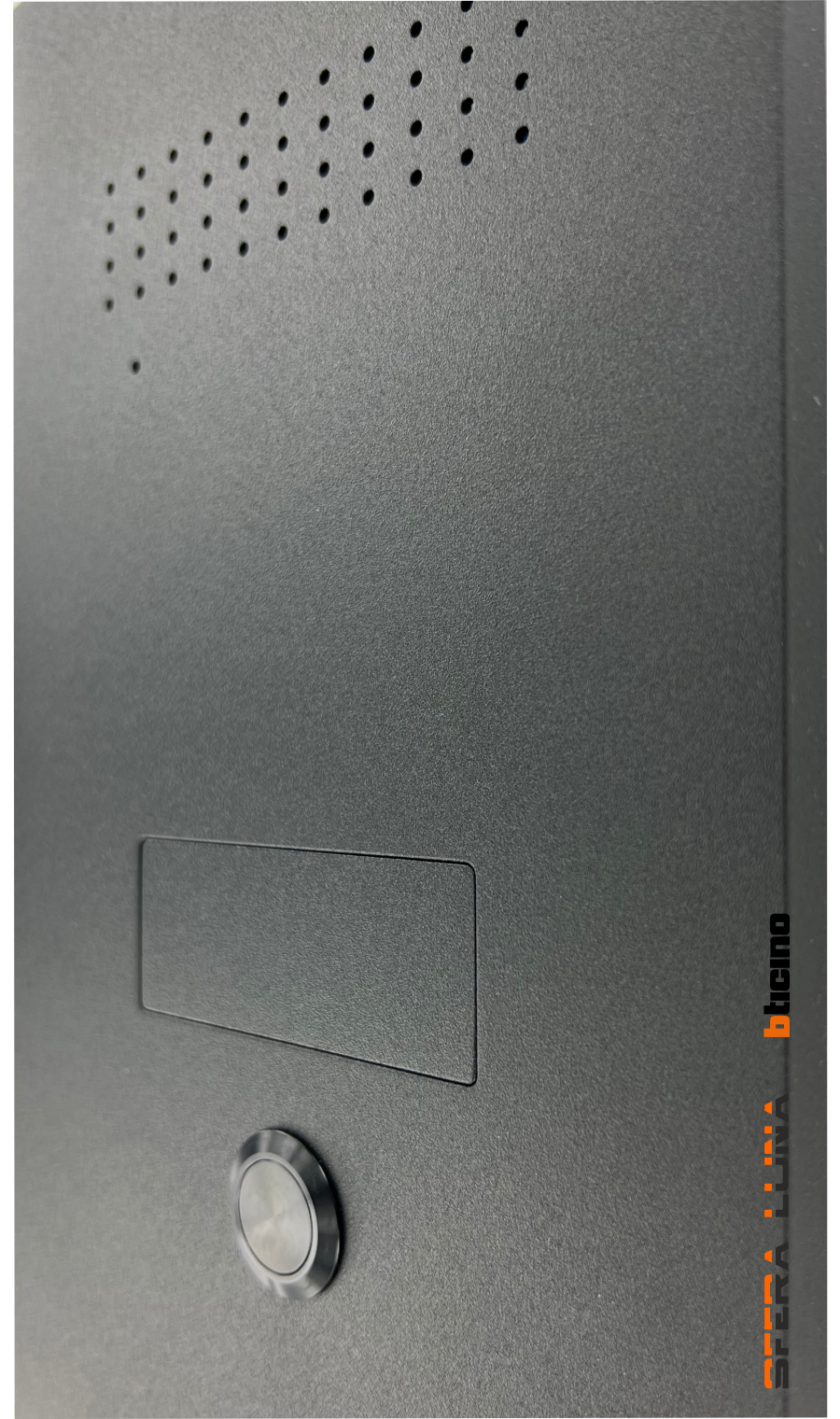

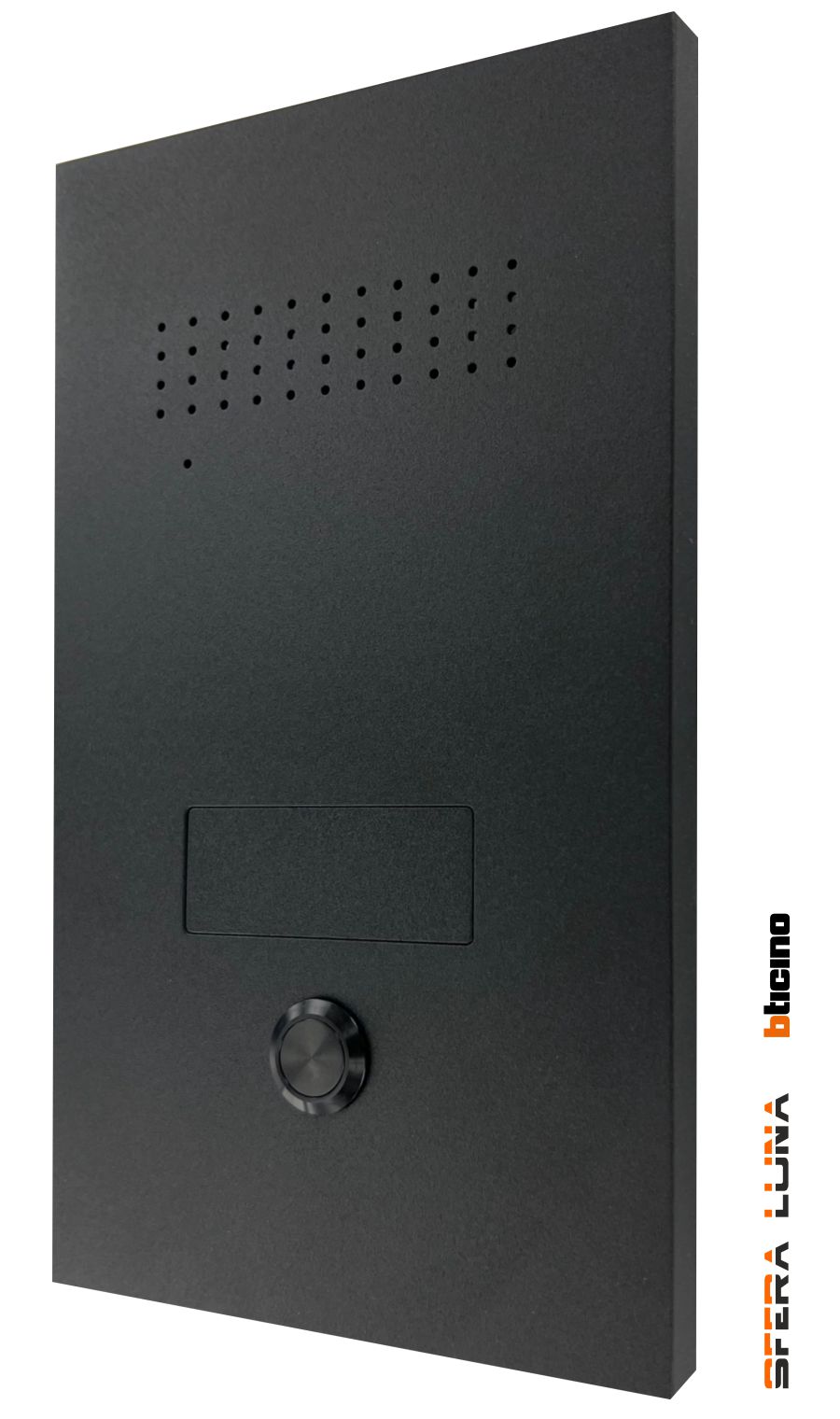

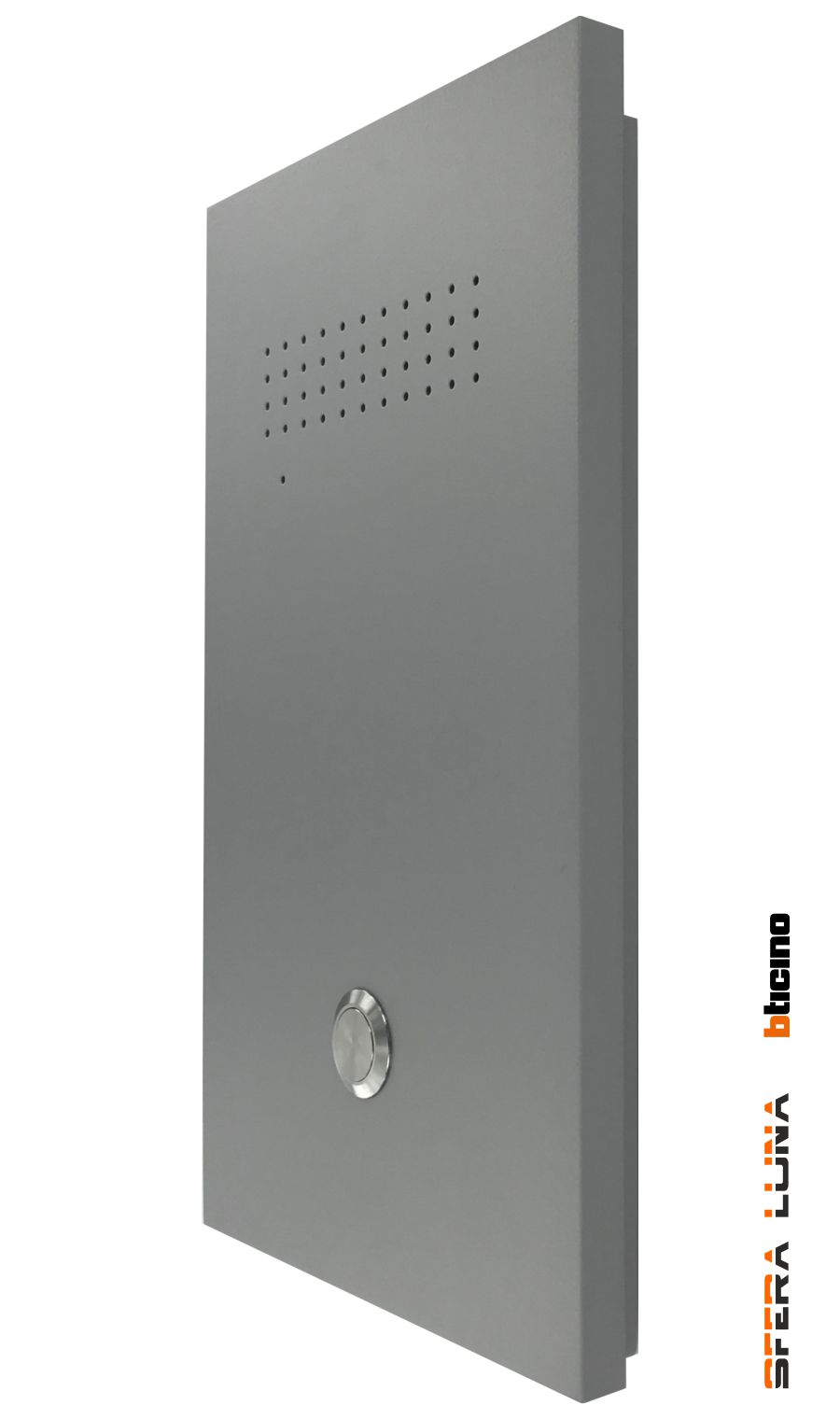

Audio Parlofonie front panel SFERA LUNA for Bticino entry panel 351100.

• Produced in 10mm aluminium, High End, Solid finishing.
• Aluminium THE GREEN METAL
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, poles, parcel boxes, etc ...
• Available with ou without removable nameplate that can be personalized or not.
• Easy installation in narrow environments.
• Model flush mounting on standard box Bticino 350020
• Also available with surface-mounted module.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.

All Ral colours available

 Dimensions: width 142mm x height 240mm

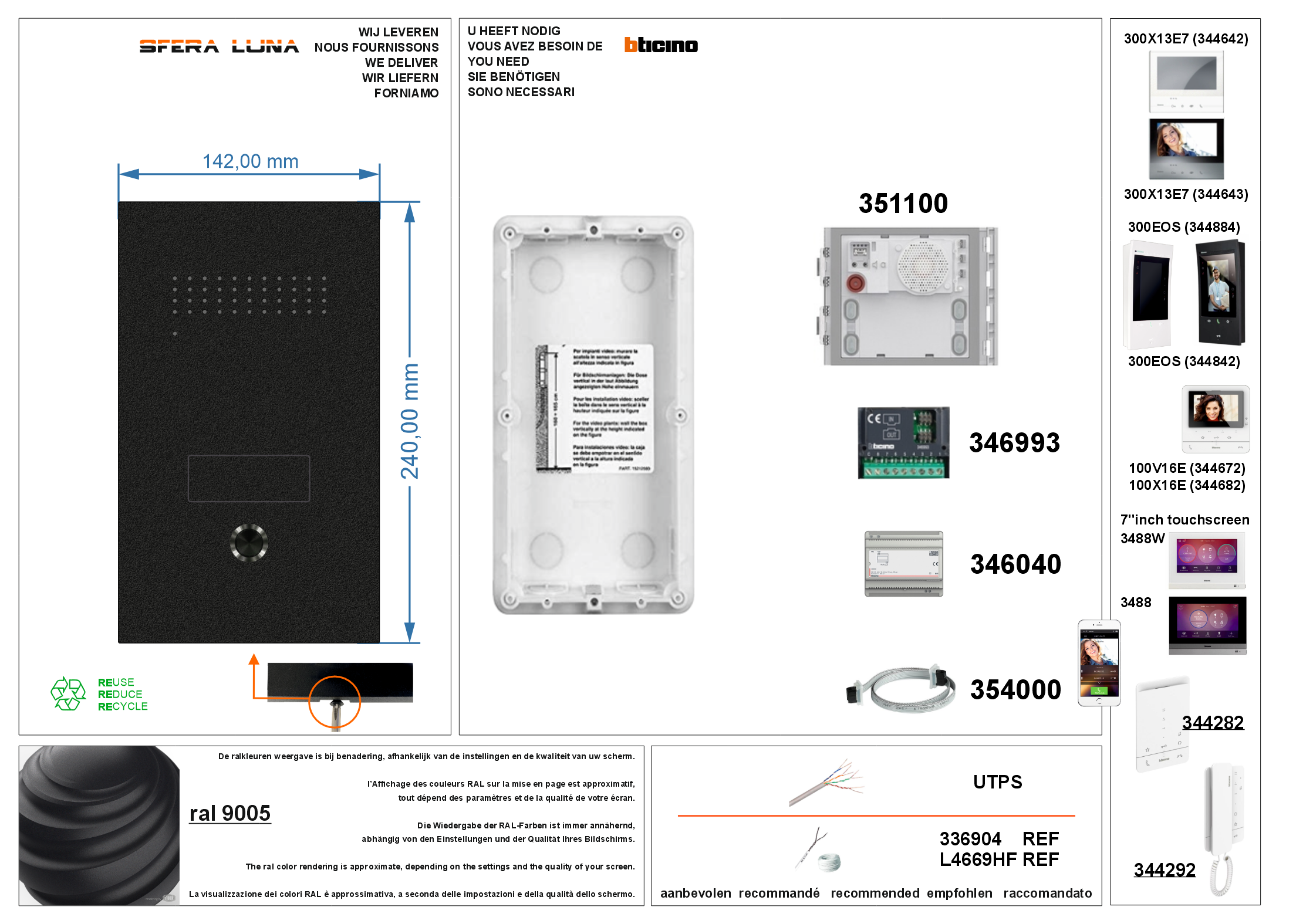

We supply :

1. Front panel entrance in ral color
2. Modular panel frame + screws for installation on flush-mounting box 350020
3. 351105PKM - Plexiglas speaker module front cover

You need :

1. 350020 - Flush-mounted box 2 modules
2. 351100 - Audiomodule
3. 346996 - Interface Sfera
4. 346040 - Power supply
5. Compatible with all Indoor units: Classe 100A16E (344282) or Classe 100A16M (344292)
6. Preferably use REF 336904 twisted cable for the connection

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
