SFERA LUNA+ House sign engraved keypad Video Parlofonie High-End Bticino

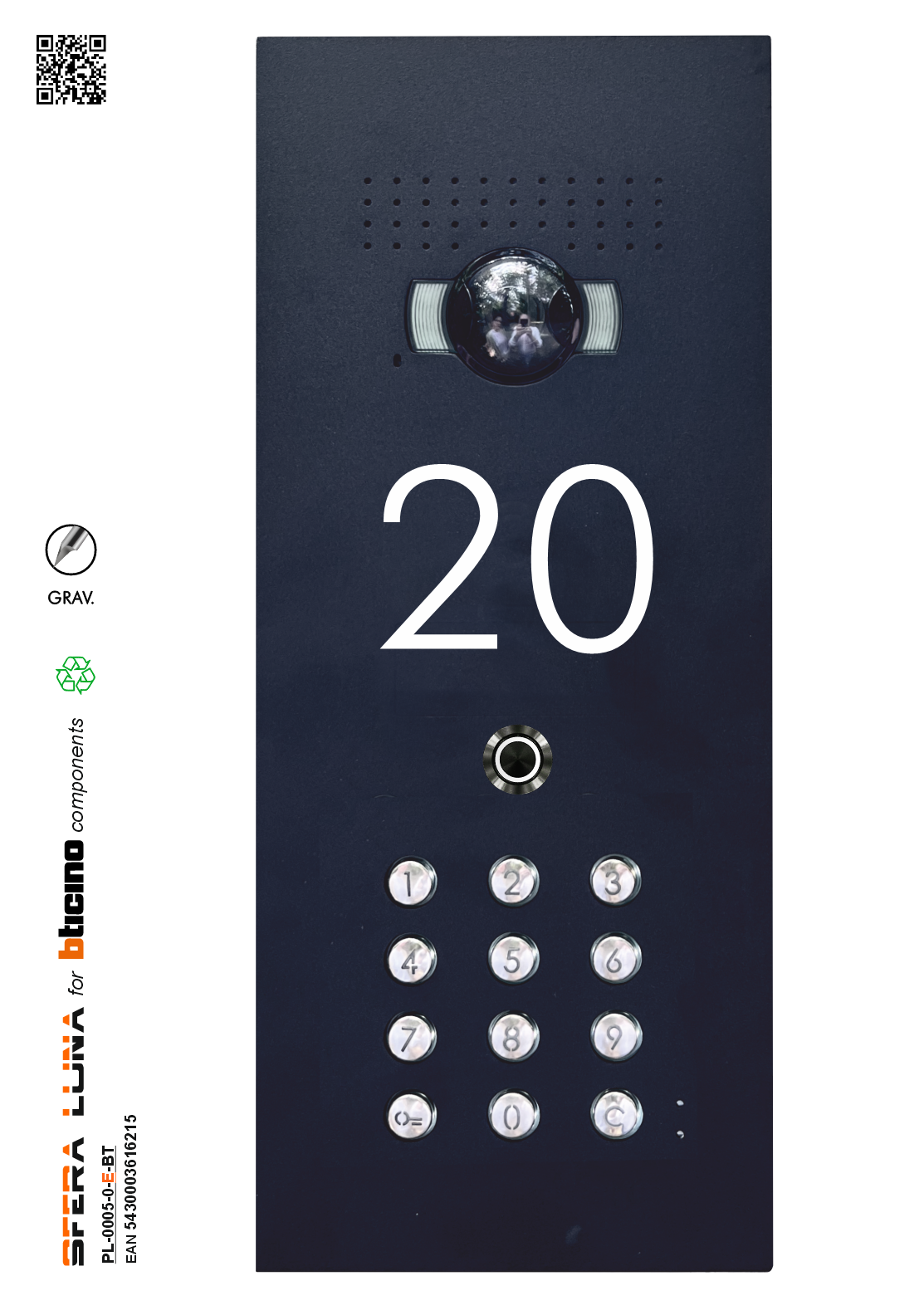

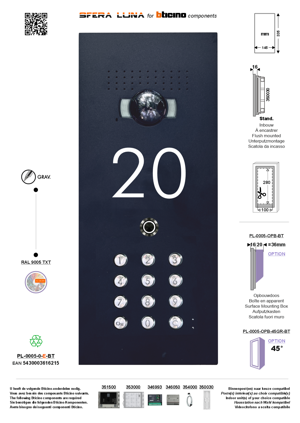

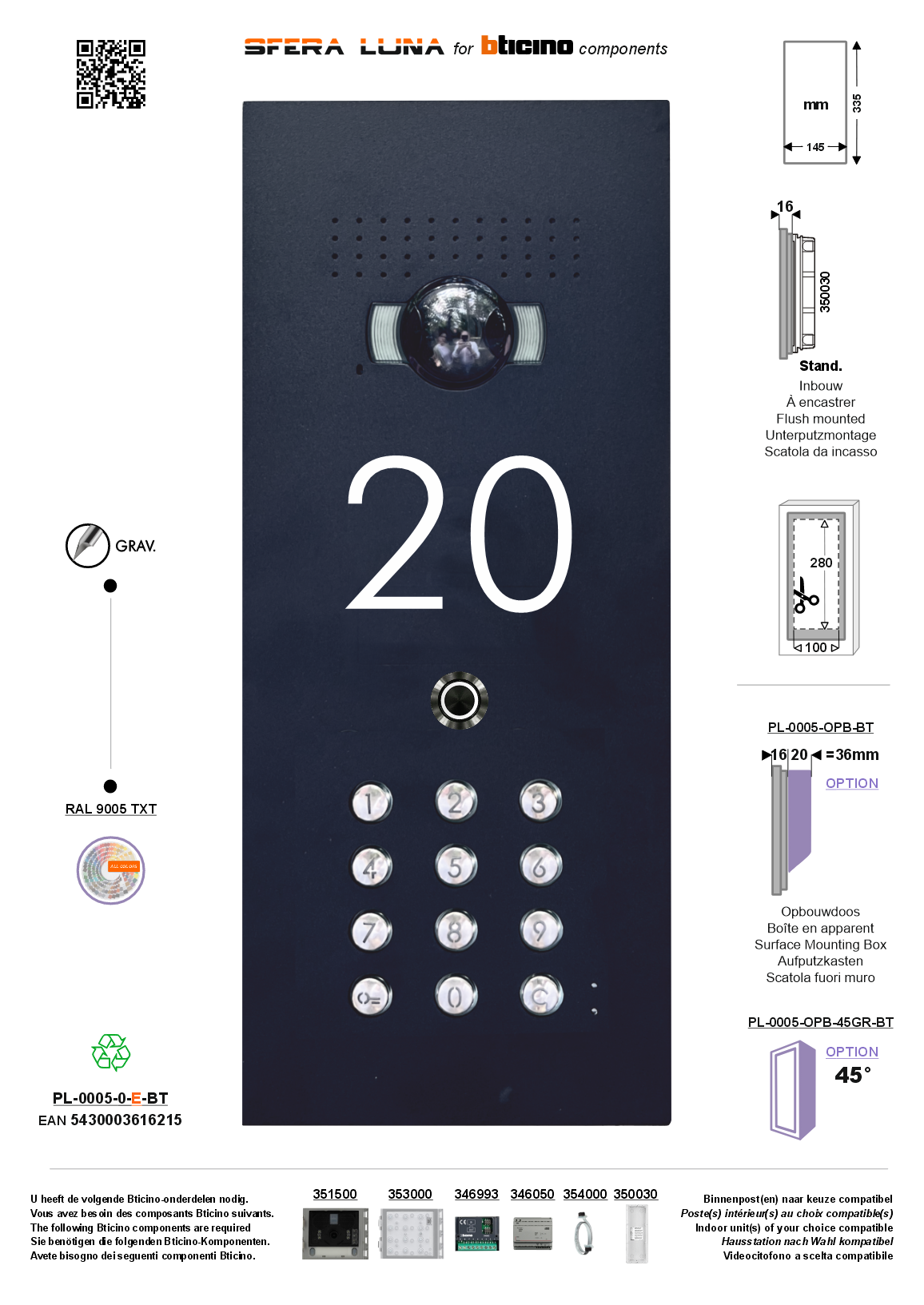

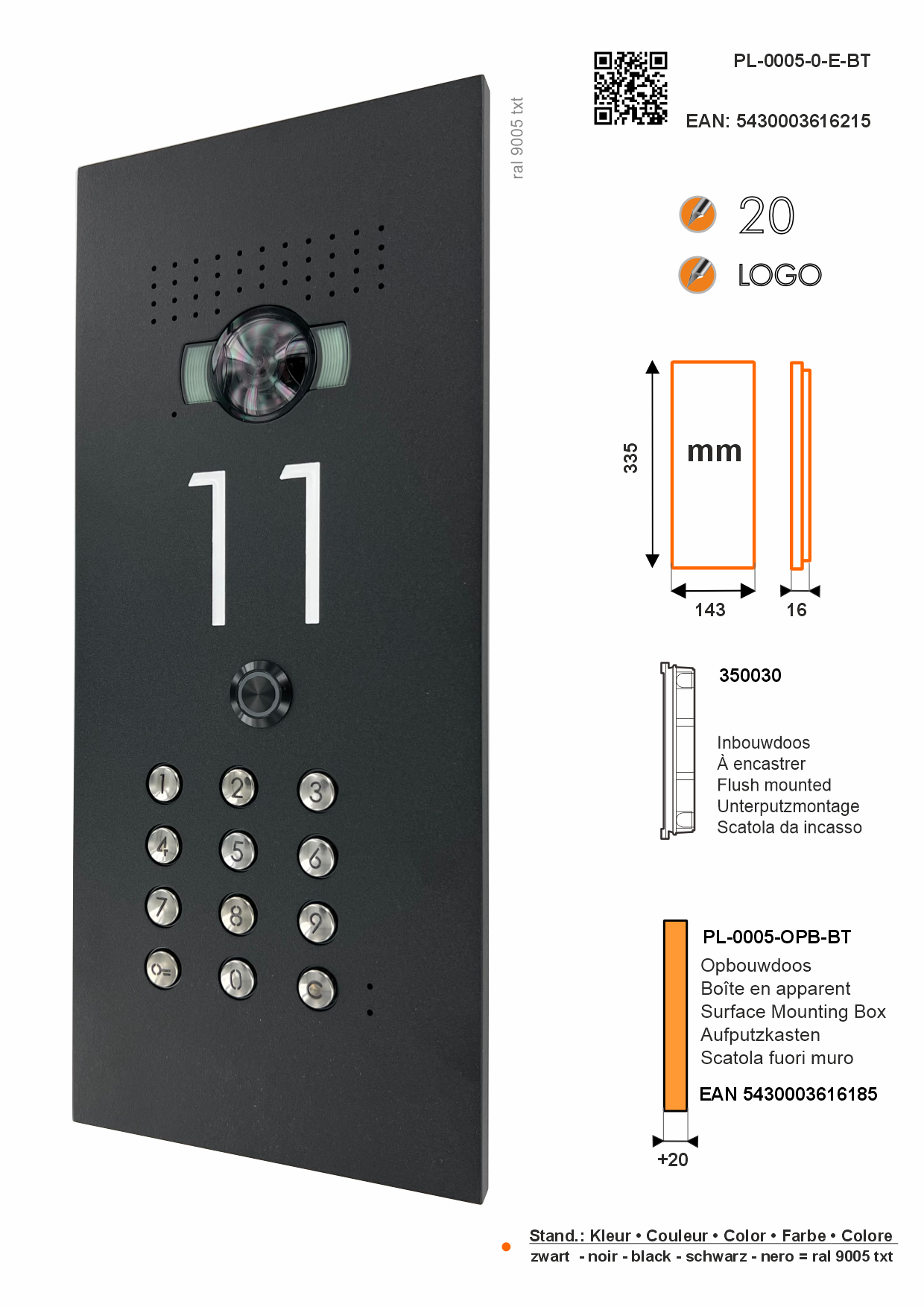

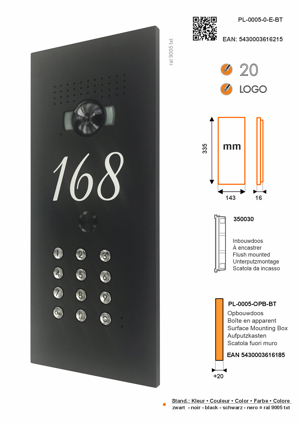

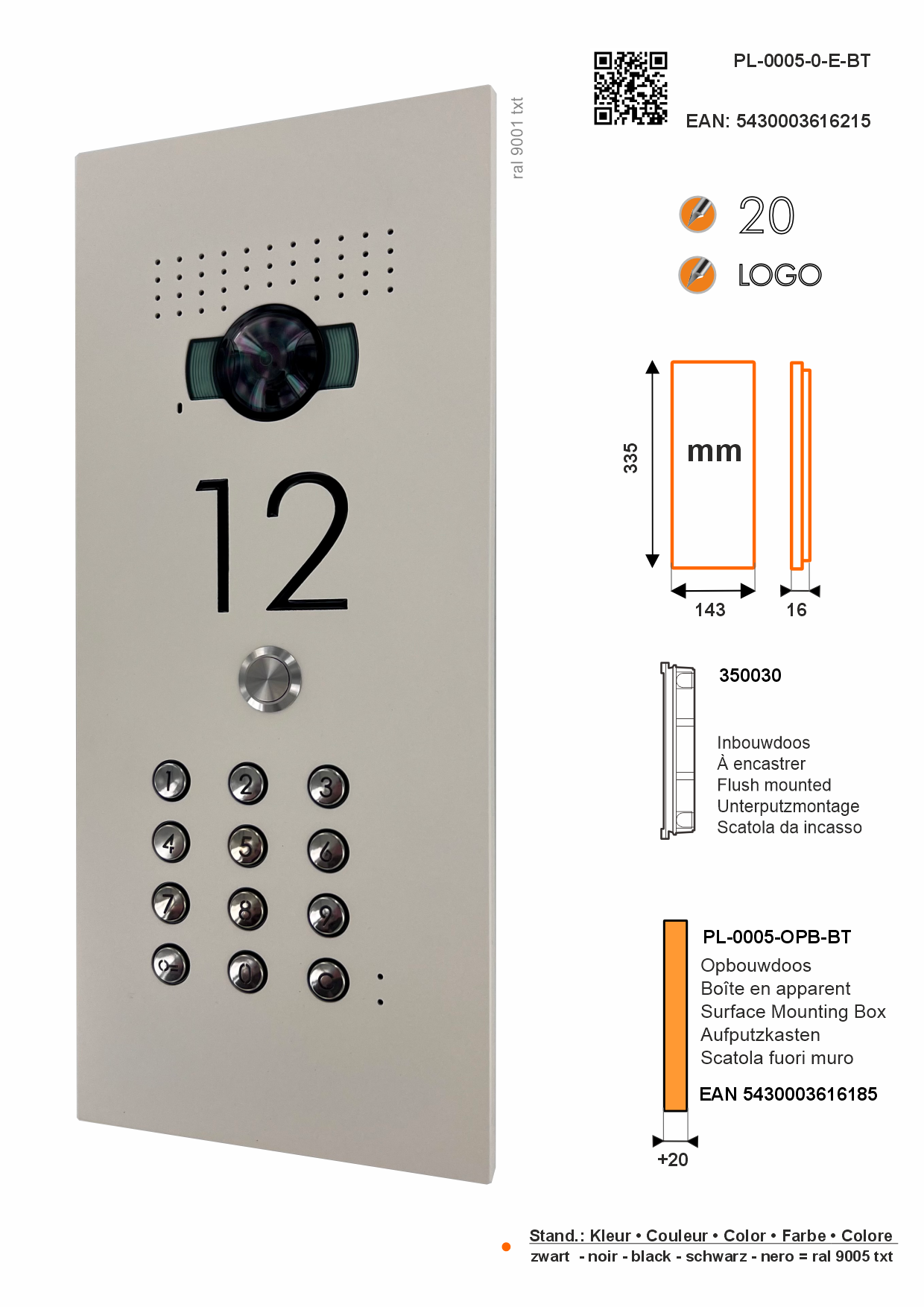

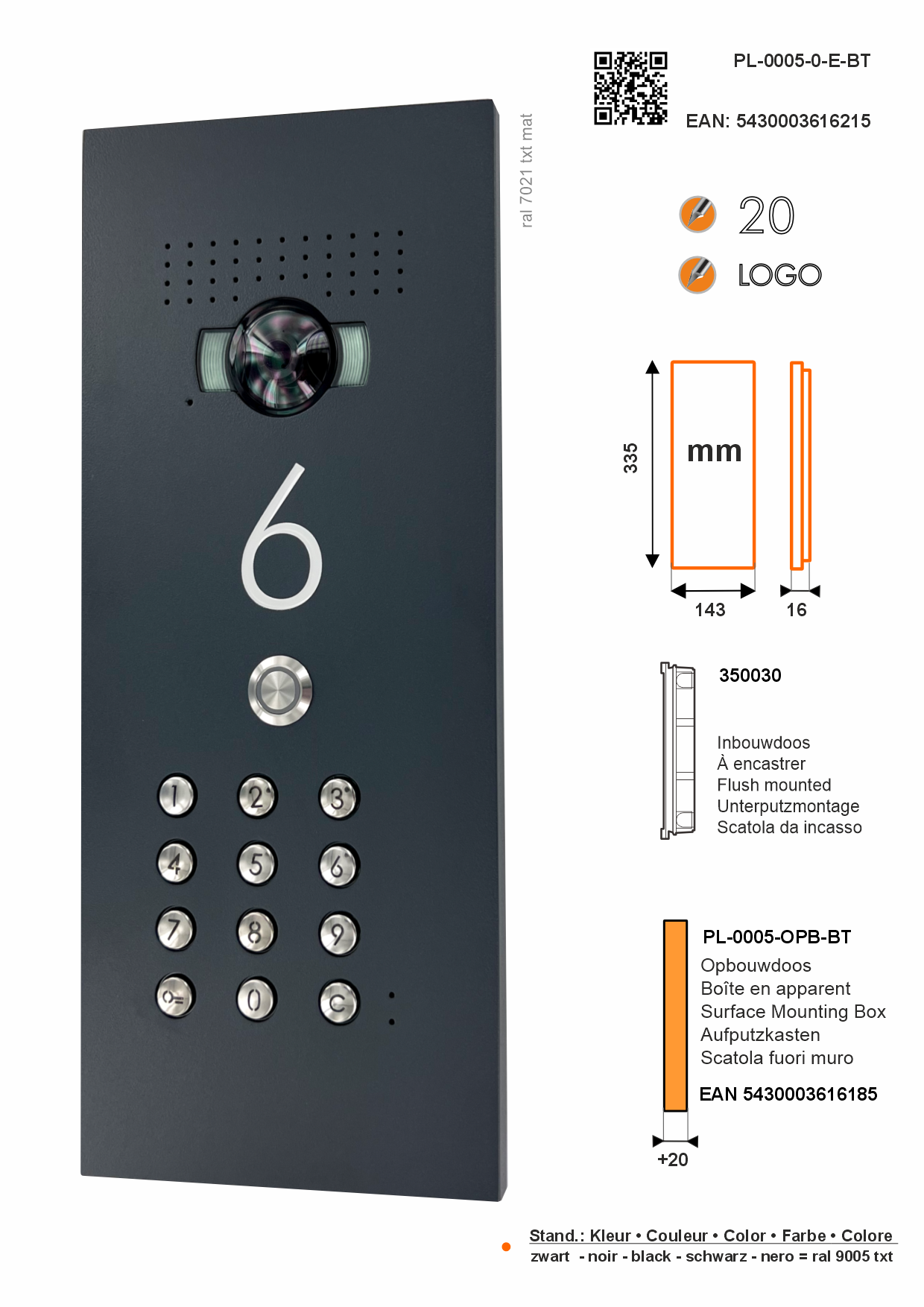

° SFERA LUNA+ video entrace front panel with engraved housesign

° For Bticino wide angle video/audio 351300 or 351500 & keypad 353000 ^{(LED illuminated)}

° Sleek high-end design at the entrance, engraved, vandal resistant ...

° Standard colour black ral 9005 fine texture, all ral colors available.

° The front panels are available in all ral colors, matching the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant. IK 08
• House sign & name are engraved and UV-resistant lacquered
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with removable nameplate(s), personalised or not.
• Model flush mounting on standard box Bticino 350030

• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group & Bticino (copyright model)

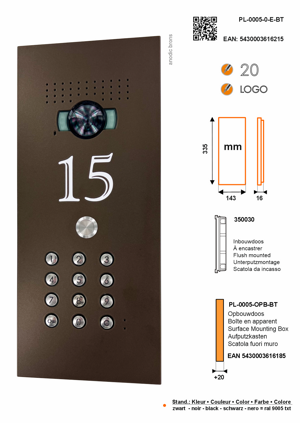

 All Ral colours available

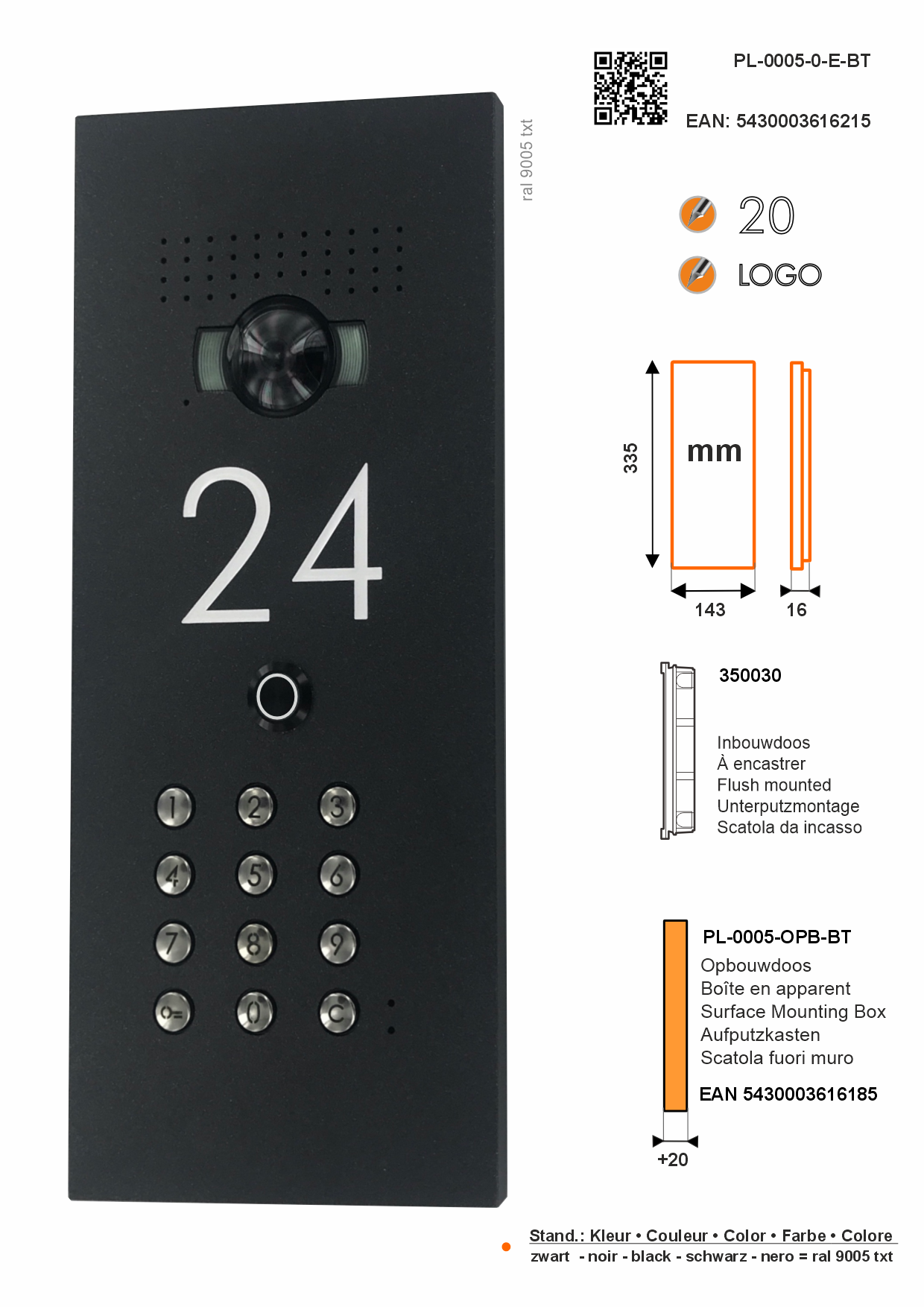

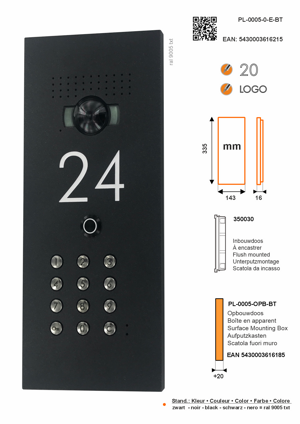

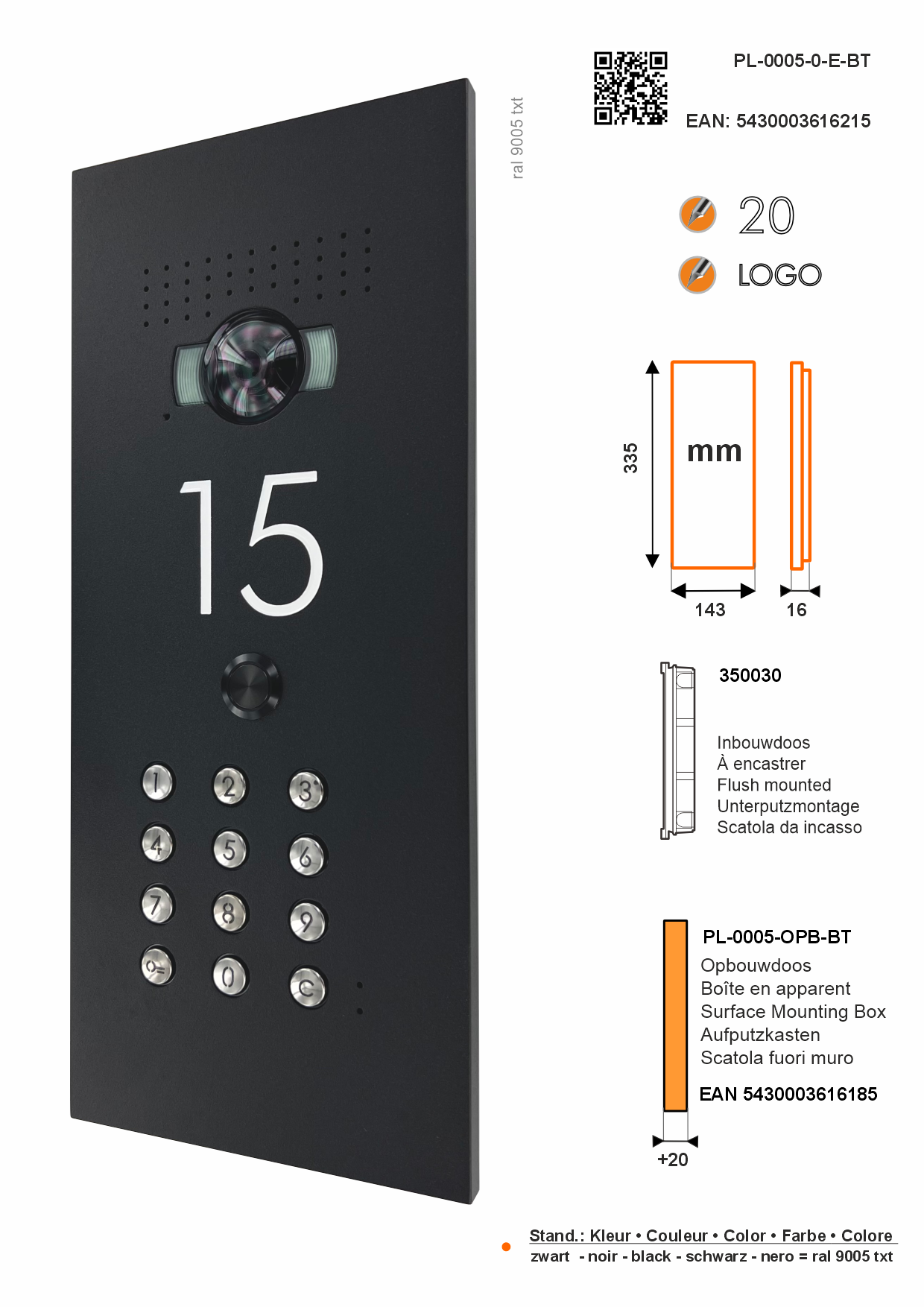

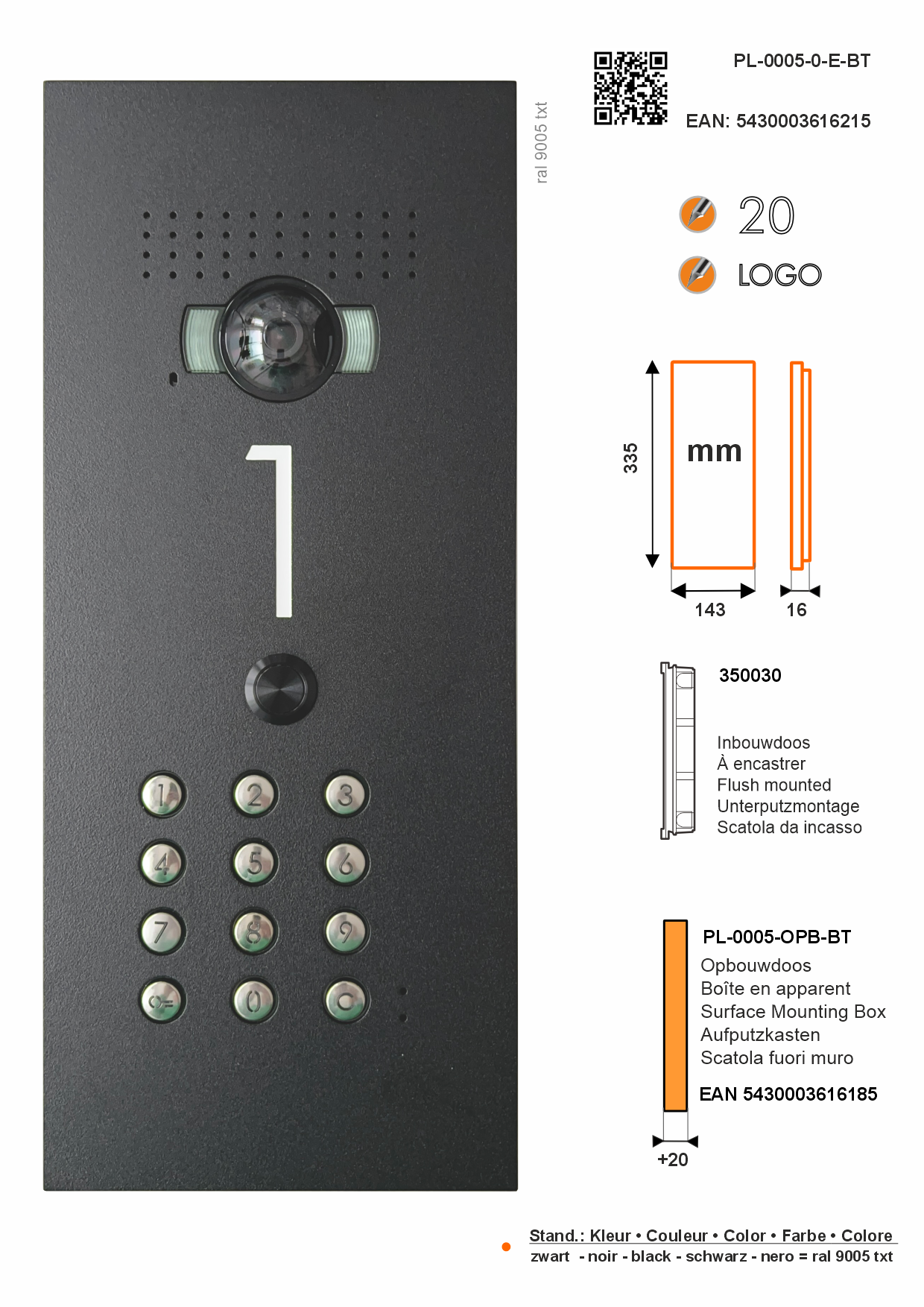

Dimensions: width 143mm x height 335mm

We supply :

1. Front panel entrance in ral colour. (IK 08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 1 push button black stainless steel, stainless steel or led
4. House sign engraved and lacquered
5. 351305pkm - plexiglas for Audio/video module BTcino
6. 353005pkm - plexi front panel keypad




You need Bticino:

1. 350030 - Flush-mounted box 3 modules
2. 354000 - Videoparlofonie connection cable for functional modules
3. 351300 or 351500 - Audio/video module with wide-angle lens

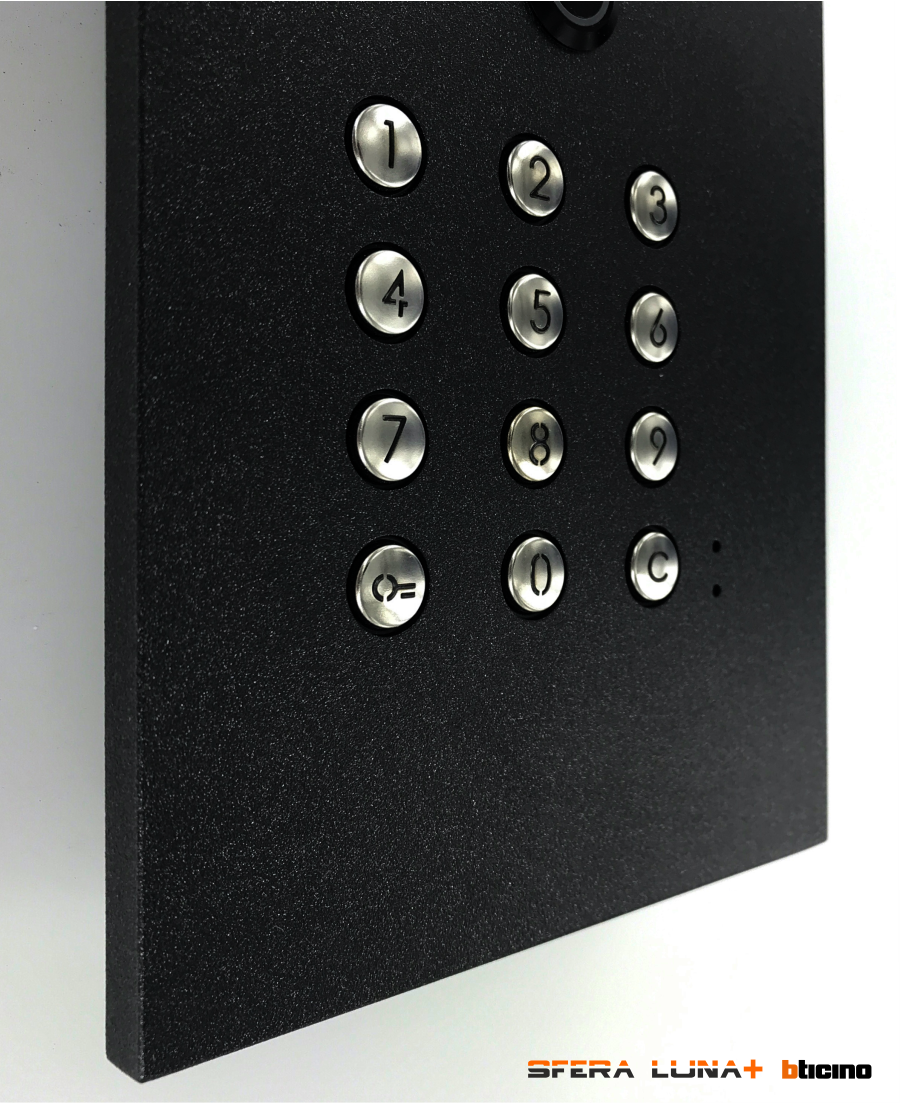

4. 353000 - Keypad LED illuminated
5. 346993 - Interface Sfera
6. 346050 - Power supply
7. Compatible with all bTicino Indoor units: Class 100X16E  or Classe 300EOS ref. 344842 or MyHOME_UP 7" Hometouch 3488 (W)
8. Preferably use REF 336904 twisted cable or UTPS for the connection

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
