SFERA LUNA+ House sign engraved keypad Video Parlofonie High-End Bticino (350030)
Product Code : PL-0005-E-BT = PL-0005-0-E-BT- EAN: 5430003616215

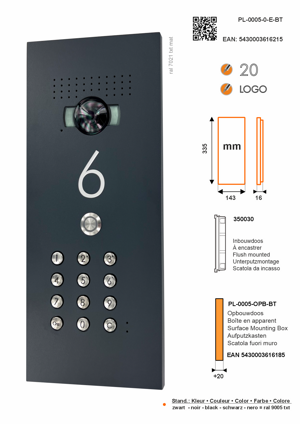

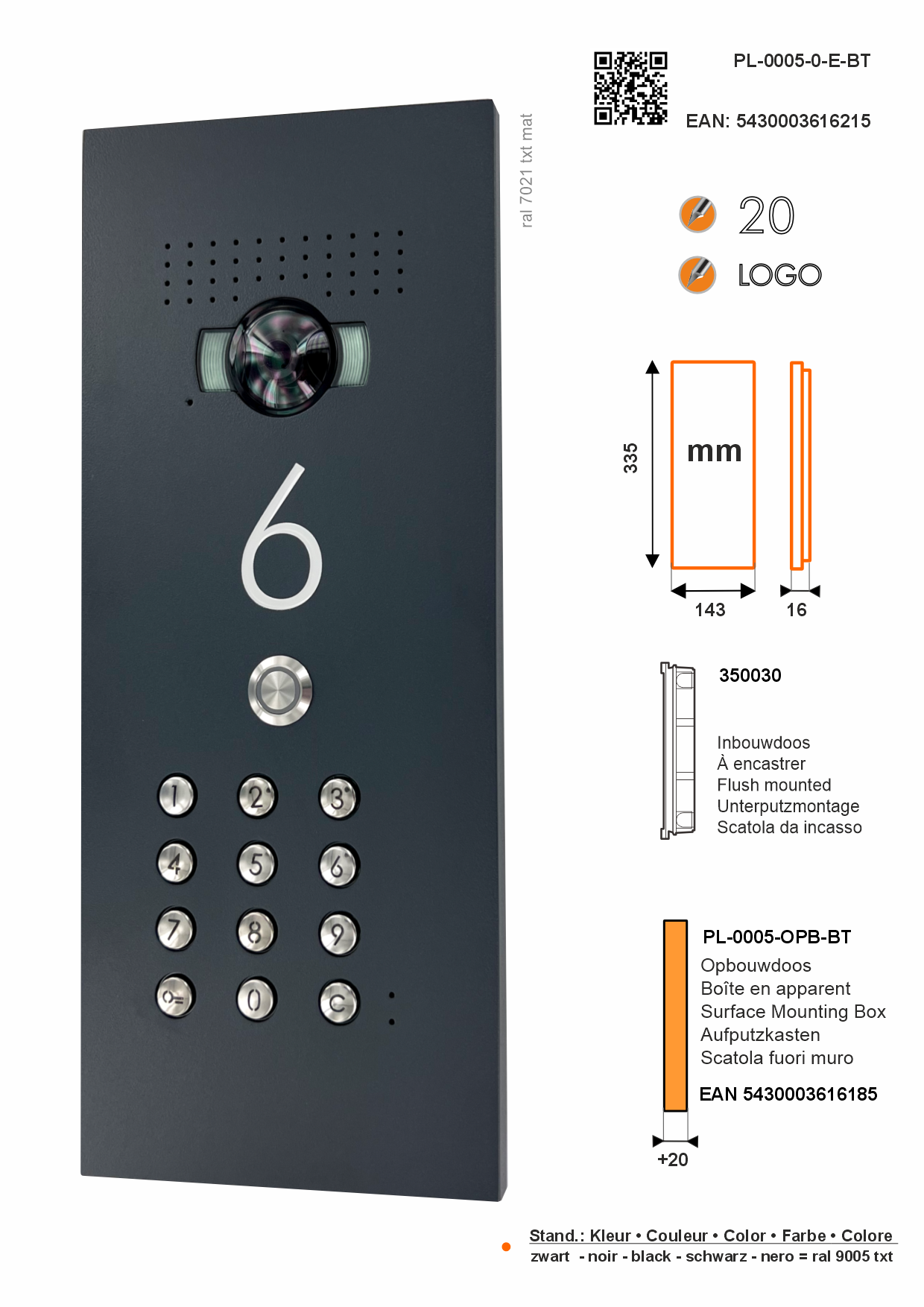

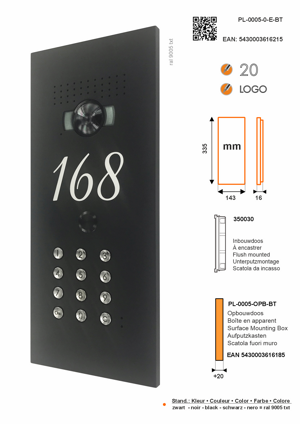

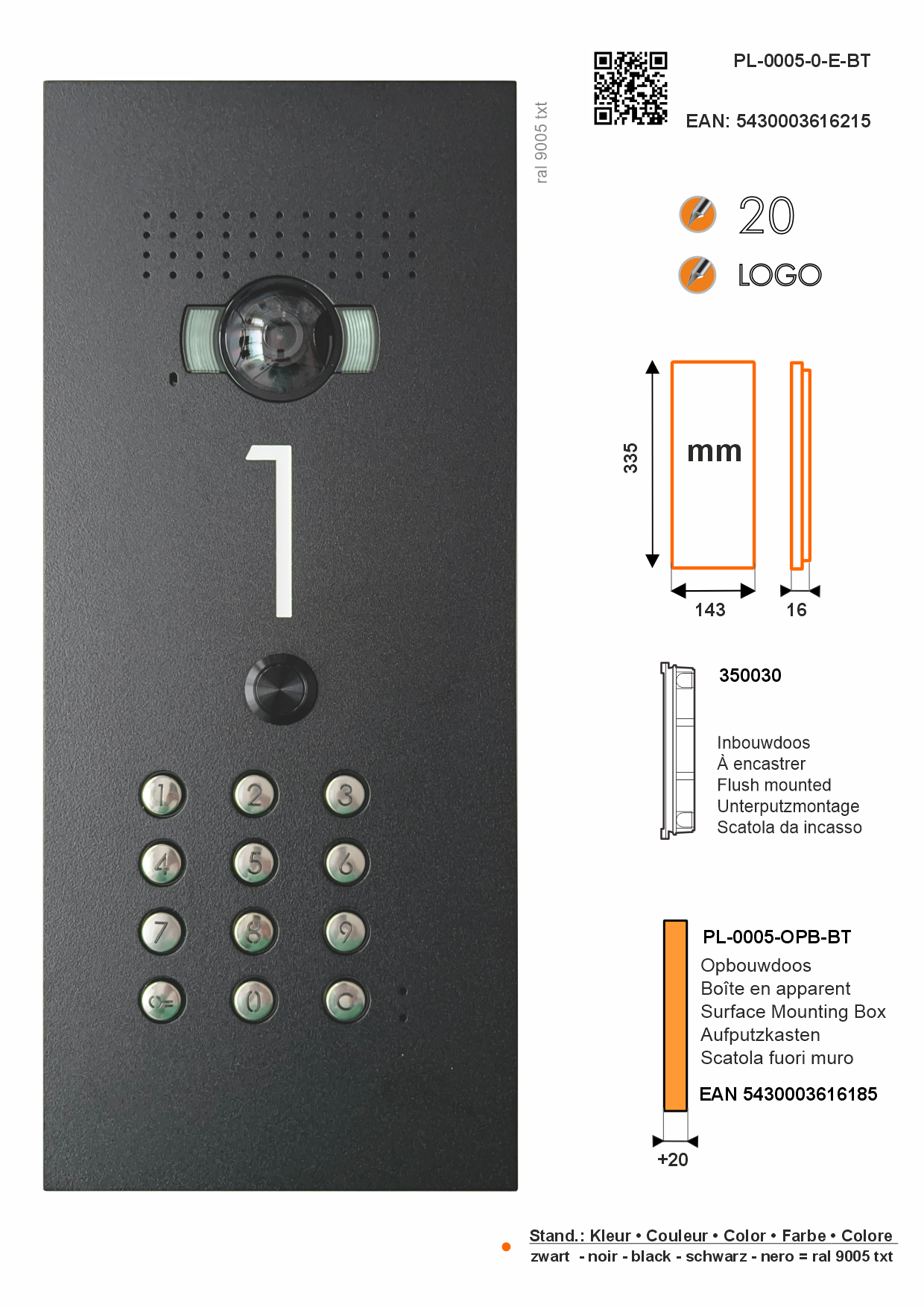

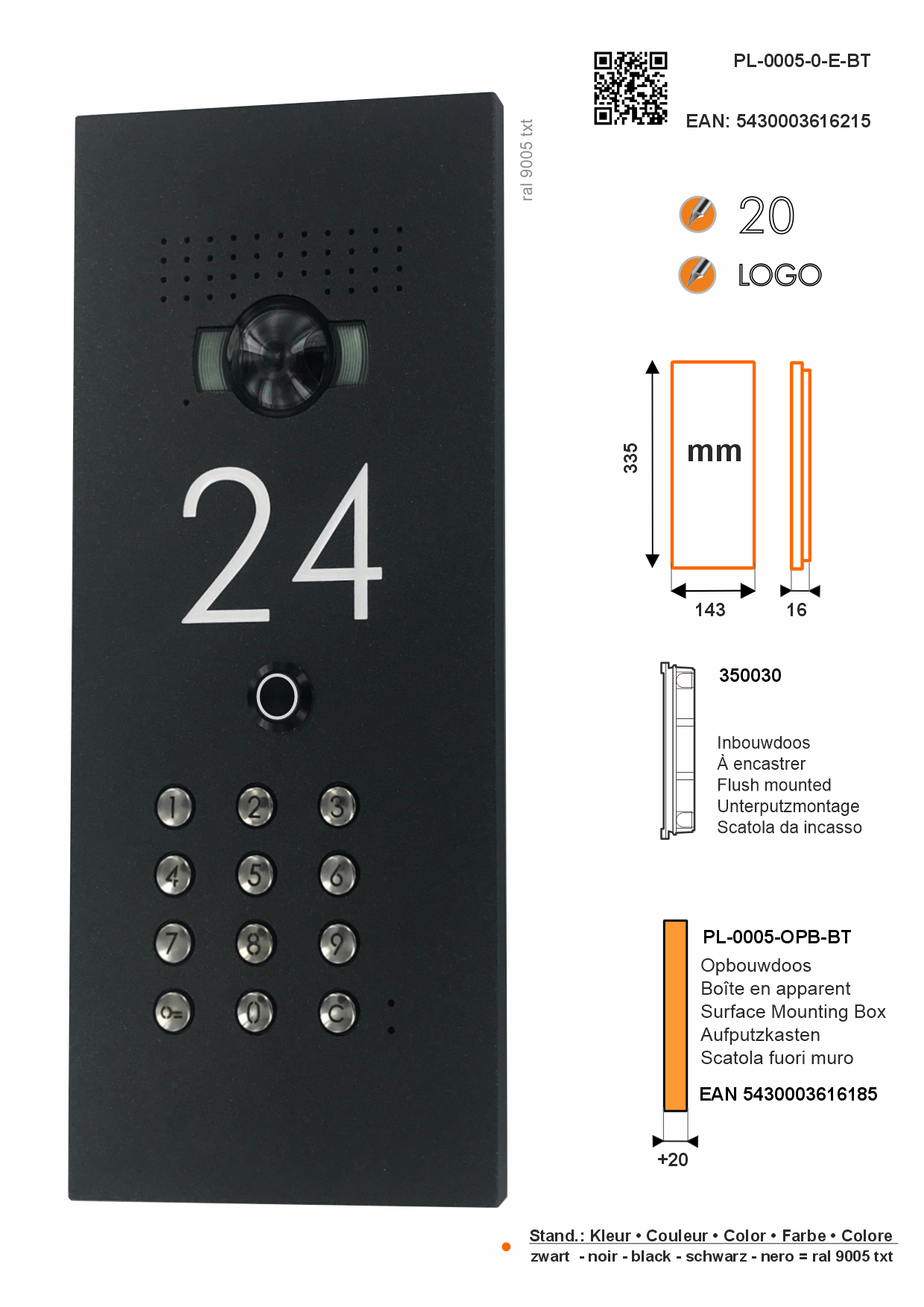

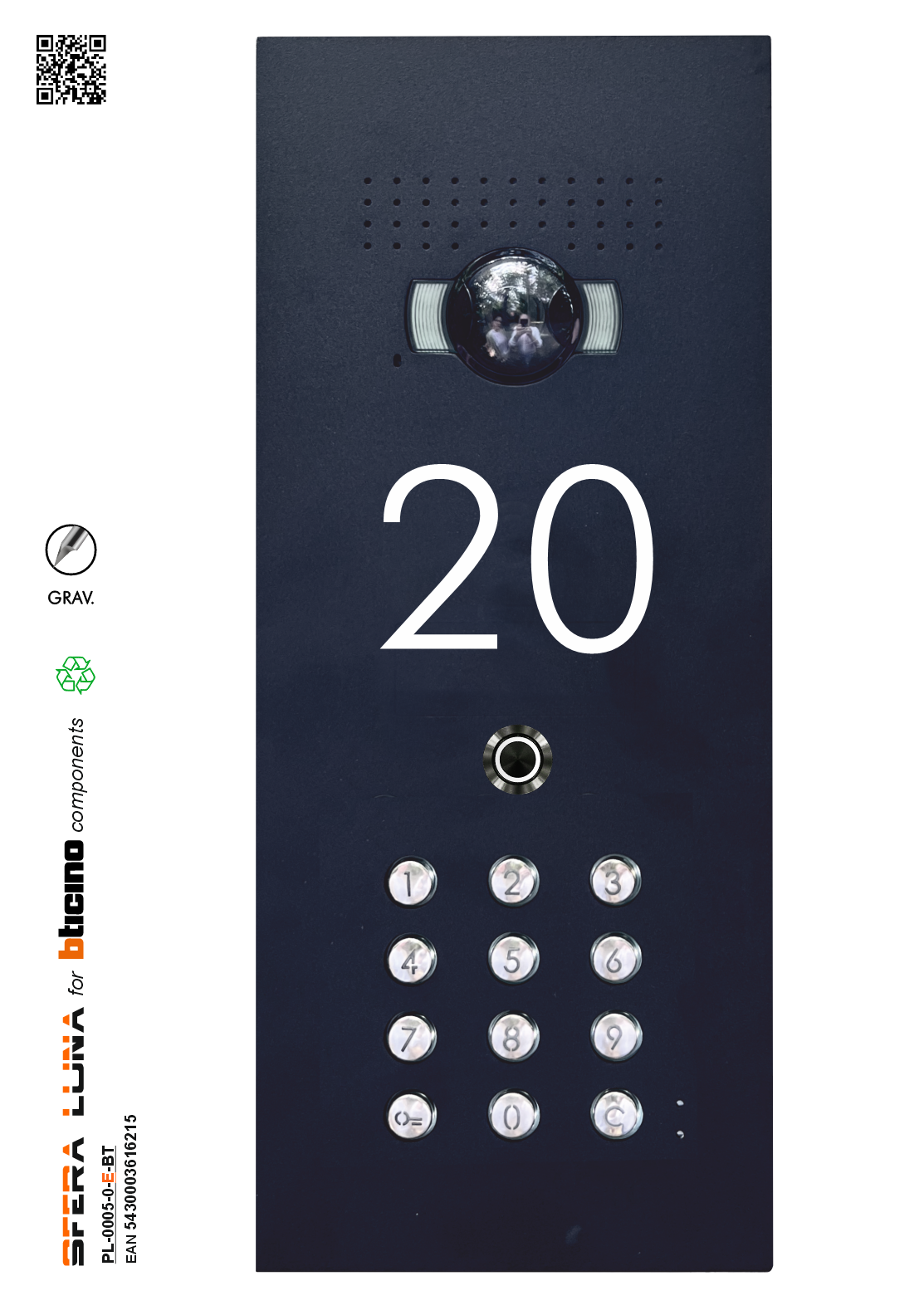

° SFERA LUNA+ video entrace front panel with engraved housesign

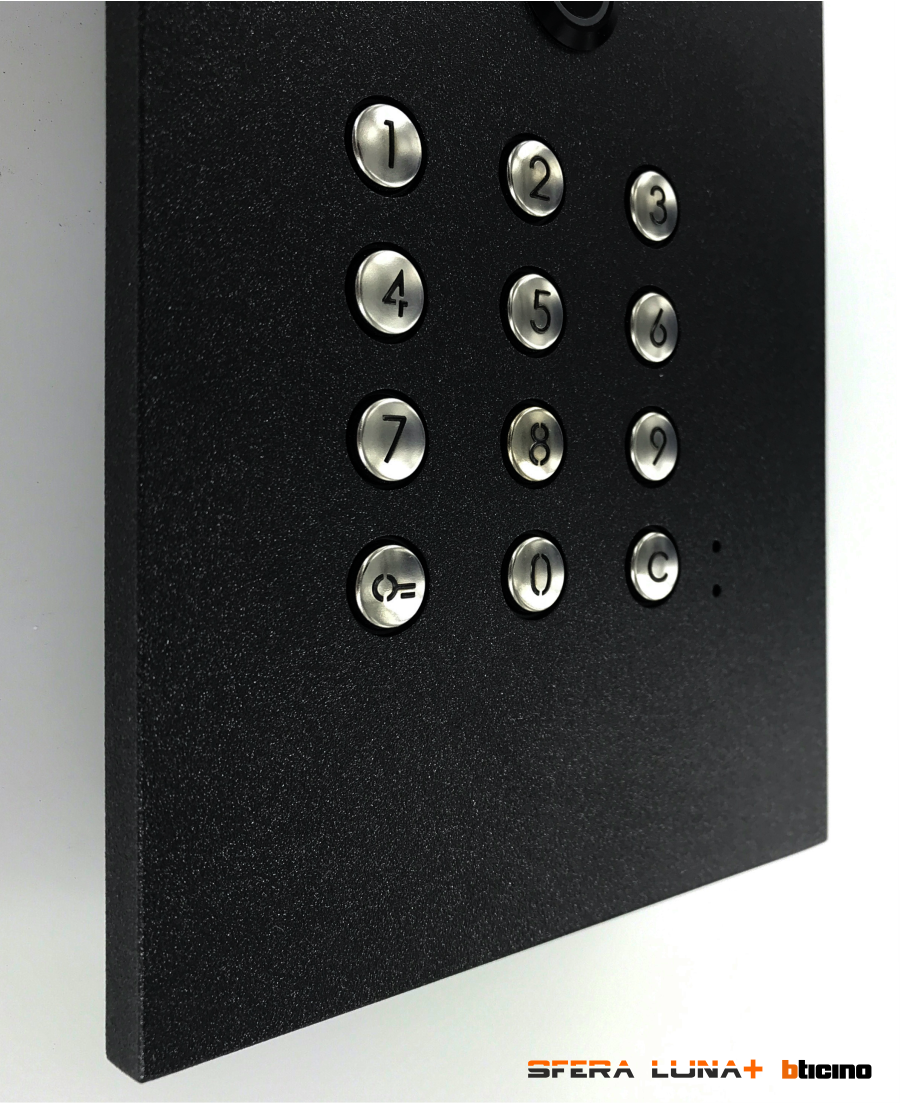

° For Bticino wide angle audio/video 351300 & keypad 353000 (LED illuminated)
° Sleek high-end design at the entrance, engraved, vandal resistant ...
° Standard colour black ral 9005 fine texture.

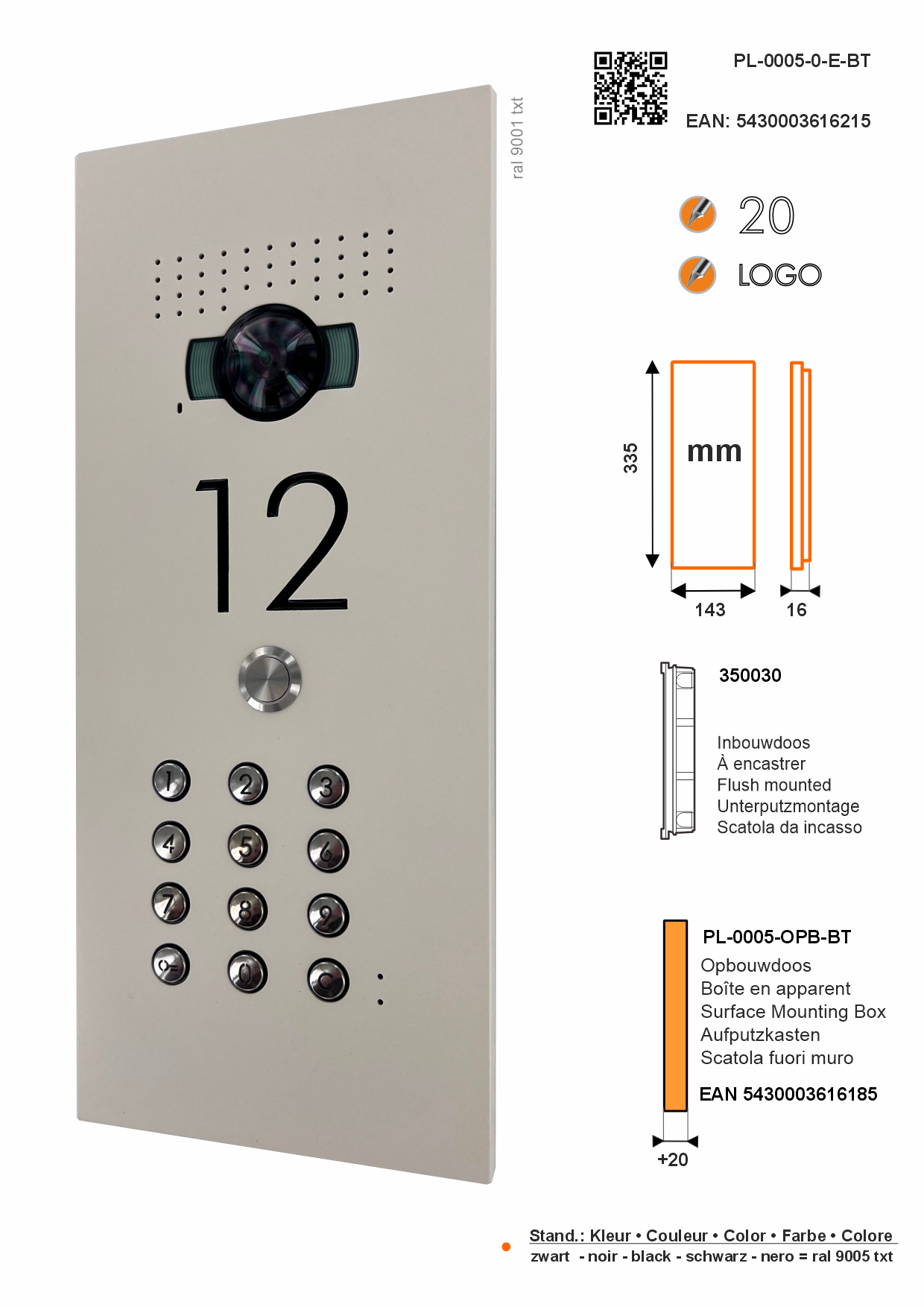

° The front panels are available in all ral colors, matching the color of your residence or project.
- Made in 10mm aluminium, High End, solid finish.
- Central mounting system front panel. (easy blind mounting)
- Vandalism resistant.
- House sign & name are engraved and UV-resistant lacquered
- Installation possibilities: on walls, gates, columns, mailboxes, etc ...
- Easy installation in narrow surroundings.
- Unique recessed system for recessed gates, poles, etc. .....
- Also available with removable nameplate(s), personalised or not.
- Model flush mounting on standard box Bticino 350030
- Also available with surface-mounted module.
Sfera Luna, partner of the Legrand Group (copyright model)
All Ral colours available

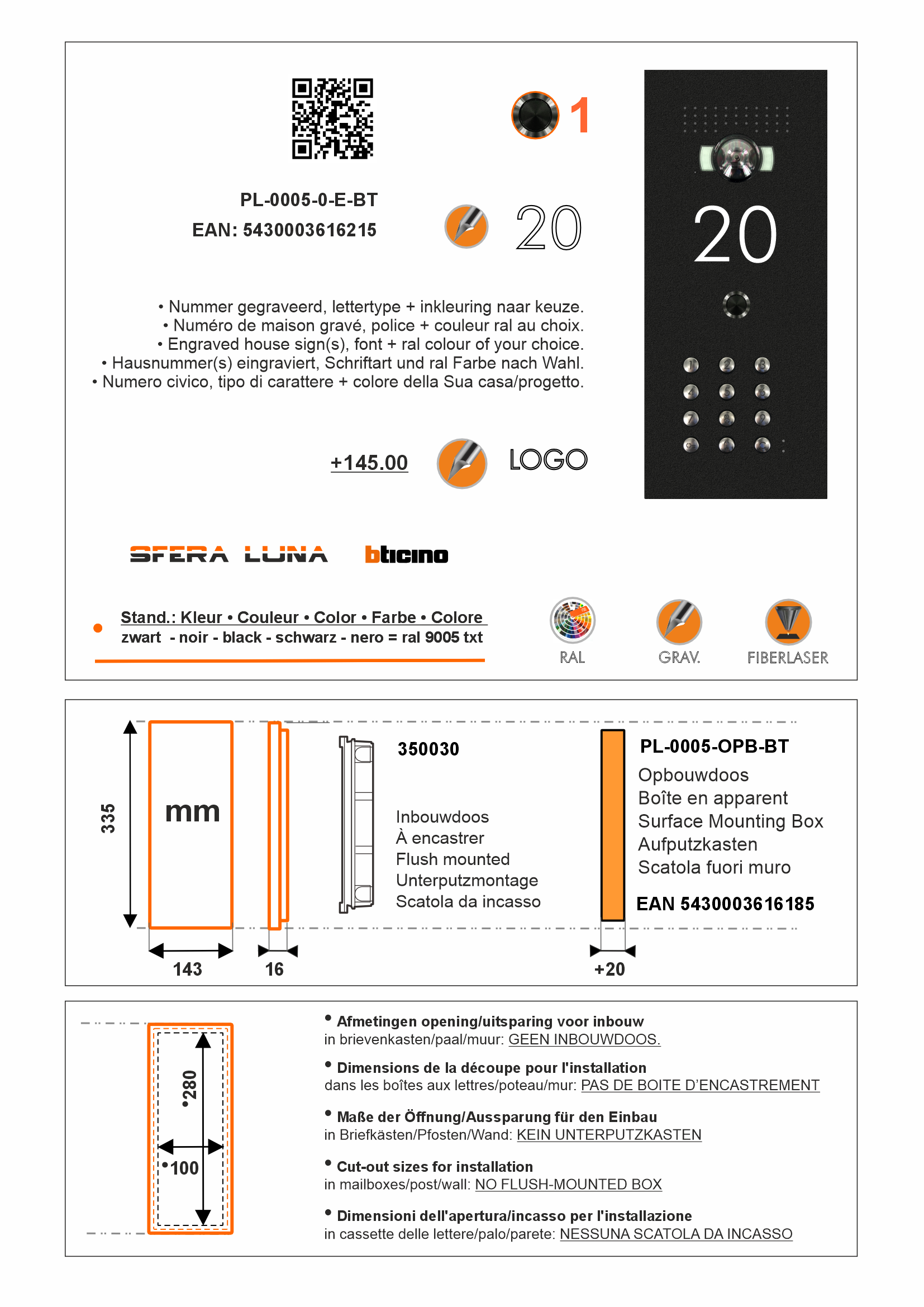

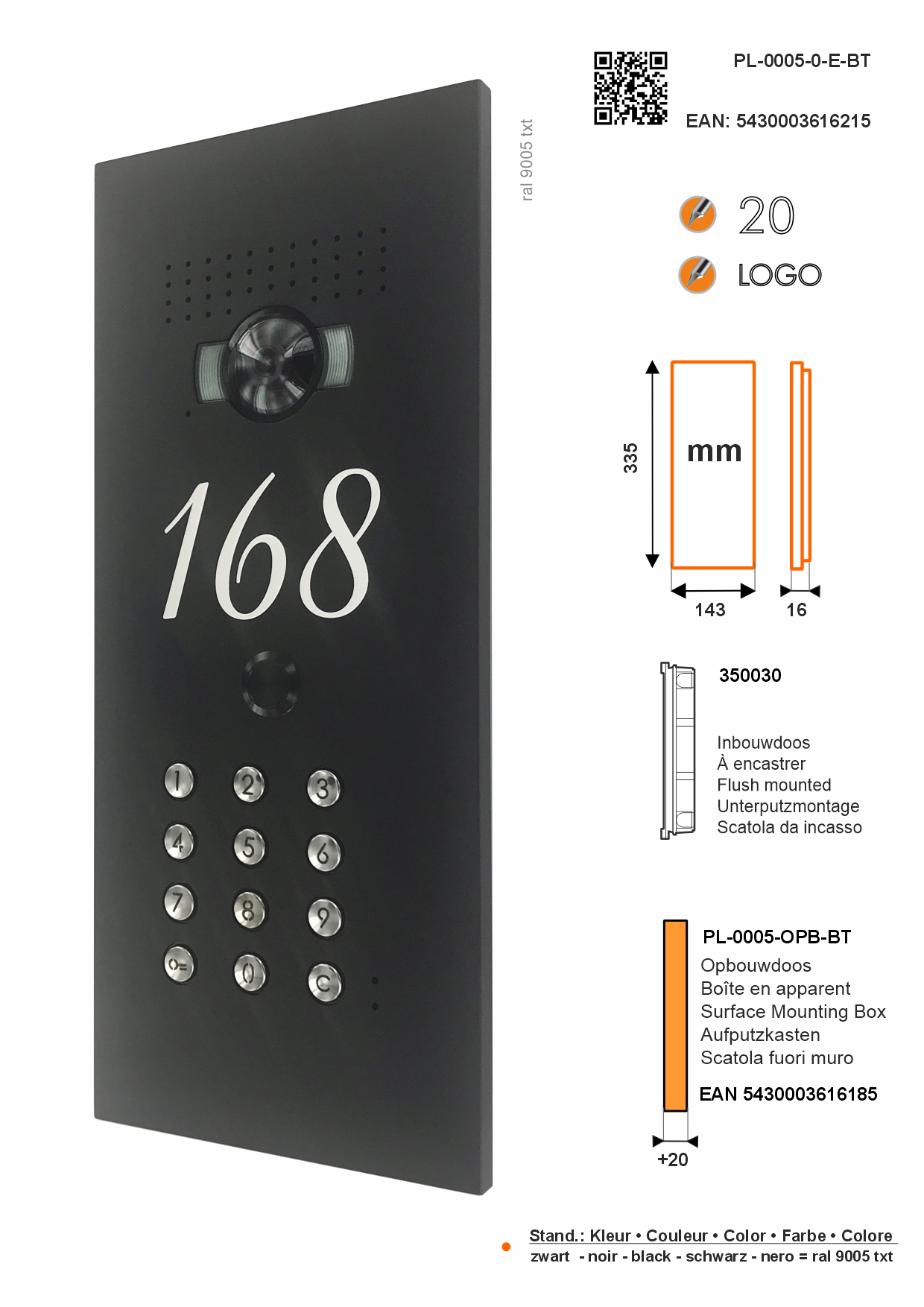

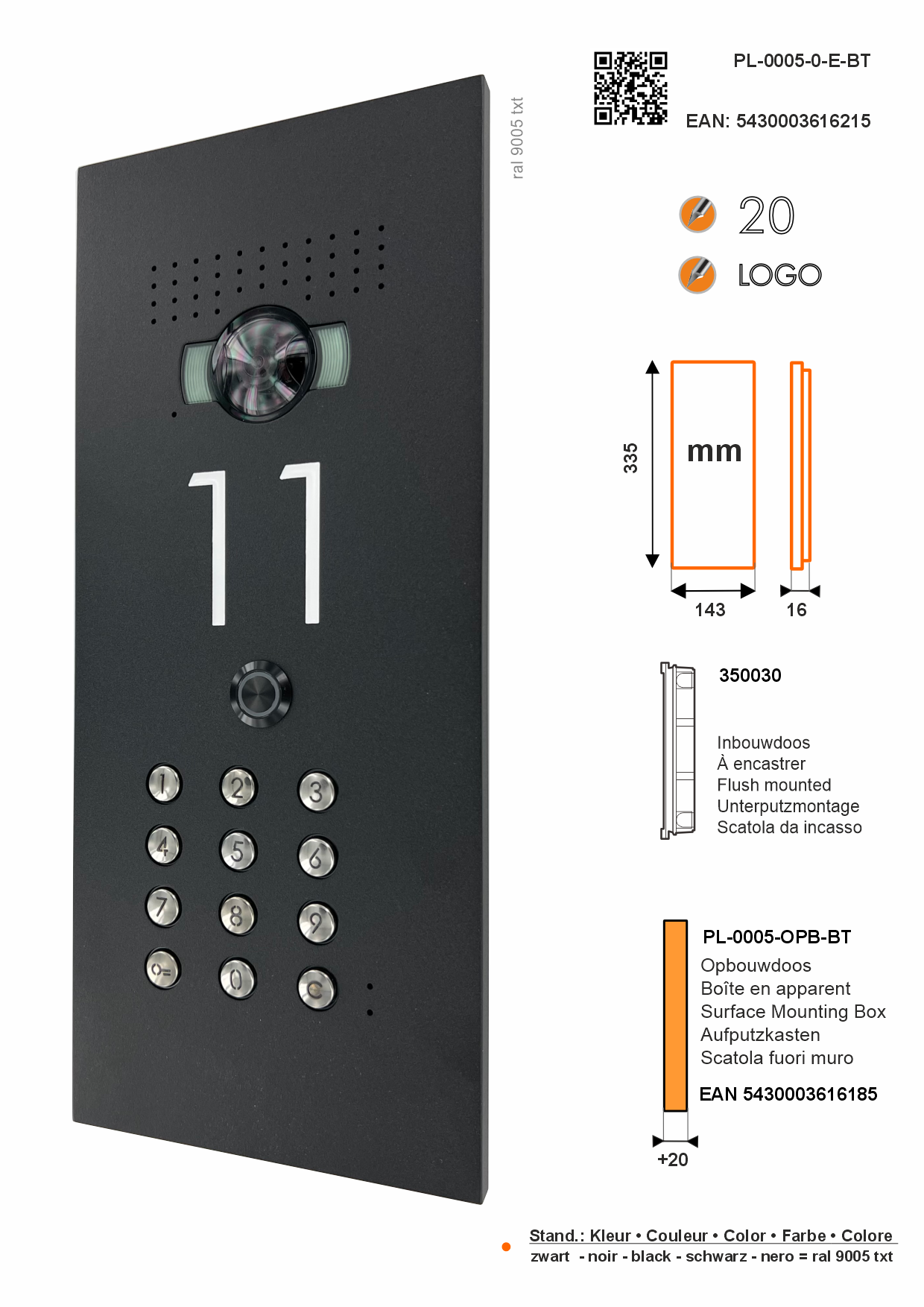

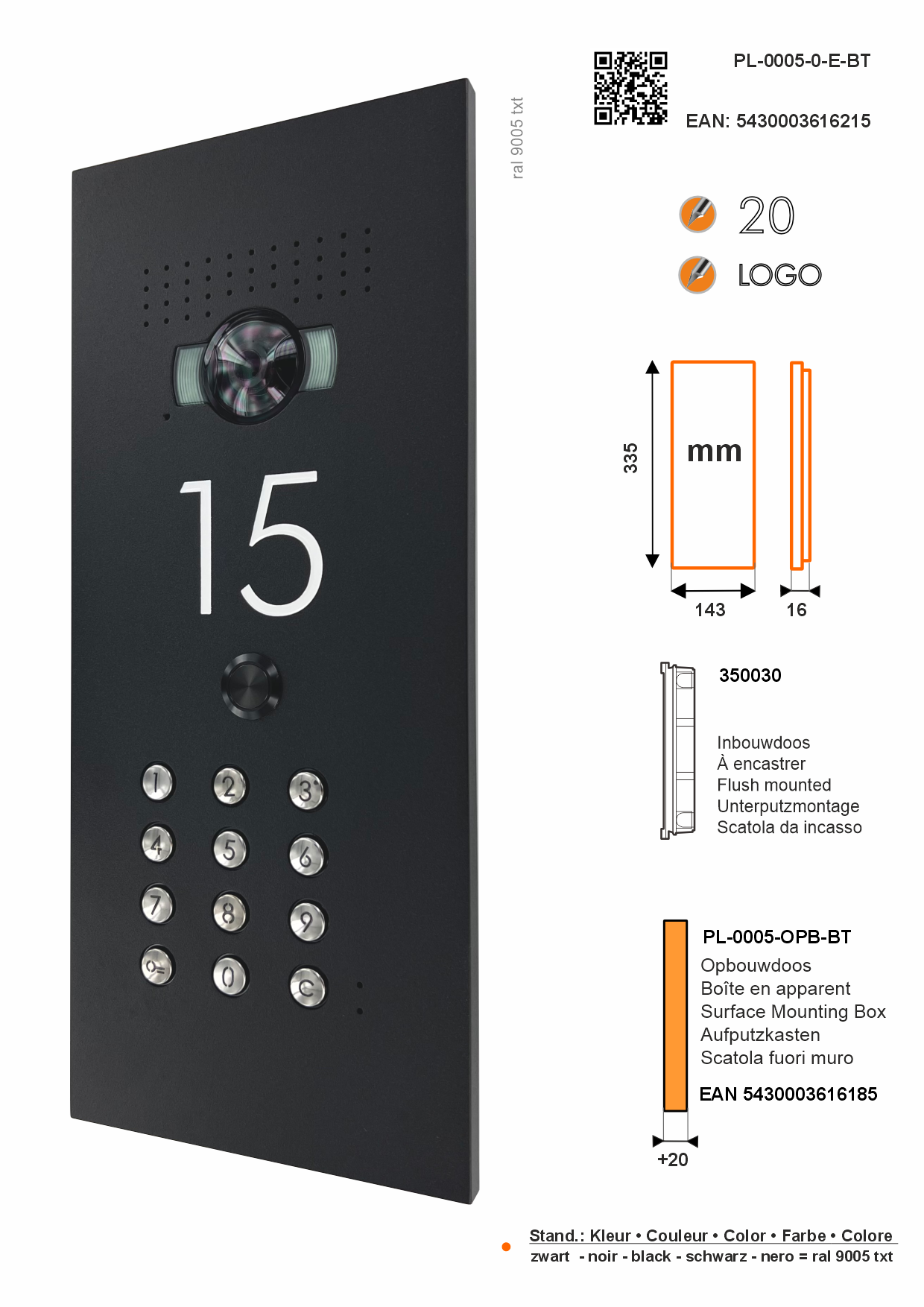

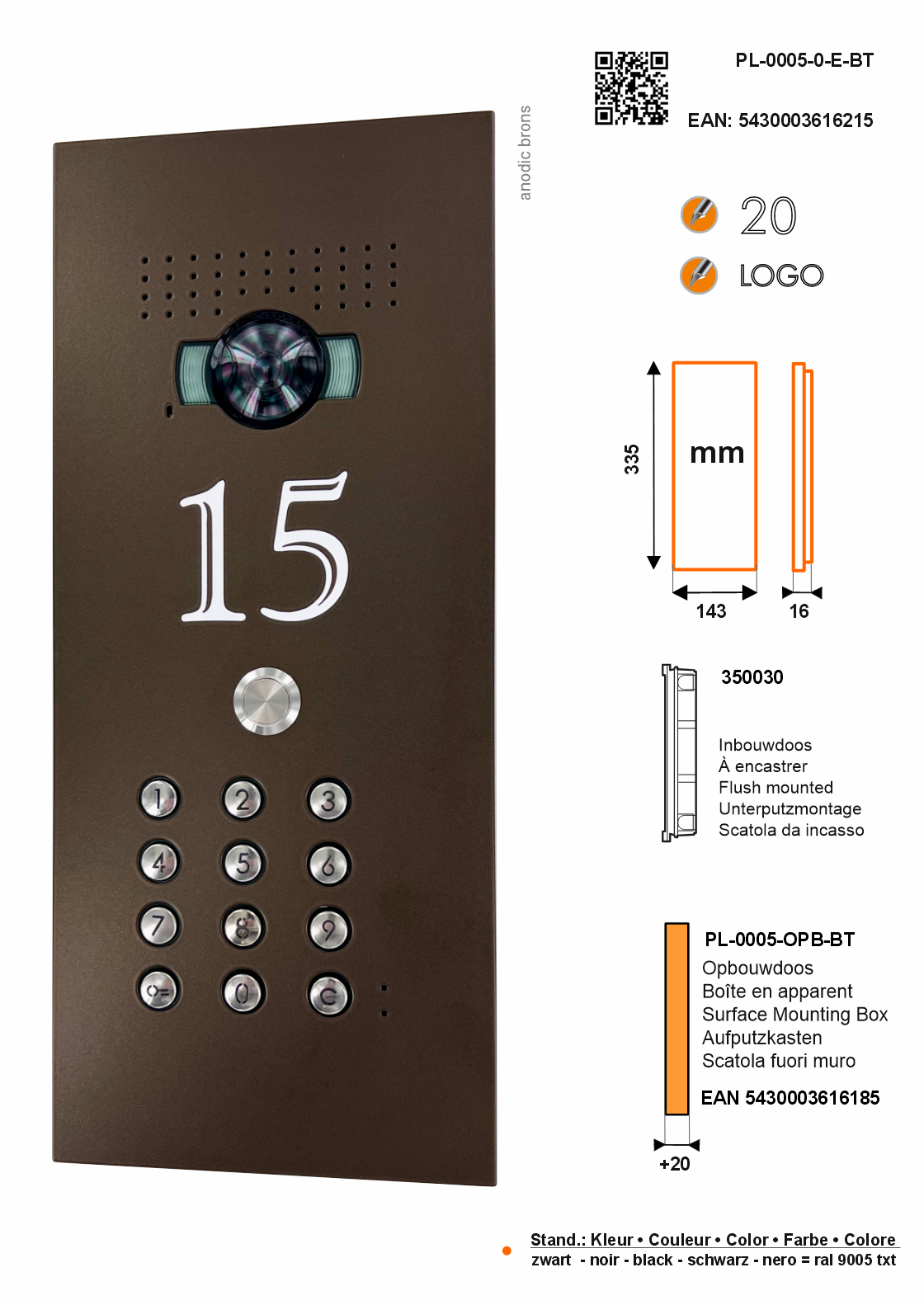

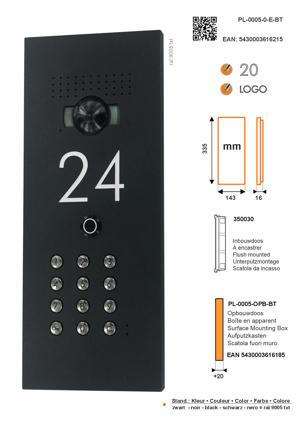

Dimensions: width 143mm x height 335mm
- 350030 - flush mounting box 3 modules
We supply :
- Front panel entrance in ral colour.
- Modular panel frame + screws for installation on flush-mounting box 350030
- 1 push button black stainless steel, stainless steel or led
- House sign engraved and lacquered
- 351305pkm - plexiglas for module 351300
- 354000 videoparlofonie connection cable for functional modules
- 353005pkm - plexi front panel keypad

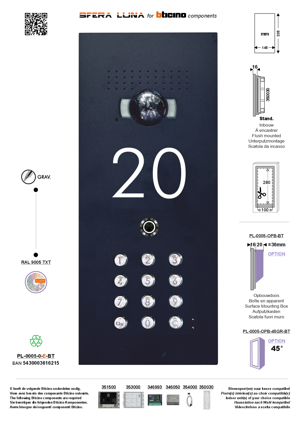

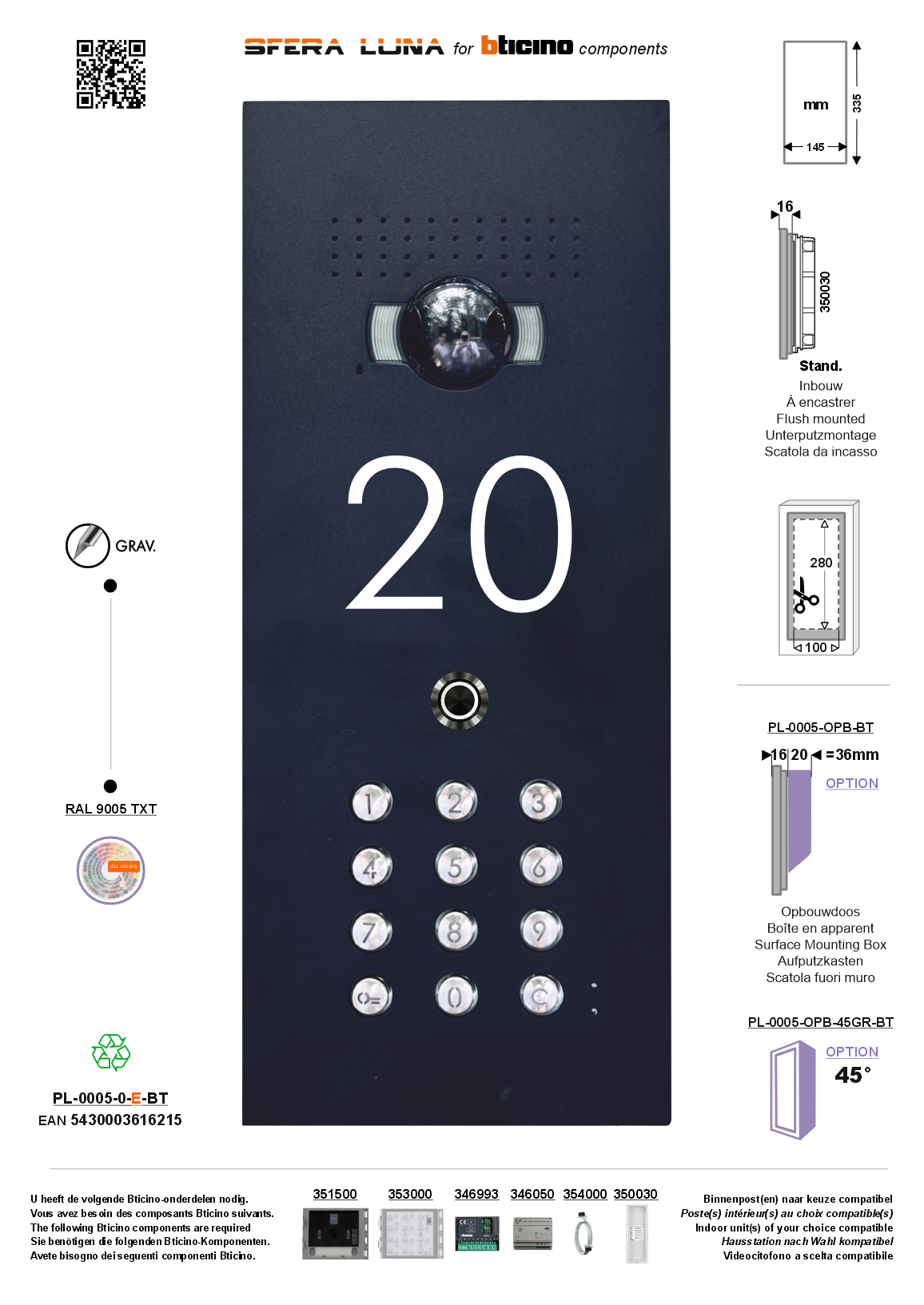

You need :
- 350030 - flush-mounted box 3 modules
- 351300 - Audio/video module with wide-angle lens
- 353000 - keypad LED illuminated
- 346993 - Interface Sfera
- 346050 - Power supply
- Compatible with all bTicino Indoor units : AVT-Class 100X16E or Classe 300EOS ref. 344842 or MyHOME_UP 7" Hometouch 3488 (W)
- Preferably use REF 336904 twisted cable or UTPS for the connection
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.
Designed & (hand) made in Belgium
Sfera Luna (partner of the Legrand Group), copyright model.
