SFERA LUNA PURE Video Intercom with House Number/Name – High-End Design for Bticino

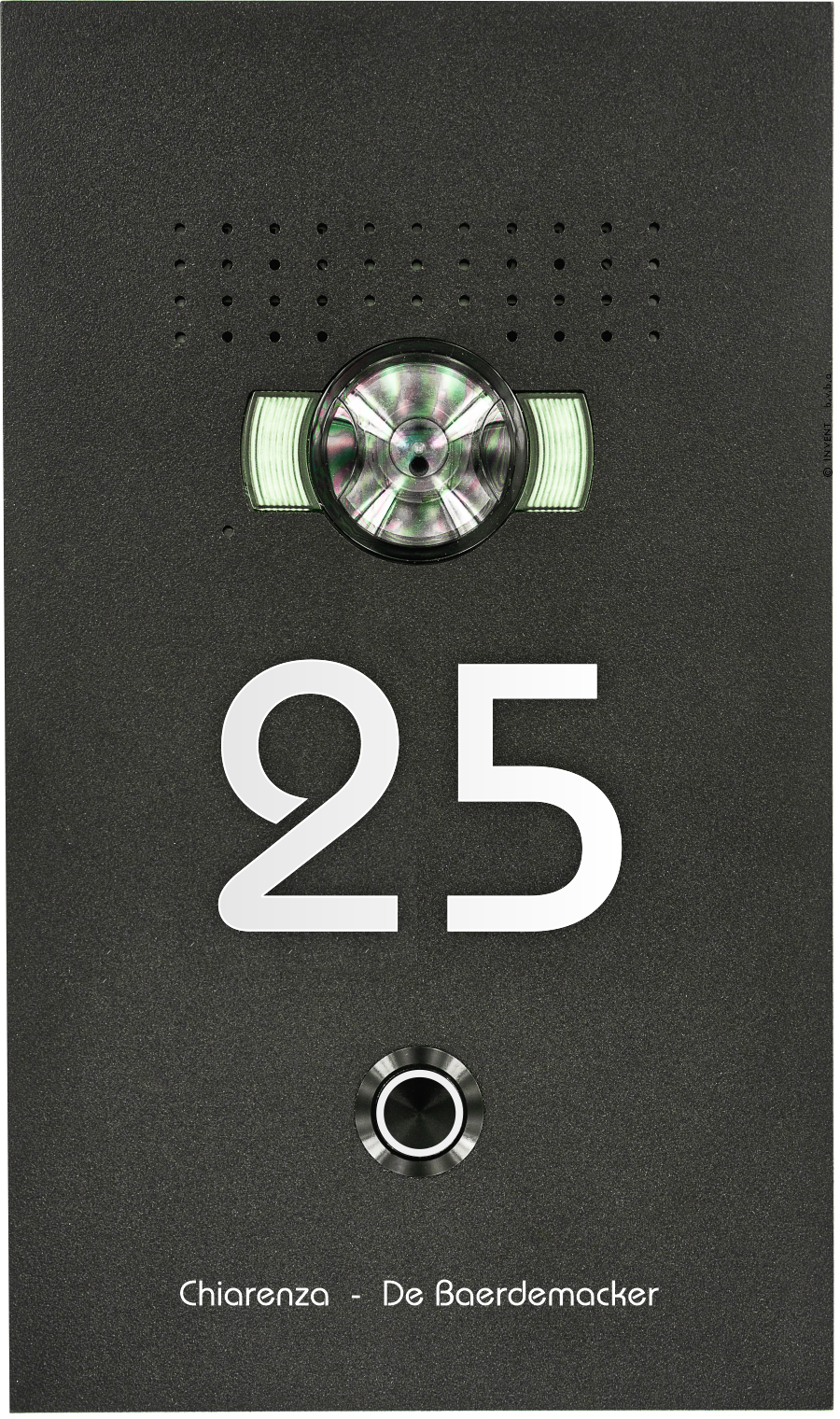

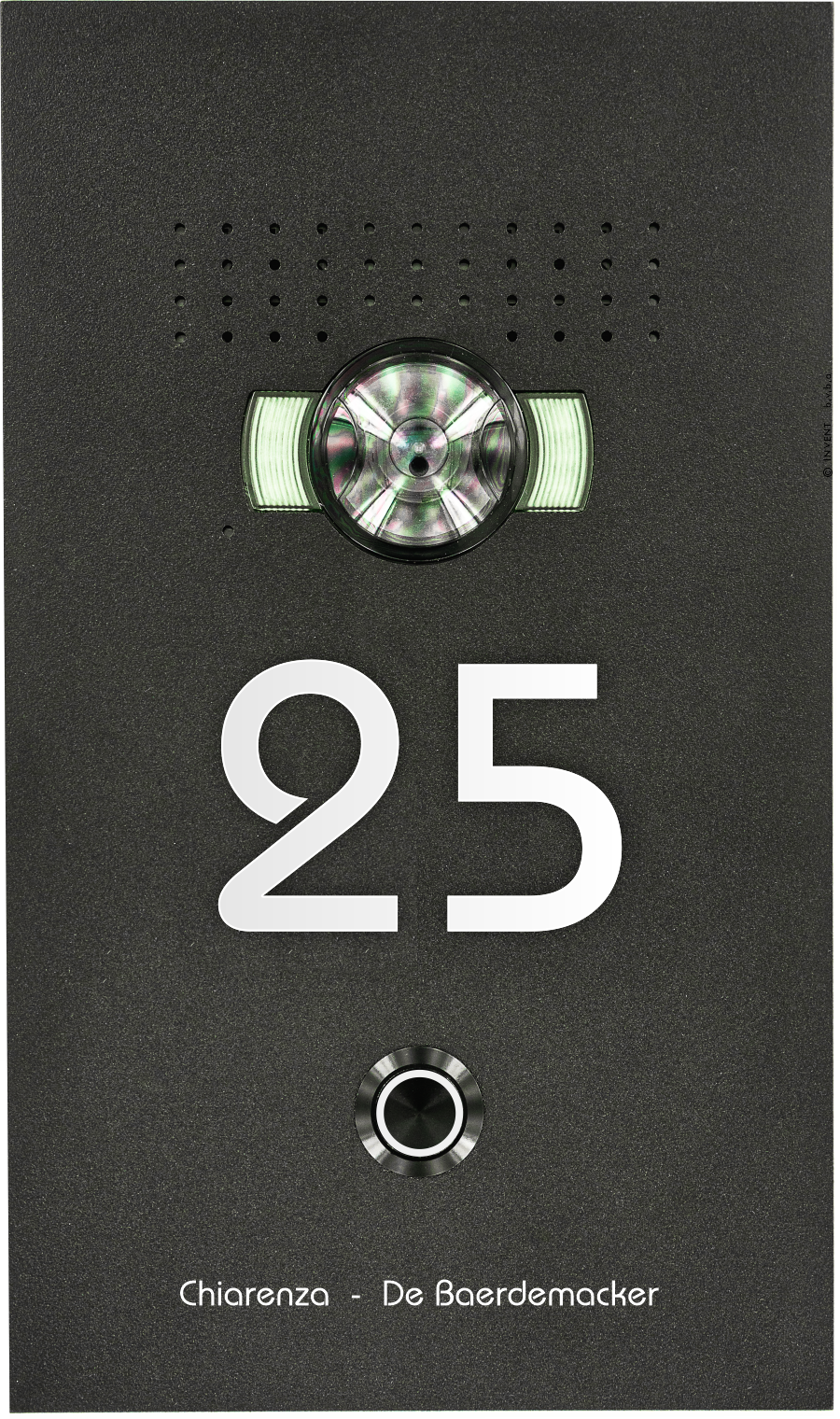

SFERA LUNA PURE – Video intercom front panel with engraving: house number, names or text

 A sleek, stylish and durable design for the entrance to your house, flat, gate or building. Where access becomes design.

Features

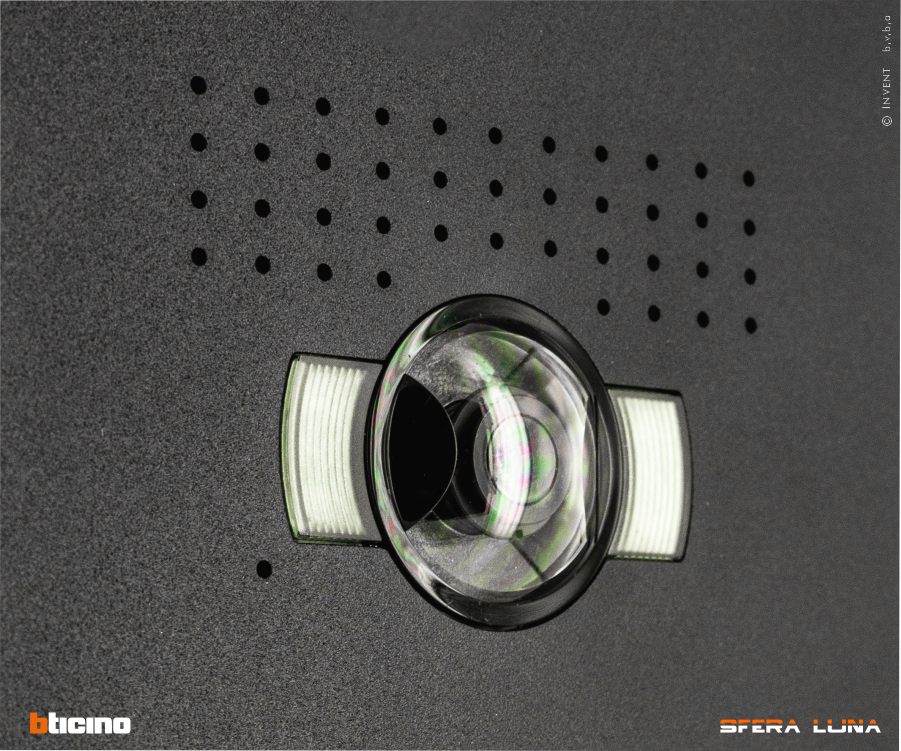

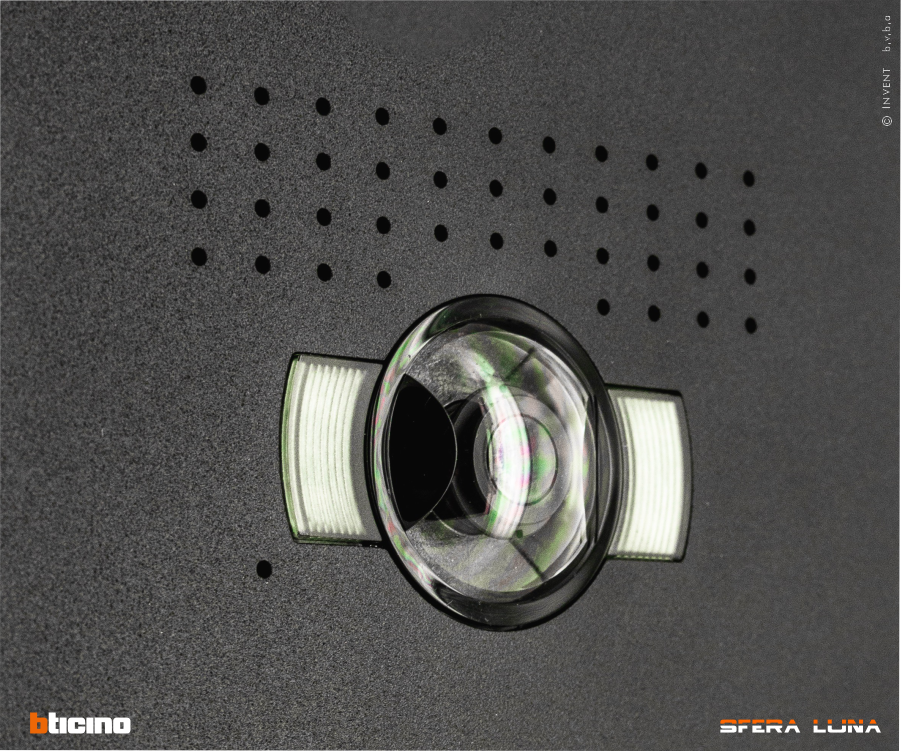

• Compatible with the Bticino 2-wire audio-video module 351500 for outdoor useWide-angle lens with a viewing angle of 152° horizontally and 96° vertically.
• Durable design. Standard colour: black RAL 9005 fine texture. Available in all RAL colours, to match your home or project. Made from solid aluminium (10 mm) – high-quality and fully recyclable. Long service life thanks to a corrosion-resistant finish
• Custom engravingLogo, name or text engraved and colouredPrecision engraving that respects both the material and the environmentNo stickers or polluting prints – sustainable and aesthetic personalisation

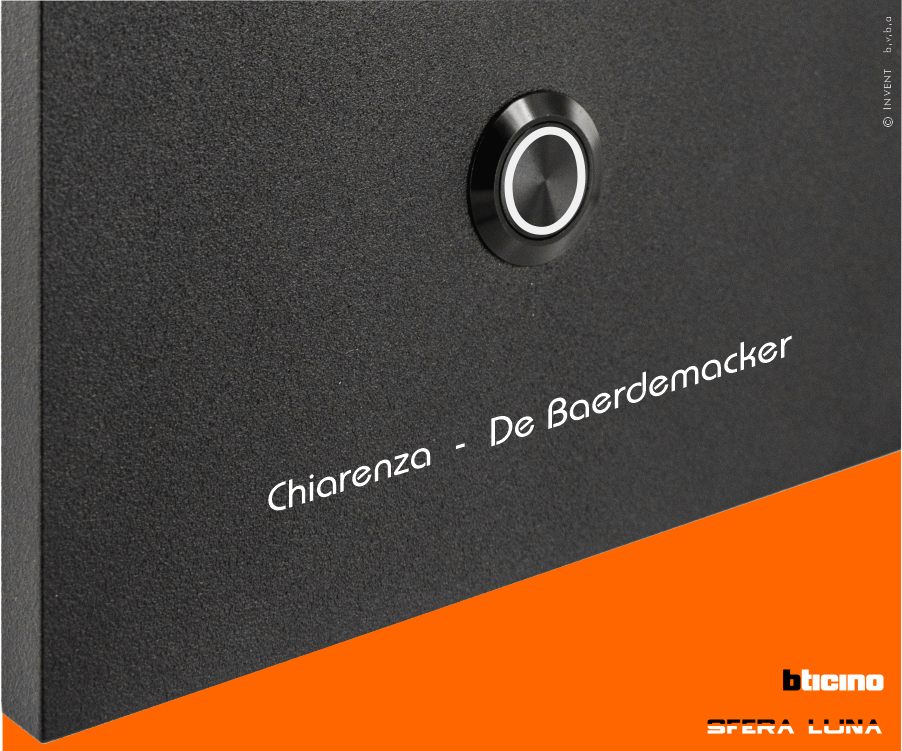

• Call button: Standard in black stainless steel or IP68-rated stainless steel; optionally available with energy-efficient LED lighting; connection via BUS
• Mounting & installationCentral mounting system – simple, concealed fixingVandal-proof designSuitable for walls, gates, posts and letterboxesSimple installation, even in confined spacesModel available for flush-mounting on a standard Bticino 350020 box or as a surface-mounted versionUnique flush-mounting system for gates and posts

An environmentally conscious choice

The front panel of the SFERA LUNA PURE is made from high-quality aluminium — a strong, elegant and fully recyclable material. By choosing aluminium, you are opting for a sustainable, low-maintenance and environmentally friendly solution that will last a lifetime.  The engraving is carried out without chemical coatings or polluting inks, which contributes to cleaner production and a smaller environmental footprint.

Benefits

• Sustainable and recyclable materials
• Luxurious and timeless appearance
• Full customisation with respect for the environment
• Seamless integration with Bticino systems
• Vandal-proof and weather-resistant

Partner of the Legrand Group & Bticino (copyright Luna model)

SFERA LUNA BROCHURES ↗

All RAL colours available

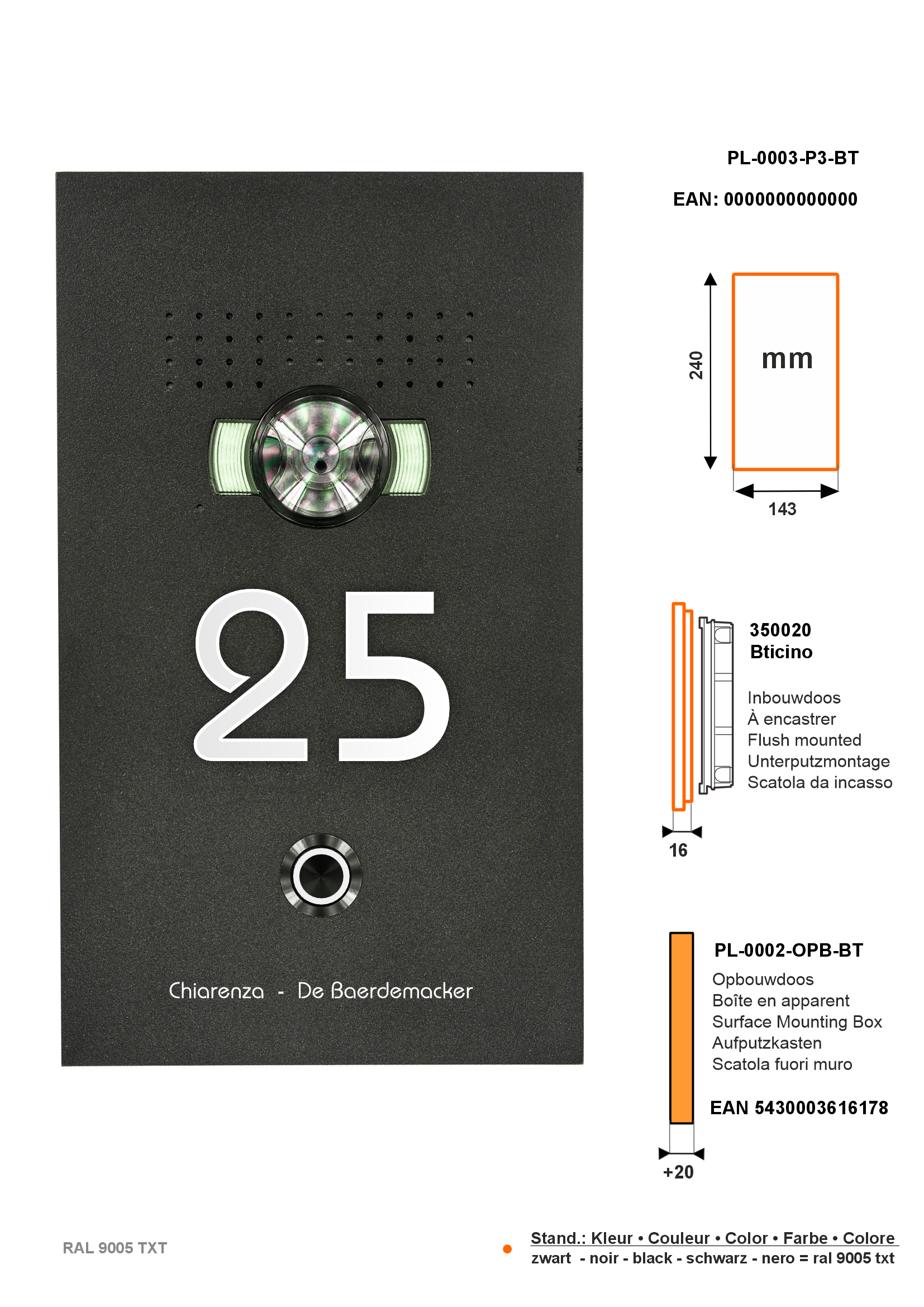

Dimensions: W 142 mm x H 240 mm x D 16 mm

We supply:

1. Front panel in RAL colour.
2. Base bracket + screws for mounting on flush-mounted box 350020 ↗.
3. Or with surface-mounted box: PL-0002-OPB-BT ↗ in RAL colour.
4. Call button in stainless steel, black or LED. IK08 – IP68
5. Logo, name or text engraved and painted in a colour of your choice.

You will need Bticino / Legrand:

1. 350020 – Flush-mounted box, 2 modules ↗
2. 351500 – Audio/video module with wide-angle lens ↗
3. 346993 – Sfera interface (supports up to 8 call buttons) ↗
4. 346050 – Power supply(s) ↗
5. Compatible with all Bticino indoor units.
6. We recommend using Bticino REF 336904 twisted pair cable or UTP-S for the connection!

 All Ral colours available

 Dimensions: width 142mm x height 240mm

We supply:

1. Front panel entrance in ral color.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350020
3. 351305pkm - Plexiglas for module 351500
4. 1 push button black stainless steel, stainless steel or led  (IP67 - IK08)
5. Logo, name or text engraved and colored in RAL-color of your choice

You need Bticino:

1. 350020 - Flush-mounted box 2 modules
2. 351500 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera
4. 346050 - Power supply
5. Compatible with all Bticino Indoor units

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Create your personal entry front panel:

Combine your combination(s) into an original concept!

Real time display. The rendering will always be optimized by our typographer / graphic artist.

The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group and Bticino), copyright model.
