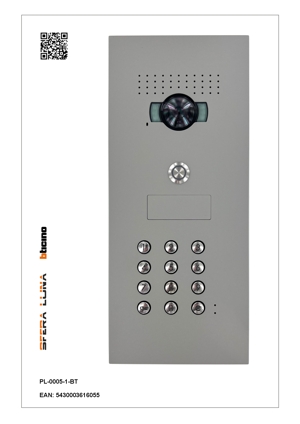

Video Parlofonie High-End Bticino SFERA LUNA+1 code keyboard (350030)
Product Code : PL-0005-1-BT- EAN: 5430003616055
- SFERA LUNA+ video entrace front panel with 1 removable name tag
For Biticino wide angle audio/video 351300 viewing angle: horizontal 135°- vertical 96° & keypad 353000 led illuminated
Sleek high-end design at the entrance, vandal resistant ...

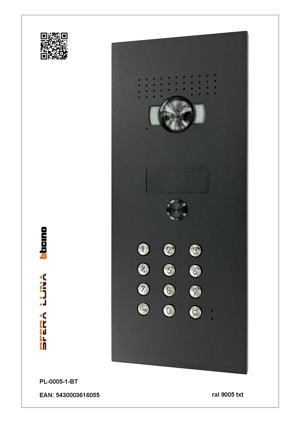

Design front panel as standard in colour black ral 9005 fine texture.

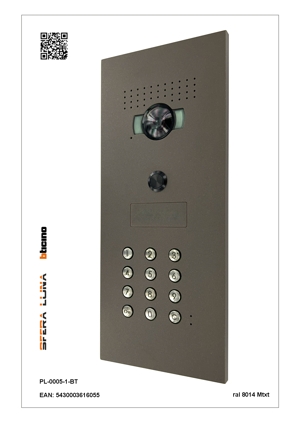

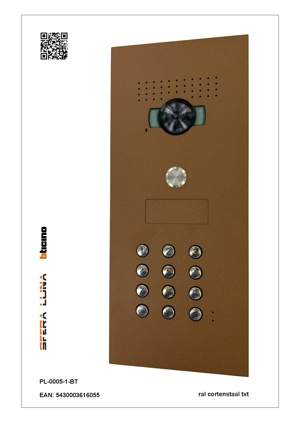

The front panels are available in all ral colors, matching the color of your residence or project.
Interchangeable name plat/name shield: always a claen end uniform look to any residence of home.
- Made in 10mm aluminium, High End, solid finish.
- Central mounting system front panel. (easy blind mounting)
- Vandalism resistant.
- Installation possibilities: on walls, gates, columns, mailboxes, etc ...
- Easy installation in narrow surroundings.
- Unique recessed system for recessed gates, poles, etc. .....
- Model flush mounting on standard box Bticino 350030
- Also available with surface-mounted module.
Sfera Luna, partner of the Legrand Group (copyright model)
SFERA LUNA FOLDERS
All ral coulours available

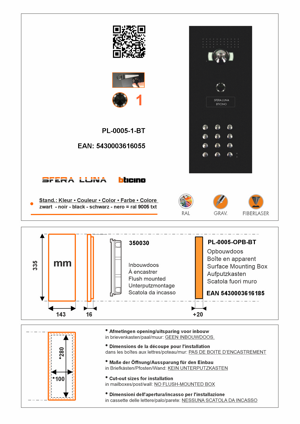

Afmetingen: br.143mm x h.335mm
- Front panel entrance in ral colour.
- Modular panel frame + screws for installation on flush-mounting box 350030
- 351305pkm - plexiglas for module 351300
- 354000 videoparlofonie connection cable for functional modules
- 353005pkm - plexi front panel code keyboard
- 1 push button (integrated) black stainless steel, stainless steel or led
- 1 interchangeable name tag
- Tool for mounting changeable name tag
- 350030 - flush-mounting box 3 modules
- 351300 - Audio/video module with wide-angle lens
- 353000 - keypad LED illuminated
- 346993 - Interface Sfera
- 346050 - Power supply
- Compatible with ALL BTicino Indoor units: Class 100X16E or Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch (3488)
- Preferably use REF 336904 twisted cable for the connection
Create your personal videophone with our editor order form.
- Combine your combination(s) into an original concept!
- Real time display. The rendering will always be optimized by our typographer / graphic artist.
- The order form is already preset and indicated in blue like the photo shown in our webshop.
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.
Sfera Luna (partner of the Legrand Group), copyright model.
