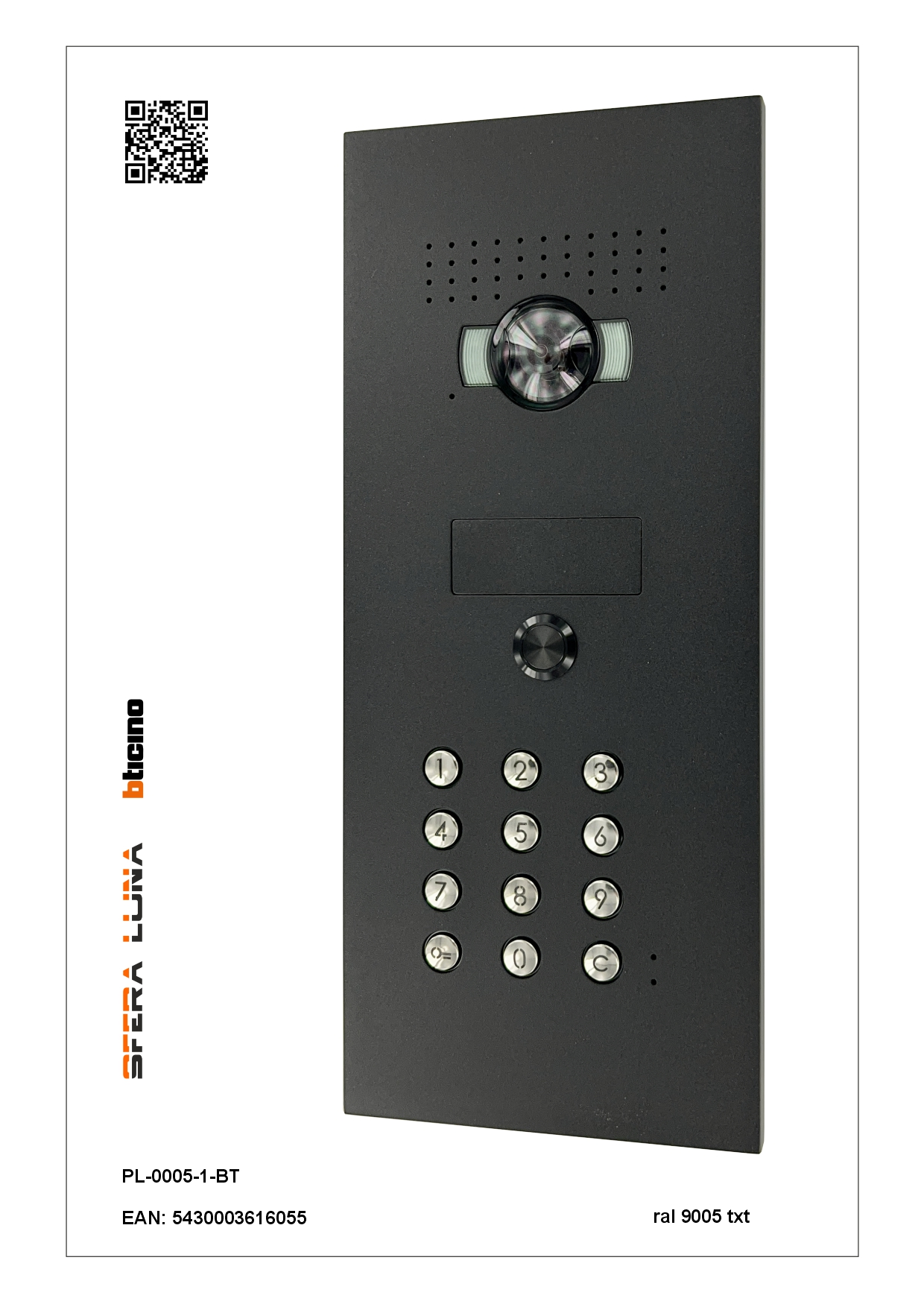

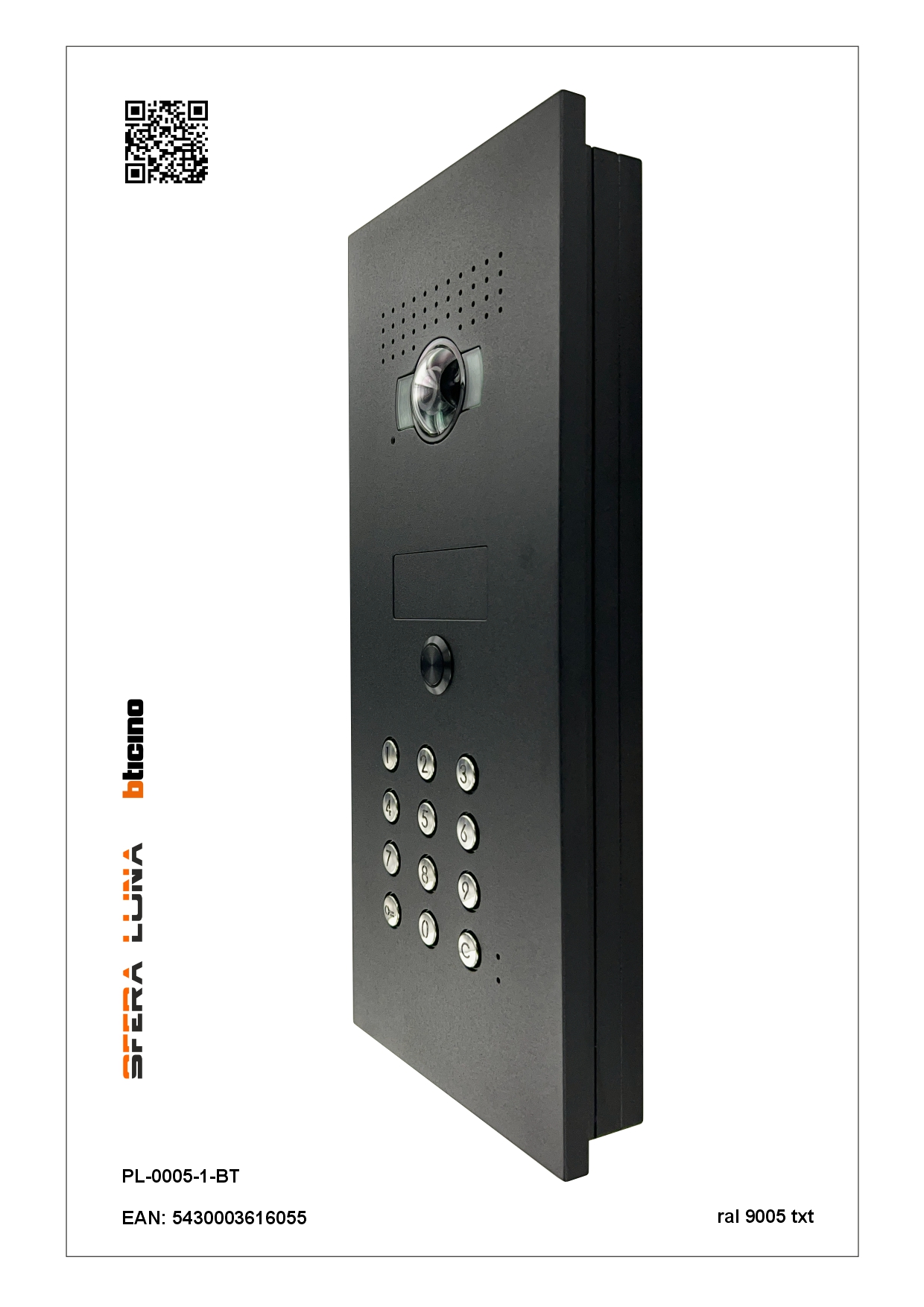

SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino

Product Code : PL-0005-1-BT- EAN: 5430003616055

SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino
SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino SFERA LUNA+1 push button code keypad Video Intercom High-End Bticino
Open orderform Ask a quote

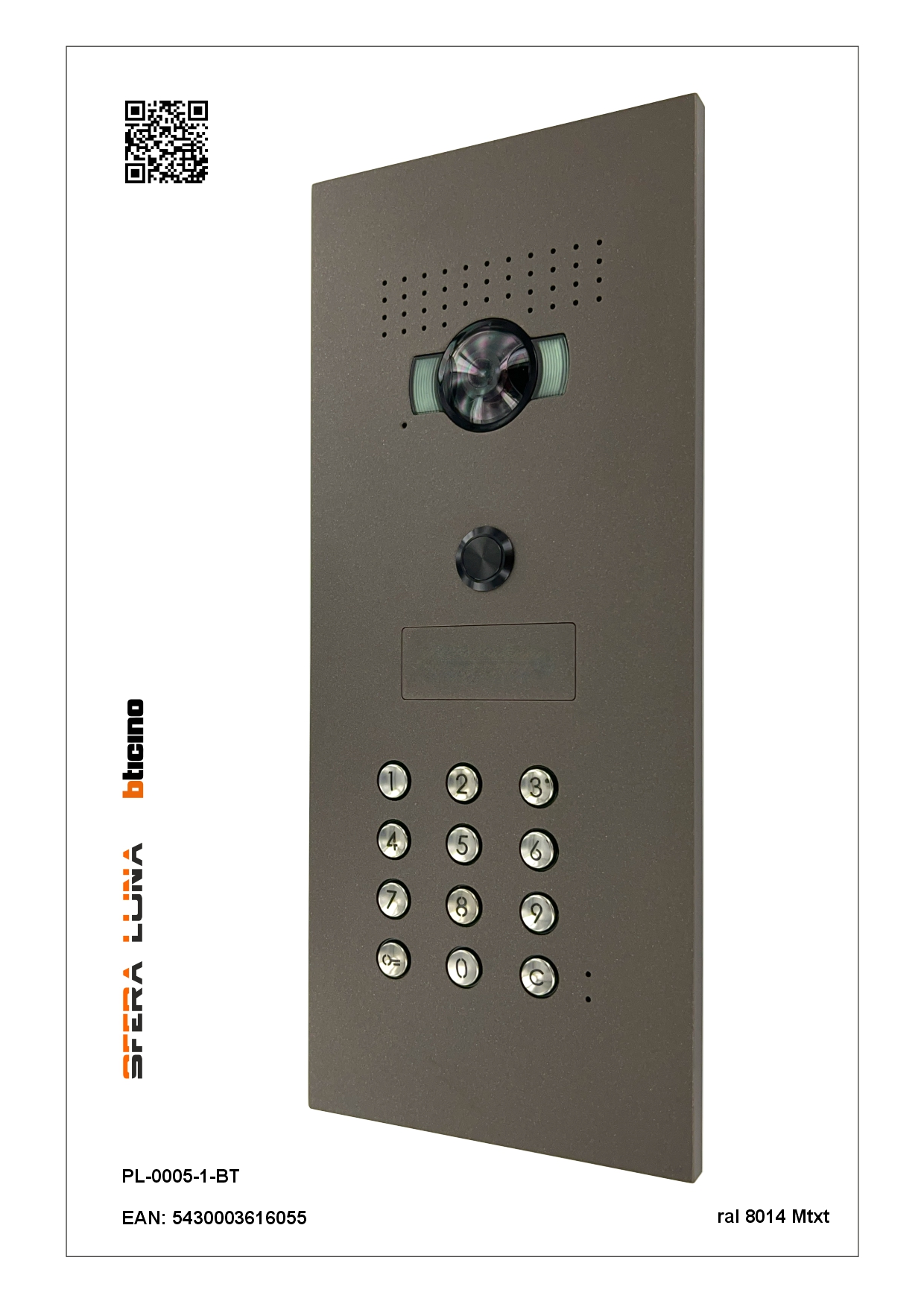

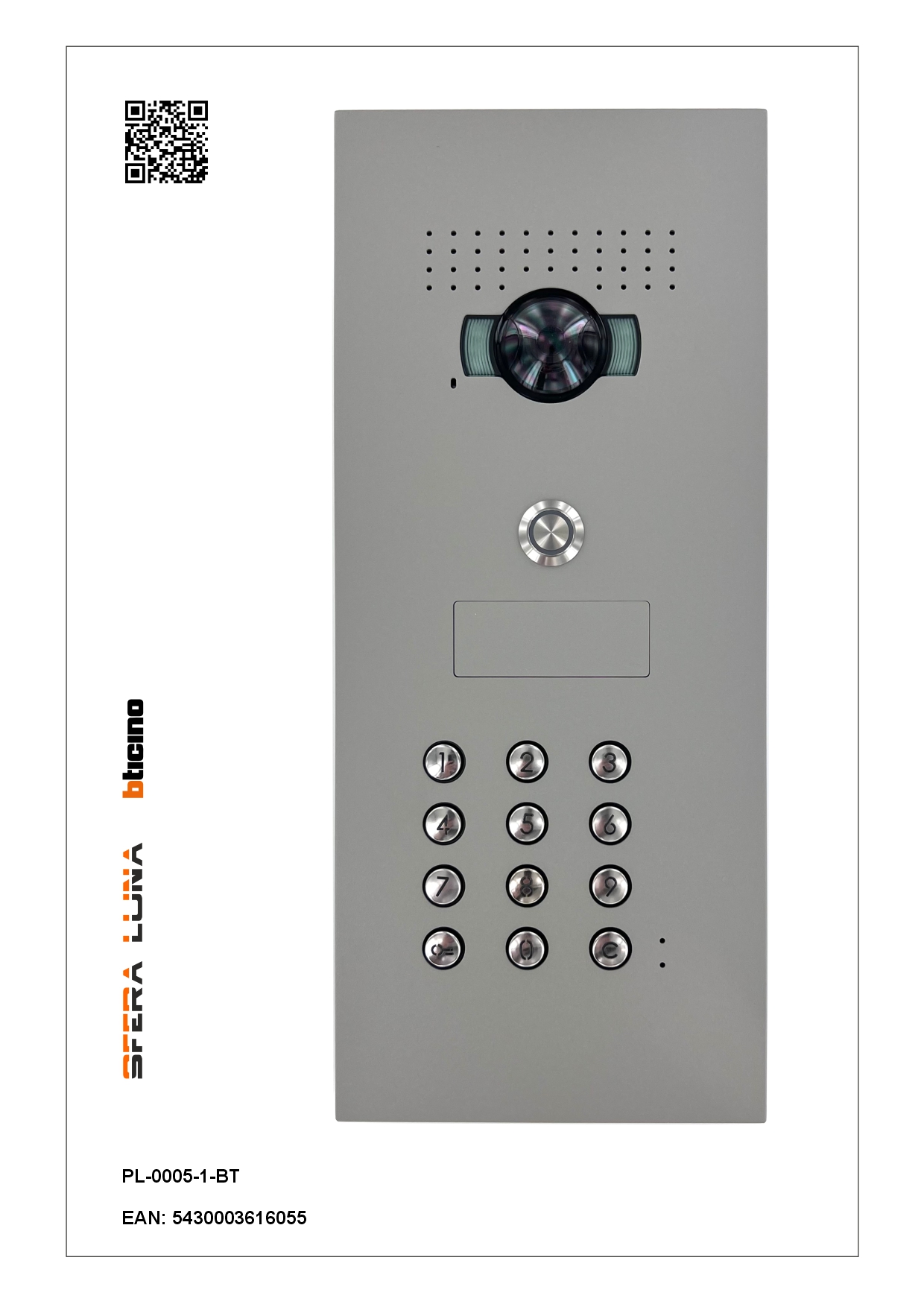

  1. SFERA LUNA front panel video intercom with 1 interchangeable nameplate.

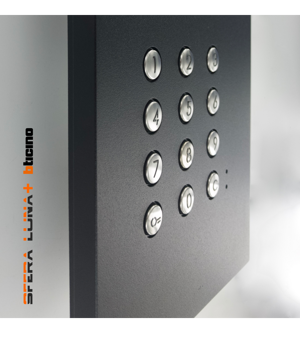

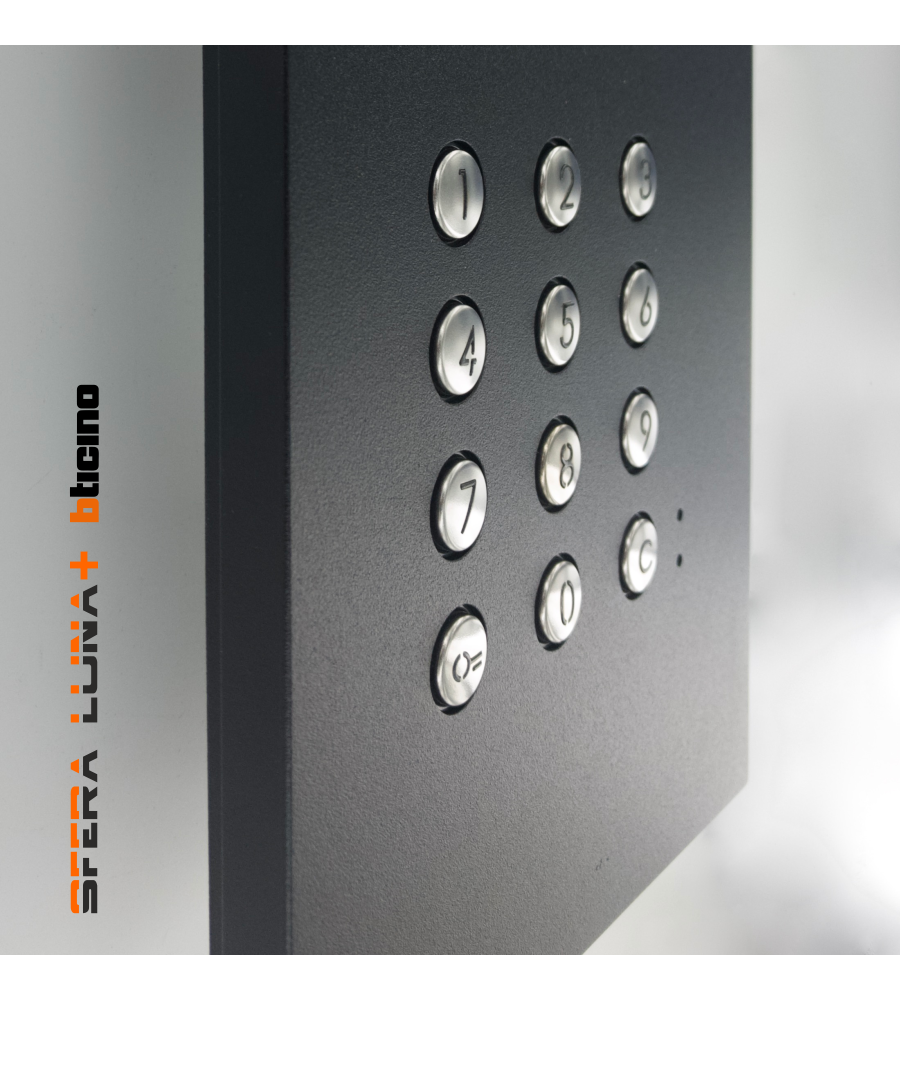

  2. For Bticino 2-wire system audio/video module 351500 wide-angle lens (viewing angle: horizontal 152° - vertical 96°) and code keypad module 353000 (LED lighting)

  3. A sleek and stylish design at the entrance to your home, practice, flat, gate, etc.

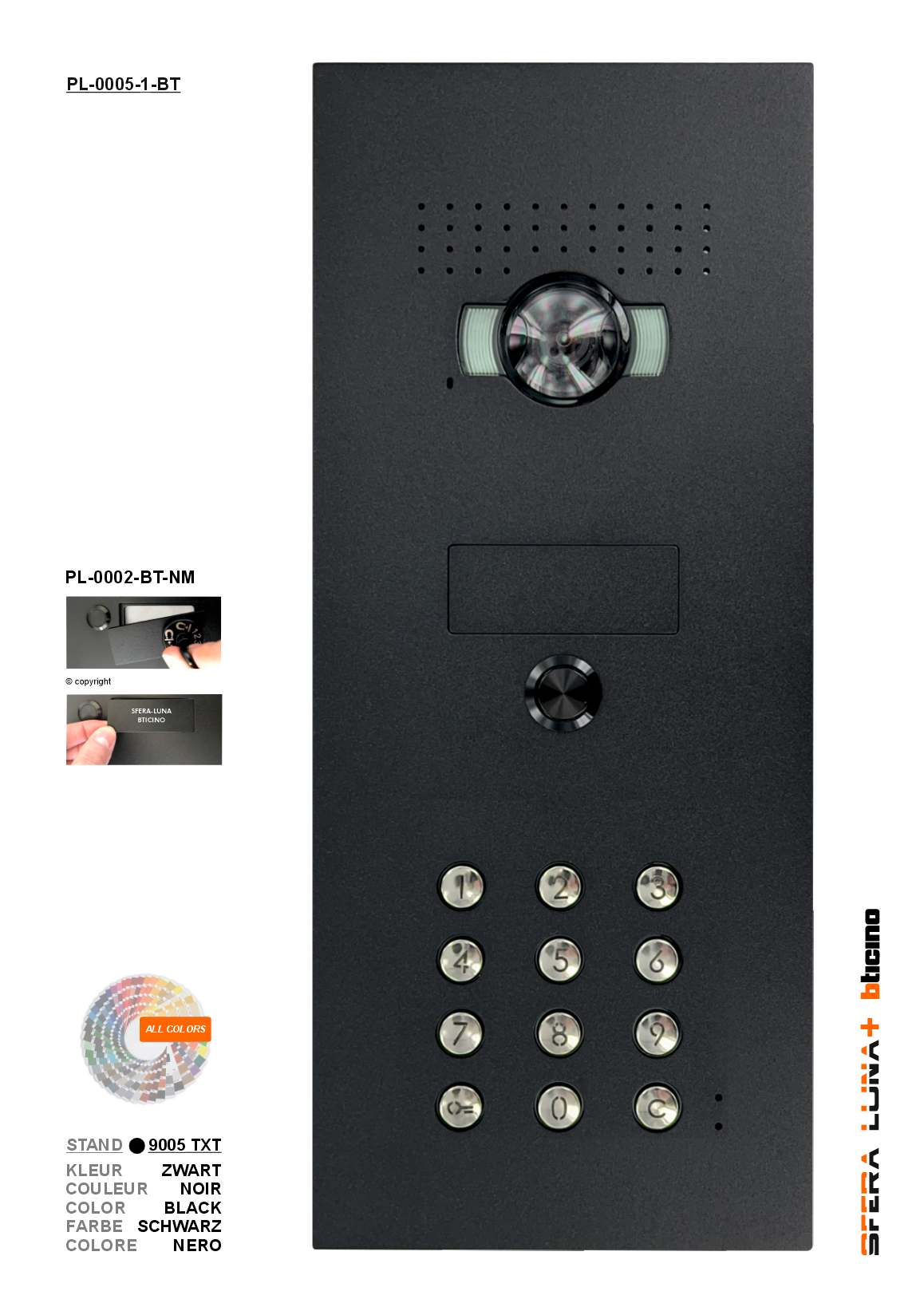

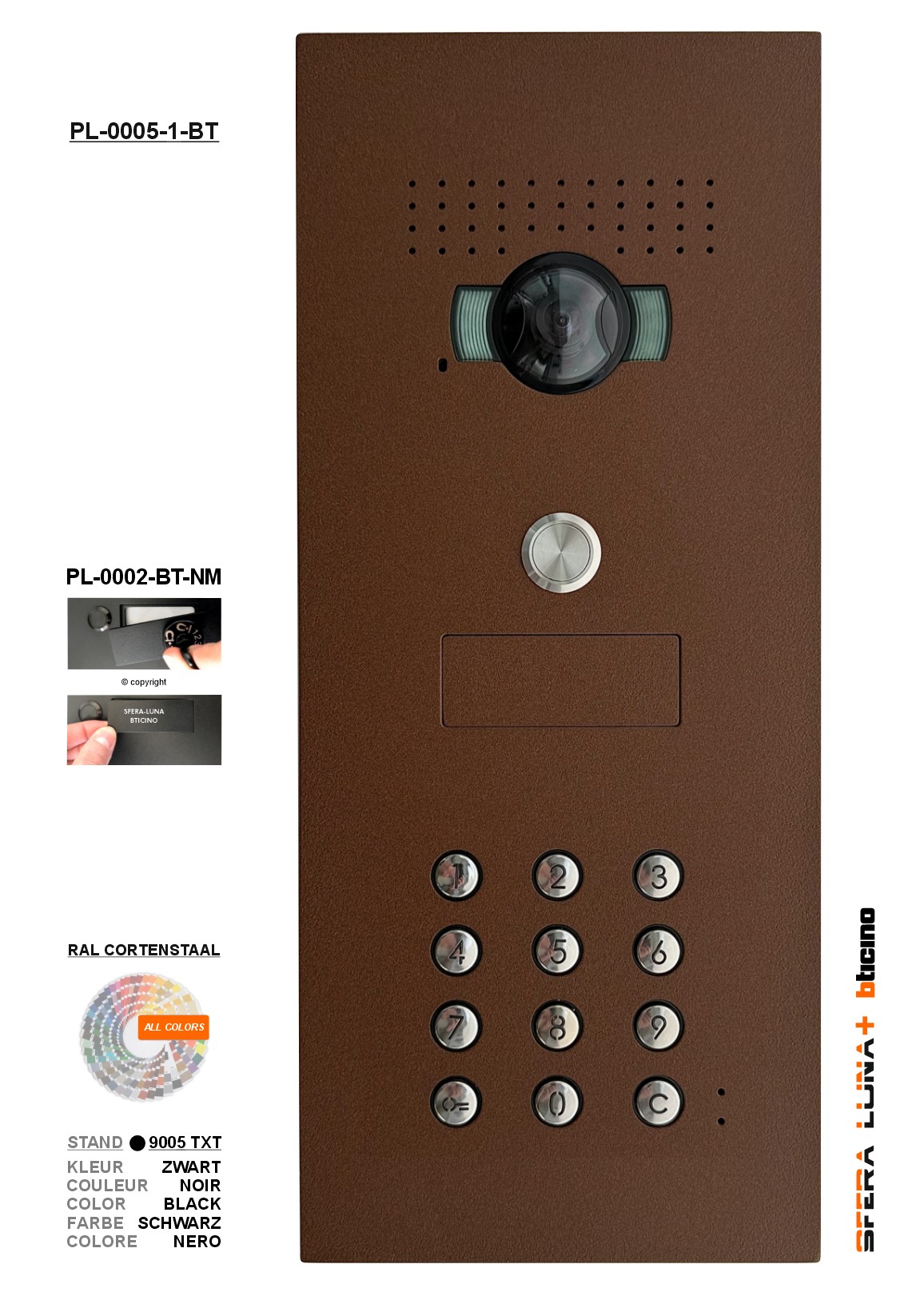

  4. Standard colour of design front panel: black RAL 9005 fine texture, all RAL colours available.

  5. Nameplate with unique and invisible mounting system = always a neat and uniform appearance.

  • Made from 10 mm aluminium, high-end finish.
  • The nameplate or name sign can be personalised when ordering or at a later date.
  • The doorbell button is available in black or stainless steel as standard, with optional LED lighting.
  • Front panel mounting system with invisible screws, blind mounting.
  • Vandal-proof.(IP54 - IK08)

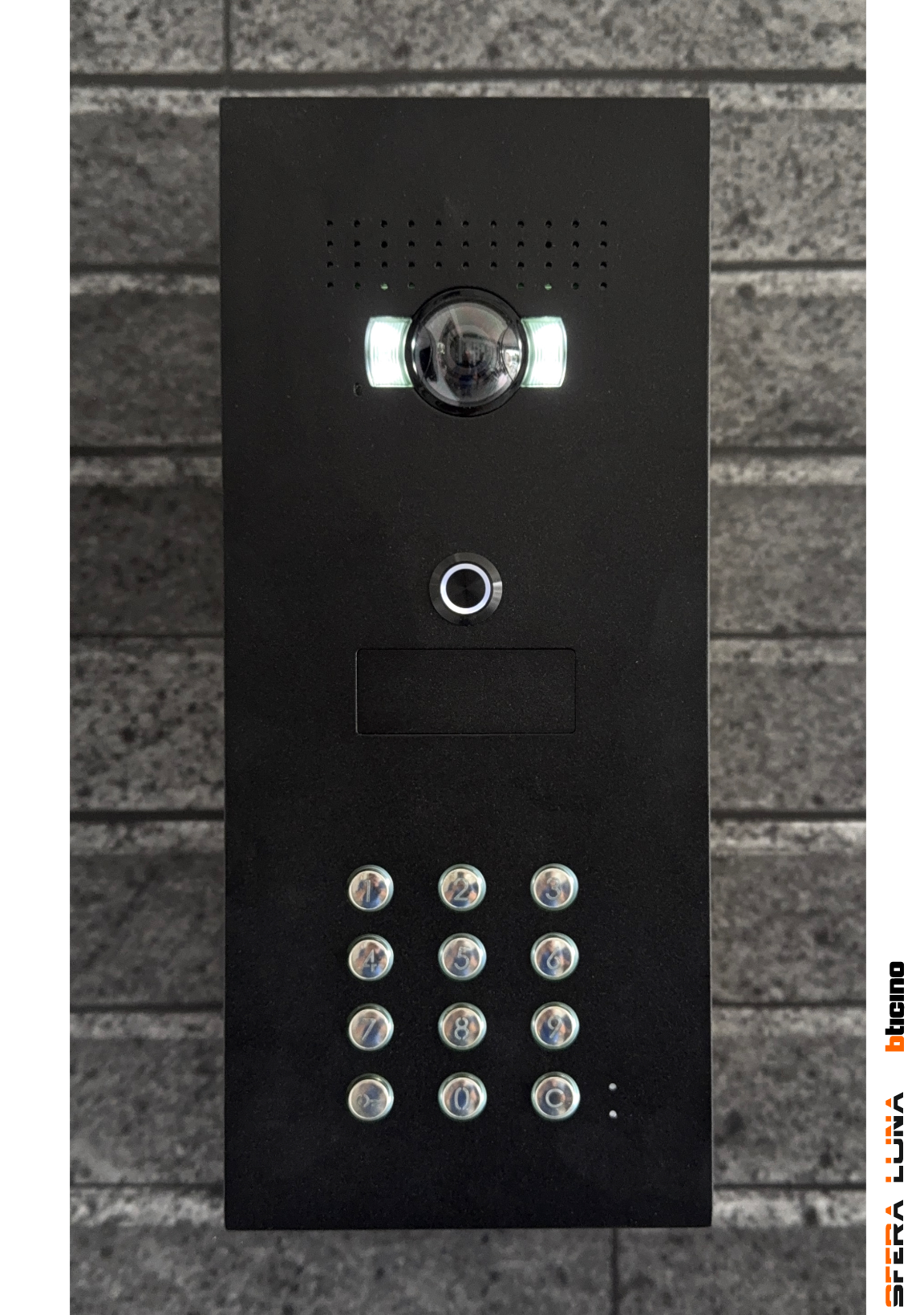

  • Installation options: suitable for mounting on walls, gates, posts, in letterboxes, etc.
  • Thanks to its design, installation in confined spaces is easy.
  • Suitable for installation with the Bticino 350030 flush-mounted box as standard.
  • Optionally also available with surface-mounted box/surface-mounted tray.
  • Optionally available for flush mounting.
  • Finish: durable powder coating – seaside quality for optimal protection against weather influences.


Made in Italy & Belgium, Sfera Luna partner of Legrand Group (copyright model)

 SFERA LUNA BROCHURES

ralkleuren plexi-view All RAL colours available

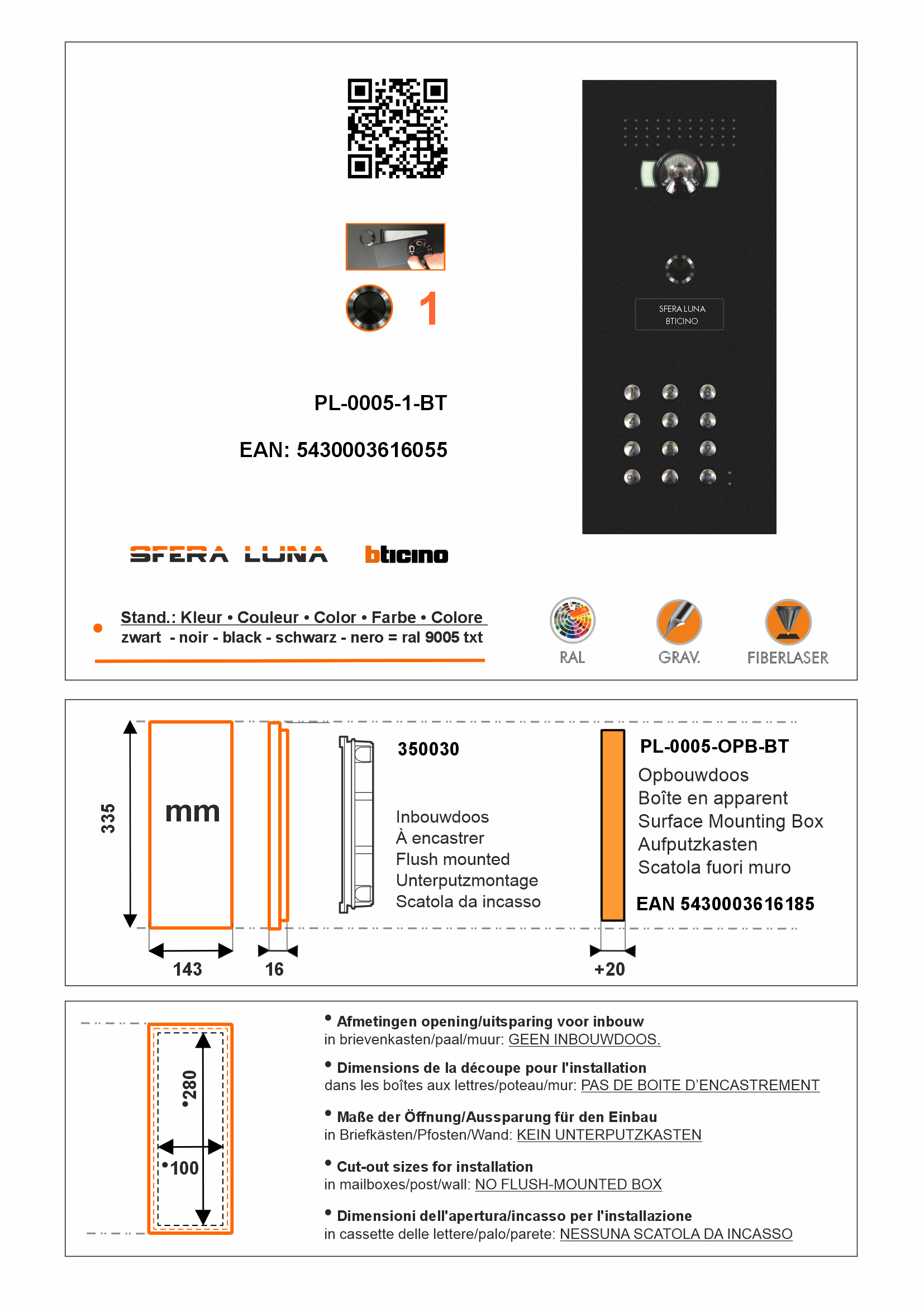

afmetingen plexi-view Dimensions: W 145 mm x H 335 mm

▼ More info

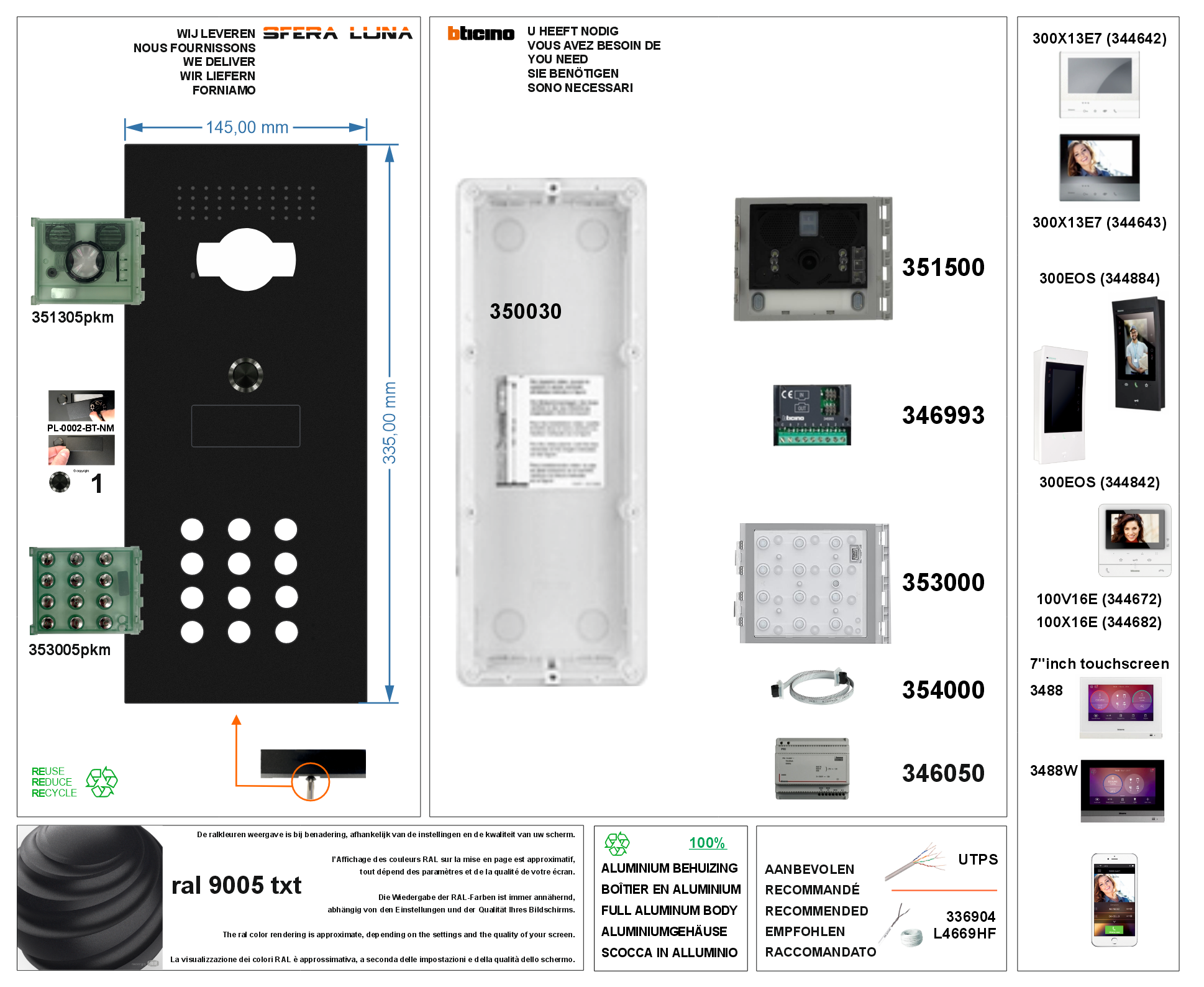

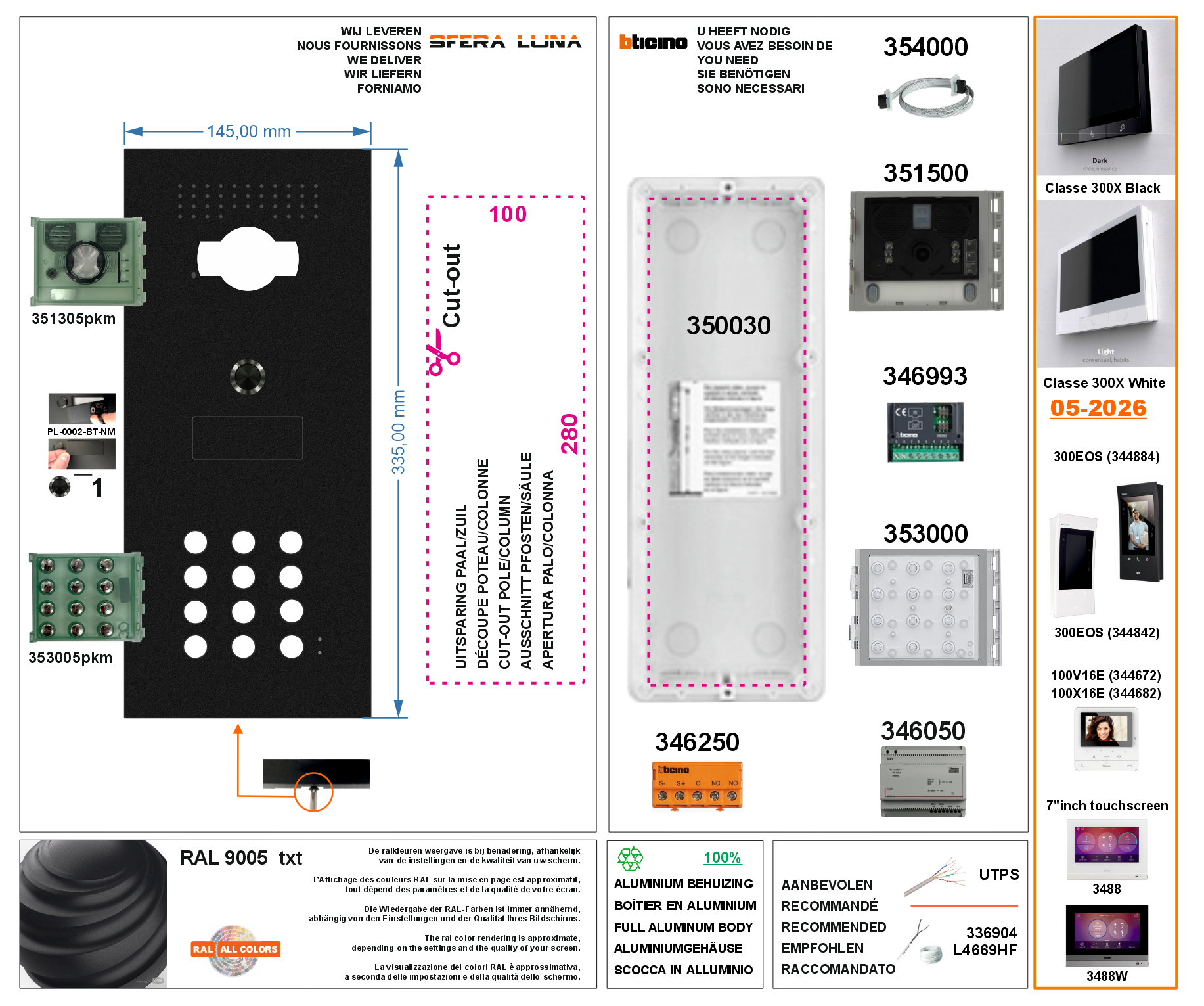

We supply:

  1. Front panel in RAL colour (IP54 – IK08).
  2. Base bracket + screws for mounting on flush-mounted box 350030.
  3. 351305PKM – front plate for audio/video module with wide-angle lens.
  4. 353005PKM – front plate for code keypad module 353000.
  5. 1 bell button/bell push in stainless steel, black or with LED (IP67 – IK08).
  6. 1 interchangeable nameplate/name sign (IP68).
  7. Tool for mounting interchangeable nameplate

You will need (Bticino):

  1. 350030 – Flush-mounted box (3 modules).
  2. 354000 – 620 mm connection cable for functional modules.
  3. 351500 – Audio/video module with wide-angle lens.
  4. 353000 – Code keypad/keyboard module.
  5. 346993 – Sfera interface (up to 8 call buttons).
  6. 346050 – Power supply(ies).
  7. Compatible with all Bticino indoor stations.

Preferably use twisted cable Bticino REF 336904 or UTP5 for the connection.

These Bticino components are available:

Through wholesalers
Through your installer or electrician:  https://www.bticino.be/nl/professionals/bt-certified-expert
Through stores:  https://www.bticino.be/nl/stores

 Create your personal video intercom with our editor order form.

  • Combine your colour combination(s) to create an original concept!
  • Real-time display. The display will be continuously optimised by our

 Aluminium, the green metal:

Aluminium can be recycled almost indefinitely without losing its unique properties. Remelting not only recovers metal, but also saves 95% of energy by definition. The ore is very easy to extract: it is simply dug up from the surface. After barely fifteen years, nature has recovered.

Made in Italy & Belgium, copyright model.
