Video Parlofonie High-End Sfera Luna PURE Bticino

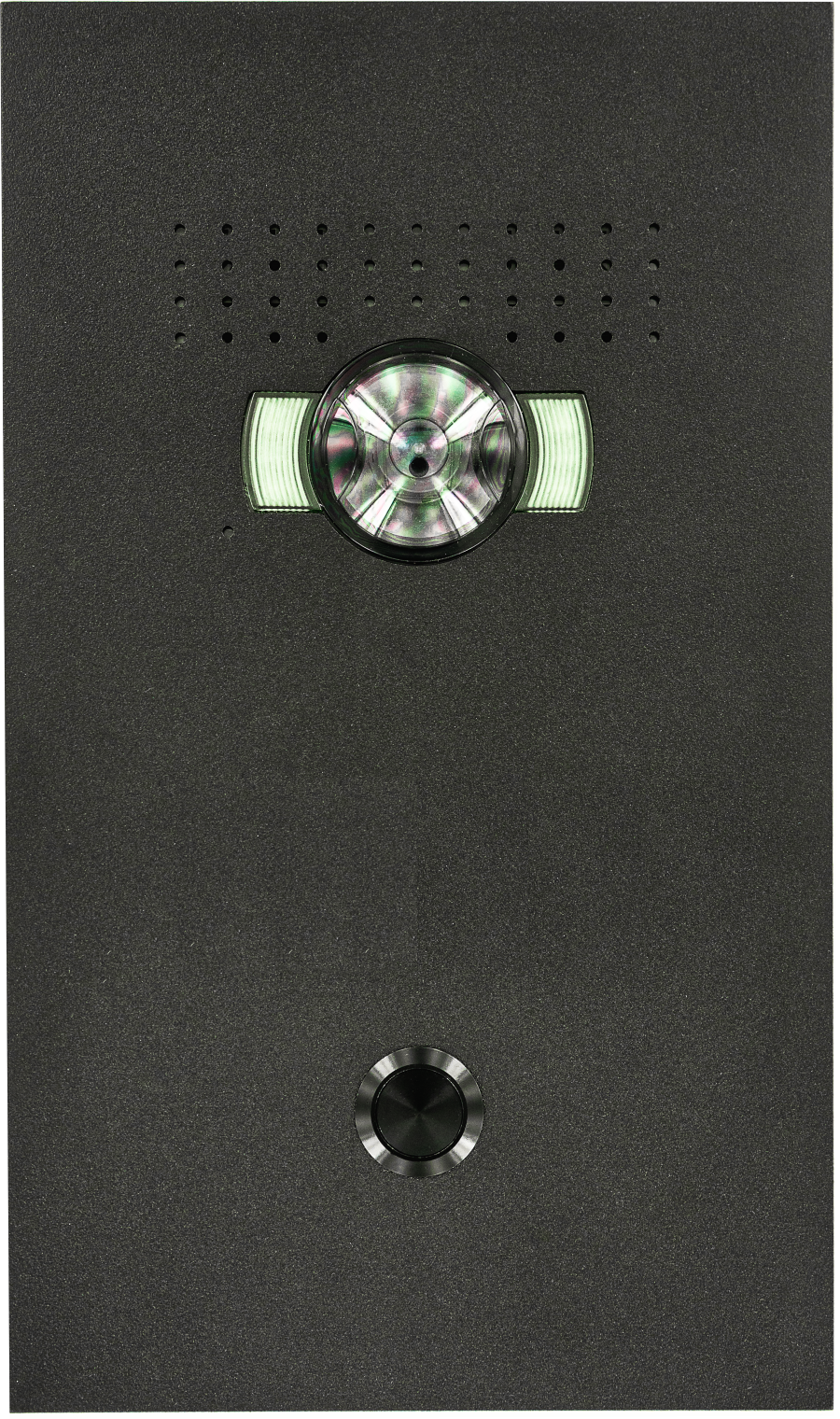

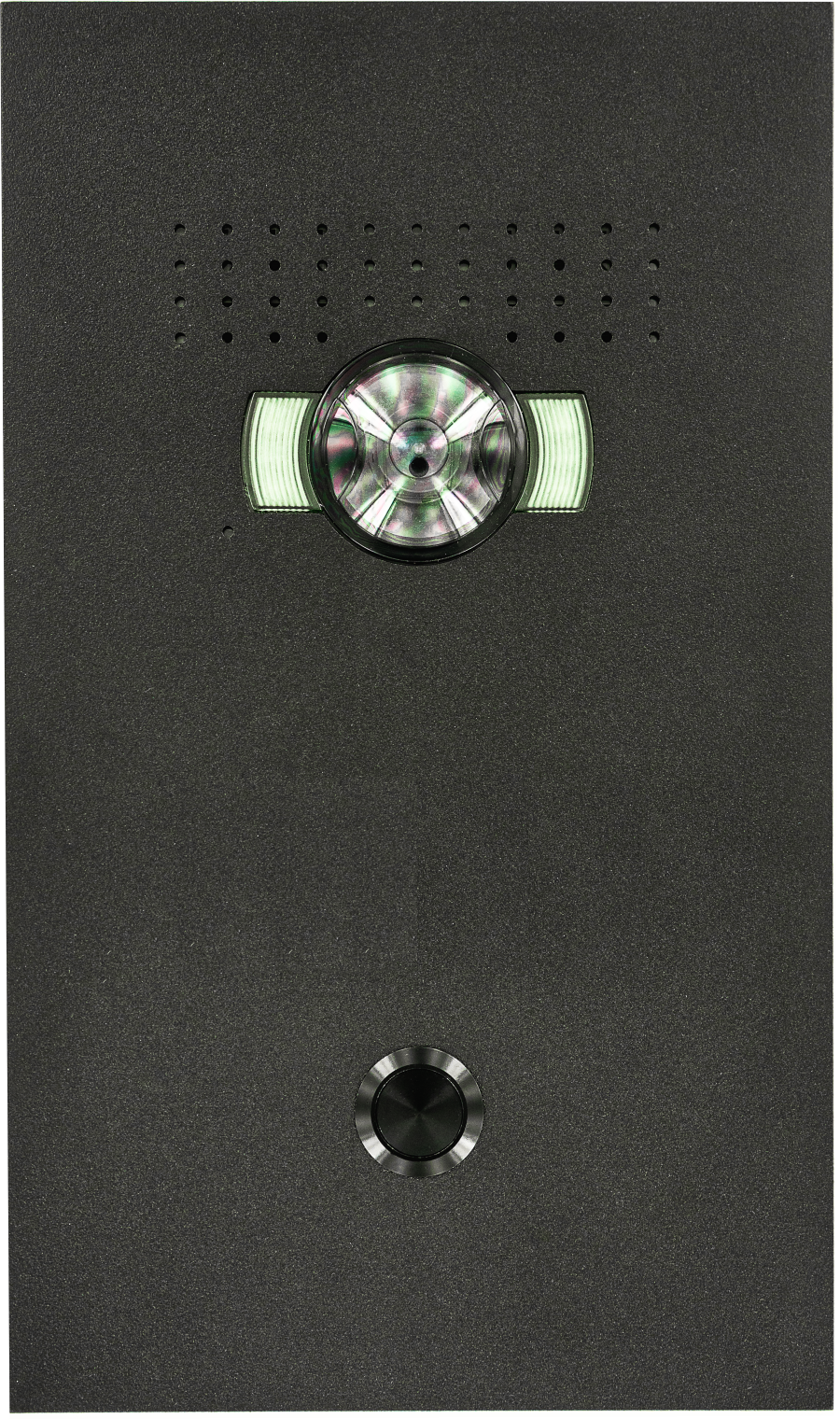

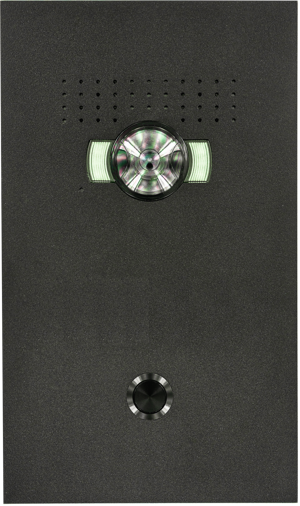

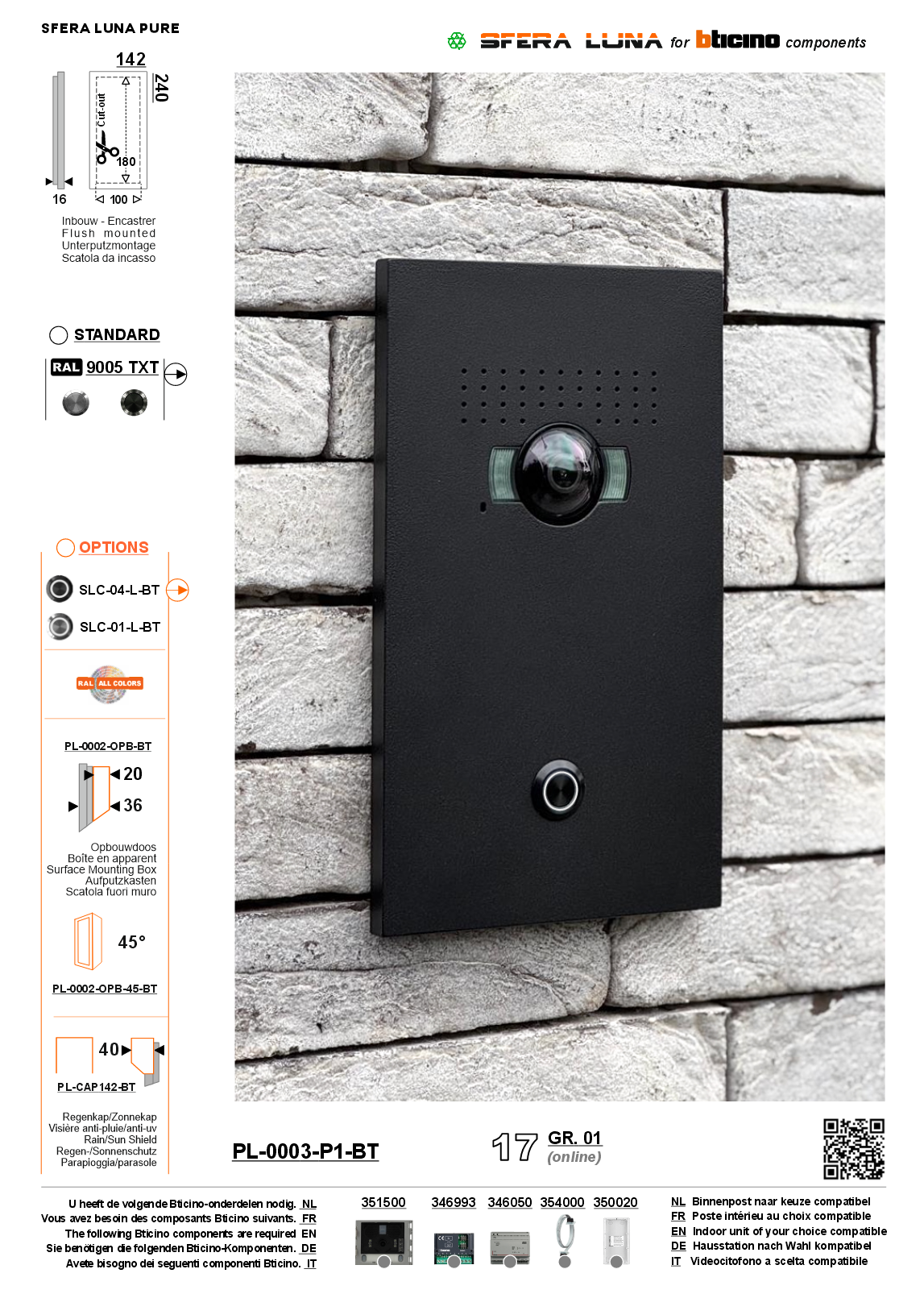

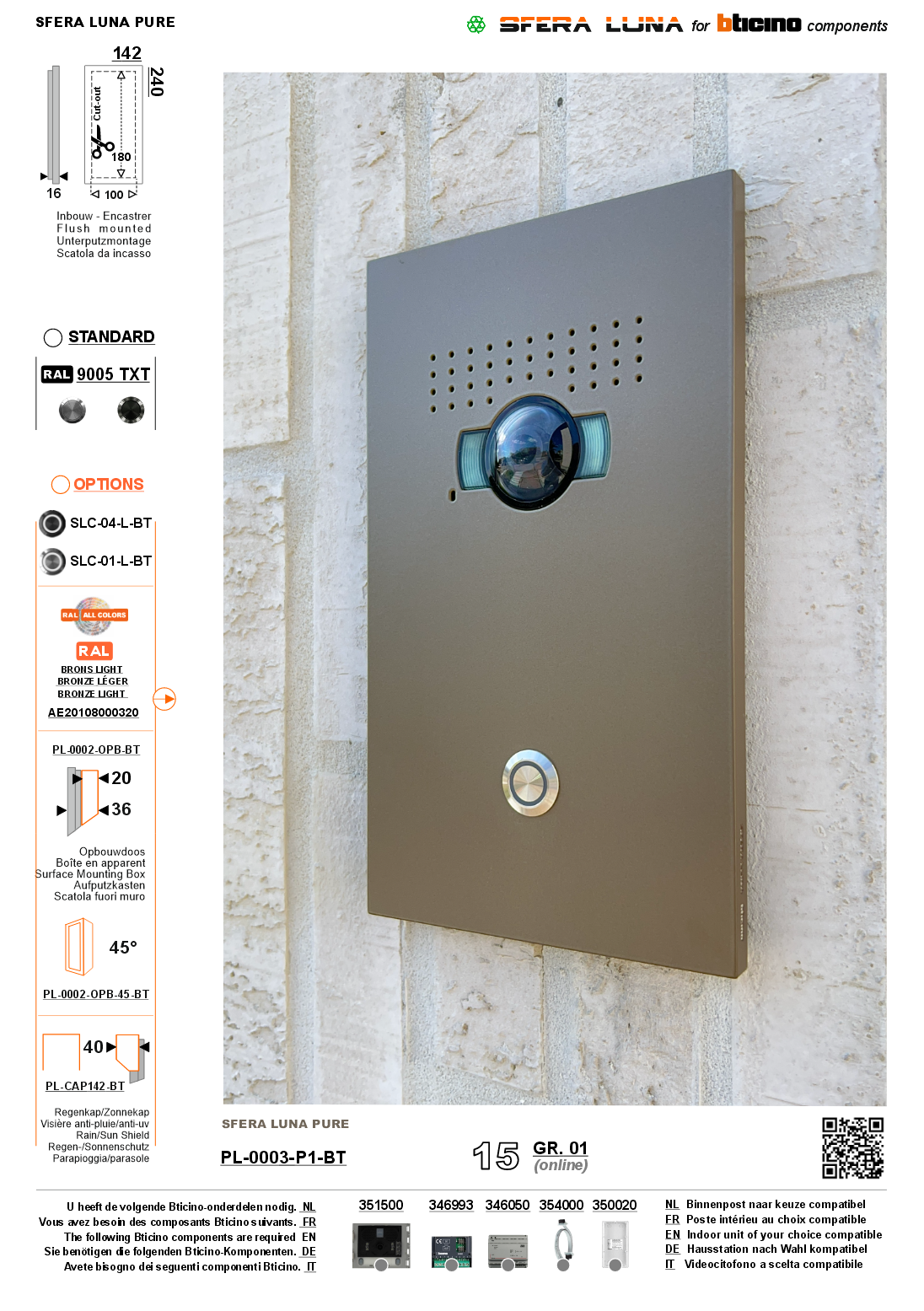

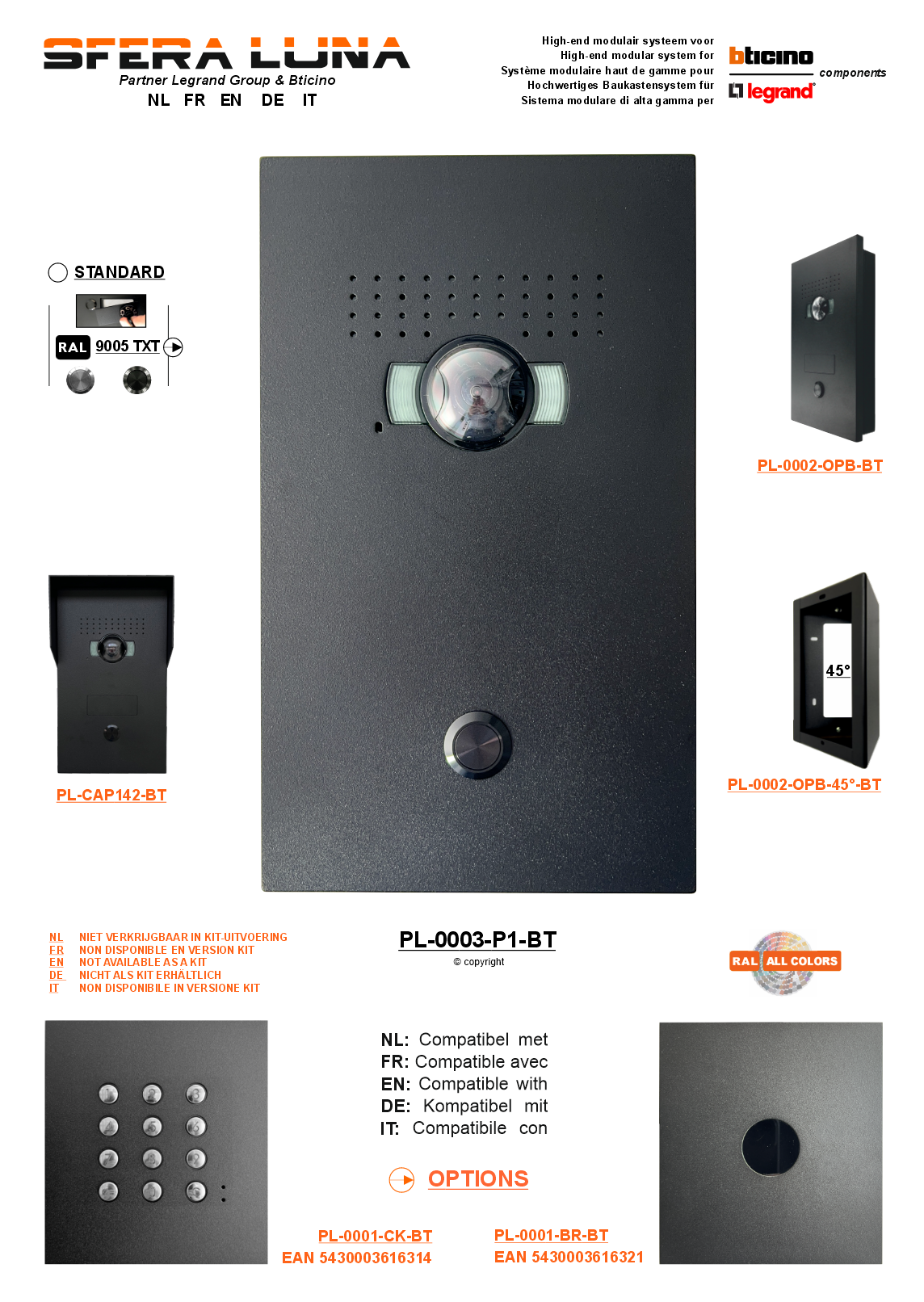

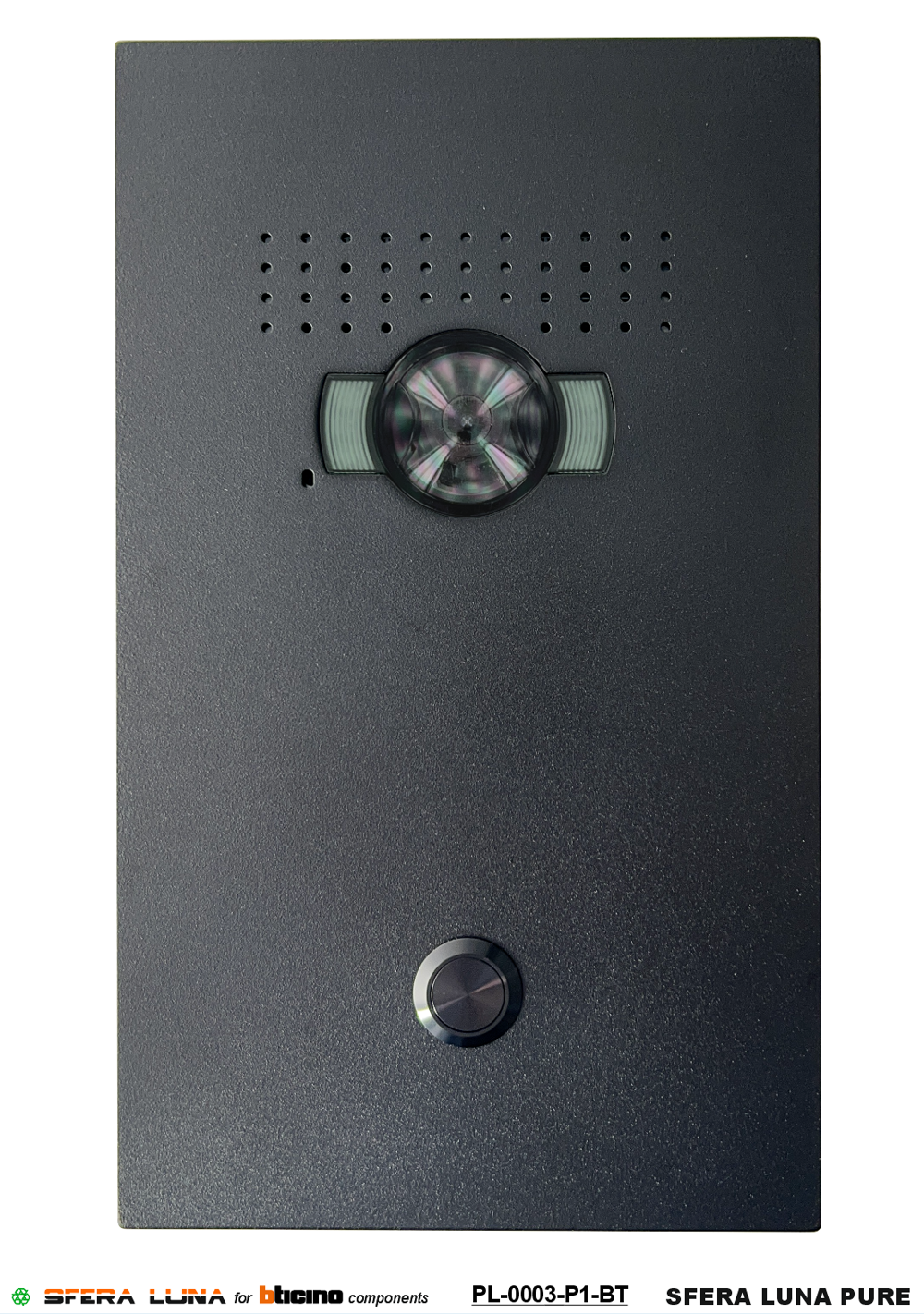

Videophone front panel in its most sleek look : SFERA LUNA PURE

For Biticino wide angle audio/video 351300 viewing angle: horizontal 135°- vertical 96°

Design front panel as standard in colour black ral 9005 fine texture.

LUNA PURE is available in all ral colors, matching the color of your residence or project.

• Produced in 10mm aluminium, High End, Solid finishing.

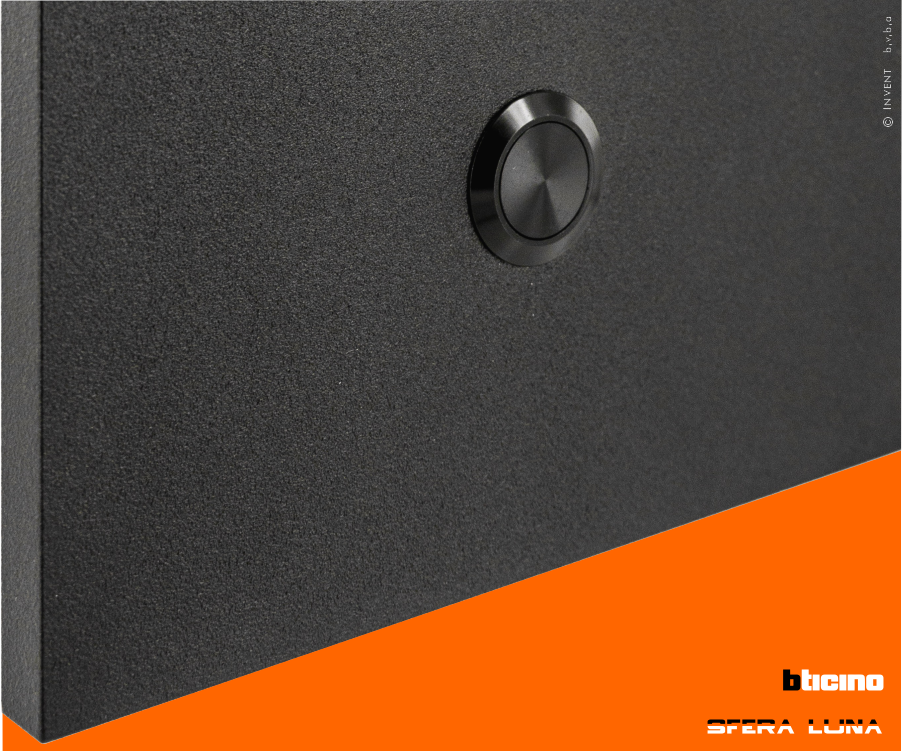

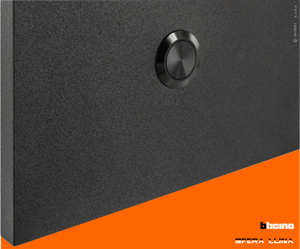

• 1 call pushbutton (stainless steel or black or led lighted)
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.

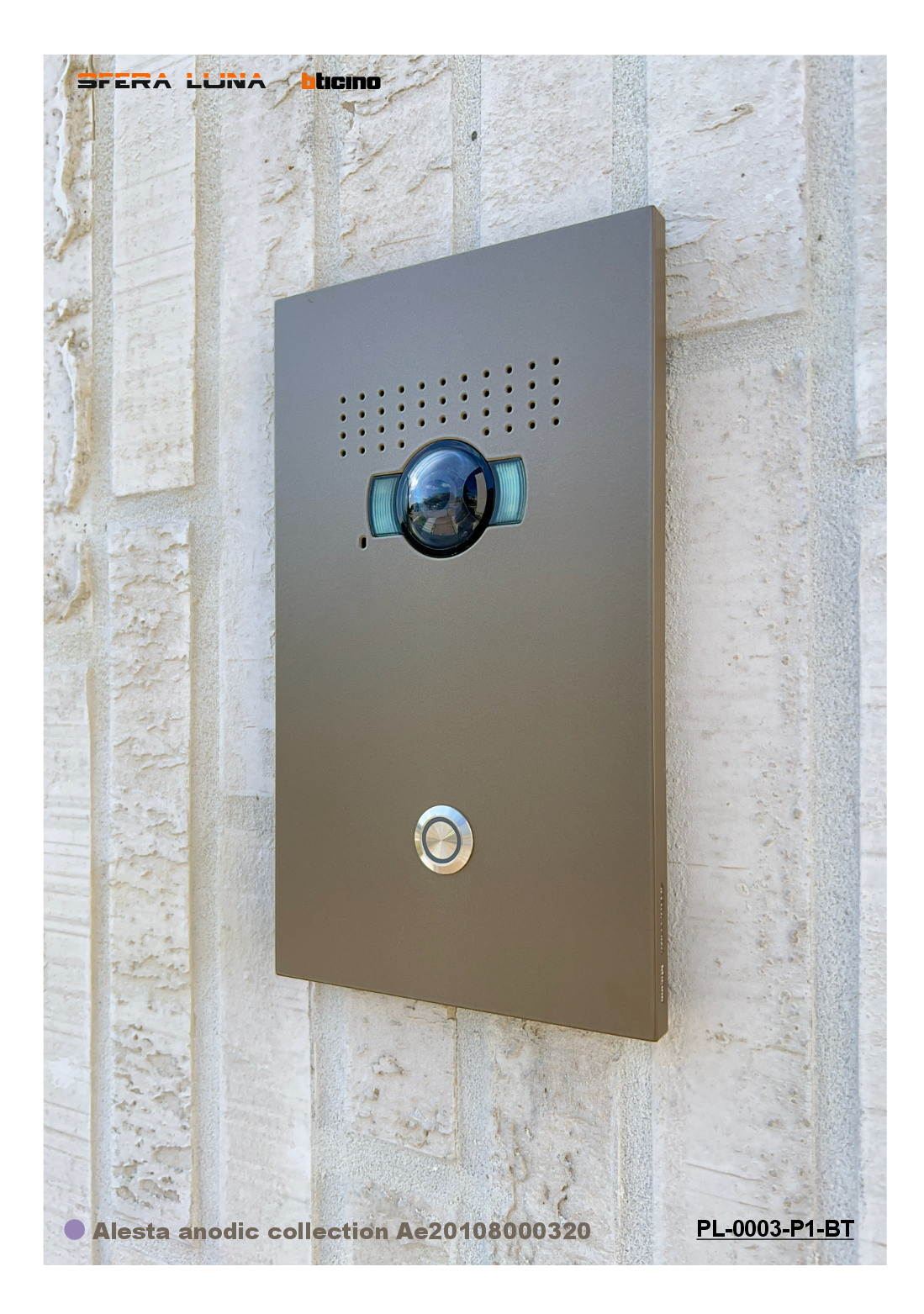

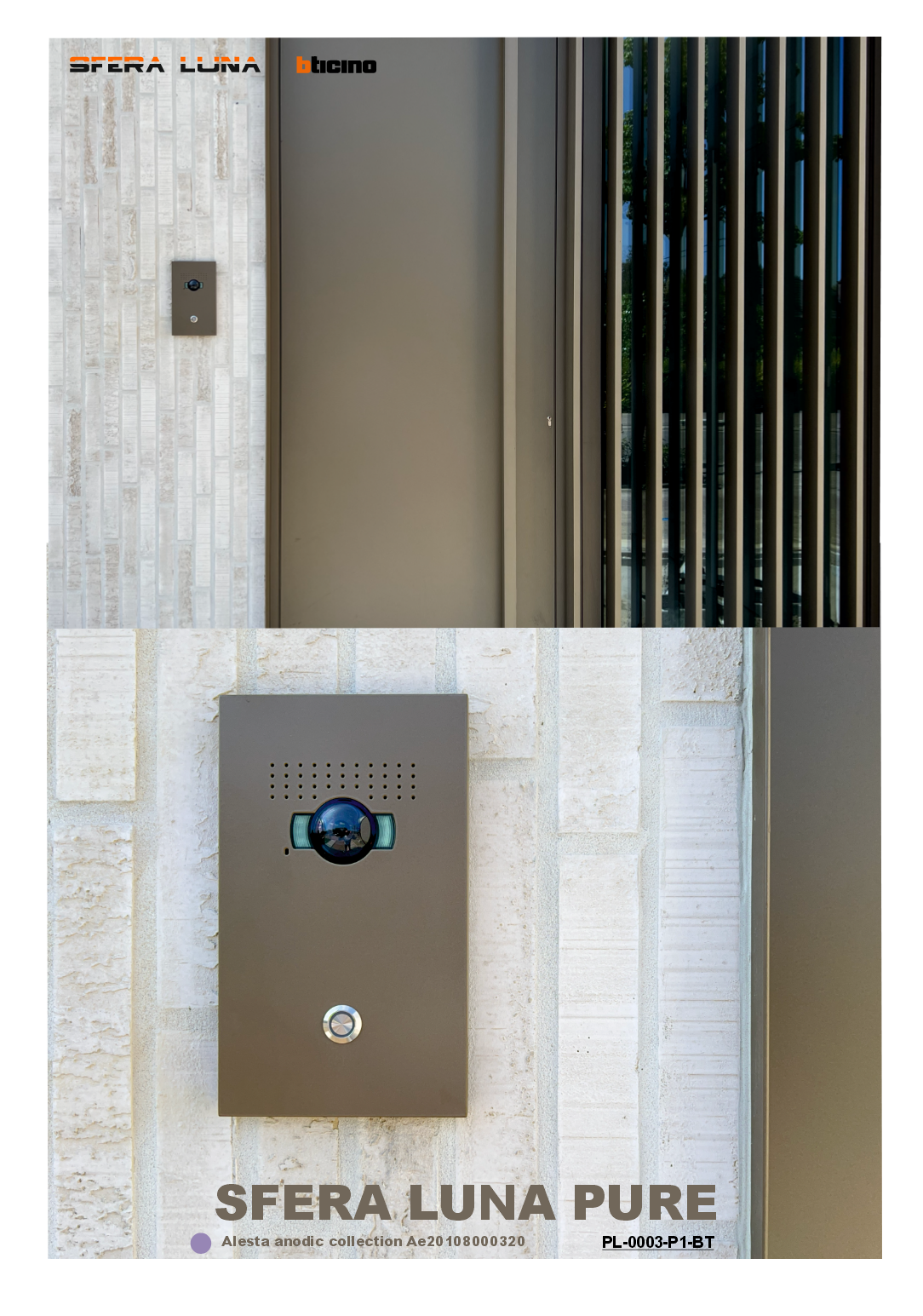

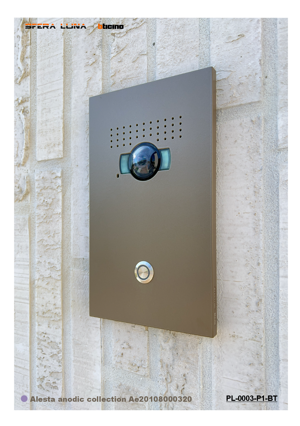

• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Easy installation in narrow environments.
• Flush mounting on standard box Legrand 35020
• Also available with surface-mounted module.
• Positioning spirit level with oblong holes

Sfera Luna, partner of the Legrand Group (copyright model)

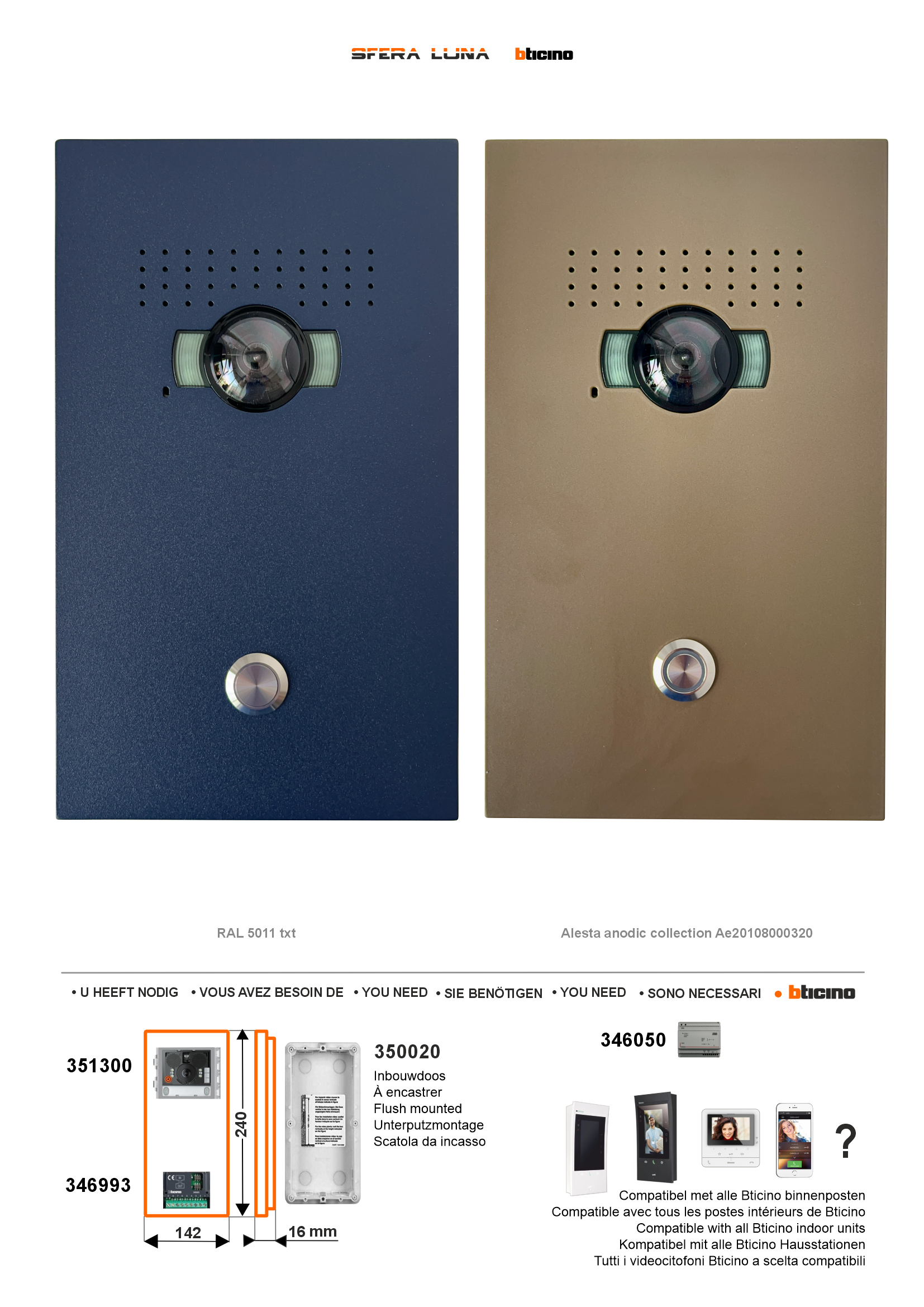

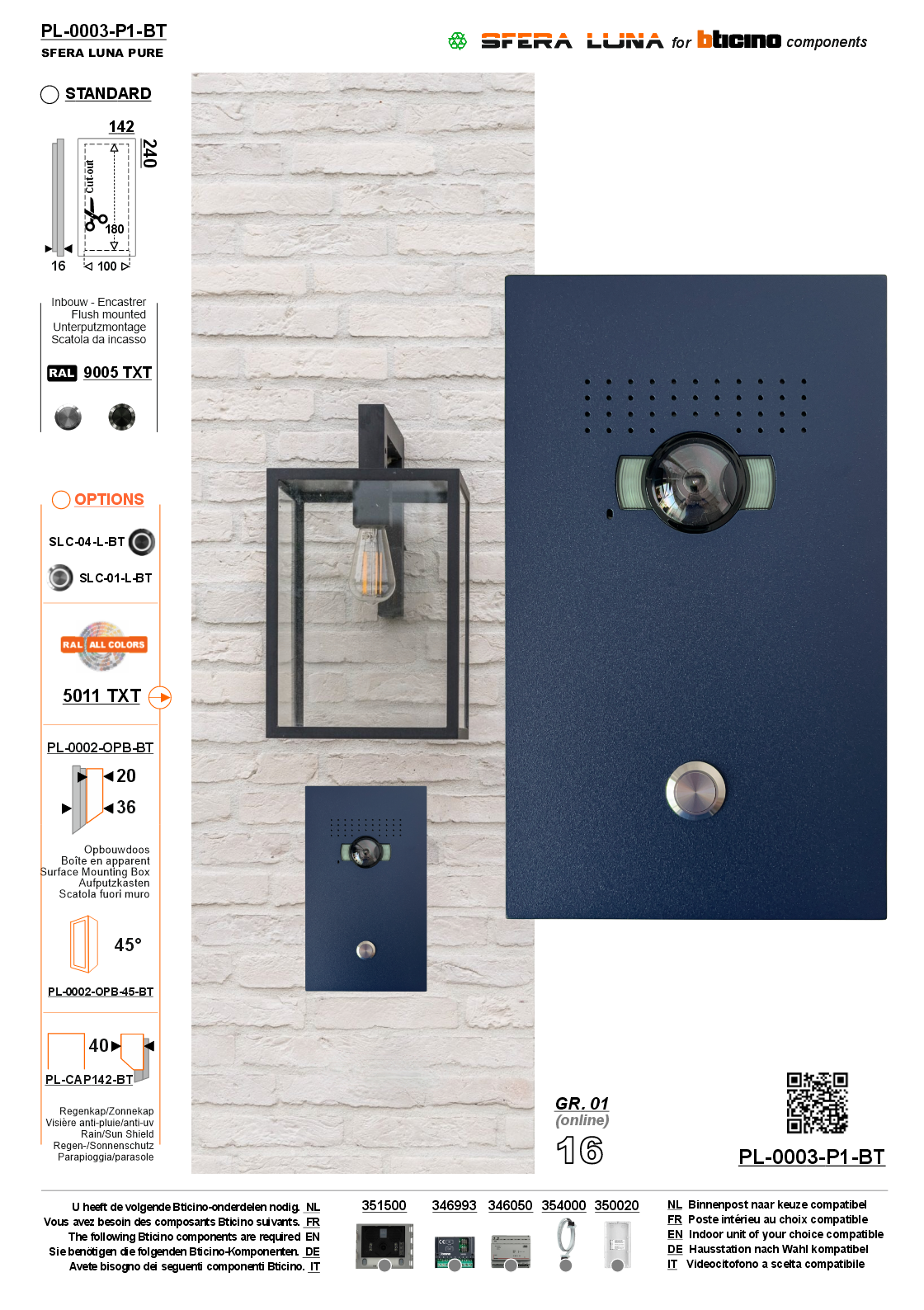

 All Ral colours available

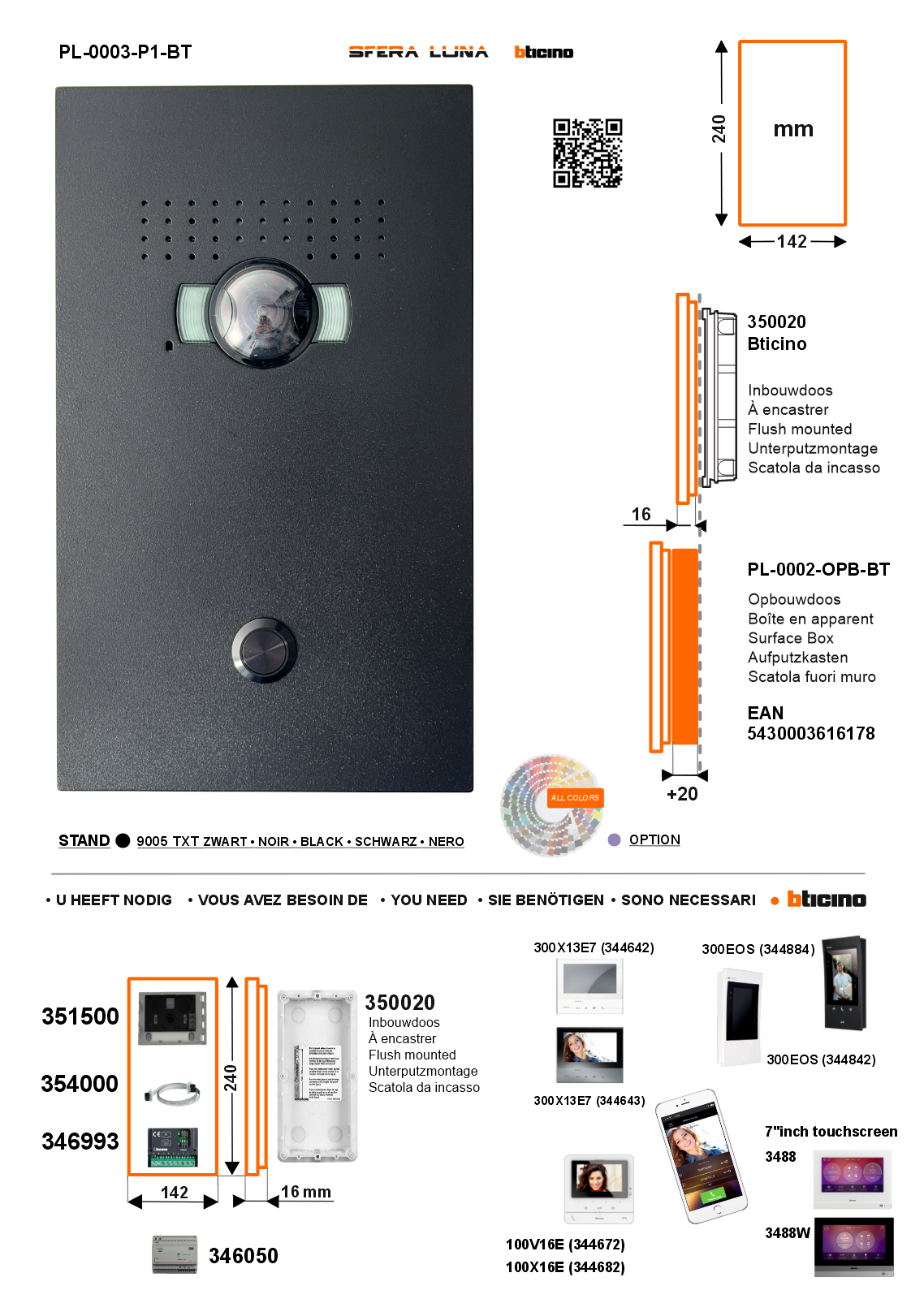

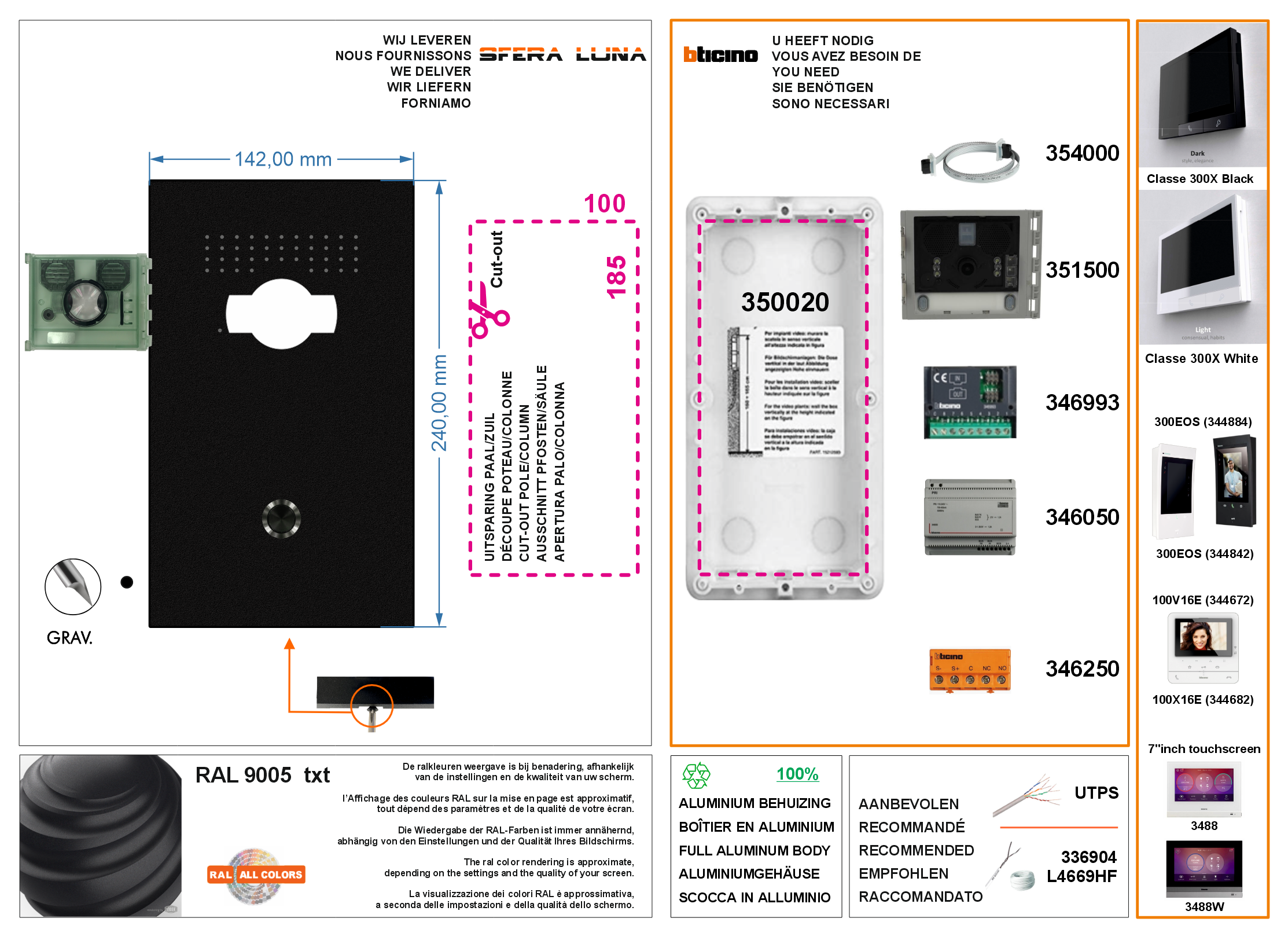

Dimensions: width 142mm x height 240mm

• for 350020 AVT - flush-mounting box 2 modules
•

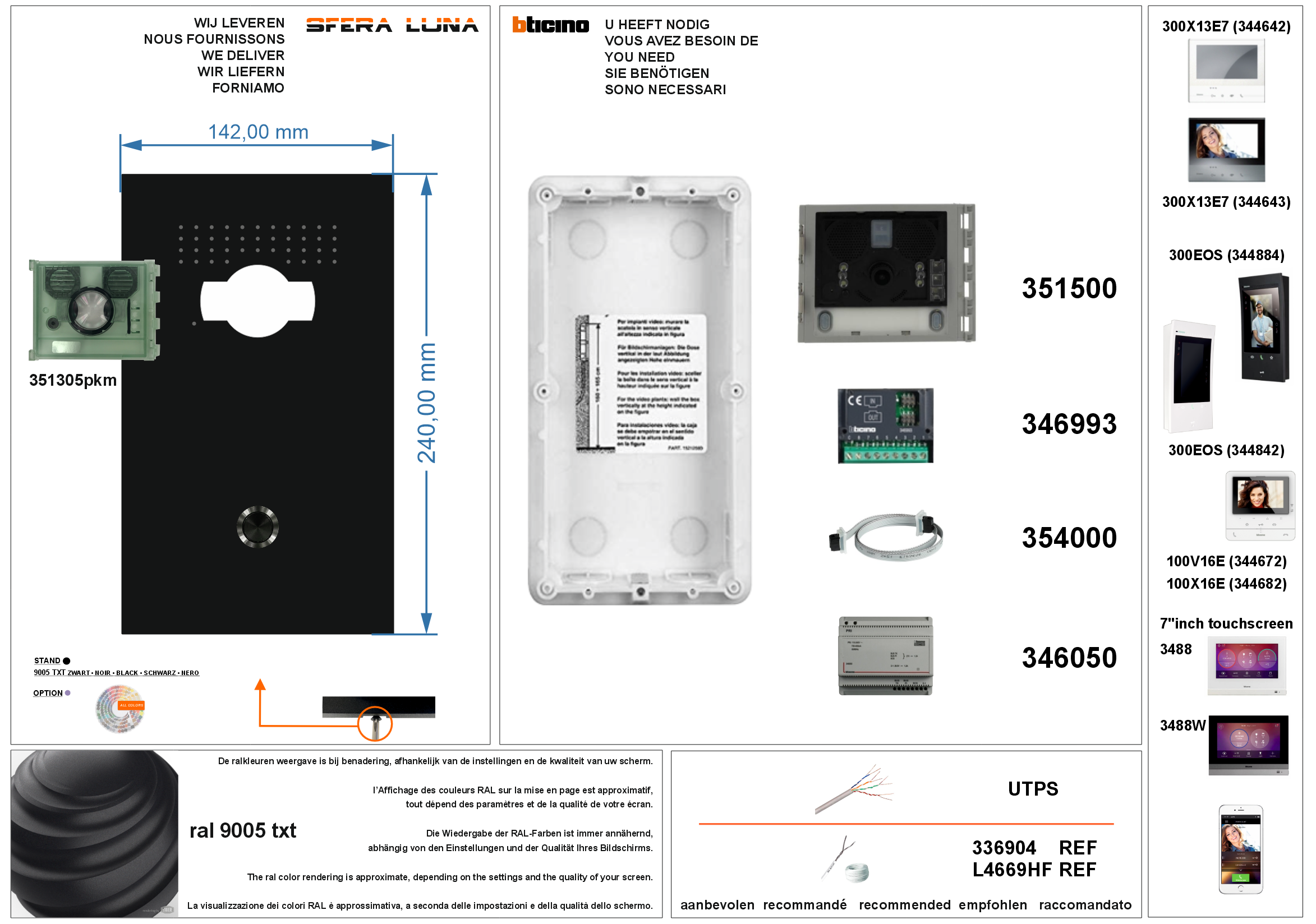

We supply :

1. Front panel in ral color.
2. Basic bracket for mounting on AVT flush-mounting box 350020
3. Screws for mounting on flush-mounting boxes
4. 351305pkm - Plexiglas for module 351300 AVT
5. 1 doorbell button (stainless steel or black or led lighted)

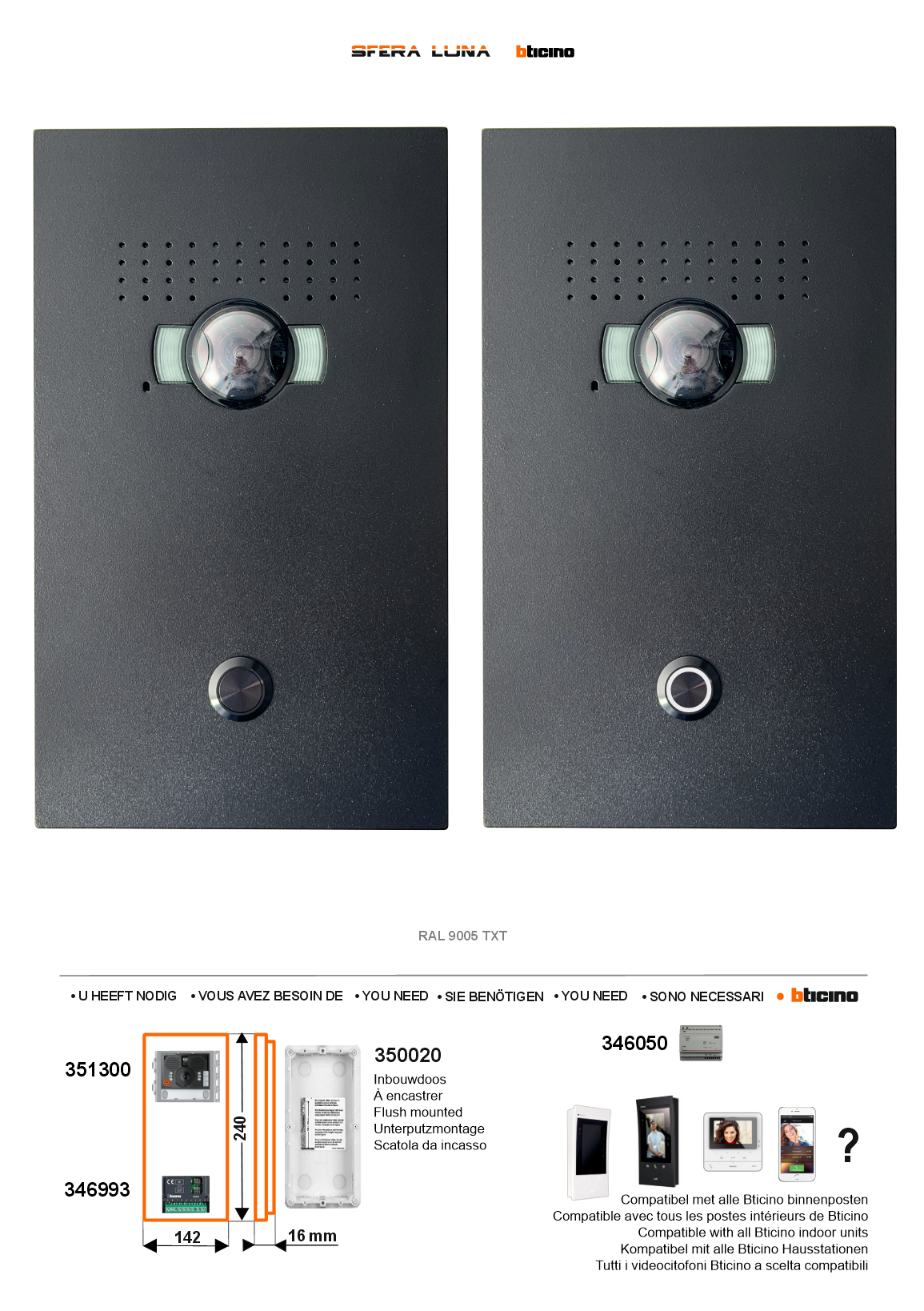

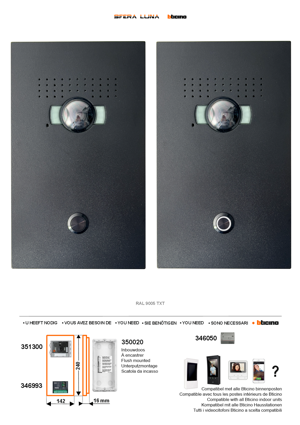

You need :

• 350020 AVT - flush-mounted box 2 modules
• 351300 AVT - Audio/video module with wide-angle lens
• 346993 Interface Sfera

• 346050 AVT - Power supply
• Compatible with all bTicino Indoor units : AVT-Class 100X16E  or AVT Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna, partner of the Legrand Group (copyright model).
